IPGS-2608AU

IPGS-2608AU

Product Overview


IPGS-2608AU industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

IPGS-2608AU delivers 6 (10M/100M/1G) RJ45 with 4 UPoE (Support 802.3 at/af/UPoE, and total up to 240W) ports, 2 GbE SFP ports and RJ45 console port. IPGS-2608AU provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-2608AU is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features Customer Benefits
Comprehensive L2 Support Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster
Rapid Ring Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data-all in a recovery time of less than 20 ms
Dual DC Power Input Power failover when power supplies are connected to different circuits reducing network operating risk

Product Specification

MODEL NAME IPGS-2608AU
Product Description 8 ports GbE Industrial L2+ Managed Ethernet UPoE Switch

Port Configuration

10M/100M/1G RJ45 Port
6
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
RJ45
Total Ports
8

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)
PoE Port
4
Available PoE Power
240W

HW Performance

Switching Bandwidth
16Gbps
Forwarding Performance
11.904Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
-40°C to 75°C
Operating Humidity
5 to 95% RH
Storage Temperature
-40°C to 85°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
62 x 135 x 130
Weight
< 1.0 Kg
FAN Less

Power Source

AC Input
DC Input
48 ~ 57 VDC
Dual Input
Dual DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
Auto-Checking
Power Delay
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Carrier Ethernet

SyncE
1588v2 PTP
1588v2 PTP (stratum3)
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

IPGS-2608AU Industrial L2+ Managed GbE Switch


IPGS-2608AU industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

IPGS-2608AU delivers 6 (10M/100M/1G) RJ45 with 4 UPoE (Support 802.3 at/af/UPoE, and total up to 240W) ports, 2 GbE SFP ports and RJ45 console port. IPGS-2608AU provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-2608AU is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Rapid Ring (R-Ring)
  2. Built in Device Management System (DMS)
  3. iPush APP for real time alarm notification
  4. DHCP Server
  5. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  6. IEEE 802.3af/at Power over Ethernet
  7. IPv4/IPv6 L3 static route
  8. EtherNet/IP (by request)
  9. PROFINET (by request)

Benefits


  • Feature-rich Specifications to Support Various Applications


    The switch deliver extensive industrial grade functionalities, including R-Ring. It also have enhanced L2/L3 features for better manageability and usability.
    It provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, it can even provides power with up to 38W per port.
    It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.

  • Easy to Install Configure and Troubleshoot by Device Management System


    SThe DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.

  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

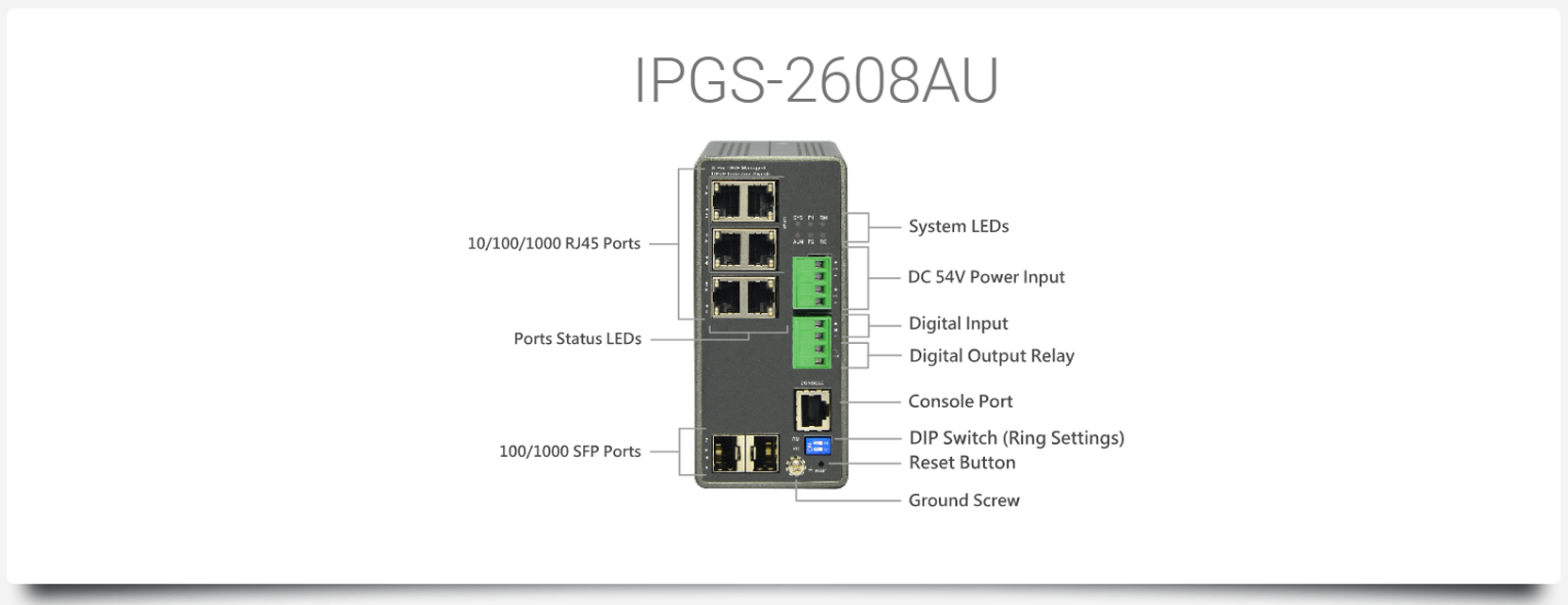

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Ring Mgmt. DI/DO
8 6 2 SFP RJ45 DIP 1/1

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000

Dimension, Weights, Mounting

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
62x 135x 130 2.4x 5.3x 5.1 < 1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply – DC Input Voltage
DC Nominal 54 VDC dual inputs
DC Operating Range 48 to 57 VDC
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
  • Required >54 VDC for UPoE (Max. 60W) output

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W)
240W Each of port 1 – 4 support PoE/ PoE+ within available PoE Power
( per port 38W by request )

Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 for RJ45 Port,(Surge 6KV), EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search and manage your real switches quickly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
  • Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Industrial Protocols (by Request)
EtherNet/IP EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol.
PROFINET It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope.
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 6 groups and up to 4 ports per group
VLAN
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:

  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
Dying Gasp Support Dying Gasp notification on loss of Power
HW Monitoring Temperature Detection and Alarm
HW Watchdog Supported to resume operation from CPU hang up
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol)
iPush
  • The real time alarm notification could lower technical support cost
  • Works with iOS and Android devices to make quick work of even the most demanding tasks.
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • IPv6 Management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

Industrial L2+ Managed GbE Switches


The IGS-2600 and IPGS-2600 series industrial L2+ managed GbE switches are the next generation industrial grade Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

The IGS-2600 and IPGS-2600 series consist of 6 non-PoE models which are IGS-2606A, IGS-2606G, IGS-2608, IGS-2608A, IGS-2610G and IGS-2612B, and 6 PoE+ models which are IPGS-2606A, IPGS-2606G, IPGS-2608, IPGS-2608A, IPGS-2610G and IPGS-2612B, and 3 UPoE models which are IPGS-2606AU, IPGS-2608AU and IPGS-2612BU. The series offer users with various options of port combinations and PoE+(UPoE) budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-2600 and IPGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Rapid Ring (R-Ring)
  2. Built in Device Management System (DMS)
  3. iPush APP for real time alarm notification
  4. DHCP Server
  5. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  6. IEEE 802.3af/at/UPoE Power over Ethernet
  7. IPv4/IPv6 L3 static route
  8. EtherNet/IP (by request)
  9. PROFINET (by request)

Benefits


  • Feature-rich Specifications to Support Various Applications



    The series deliver extensive industrial grade functionalities, including R-Ring. The product series also have enhanced L2/L3 features for better manageability and usability.
    The PoE+(30W) and UPoE(60W) models provide advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, the series can even provide power with up to 38W per port.
    It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M /100M/1G Uplinks 100M/1G Console Available PoE Power Ring Mgmt. DI/DO
IGS-2606A 6 4 2 SFP RJ45 -- DIP 1/1
IGS-2606G 6 4 2 Combo RJ45 -- DIP 1/1
IGS-2608A 8 6 2 SFP RJ45 -- DIP 1/1
IGS-2608 8 8 -- RJ45 -- DIP 1/1
IGS-2610G 10 8 2 Combo RJ45 -- DIP 1/1
IGS-2612B 12 8 4 SFP RJ45 -- DIP 1/1
IPGS-2606A 6 4 2 SFP RJ45 120W DIP 1/1
IPGS-2606G 6 4 2 Combo RJ45 120W DIP 1/1
IPGS-2608A 8 6 2 SFP RJ45 120W DIP 1/1
IPGS-2608 8 8 -- RJ45 240W DIP 1/1
IPGS-2610G 10 8 2 Combo RJ45 240W DIP 1/1
IPGS-2612B 12 8 4 SFP RJ45 240W DIP 1/1
IPGS-2606AU 6 4 2 SFP RJ45 240W DIP 1/1
IPGS-2608AU 8 6 2 SFP RJ45 240W DIP 1/1
IPGS-2612BU 12 8 4 SFP RJ45 240W DIP 1/1

Hardware Performance

Model Name Forwarding Capacity(Mpps) Switching Capacity(Gbps) Mac Table (K) Jumbo Frames(bytes)
IGS-2606A 8.928 12 8 9216
IGS-2606G 8.928 12 8 9216
IGS-2608A 11.904 16 8 9216
IGS-2608 11.904 16 8 9216
IGS-2610G 14.88 20 8 9216
IGS-2612B 17.856 24 8 9216
IPGS-2606A 8.928 12 8 9216
IPGS-2606G 8.928 12 8 9216
IPGS-2608A 11.904 16 8 9216
IPGS-2608 11.904 16 8 9216
IPGS-2610G 14.88 20 8 9216
IPGS-2612B 17.856 24 8 9216
IPGS-2606AU 8.928 12 8 9216
IPGS-2608AU 11.904 16 8 9216
IPGS-2612BU 17.856 24 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95%
non-condensing
<10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
IGS-2606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606AU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608AU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2612BU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply - DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model)
DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC (PoE model)
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
  • Required >54 VDC for UPoE (Max. 60W) output

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W)
IPGS-2606A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2606G 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2608A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2608 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2610G 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2612B 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2606AU 240W Each of port 1 - 4 support UPOE within available PoE Power
IPGS-2608AU 240W Each of port 1 - 4 support UPOE within available PoE Power
IPGS-2612BU 240W Each of port 1 - 4 support UPOE within available PoE Power

Certification

Regulatory Compliance
EMS   EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search and manage your real switches quickly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Industrial Protocols (by Request)
EtherNet/IP EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol.
PROFINET It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope.
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 6 groups and up to 4 ports per group
VLAN
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
HW Monitoring Temperature Detection and Alarm
HW Watchdog Supported to resume operation from CPU hang up
iPush
  • The real time alarm notification could lower technical support cost
  • Works with iOS and Android devices to make quick work of even the most demanding tasks.
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • IPv6 Management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses.
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

Download


Product Specification

Product Datasheet

Series Product Datasheet

+ Overview

Product Overview


IPGS-2608AU industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

IPGS-2608AU delivers 6 (10M/100M/1G) RJ45 with 4 UPoE (Support 802.3 at/af/UPoE, and total up to 240W) ports, 2 GbE SFP ports and RJ45 console port. IPGS-2608AU provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-2608AU is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features Customer Benefits
Comprehensive L2 Support Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster
Rapid Ring Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data-all in a recovery time of less than 20 ms
Dual DC Power Input Power failover when power supplies are connected to different circuits reducing network operating risk
+ Specification

Product Specification

MODEL NAME IPGS-2608AU
Product Description 8 ports GbE Industrial L2+ Managed Ethernet UPoE Switch

Port Configuration

10M/100M/1G RJ45 Port
6
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
RJ45
Total Ports
8

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)
PoE Port
4
Available PoE Power
240W

HW Performance

Switching Bandwidth
16Gbps
Forwarding Performance
11.904Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
-40°C to 75°C
Operating Humidity
5 to 95% RH
Storage Temperature
-40°C to 85°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
62 x 135 x 130
Weight
< 1.0 Kg
FAN Less

Power Source

AC Input
DC Input
48 ~ 57 VDC
Dual Input
Dual DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
Auto-Checking
Power Delay
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Carrier Ethernet

SyncE
1588v2 PTP
1588v2 PTP (stratum3)
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

+ Datasheet

IPGS-2608AU Industrial L2+ Managed GbE Switch


IPGS-2608AU industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

IPGS-2608AU delivers 6 (10M/100M/1G) RJ45 with 4 UPoE (Support 802.3 at/af/UPoE, and total up to 240W) ports, 2 GbE SFP ports and RJ45 console port. IPGS-2608AU provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-2608AU is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Rapid Ring (R-Ring)
  2. Built in Device Management System (DMS)
  3. iPush APP for real time alarm notification
  4. DHCP Server
  5. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  6. IEEE 802.3af/at Power over Ethernet
  7. IPv4/IPv6 L3 static route
  8. EtherNet/IP (by request)
  9. PROFINET (by request)

Benefits


  • Feature-rich Specifications to Support Various Applications


    The switch deliver extensive industrial grade functionalities, including R-Ring. It also have enhanced L2/L3 features for better manageability and usability.
    It provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, it can even provides power with up to 38W per port.
    It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.

  • Easy to Install Configure and Troubleshoot by Device Management System


    SThe DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.

  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Ring Mgmt. DI/DO
8 6 2 SFP RJ45 DIP 1/1

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000

Dimension, Weights, Mounting

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
62x 135x 130 2.4x 5.3x 5.1 < 1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply – DC Input Voltage
DC Nominal 54 VDC dual inputs
DC Operating Range 48 to 57 VDC
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
  • Required >54 VDC for UPoE (Max. 60W) output

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W)
240W Each of port 1 – 4 support PoE/ PoE+ within available PoE Power
( per port 38W by request )

Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 for RJ45 Port,(Surge 6KV), EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search and manage your real switches quickly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
  • Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Industrial Protocols (by Request)
EtherNet/IP EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol.
PROFINET It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope.
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 6 groups and up to 4 ports per group
VLAN
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:

  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
Dying Gasp Support Dying Gasp notification on loss of Power
HW Monitoring Temperature Detection and Alarm
HW Watchdog Supported to resume operation from CPU hang up
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol)
iPush
  • The real time alarm notification could lower technical support cost
  • Works with iOS and Android devices to make quick work of even the most demanding tasks.
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • IPv6 Management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

+ Series Datasheet

Industrial L2+ Managed GbE Switches


The IGS-2600 and IPGS-2600 series industrial L2+ managed GbE switches are the next generation industrial grade Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.

The IGS-2600 and IPGS-2600 series consist of 6 non-PoE models which are IGS-2606A, IGS-2606G, IGS-2608, IGS-2608A, IGS-2610G and IGS-2612B, and 6 PoE+ models which are IPGS-2606A, IPGS-2606G, IPGS-2608, IPGS-2608A, IPGS-2610G and IPGS-2612B, and 3 UPoE models which are IPGS-2606AU, IPGS-2608AU and IPGS-2612BU. The series offer users with various options of port combinations and PoE+(UPoE) budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-2600 and IPGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Rapid Ring (R-Ring)
  2. Built in Device Management System (DMS)
  3. iPush APP for real time alarm notification
  4. DHCP Server
  5. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  6. IEEE 802.3af/at/UPoE Power over Ethernet
  7. IPv4/IPv6 L3 static route
  8. EtherNet/IP (by request)
  9. PROFINET (by request)

Benefits


  • Feature-rich Specifications to Support Various Applications



    The series deliver extensive industrial grade functionalities, including R-Ring. The product series also have enhanced L2/L3 features for better manageability and usability.
    The PoE+(30W) and UPoE(60W) models provide advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, the series can even provide power with up to 38W per port.
    It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M /100M/1G Uplinks 100M/1G Console Available PoE Power Ring Mgmt. DI/DO
IGS-2606A 6 4 2 SFP RJ45 -- DIP 1/1
IGS-2606G 6 4 2 Combo RJ45 -- DIP 1/1
IGS-2608A 8 6 2 SFP RJ45 -- DIP 1/1
IGS-2608 8 8 -- RJ45 -- DIP 1/1
IGS-2610G 10 8 2 Combo RJ45 -- DIP 1/1
IGS-2612B 12 8 4 SFP RJ45 -- DIP 1/1
IPGS-2606A 6 4 2 SFP RJ45 120W DIP 1/1
IPGS-2606G 6 4 2 Combo RJ45 120W DIP 1/1
IPGS-2608A 8 6 2 SFP RJ45 120W DIP 1/1
IPGS-2608 8 8 -- RJ45 240W DIP 1/1
IPGS-2610G 10 8 2 Combo RJ45 240W DIP 1/1
IPGS-2612B 12 8 4 SFP RJ45 240W DIP 1/1
IPGS-2606AU 6 4 2 SFP RJ45 240W DIP 1/1
IPGS-2608AU 8 6 2 SFP RJ45 240W DIP 1/1
IPGS-2612BU 12 8 4 SFP RJ45 240W DIP 1/1

Hardware Performance

Model Name Forwarding Capacity(Mpps) Switching Capacity(Gbps) Mac Table (K) Jumbo Frames(bytes)
IGS-2606A 8.928 12 8 9216
IGS-2606G 8.928 12 8 9216
IGS-2608A 11.904 16 8 9216
IGS-2608 11.904 16 8 9216
IGS-2610G 14.88 20 8 9216
IGS-2612B 17.856 24 8 9216
IPGS-2606A 8.928 12 8 9216
IPGS-2606G 8.928 12 8 9216
IPGS-2608A 11.904 16 8 9216
IPGS-2608 11.904 16 8 9216
IPGS-2610G 14.88 20 8 9216
IPGS-2612B 17.856 24 8 9216
IPGS-2606AU 8.928 12 8 9216
IPGS-2608AU 11.904 16 8 9216
IPGS-2612BU 17.856 24 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95%
non-condensing
<10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
IGS-2606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-2612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2606AU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2608AU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-2612BU 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply - DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model)
DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC (PoE model)
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
  • Required >54 VDC for UPoE (Max. 60W) output

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W)
IPGS-2606A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2606G 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2608A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2608 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2610G 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2612B 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-2606AU 240W Each of port 1 - 4 support UPOE within available PoE Power
IPGS-2608AU 240W Each of port 1 - 4 support UPOE within available PoE Power
IPGS-2612BU 240W Each of port 1 - 4 support UPOE within available PoE Power

Certification

Regulatory Compliance
EMS   EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search and manage your real switches quickly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Industrial Protocols (by Request)
EtherNet/IP EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol.
PROFINET It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope.
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 6 groups and up to 4 ports per group
VLAN
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
HW Monitoring Temperature Detection and Alarm
HW Watchdog Supported to resume operation from CPU hang up
iPush
  • The real time alarm notification could lower technical support cost
  • Works with iOS and Android devices to make quick work of even the most demanding tasks.
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • IPv6 Management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses.
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

+ Download

Download


Product Specification

Product Datasheet

Series Product Datasheet
