GS-0526

Product Overview


GS-0526 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

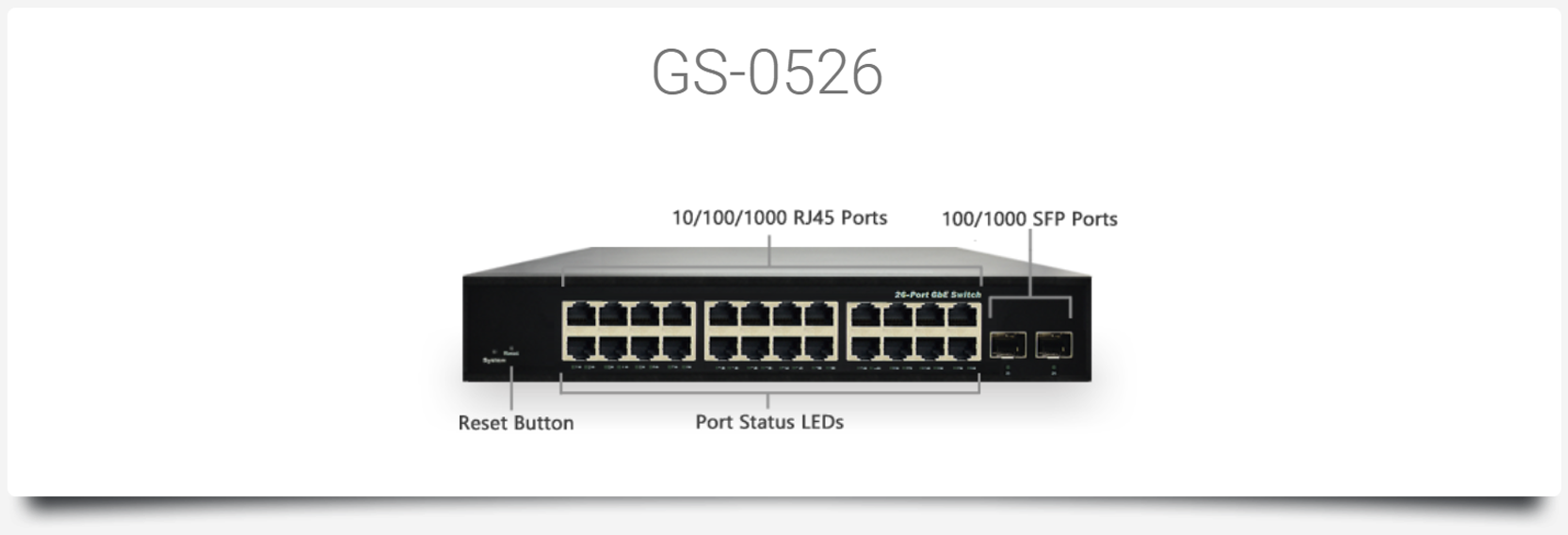

GS-0526 delivers 24 (10M/100M/1G) RJ45 ports and 2(100M/1G) GbE SFP Ports. GS-0526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.



Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption

Product Specification

MODEL NAME GS-0526
Product Description 26 ports GbE Unmanaged+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
Total Ports
26

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.688Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20°C to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 280 x 166
Weight
< 2.5 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
Dual Input

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

GS-0526 Unmanaged+ GbE Switch


GS-0526 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

GS-0526 delivers 24 (10M/100M/1G) RJ45 ports and 2(100M/1G) GbE SFP Ports. GS-0526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
38.688 52 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
280x 44x 166 11x 1.7x 6.5 <2.5 <5.5 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices

Unmanaged+ GbE Switches


The GS-0500 and PSGS-0500 series unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

The GS-0500 and PSGS-0500 series consist of 2 non-PoE models which are GS-0526, GS-0524 and GS-0508, and 6 PoE+ models which are PSGS-0526L, PSG-0526F, PSGS-0524L, PSGS-0524F, PSGS-0508NF and PSGS-0508F. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-0500 and PSGS-0500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. PoE Port configuration and scheduling
  3. IEEE 802.3af/at Power over Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks 100M/1G Console Available PoE Power
GS-0526 26 24 2 SFP -- --
GS-0524 24 24 -- -- --
GS-0508 8 8 -- -- --
PSGS-0526L 26 24 2 SFP -- 185W
PSGS-0526F 26 24 2 SFP   370W
PSGS-0524L 24 24 -- -- 185W
PSGS-0524F 24 24 -- -- 370W
PSGS-0508NF 8 8 -- -- 60W
PSGS-0508F 8 8 -- -- 130W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes)
GS-0526 38.688 52 8 9216
GS-0524 35.712 48 8 9216
GS-0508 11.904 16 8 9216
PSGS-0526L 38.7 52 8 9216
PSGS-0526F 38.7 52 8 9216
PSGS-0524L 35.712 48 8 9216
PSGS-0524F 35.712 48 8 9216
PSGS-0508NF 11.904 16 8 9216
PSGS-0508F 11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-0526 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-0524 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-0508 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall
PSGS-0526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0524L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0524F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall
PSGS-0508F 220x44x242 8.6x1.7x9.5 <2 <4.4 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-0526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0524L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0524F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power
PSGS-0508F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices

Download


Product Specification

Product Datasheet

Series Product Datasheet

+ Overview

Product Overview


GS-0526 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

GS-0526 delivers 24 (10M/100M/1G) RJ45 ports and 2(100M/1G) GbE SFP Ports. GS-0526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.



Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption
+ Specification

Product Specification

MODEL NAME GS-0526
Product Description 26 ports GbE Unmanaged+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
Total Ports
26

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.688Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20°C to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 280 x 166
Weight
< 2.5 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
Dual Input

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

+ Datasheet

GS-0526 Unmanaged+ GbE Switch


GS-0526 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

GS-0526 delivers 24 (10M/100M/1G) RJ45 ports and 2(100M/1G) GbE SFP Ports. GS-0526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
38.688 52 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
280x 44x 166 11x 1.7x 6.5 <2.5 <5.5 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices

+ Series Datasheet

Unmanaged+ GbE Switches


The GS-0500 and PSGS-0500 series unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

The GS-0500 and PSGS-0500 series consist of 2 non-PoE models which are GS-0526, GS-0524 and GS-0508, and 6 PoE+ models which are PSGS-0526L, PSG-0526F, PSGS-0524L, PSGS-0524F, PSGS-0508NF and PSGS-0508F. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-0500 and PSGS-0500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. PoE Port configuration and scheduling
  3. IEEE 802.3af/at Power over Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks 100M/1G Console Available PoE Power

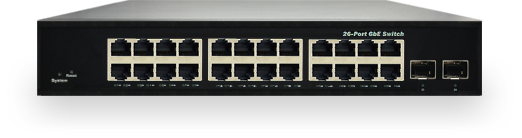

GS-0526 26 24 2 SFP -- --
GS-0524 24 24 -- -- --
GS-0508 8 8 -- -- --
PSGS-0526L 26 24 2 SFP -- 185W
PSGS-0526F 26 24 2 SFP   370W
PSGS-0524L 24 24 -- -- 185W
PSGS-0524F 24 24 -- -- 370W
PSGS-0508NF 8 8 -- -- 60W
PSGS-0508F 8 8 -- -- 130W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes)
GS-0526 38.688 52 8 9216
GS-0524 35.712 48 8 9216
GS-0508 11.904 16 8 9216
PSGS-0526L 38.7 52 8 9216
PSGS-0526F 38.7 52 8 9216
PSGS-0524L 35.712 48 8 9216
PSGS-0524F 35.712 48 8 9216
PSGS-0508NF 11.904 16 8 9216
PSGS-0508F 11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-0526 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-0524 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-0508 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall
PSGS-0526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0524L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0524F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-0508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall
PSGS-0508F 220x44x242 8.6x1.7x9.5 <2 <4.4 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-0526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0524L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0524F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-0508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power
PSGS-0508F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices

+ Download

Download


Product Specification

Product Datasheet

Series Product Datasheet
