IPGS-0612B
Product Overview
IPGS-0612B industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, IPGS-0612B also provides carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.
IPGS-0612B delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3 at/af, and total up to 240W) ports, 4 GbE SFP ports and RJ45 console port. IPGS-0612B provides high HW performance and environment flexibility for industrial and carrier Ethernet applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-0612B is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
| Key Features | Customer Benefits |
|---|---|
| Comprehensive L2 Support | Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster |
| Rapid Ring | Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data－all in a recovery time of less than 20 ms |
| Dual DC Power Input | Power failover when power supplies are connected to different circuits reducing network operating risk |
IPGS-0612B Industrial L2+ Managed GbE PoE+ Switch
IPGS-0612B industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, IPGS-0612B also provides carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.
IPGS-0612B delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3 at/af, and total up to 240W) ports, 4 GbE SFP ports and RJ45 console port. IPGS-0612B provides high HW performance and environment flexibility for industrial and carrier Ethernet applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-0612B is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- PoE configuration
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IEEE 802.3af/at Power over Ethernet
Benefits
Feature-rich Specifications to Support Various Applications
The switch deliver extensive industrial grade functionalities, including R-Ring. It also have enhanced L2/L3 features for better manageability and usability.
It provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, it can even provides power with up to 38W per port.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.
Easy to Install Configure and Troubleshoot by Device Management System
SThe DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
| Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G) | Console | Ring Mgmt. | DI/DO |
|---|---|---|---|---|---|
| 12 | 8 | 4 SFP | RJ45 | DIP | 1/1 |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
|---|---|---|---|
| 17.856 | 24 | 8 | 9216 |
Environmental Range
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| -40 to 167 | -40 to 75 | -40 to 185 | -40 to 85 | 5% to 95% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
| Dimension (WxHxD) | Weight | Mounting Type | |||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| 62x 135x 130 | 2.4x 5.3x 5.1 | < 1 | <2.2 | DIN rail | |
Voltage and Frequency
| Primary Power Supply – DC Input Voltage | |
|---|---|
| DC Nominal | 54 VDC dual inputs |
| DC Operating Range | 48 to 57 VDC |
| PoE SKUs |
|
PoE Power Capacity
| Available PoE Power | Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W) |
|---|---|
| 120W | Each of port 1 – 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
Certification
| Regulatory Compliance | |
|---|---|
| EMS | EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 for RJ45 Port,(Surge 6KV), EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request) |
| EMI | FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request) |
| Safety | CE, (EN60950 by request) |
| Mechanical Stability | |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Approvals (by request) | |
| Railway Norm | EN50121-4, EN50155 |
| Transportation | NEMA TS2 |
| Substation | IEC61850-3, IEEE1613 |
| Marine | DNV |
Software Features
| Ring Management | |
|---|---|
| Rapid Ring | Enable self-recover time in less than 20ms |
| Device Management System (DMS) | |
| Graphical Monitoring |
|
| Find my Switch | Search and manage your real switches quickly. |
| Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
| Trouble Shooting |
|
| Industrial Protocols (by Request) | |
| EtherNet/IP | EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol. |
| PROFINET | It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope. |
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) |
|
| Trunking |
|
| VLAN |
|
| DHCP Relay |
|
| IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Multicast VLAN Registration (MVR) | Delivers IPv6 multicast packets only to the required receivers |
| Layer 3 Switching | |
| IPv4 Static Routing | IPv4 Unicast: Static routing |
| IPv6 Static Routing | IPv6 Unicast: Static routing |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
| Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
| IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
| Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| Dying Gasp | Support Dying Gasp notification on loss of Power |
| HW Monitoring | Temperature Detection and Alarm |
| HW Watchdog | Supported to resume operation from CPU hang up |
| IEEE 1588v2 PTP | Support IEEE 1588 v2 PTP (Precision Time Protocol) |
| iPush |
|
| DHCP Server | Support DHCP server to assign IP to DHCP clients |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
| s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| IEEE 802.1ab (LLDP) |
|
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| CLI | For users to configure/manage switches in command line modes |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
| Firmware Upgrade |
|
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management |
|
| Power over Ethernet (PoE) | |
| Port Configuration | Supports per port PoE configuration function |
| PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs) |
| Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses |
| Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
Industrial L2+ Managed GbE Switches
The IGS-0600 and IPGS-0600 series industrial unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.
The IGS-0600 and IPGS-0600 series consist of 6 non-PoE models which are IGS-0606A, IGS-0606G, IGS-0608, IGS-0608A, IGS-0610G and IGS-0612B, and 6 PoE+ models which are IPGS-0606A, IPGS-0606G, IPGS-0608, IPGS-0608A, IPGS-0610G and IPGS-0612B. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-0600 and IPGS-0600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- PoE configuration
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IEEE 802.3af/at Power over Ethernet
Benefits
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively. It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages. -
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment. -
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
| Model Name | Total Ports | RJ45 10M/100M/1G | Uplinks 100M/1G | Console | Available PoE Power | Ring Mgmt. | DI/DO |
|---|---|---|---|---|---|---|---|
| IGS-0606A | 6 | 4 | 2 SFP | -- | -- | -- | -- |
| IGS-0606G | 6 | 4 | 2 Combo | -- | -- | -- | -- |
| IGS-0608A | 8 | 6 | 2 SFP | -- | -- | -- | -- |
| IGS-0608 | 8 | 8 | -- | -- | -- | -- | -- |
| IGS-0610G | 10 | 8 | 2 Combo | -- | -- | -- | -- |
| IGS-0612B | 12 | 8 | 4 SFP | -- | -- | -- | -- |
| IPGS-0606A | 6 | 4 | 2 SFP | -- | 120W | -- | -- |
| IPGS-0606G | 6 | 4 | 2 Combo | -- | 120W | -- | -- |
| IPGS-0608A | 8 | 6 | 2 SFP | -- | 120W | -- | -- |
| IPGS-0608 | 8 | 8 | -- | -- | 240W | -- | -- |
| IPGS-0610G | 10 | 8 | 2 Combo | -- | 240W | -- | -- |
| IPGS-0612B | 12 | 8 | 4 SFP | -- | 240W | -- | -- |
Hardware Performance
| Model Name | Forwarding Capacity(Mpps) | Switching Capacity(Gbps) | Mac Table (K) | Jumbo Frames (bytes) |
|---|---|---|---|---|
| IGS-0606A | 8.928 | 12 | 8 | 9216 |
| IGS-0606G | 8.928 | 12 | 8 | 9216 |
| IGS-0608A | 11.904 | 16 | 8 | 9216 |
| IGS-0608 | 11.904 | 16 | 8 | 9216 |
| IGS-0610G | 14.88 | 20 | 8 | 9216 |
| IGS-0612B | 17.856 | 24 | 8 | 9216 |
| IPGS-0606A | 8.928 | 12 | 8 | 9216 |
| IPGS-0606G | 8.928 | 12 | 8 | 9216 |
| IPGS-0608A | 11.904 | 16 | 8 | 9216 |
| IPGS-0608 | 11.904 | 16 | 8 | 9216 |
| IPGS-0610G | 14.88 | 20 | 8 | 9216 |
| IPGS-0612B | 17.856 | 24 | 8 | 9216 |
Environmental Range
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| -40 to 167 | -40 to 75 | -40 to 185 | -40 to 85 | 5% to 95% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
| Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| IGS-0606A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IGS-0606G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IGS-0608A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IGS-0608 | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IGS-0610G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IGS-0612B | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0606A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0606G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0608A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0608 | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0610G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
| IPGS-0612B | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
Voltage and Frequency
| Primary Power Supply - DC Input Voltage | |
|---|---|
| DC Nominal | 12/24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model) |
| DC Operating Range | 12 to 48 VDC (non-PoE model) 48 to 57 VDC (PoE model) |
| PoE SKUs |
|
PoE Power Capacity
| Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W), PoE+(30.0W) |
|---|---|---|
| IPGS-0606A | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
| IPGS-0606G | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
| IPGS-0608A | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
| IPGS-0608 | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
| IPGS-0610G | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
| IPGS-0612B | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
Certification
| Regulatory Compliance | |
|---|---|
| EMS | EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request) |
| EMI | FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request) |
| Safety | CE, (EN60950 by request) |
| Mechanical Stability | |
| Vibration | IEC 60068-2-6 |
| Shock | IEC 60068-2-27 |
| Freefall | IEC 60068-2-32 |
| Approvals (by request) | |
| Railway Norm | EN50121-4, EN50155 |
| Transportation | NEMA TS2 |
| Substation | IEC61850-3, IEEE1613 |
| Marine | DNV |
Software Features
| Quality of Service | |
|---|---|
| Hardware Priority Queue | Supports 8 hardware queues |
| Classification | Port based and 802.1p VLAN priority based |
| Device Management System (DMS) | |
| Graphical Monitoring | Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page) |
| Trouble Shooting | Network diagnostic between master switch and devices |
| Power over Ethernet (PoE) | |
| Port Configuration | Supports PoE configuration function |
There are no any download file for this model.
- + Overview
-
Product Overview

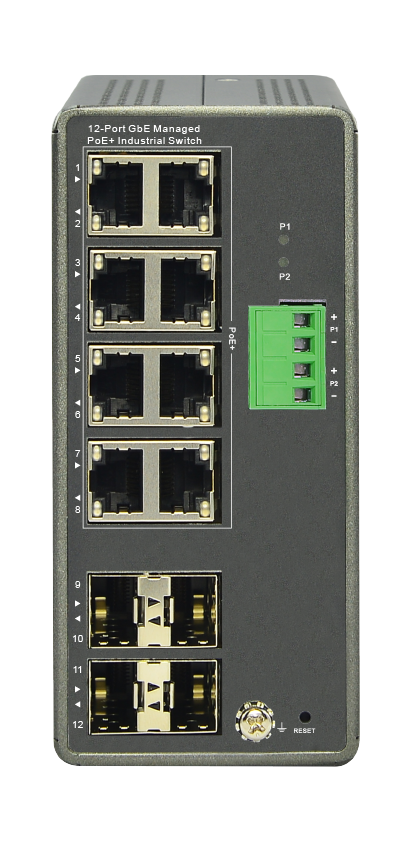

IPGS-0612B industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, IPGS-0612B also provides carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.
IPGS-0612B delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3 at/af, and total up to 240W) ports, 4 GbE SFP ports and RJ45 console port. IPGS-0612B provides high HW performance and environment flexibility for industrial and carrier Ethernet applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-0612B is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features Customer Benefits Comprehensive L2 Support Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster Rapid Ring Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data－all in a recovery time of less than 20 ms Dual DC Power Input Power failover when power supplies are connected to different circuits reducing network operating risk - + Specification
- + Datasheet
-
IPGS-0612B Industrial L2+ Managed GbE PoE+ Switch
IPGS-0612B industrial L2+ managed GbE PoE+ switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, IPGS-0612B also provides carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.
IPGS-0612B delivers 8 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3 at/af, and total up to 240W) ports, 4 GbE SFP ports and RJ45 console port. IPGS-0612B provides high HW performance and environment flexibility for industrial and carrier Ethernet applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-0612B is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- PoE configuration
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IEEE 802.3af/at Power over Ethernet
Benefits
Feature-rich Specifications to Support Various Applications
The switch deliver extensive industrial grade functionalities, including R-Ring. It also have enhanced L2/L3 features for better manageability and usability.
It provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, it can even provides power with up to 38W per port.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.
Easy to Install Configure and Troubleshoot by Device Management System
SThe DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Ring Mgmt. DI/DO 12 8 4 SFP RJ45 DIP 1/1 Hardware Performance
Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)17.856 24 8 9216 Environmental Range
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters -40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000 Dimension, Weights, Mounting
Dimension (WxHxD) Weight Mounting Type Millimeter Inches Kilograms Pounds 62x 135x 130 2.4x 5.3x 5.1 < 1 <2.2 DIN rail Voltage and Frequency
Primary Power Supply – DC Input Voltage DC Nominal 54 VDC dual inputs DC Operating Range 48 to 57 VDC PoE SKUs - Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
- Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
PoE Power Capacity
Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W) 120W Each of port 1 – 4 support PoE/ PoE+ within available PoE Power
( per port 38W by request )Certification
Regulatory Compliance EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 for RJ45 Port,(Surge 6KV), EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request) EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request) Safety CE, (EN60950 by request) Mechanical Stability Vibration IEC 60068-2-6 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Approvals (by request) Railway Norm EN50121-4, EN50155 Transportation NEMA TS2 Substation IEC61850-3, IEEE1613 Marine DNV Software Features
Ring Management Rapid Ring Enable self-recover time in less than 20ms Device Management System (DMS) Graphical Monitoring - Topology view: Support intuitive way to configure and manage switches and devices with visual relations
- Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
- Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search and manage your real switches quickly. Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches Trouble Shooting - Network diagnostic between master switch and devices
- Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
- Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Industrial Protocols (by Request) EtherNet/IP EtherNet/IP is an industrial Ethernet network that combines standard Ethernet technologies with the media-independent Common Industrial Protocol. PROFINET It can be recorded and displayed using an Ethernet analysis tool such as Wireshark. The topology can be shown using analysis tools such as TH Scope. Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking - Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Up to 6 groups and up to 4 ports per group
VLAN - Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN Edge (PVE)
- Q-in-Q (double tag) VLAN
- Voice VLAN
- GARP VLAN Registration Protocol (GVRP)
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Multicast VLAN Registration (MVR) Delivers IPv6 multicast packets only to the required receivers Layer 3 Switching IPv4 Static Routing IPv4 Unicast: Static routing IPv6 Static Routing IPv6 Unicast: Static routing Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC addresses to ports, and limits the number of learned MAC address IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers ACLs Supports up to 256 entries. Drop or rate limitation based on: - Source and destination MAC, VLAN ID or IP address, protocol, port,
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence / DSCP based
- Differentiated Services (DiffServ)
- Classification and re-marking ACLs
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management Dying Gasp Support Dying Gasp notification on loss of Power HW Monitoring Temperature Detection and Alarm HW Watchdog Supported to resume operation from CPU hang up IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) iPush - The real time alarm notification could lower technical support cost
- Works with iOS and Android devices to make quick work of even the most demanding tasks.
DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
- Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs; SSH
- DHCP Client/ DHCPv6 Client
- Cable Diagnostics
- Ping
- Syslog
- IPv6 Management
Power over Ethernet (PoE) Port Configuration Supports per port PoE configuration function PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs) Auto-checking Check the link status of PDs. Reboot PDs if there is no responses Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs - + Series Datasheet
-
Industrial L2+ Managed GbE Switches
The IGS-0600 and IPGS-0600 series industrial unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.
The IGS-0600 and IPGS-0600 series consist of 6 non-PoE models which are IGS-0606A, IGS-0606G, IGS-0608, IGS-0608A, IGS-0610G and IGS-0612B, and 6 PoE+ models which are IPGS-0606A, IPGS-0606G, IPGS-0608, IPGS-0608A, IPGS-0610G and IPGS-0612B. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-0600 and IPGS-0600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- PoE configuration
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IEEE 802.3af/at Power over Ethernet
Benefits
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively. It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages. -
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment. -
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name Total Ports RJ45 10M/100M/1G Uplinks 100M/1G Console Available PoE Power Ring Mgmt. DI/DO IGS-0606A 6 4 2 SFP -- -- -- -- IGS-0606G 6 4 2 Combo -- -- -- -- IGS-0608A 8 6 2 SFP -- -- -- -- IGS-0608 8 8 -- -- -- -- -- IGS-0610G 10 8 2 Combo -- -- -- -- IGS-0612B 12 8 4 SFP -- -- -- -- IPGS-0606A 6 4 2 SFP -- 120W -- -- IPGS-0606G 6 4 2 Combo -- 120W -- -- IPGS-0608A 8 6 2 SFP -- 120W -- -- IPGS-0608 8 8 -- -- 240W -- -- IPGS-0610G 10 8 2 Combo -- 240W -- -- IPGS-0612B 12 8 4 SFP -- 240W -- -- Hardware Performance
Model Name Forwarding Capacity(Mpps) Switching Capacity(Gbps) Mac Table (K) Jumbo Frames (bytes) IGS-0606A 8.928 12 8 9216 IGS-0606G 8.928 12 8 9216 IGS-0608A 11.904 16 8 9216 IGS-0608 11.904 16 8 9216 IGS-0610G 14.88 20 8 9216 IGS-0612B 17.856 24 8 9216 IPGS-0606A 8.928 12 8 9216 IPGS-0606G 8.928 12 8 9216 IPGS-0608A 11.904 16 8 9216 IPGS-0608 11.904 16 8 9216 IPGS-0610G 14.88 20 8 9216 IPGS-0612B 17.856 24 8 9216 Environmental Range
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters -40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000 Dimension, Weights, Mounting
Model Name Dimension (WxHxD) Weight Mounting Type Millimeter Inches Kilograms Pounds IGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail IPGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail Voltage and Frequency
Primary Power Supply - DC Input Voltage DC Nominal 12/24/48 VDC dual inputs (non-PoE model)
54 VDC dual inputs (PoE model)DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC (PoE model)PoE SKUs - Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
- Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output
PoE Power Capacity
Model Name Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W) IPGS-0606A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) IPGS-0606G 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) IPGS-0608A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) IPGS-0608 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) IPGS-0610G 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) IPGS-0612B 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) Certification
Regulatory Compliance EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request) EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request) Safety CE, (EN60950 by request) Mechanical Stability Vibration IEC 60068-2-6 Shock IEC 60068-2-27 Freefall IEC 60068-2-32 Approvals (by request) Railway Norm EN50121-4, EN50155 Transportation NEMA TS2 Substation IEC61850-3, IEEE1613 Marine DNV Software Features
Quality of Service Hardware Priority Queue Supports 8 hardware queues Classification Port based and 802.1p VLAN priority based Device Management System (DMS) Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page) Trouble Shooting Network diagnostic between master switch and devices Power over Ethernet (PoE) Port Configuration Supports PoE configuration function - + Download
-
There are no any download file for this model.
