IGS-0608A

blankblankblankblankblankblankblank

Product Overview

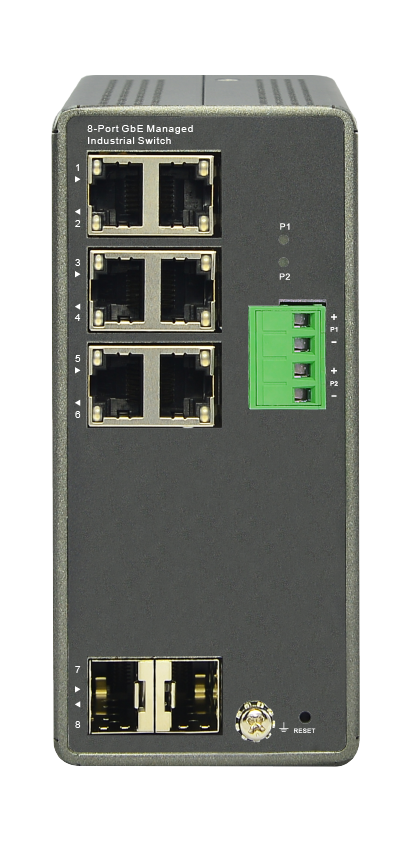

IGS-0608A industrial unmanaged+ GbE switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IGS-0608A delivers 6 (10M/100M/1G) RJ45 and 2 GbE SFP ports. IGS-0608A provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-0608A is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption

IGS-0608A Industrial Unmanaged+ GbE Switch


IGS-0608A industrial unmanaged+ GbE switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IGS-0608A delivers 6 (10M/100M/1G) RJ45 and 2 GbE SFP ports. IGS-0608A provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-0608A is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.

  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Ring Mgmt. DI/DO
8 6 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000

Dimension, Weights, Mounting

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
62x 135x 130 2.4x 5.3x 5.1 < 1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply – DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs
DC Operating Range 12 to 48 VDC


Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification Port based and 802.1p VLAN priority based

Industrial L2+ Managed GbE Switches


The IGS-0600 and IPGS-0600 series industrial unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

The IGS-0600 and IPGS-0600 series consist of 6 non-PoE models which are IGS-0606A, IGS-0606G, IGS-0608, IGS-0608A, IGS-0610G and IGS-0612B, and 6 PoE+ models which are IPGS-0606A, IPGS-0606G, IPGS-0608, IPGS-0608A, IPGS-0610G and IPGS-0612B. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-0600 and IPGS-0600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. PoE configuration
  3. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  4. IEEE 802.3af/at Power over Ethernet

Benefits


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively. It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks 100M/1G Console Available PoE Power Ring Mgmt. DI/DO
IGS-0606A 6 4 2 SFP -- -- -- --
IGS-0606G 6 4 2 Combo -- -- -- --
IGS-0608A 8 6 2 SFP -- -- -- --
IGS-0608 8 8 -- -- -- -- --
IGS-0610G 10 8 2 Combo -- -- -- --
IGS-0612B 12 8 4 SFP -- -- -- --
IPGS-0606A 6 4 2 SFP -- 120W -- --
IPGS-0606G 6 4 2 Combo -- 120W -- --
IPGS-0608A 8 6 2 SFP -- 120W -- --
IPGS-0608 8 8 -- -- 240W -- --
IPGS-0610G 10 8 2 Combo -- 240W -- --
IPGS-0612B 12 8 4 SFP -- 240W -- --

Hardware Performance

Model Name Forwarding Capacity(Mpps) Switching Capacity(Gbps) Mac Table (K) Jumbo Frames (bytes)
IGS-0606A 8.928 12 8 9216
IGS-0606G 8.928 12 8 9216
IGS-0608A 11.904 16 8 9216
IGS-0608 11.904 16 8 9216
IGS-0610G 14.88 20 8 9216
IGS-0612B 17.856 24 8 9216
IPGS-0606A 8.928 12 8 9216
IPGS-0606G 8.928 12 8 9216
IPGS-0608A 11.904 16 8 9216
IPGS-0608 11.904 16 8 9216
IPGS-0610G 14.88 20 8 9216
IPGS-0612B 17.856 24 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95%  non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
IGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply - DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs (non-PoE model)
54 VDC dual inputs (PoE model)
DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC (PoE model)
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W)
IPGS-0606A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0606G 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0608A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0608 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0610G 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0612B 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )

Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Quality of Service
Hardware Priority Queue Supports 8 hardware queues
Classification Port based and 802.1p VLAN priority based
Device Management System (DMS)
 Graphical Monitoring  Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
 Trouble Shooting  Network diagnostic between master switch and devices
Power over Ethernet (PoE)
Port Configuration Supports PoE configuration function

There are no any download file for this model.

+ Overview

Product Overview


IGS-0608A industrial unmanaged+ GbE switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IGS-0608A delivers 6 (10M/100M/1G) RJ45 and 2 GbE SFP ports. IGS-0608A provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-0608A is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption
+ Specification
+ Datasheet

IGS-0608A Industrial Unmanaged+ GbE Switch


IGS-0608A industrial unmanaged+ GbE switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IGS-0608A delivers 6 (10M/100M/1G) RJ45 and 2 GbE SFP ports. IGS-0608A provides high HW performance and environment flexibility for industrial applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-0608A is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.

  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Ring Mgmt. DI/DO
8 6 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000

Dimension, Weights, Mounting

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
62x 135x 130 2.4x 5.3x 5.1 < 1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply – DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs
DC Operating Range 12 to 48 VDC


Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Device Management System (DMS)
Graphical Monitoring Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
Trouble Shooting Network diagnostic between master switch and devices
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification Port based and 802.1p VLAN priority based

+ Series Datasheet

Industrial L2+ Managed GbE Switches


The IGS-0600 and IPGS-0600 series industrial unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

The IGS-0600 and IPGS-0600 series consist of 6 non-PoE models which are IGS-0606A, IGS-0606G, IGS-0608, IGS-0608A, IGS-0610G and IGS-0612B, and 6 PoE+ models which are IPGS-0606A, IPGS-0606G, IPGS-0608, IPGS-0608A, IPGS-0610G and IPGS-0612B. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-0600 and IPGS-0600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Built in Device Management System (DMS)
  2. PoE configuration
  3. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
  4. IEEE 802.3af/at Power over Ethernet

Benefits


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively. It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks 100M/1G Console Available PoE Power Ring Mgmt. DI/DO
IGS-0606A 6 4 2 SFP -- -- -- --
IGS-0606G 6 4 2 Combo -- -- -- --
IGS-0608A 8 6 2 SFP -- -- -- --
IGS-0608 8 8 -- -- -- -- --
IGS-0610G 10 8 2 Combo -- -- -- --
IGS-0612B 12 8 4 SFP -- -- -- --
IPGS-0606A 6 4 2 SFP -- 120W -- --
IPGS-0606G 6 4 2 Combo -- 120W -- --
IPGS-0608A 8 6 2 SFP -- 120W -- --
IPGS-0608 8 8 -- -- 240W -- --
IPGS-0610G 10 8 2 Combo -- 240W -- --
IPGS-0612B 12 8 4 SFP -- 240W -- --

Hardware Performance

Model Name Forwarding Capacity(Mpps) Switching Capacity(Gbps) Mac Table (K) Jumbo Frames (bytes)
IGS-0606A 8.928 12 8 9216
IGS-0606G 8.928 12 8 9216
IGS-0608A 11.904 16 8 9216
IGS-0608 11.904 16 8 9216
IGS-0610G 14.88 20 8 9216
IGS-0612B 17.856 24 8 9216
IPGS-0606A 8.928 12 8 9216
IPGS-0606G 8.928 12 8 9216
IPGS-0608A 11.904 16 8 9216
IPGS-0608 11.904 16 8 9216
IPGS-0610G 14.88 20 8 9216
IPGS-0612B 17.856 24 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95%  non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
IGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0606A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0606G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0608A 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0608 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0610G 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail
IPGS-0612B 62x135x130 2.4x5.3x5.1 <1 <2.2 DIN rail

Voltage and Frequency

Primary Power Supply - DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs (non-PoE model)
54 VDC dual inputs (PoE model)
DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC (PoE model)
PoE SKUs
  • Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output
  • Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W)
IPGS-0606A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0606G 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0608A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0608 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0610G 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )
IPGS-0612B 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request )

Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
Marine DNV

Software Features

Quality of Service
Hardware Priority Queue Supports 8 hardware queues
Classification Port based and 802.1p VLAN priority based
Device Management System (DMS)
 Graphical Monitoring  Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page)
 Trouble Shooting  Network diagnostic between master switch and devices
Power over Ethernet (PoE)
Port Configuration Supports PoE configuration function

+ Download

There are no any download file for this model.
