IPGS-5506A (120W)

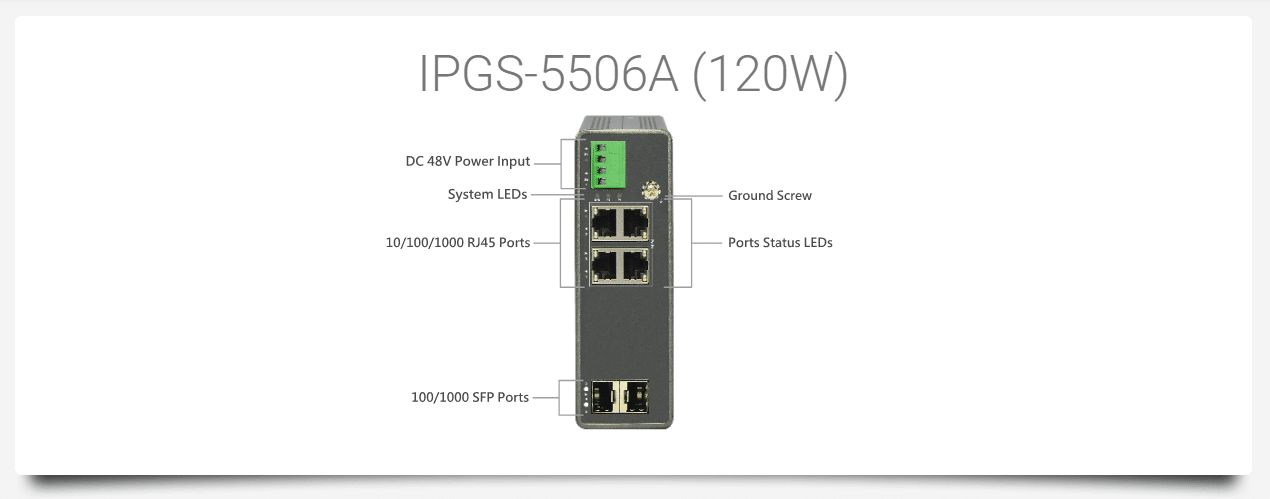

IPGS-5506A_slider

Product Overview


IPGS-5506A industrial unmanaged GbE PoE+ switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IPGS-5506A delivers 4 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 120W) ports, 2 GbE SFP ports. IPGS-5506A offers users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption

Product Specification

MODEL NAME IPGS-5506A
Product Description 6 ports GbE Industrial Unmanaged Ethernet PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port
4
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
6

PoE Function

IEEE802.3at (PoE+ 30W)
blank
IEEE802.3af (PoE 15.4W)
blank
UPoE(60W)
--
IEEE802.3bt (PoE++ 90W)
--
PoE Port
4
Available PoE Power
120W

HW Performance

Switching Bandwidth
12Gbps
Forwarding Performance
8.928Mpps
MAC Address
4K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
-40°C to 75°C
Operating Humidity
5 to 95% RH
Storage Temperature
-40°C to 85°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 135 x 130
Weight
< 1.0 Kg
FAN Less
blank

Power Source

AC Input
--
DC Input
48 ~ 57 VDC
Dual Input
Dual DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

IPGS-5506A Industrial Unmanaged GbE PoE+ Switch


IPGS-5506A industrial unmanaged GbE PoE+ switch is a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications.

IPGS-5506A delivers 4 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 120W) ports, 2 GbE SFP ports. IPGS-5506A offers users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

Key Features


  1. Slim type industrial switch
  2. IEEE 802.3af/at Power over Ethernet
  3. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console
6 4 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
8.928 12 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95% non-condensing <10000 <3000

Dimension, Weights, Mounting

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
44x 135x 130 1.7x 5.3x 5.1 < 1 <2.2 DIN rail, Wall

Voltage and Frequency

Primary Power Supply – DC Input Voltage
DC Nominal 48 VDC inputs
12/24/48 VDC for PoE mode (by request)
DC Operating Range 48 to 57 VDC for PoE function and 51 to 57 VDC for PoE AT mode

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W)
240W Each of port 1 – 4 support PoE/ PoE+ within available PoE Power( per port 38W by request )

Certification

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613

Industrial Unmanaged GbE Switch


The IGS-5500 and IPGS-5500 series industrial unmanaged GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need, of which make them suitable for industrial Ethernet applications/

The IGS-5500 and IPGS -5500 series consist of 4 non-PoE models which are IGS-5506, IGS-5506A, IGS-5508 and IGS-5510A and 4 PoE+ models which are IPGS-5506, IPGS-5506A, IPGS-5508, IPGS-5510A and IPGS-5510A-B. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

Key Features


  1. Slim type industrial switch
  2. IEEE 802.3af/at Power over Ethernet
  3. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


Specifications


Port Configuration

Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console
IGS-5506 6 6 -- -- --
IGS-5506A 6 4 2 SFP -- --
IGS-5508 8 8 -- -- --
IGS-5510A 10 8 2 SFP -- --
IPGS-5506 6 6 -- -- 120W
IPGS-5506A 6 4 2 SFP -- 120W
IPGS-5508 8 8 -- -- 240W
IPGS-5510A 10 8 2 SFP -- 240W
IPGS-5510A-B 10 8 2 SFP -- 120W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes)
IGS-5506 8.928 12 4 9216
IGS-5506A 8.928 12 4 9216
IGS-5508  11.9 16 4 9216
IGS-5510A 14.88 20 4 9216
IPGS-5506 8.928 12 4 9216
IPGS-5506A 8.928 12 4 9216
IPGS-5508  11.9 16 4 9216
IPGS-5510A 14.88 20 4 9216
IPGS-5510A-B 14.88 20 4 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-40 to 167 -40 to 75 -40 to 185 -40 to 85 5% to 95%  non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
IGS-5506 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IGS-5506A 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IGS-5508 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IGS-5510A 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IPGS-5506 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IPGS-5506A 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IPGS-5508 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IPGS-5510A 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall
IPGS-5510A-B 44x135x130 1.7x5.3x5.1 <1 <2.2 DIN rail, Wall

Voltage and Frequency

Primary Power Supply - DC Input Voltage
DC Nominal 12/24/48 VDC dual inputs (non-PoE model)
48 VDC inputs (PoE model)
12/24/48 VDC for PoE mode (by request)
DC Operating Range 12 to 48 VDC (non-PoE model)
48 to 57 VDC for PoE function and
51 to 57 VDC for PoE AT mode (PoE model)

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
IPGS-5506 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power
IPGS-5506A 120W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power
IPGS-5508 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
IPGS-5510A 240W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
IPGS-5510A-B 120W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certifications

Regulatory Compliance
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability
EMS EN61000-4-2 ESD, EN61000-4-3 RS, EN61000-4-4 EFT, EN61000-4-5 Surge, EN61000-4-6 CS, EN61000-4-8 PFMF, (EN61000-6-2 by request)
EMI FCC Part 15 Class A (EN61000-3-2, EN61000-3-3, EN61000-6-4, EN55022, EN55011 by request)
Safety CE, (EN60950 by request)
Mechanical Stability (by request)
Vibration IEC 60068-2-6
Shock IEC 60068-2-27
Freefall IEC 60068-2-32
Approvals (by request)
Railway Norm EN50121-4, EN50155
Transportation NEMA TS2
Substation IEC61850-3, IEEE1613
