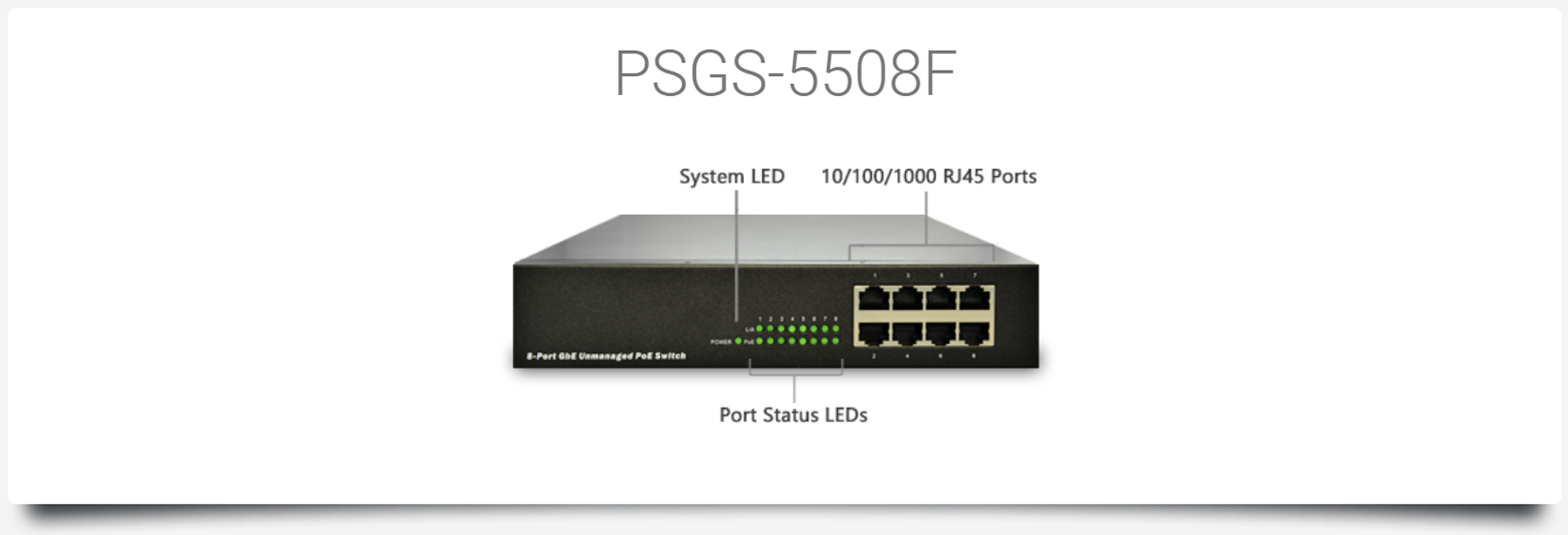

PSGS-5508F (130W)

PSGS-5508F

Product Overview


PSGS-5508F Unmanaged PoE+ Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5508F delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 130W) ports. PSGS-5508F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-5508F is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption

Product Specification

MODEL NAME PSGS-5508F
Product Description 8 ports GbE Unmanaged PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port
8
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
--
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
8

PoE Function

IEEE802.3at (PoE+ 30W)
blank
IEEE802.3af (PoE 15.4W)
blank
UPoE(60W)
--
IEEE802.3bt (PoE++ 90W)
--
PoE Port
8
Available PoE Power
130W

HW Performance

Switching Bandwidth
16Gbps
Forwarding Performance
11.9Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 40°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 220 x 242
Weight
1.08 Kg
FAN Less
blank

Power Source

AC Input
100V-240V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

PSGS-5508F Unmanaged GbE PoE Switch


PSGS-5508F Unmanaged PoE+ Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5508F delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 130W) ports. PSGS-5508F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-5508F is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Key Features


  1. GbE Interfaces
  2. Green/Power Saving

Benefits


  • GbE Interfaces


    All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.


  • Green/Power Saving


    Energy-saving capabilities save your money by lower power consumption.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
8 8

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(K)
11.9 16 8 9

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
220x 44 x 242 8.6x 1.7 x 9.5 0.8 1.76 10% to 90% ,
non-condensing

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz, internal , universal

PoE and PoE+ Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
130W Each of port 1 – 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Quality of Service
Classification
  • Port based
  • 802.1p VLAN priority based
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control

Unmanaged GbE Switches GS-5500 & GS-5300 Series


Unmanaged series is plug-and-play Ethernet Switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

It consists of three models which are PSGS-5508L, PSGS-5508F and GS-5308. The series provides high HW performance and environment flexibility for SMBs and Enterprises.

They are ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.

Key Features


  1. GbE Interfaces
  2. Green/Power Saving

Benefits


  • GbE Interfaces



    All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.


  • Green/Power Saving



    Energy-saving capabilities save your money by lower power consumption.


Specifications


Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks Console Available PoE Power
GS-5308 8 8 -- -- --
PSGS-5508L 8 8 -- -- 65W
PSGS-5508F 8 8 -- -- 130W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(K)
GS-5308 11.9 16 8 9
PSGS-5508L 11.9 16 8 9
PSGS-5508F 11.9 16 8 9

Environmental Range

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
GS-5308 14 to 104 -10 to 40 -4 to 158 -20 to 70 <10000 <3000
PSGS-5508L 14 to 104 -10 to 40 -4 to 158 -20 to 70
PSGS-5508F 14 to 104 -10 to 40 -4 to 158 -20 to 70

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
GS-5308 197x35x120 7.76x1.38x4.72 0.8 1.76 10% to 90%
non-condensing
PSGS-5508L 220x44x134 8.6x1.7x5.3 0.8 1.76
PSGS-5508F 220x44x242 8.6x1.7x9.5 0.8 1.76

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-5508L 65W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-5508F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Quality of Service
Classification
  • Port based
  • 802.1p VLAN priority based
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
