FGS-2626KX
Product Overview
FGS-2626KX L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.

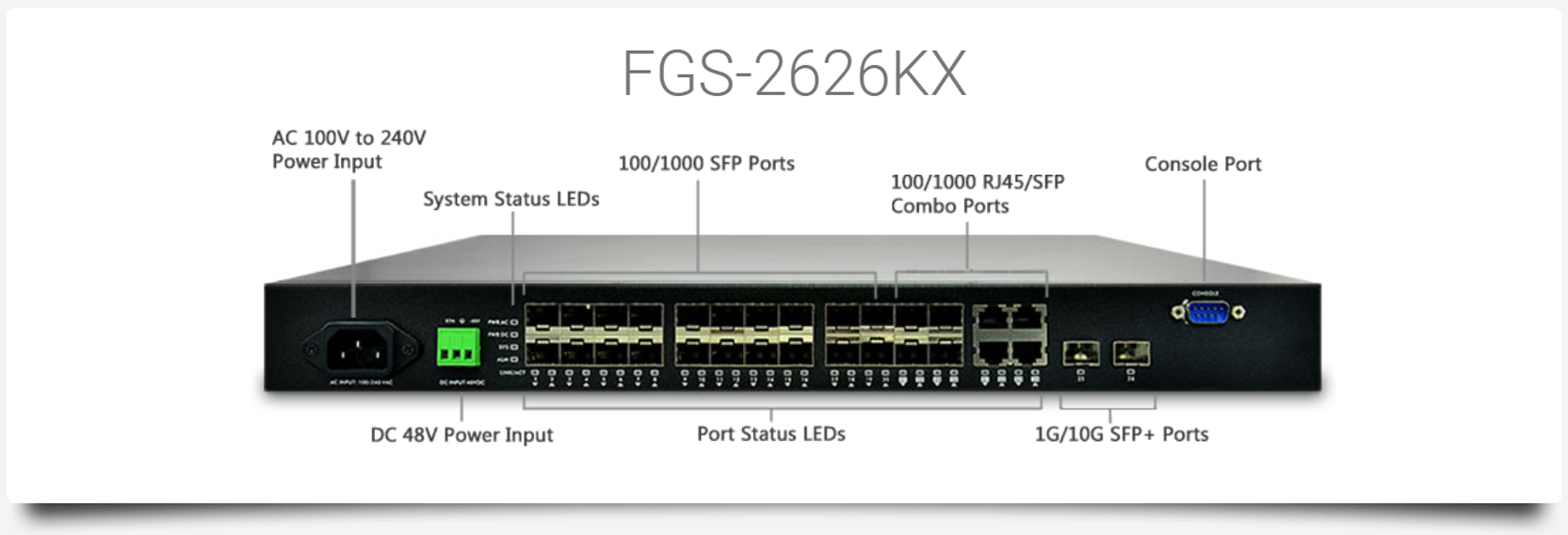

FGS-2626KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 2 GbE/10G SFP+ ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2626KX provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
FGS-2626KX is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.
| Key Features | Customer Benefits |
|---|---|
| Layer 3 Support | Included L3 Static Routing routes internal traffic for more efficient use of network resources |
| Device Management System | Simplified configuration and management to reduce large maintenance complexity and costs |
| Responsive Web GUI | IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency |
Product Specification
| MODEL NAME | FGS-2626KX |
|---|---|
| Product Description | 26 ports GbE/10G L2+ Managed Switch |
Port Configuration
10M/100M/1G RJ45 Port | -- | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | 20 | |
GbE RJ45/SFP Combo Port | 4 | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | 2 | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | DB9 | |
Total Ports | 26 |
|
HW Performance
Switching Bandwidth | 88Gbps | |
Forwarding Performance | 65.472Mpps | |
MAC Address | 32K | |
Jumbo Frames | 10056 Bytes |
|
Environmental Specification
Operating Temperature | -20°C to 60°C | |
Operating Humidity | 5 to 90% RH | |
Storage Temperature | -25°C to 70°C | |
Storage Humidity | 5 to 90% RH |
|
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 442 x 211 | |
Weight | 3.1 Kg | |
FAN Less | -- |
|
Power Source
AC Input | 100V-240V | |
DC Input | 24V ~ 72V DC | |
Dual Input | AC/DC |
|
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
|
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | | |
IEEE802.1S (MSTP) | | |
VLAN |
802.1Q VLAN | |
Port-Based | | |
VLAN Entries | 4K | |
Private VLAN | | |
Voice VLAN | | |
Guest VLAN | | |
Q-in-Q | | |
802.1v Protocol VLAN | | |
MAC-Based VLAN | | |
IP Subnet-Based VLAN | | |
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | | |
GARP/GVRP | | |
IGMP Snooping | | |
MLD Snooping | | |
Multicast VLAN Registration (MVR) | |
|
L3 Features
Static Route | | |
DHCP Server | | |
Dynamic Routing | -- |
|
QoS Features
Class of Service |
Port Based | |
802.1p | | |
DSCP | | |
TCP/UDP Port | | |
Rate Limiting |
Ingress | |
Egress | | |
Priority Queue Scheduling |
WRR | |
Stri Priority | | |
Hardware Queues | 8 |
|
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | | |
Port Security (MAC-based) | | |
IP Source Guard | | |
Storm Control | | |
RADIUS Authentication 802.1x | | |
TACACS+ Authentication | | |
HTTPs and SSL (Secured Web) | | |
BPDU Guard | | |
STP Root Guard | | |
DHCP Snooping | | |
Loop Protection | |
|
Management
DHCP |
Client | |
Relay | | |
Option 66 | | |
Option 67 | | |
Option 82 | | |
Event/Error Log |
Syslog | |
SMTP (RFC821) | | |
Management Access Filtering |
SNMP | |
Web UI | | |
Telnet | | |
SSH | | |
PoE Management |
Scheduling | -- |
Auto-Checking | -- | |
Power Delay | -- | |
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | | |
RMON (1,2,3 & 9 Groups) | | |
Software Upgrade | | |
Configuration Export/Import | | |
Port Mirroring | | |
LLDP (IEEE802.1AB) | | |
LLDP-MED (IEEE802.1AB) | | |
CDP Aware | | |
sFlow | | |
IPv6 Management | | |
NTP | | |
First Time Wizard | -- |
|
Carrier Ethernet
SyncE | -- | |
1588v2 PTP | -- | |
G.8265.1/G.8275.1/G.8275.2 | -- | |
1588v2 PTP (stratum3) | -- | |
OAM (IEEE802.3ah) | -- | |
CFM (IEEE802.1ag) | -- | |
PM (ITU-T Y.1731) | -- | |
ELPS (ITU-T G.8031) | -- | |
ERPS (ITU-T G.8032) | -- | |
Rapid-Ring | | |
RFC2544 | -- | |
Y.1564 | -- |
|
Device Management System
Device Management |
Topology View | |
Floor View | | |
Map View | | |
Dashboard | | |
Traffic Monitoring | | |
Cable Diagnostics | |
Others
Power Backup with Battery Charge | Option(12~15V) | |
OOB MGMT Port | -- | |
DC Power Socket | -- |
|
FGS-2626KX L2+ Managed GbE Fiber Switch
FGS-2626KX L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.
FGS-2626KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 4 GbE/10G SFP+ ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2626KX provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
FGS-2626KX is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.
Key Features
- Rapid Ring (R-Ring)
- L2+ Managed features provide easier manageability, robust security and QoS
- Built in Device Management System (DMS)
- AC/DC Dual Power Supply
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application
Benefits
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.
Easy to Install Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
AC/DC Dual Power Supply
Power fail over when power supplies are connected to different circuits. Reduce network operating risk.
Specifications
Port Configuration
| Total Ports | SFP(10M/100M/1G) | RJ45/SFP Combo | Uplinks (1G/10G) | Console |
|---|---|---|---|---|
| 26 | 20 | 4 UTP/SFP Combo | 2 SFP+ | DB9 |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
|---|---|---|---|
| 65.472 | 88 | 32 | 9216 |
Environmental Range
| Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
| -4 to 140 | -20 to 60 | -13 to 158 | -25 to 70 | <10000 | <3000 |
Dimension Weights Humidity
| Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | |
| 442x 44x 211 | 17.4x 1.7x 8.3 | 3.0 | 6.6 | 10% to 90% non-condensing |
Voltage and Frequency
| Voltage and Frequency | |
|---|---|
| AC Voltage | 100-240 VAC |
| AC Frequency | 50~60 Hz, internal , universal |
| DC Voltage | 24-72 VDC |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Ring Management | |
|---|---|
| Rapid Ring | Enable self-recover time in less than 20ms |
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) |
|
| Trunking |
|
| VLAN |
|
| DHCP Relay |
|
| IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. |
| MLD v1/v2 snooping | Delivers IPv6 multicast packets only to the required receivers |
| Device Management System (DMS) | |
| Graphical Monitoring |
|
| Find my Switch | Search your real switches quickly and manage directly. |
| Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches. |
| Trouble Shooting |
|
| Layer 3 Switching | |
| IPv4 Static Routing | IPv4 Unicast: Static routing |
| IPv6 Static Routing | IPv6 Unicast: Static routing |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
| Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
| IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| ACLs |
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| DHCP Server | Support DHCP server to assign IP to DHCP clients |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
| UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
| s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| IEEE 802.1ab (LLDP) |
|
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| CLI | For users to configure/manage switches in command line modes |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
| Firmware Upgrade |
|
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management |
|
FGS-2600 L2+ Managed GbE Fiber Switches
The FGS-2600 series consists of 6 models which are FGS-2628KX, FGS-2626KX, FGX-2624K, FGS-2616X, FGS-2614G and FGS-2614. These switches are L2+ management, which provides easier manageability, stronger security, better QoS and performance.
FGS-2600 series also supports IPv6 and its 10 Gigabit Ethernet uplinks features are beneficial for enterprise network. They are ideal for enterprise or small business applications for aggregation and access network which provides long distance up to 120km between points, thus helps you create a more efficient, better-connected workforce. In conclusion, three models deliver better enterprise-class performance and industrial specifications.
They are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership. The free embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features
- Rapid Ring (R-Ring)
- L2+ Managed features provide easier manageability, robust security and QoS
- Built in Device Management System (DMS)
- AC/DC Dual Power Supply
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard, Access Control List guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE fiber switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
-
AC/DC Dual Power Supply
Power failover when power supplies are connected to different circuits. Reduce network operating risk.
Specifications
Port Configuration
| Model Name | Total Ports | SFP 10M/100M/1G | Uplinks | Console |
|---|---|---|---|---|
| FGS-2628KX | 28 | 20 | 4 SFP+ 4 RJ45/SFP Combo | DB9 |
| FGS-2626KX | 26 | 20 | 2 SFP+ 4 RJ45/SFP Combo | DB9 |
| FGS-2624K | 24 | 20 | 4 RJ45/SFP Combo | DB9 |
| FGS-2616X | 16 | 12 | 2 SFP+ ; 2 RJ45 | RJ45 |
| FGS-2614 | 14 | 12 | 2 RJ45 | RJ45 |
Hardware Performance
| Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (K) |
|---|---|---|---|---|
| FGS-2628KX | 95.232 | 128 | 32 | 9 |
| FGS-2626KX | 65.472 | 88 | 32 | 9 |
| FGS-2624K | 35.712 | 48 | 32 | 9 |
| FGS-2616X | 50.592 | 68 | 32 | 9 |
| FGS-2614 | 20.832 | 28 | 32 | 9 |
Environmental Range
| Model Name | Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| FGS-2628KX | -4 to 140 | -20 to 60 | -13 to 158 | -25 to 70 | <10000 | <3000 |
| FGS-2626KX | -4 to 140 | -20 to 60 | -13 to 158 | -25 to 70 | ||
| FGS-2624K | -4 to 140 | -20 to 60 | -13 to 158 | -25 to 70 | ||
| FGS-2616X | -4 to 140 | -20 to 60 | -4 to 158 | -20 to 70 | ||
| FGS-2614 | -4 to 140 | -20 to 60 | -4 to 158 | -20 to 70 | ||
Dimension, Weights, Humidity
| Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| FGS-2628KX | 442x44x211 | 17.4x1.73x8.31 | 3.1 | 6.8 | 10% to 90% non-condensing |
| FGS-2626KX | 442x44x211 | 17.4x1.73x8.31 | 3.0 | 6.6 | |
| FGS-2624K | 442x44x211 | 17.4x1.73x8.31 | 3.0 | 6.6 | |
| FGS-2616X | 280x44x134 | 11x1.73x5.28 | 1.0 | 2.2 | |
| FGS-2614 | 220x44x134 | 8.66x1.73x5.28 | 1.0 | 2.2 | |
Voltage and Frequency
| Input Voltage and Frequency | |
|---|---|
| AC Voltage | 100-240 VAC |
| AC Frequency | 50-60 Hz |
| DC Voltage | 24-48 VDC |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Ring Management | |
|---|---|
| Rapid Ring | Enable self-recover time in less than 20ms |
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) |
|
| Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad
|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
| DHCP Relay |
|
| IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Device Management System (DMS) | |
| Graphical Monitoring |
|
| Find my Switch | Search your real switches quickly and manage directly. |
| Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
| Trouble Shooting |
|
| Layer 3 Switching | |
| IPv4 Static Routing | IPv4 Unicast: Static routing |
| IPv6 Static Routing | IPv6 Unicast: Static routing |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
| Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
| IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| DHCP Server | Support DHCP server to assign IP to DHCP clients |
| Zero Touch Upgrade | Upgrade single switch automatically when you get notification |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
| s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| IEEE 802.1ab (LLDP) |
|
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| CLI | For users to configure/manage switches in coand line modes |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
| Firmware Upgrade |
|
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management |
|
Download
Product Specification
Product Datasheet
Series Product Datasheet
- + Overview
-
Product Overview
FGS-2626KX L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.
FGS-2626KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 2 GbE/10G SFP+ ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2626KX provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
FGS-2626KX is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.
Key Features Customer Benefits Layer 3 Support Included L3 Static Routing routes internal traffic for more efficient use of network resources Device Management System Simplified configuration and management to reduce large maintenance complexity and costs Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency - + Specification
-
Product Specification
MODEL NAME FGS-2626KX Product Description 26 ports GbE/10G L2+ Managed Switch Port Configuration
10M/100M/1G RJ45 Port--100M/1G/2.5G RJ45 Port--100M/1G/10G RJ45 Port--100M/1G/2.5G/5G/10G RJ45 Port--100M/1G SFP Port20GbE RJ45/SFP Combo Port41G/2.5G SFP Port--1G/10G SFP+ Port2SFP28/QSFP+ Combo Port--1G/10G/25G SFP28 Port--QSFP+ (40G)--SFP56 (50G)--USB--Console PortDB9Total Ports26HW Performance
Switching Bandwidth88GbpsForwarding Performance65.472MppsMAC Address32KJumbo Frames10056 BytesEnvironmental Specification
Operating Temperature-20°C to 60°COperating Humidity5 to 90% RHStorage Temperature-25°C to 70°CStorage Humidity5 to 90% RHMechanical Specification
Dimensions (H) x (W) x (D) mm44 x 442 x 211Weight3.1 KgFAN Less--Power Source
AC Input100V-240VDC Input24V ~ 72V DCDual InputAC/DCCertifications
EN61000-4-5 (for RJ45 Port, Surge 6KV)--CertificationsCE/FCC Class A
Others by RequestL2 Switching
Spanning TreeIEEE802.1D (STP)
IEEE802.1W (RSTP)IEEE802.1S (MSTP)VLAN802.1Q VLANPort-BasedVLAN Entries4KPrivate VLANVoice VLANGuest VLANQ-in-Q802.1v Protocol VLANMAC-Based VLANIP Subnet-Based VLANIEEE 802.3ad LACPDynamic TrunkStatic TrunkGARP/GVRPIGMP SnoopingMLD SnoopingMulticast VLAN Registration (MVR)L3 Features
Static RouteDHCP ServerDynamic Routing--QoS Features
Class of ServicePort Based802.1pDSCPTCP/UDP PortRate LimitingIngressEgressPriority Queue SchedulingWRRStri PriorityHardware Queues8Security
ACLsL2/L3/L4IPv6 SupportPort Security (MAC-based)IP Source GuardStorm ControlRADIUS Authentication 802.1xTACACS+ AuthenticationHTTPs and SSL (Secured Web)BPDU GuardSTP Root GuardDHCP SnoopingLoop ProtectionManagement
DHCPClientRelayOption 66Option 67Option 82Event/Error LogSyslogSMTP (RFC821)Management Access FilteringSNMPWeb UITelnetSSHPoE ManagementScheduling--Auto-Checking--Power Delay--Soft-Reboot PoE Non-stop--SNMP (v1, v2c, v3)RMON (1,2,3 & 9 Groups)Software UpgradeConfiguration Export/ImportPort MirroringLLDP (IEEE802.1AB)LLDP-MED (IEEE802.1AB)CDP AwaresFlowIPv6 ManagementNTPFirst Time Wizard--Carrier Ethernet
SyncE--1588v2 PTP--G.8265.1/G.8275.1/G.8275.2--1588v2 PTP (stratum3)--OAM (IEEE802.3ah)--CFM (IEEE802.1ag)--PM (ITU-T Y.1731)--ELPS (ITU-T G.8031)--ERPS (ITU-T G.8032)--Rapid-RingRFC2544--Y.1564--Device Management System
Device ManagementTopology ViewFloor ViewMap ViewDashboardTraffic MonitoringCable DiagnosticsOthers
Power Backup with Battery ChargeOption(12~15V)OOB MGMT Port--DC Power Socket-- - + Datasheet
-
FGS-2626KX L2+ Managed GbE Fiber Switch
FGS-2626KX L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.
FGS-2626KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 4 GbE/10G SFP+ ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2626KX provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.
FGS-2626KX is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.
Key Features
- Rapid Ring (R-Ring)
- L2+ Managed features provide easier manageability, robust security and QoS
- Built in Device Management System (DMS)
- AC/DC Dual Power Supply
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application
Benefits
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.
Easy to Install Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
AC/DC Dual Power Supply
Power fail over when power supplies are connected to different circuits. Reduce network operating risk.
Specifications
Port Configuration
Total Ports SFP(10M/100M/1G) RJ45/SFP Combo Uplinks (1G/10G) Console 26 20 4 UTP/SFP Combo 2 SFP+ DB9 Hardware Performance
Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)65.472 88 32 9216 Environmental Range
Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters -4 to 140 -20 to 60 -13 to 158 -25 to 70 <10000 <3000 Dimension Weights Humidity
Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds 442x 44x 211 17.4x 1.7x 8.3 3.0 6.6 10% to 90%
non-condensingVoltage and Frequency
Voltage and Frequency AC Voltage 100-240 VAC AC Frequency 50~60 Hz, internal , universal DC Voltage 24-72 VDC Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Ring Management Rapid Ring Enable self-recover time in less than 20ms Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking - Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Up to 13 groups
- Up to 4 ports per group
VLAN - Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
- Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN Edge (PVE)
- Q-in-Q (double tag) VLAN
- Voice VLAN
- GARP VLAN Registration Protocol (GVRP)
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers Device Management System (DMS) Graphical
Monitoring
- Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
- Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
- Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Find my Switch Search your real switches quickly and manage directly. Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches. Trouble Shooting - Network diagnostic between master switch and devices.
- Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching IPv4 Static Routing IPv4 Unicast: Static routing IPv6 Static Routing IPv6 Unicast: Static routing Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers ACLs - Supports up to 512 entries. Drop or rate limitation based on:
- Source and destination MAC, VLAN ID or IP address, protocol, port
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence/ DSCP based
- Differentiated Services (DiffServ)
- Classification and re-marking ACLs
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
- Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs; SSH
- DHCP Client/ DHCPv6 Client
- Cable diagnostics
- Ping
- Syslog
- Telnet
- IPv6 management
- + Series Datasheet
-
FGS-2600 L2+ Managed GbE Fiber Switches
The FGS-2600 series consists of 6 models which are FGS-2628KX, FGS-2626KX, FGX-2624K, FGS-2616X, FGS-2614G and FGS-2614. These switches are L2+ management, which provides easier manageability, stronger security, better QoS and performance.
FGS-2600 series also supports IPv6 and its 10 Gigabit Ethernet uplinks features are beneficial for enterprise network. They are ideal for enterprise or small business applications for aggregation and access network which provides long distance up to 120km between points, thus helps you create a more efficient, better-connected workforce. In conclusion, three models deliver better enterprise-class performance and industrial specifications.
They are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership. The free embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features
- Rapid Ring (R-Ring)
- L2+ Managed features provide easier manageability, robust security and QoS
- Built in Device Management System (DMS)
- AC/DC Dual Power Supply
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard, Access Control List guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE fiber switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
-
AC/DC Dual Power Supply
Power failover when power supplies are connected to different circuits. Reduce network operating risk.
Specifications
Port Configuration
Model Name Total Ports SFP 10M/100M/1G Uplinks Console FGS-2628KX 28 20 4 SFP+ 4 RJ45/SFP Combo DB9 FGS-2626KX 26 20 2 SFP+ 4 RJ45/SFP Combo DB9 FGS-2624K 24 20 4 RJ45/SFP Combo DB9 FGS-2616X 16 12 2 SFP+ ; 2 RJ45 RJ45 FGS-2614 14 12 2 RJ45 RJ45 Hardware Performance
Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (K) FGS-2628KX 95.232 128 32 9 FGS-2626KX 65.472 88 32 9 FGS-2624K 35.712 48 32 9 FGS-2616X 50.592 68 32 9 FGS-2614 20.832 28 32 9 Environmental Range
Model Name Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters FGS-2628KX -4 to 140 -20 to 60 -13 to 158 -25 to 70 <10000 <3000 FGS-2626KX -4 to 140 -20 to 60 -13 to 158 -25 to 70 FGS-2624K -4 to 140 -20 to 60 -13 to 158 -25 to 70 FGS-2616X -4 to 140 -20 to 60 -4 to 158 -20 to 70 FGS-2614 -4 to 140 -20 to 60 -4 to 158 -20 to 70 Dimension, Weights, Humidity
Model Name Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds FGS-2628KX 442x44x211 17.4x1.73x8.31 3.1 6.8 10% to 90%
non-condensingFGS-2626KX 442x44x211 17.4x1.73x8.31 3.0 6.6 FGS-2624K 442x44x211 17.4x1.73x8.31 3.0 6.6 FGS-2616X 280x44x134 11x1.73x5.28 1.0 2.2 FGS-2614 220x44x134 8.66x1.73x5.28 1.0 2.2 Voltage and Frequency
Input Voltage and Frequency AC Voltage 100-240 VAC AC Frequency 50-60 Hz DC Voltage 24-48 VDC Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Ring Management Rapid Ring Enable self-recover time in less than 20ms Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad - Up to 14 groups
- Up to 8 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs) - Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN Edge (PVE)
- Q-in-Q (double tag) VLAN
- Voice VLAN
- GARP VLAN Registration Protocol (GVRP)
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Device Management System (DMS) Graphical
Monitoring- Topology view: Support intuitive way to configure and manage switches and devices with visual relations
- Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
- Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly. Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches Trouble Shooting - Network diagnostic between master switch and devices
- Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching IPv4 Static Routing IPv4 Unicast: Static routing IPv6 Static Routing IPv6 Unicast: Static routing Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC addresses to ports, and limits the number of learned MAC address IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers ACLs Supports up to 256 entries. Drop or rate limitation based on: - Source and destination MAC, VLAN ID or IP address, protocol, port,
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence / DSCP based
- Differentiated Services (DiffServ)
- Classification and re-marking ACLs
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management DHCP Server Support DHCP server to assign IP to DHCP clients Zero Touch Upgrade Upgrade single switch automatically when you get notification Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI For users to configure/manage switches in coand line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
- Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs; SSH
- DHCP Client/ DHCPv6 Client
- Cable Diagnostics
- Ping
- Syslog
- Telnet
- IPv6 Management
- + Download
-
Download
Product Specification
Product Datasheet
Series Product Datasheet
