Product Overview
GS-1510 web smart+ managed GbE switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

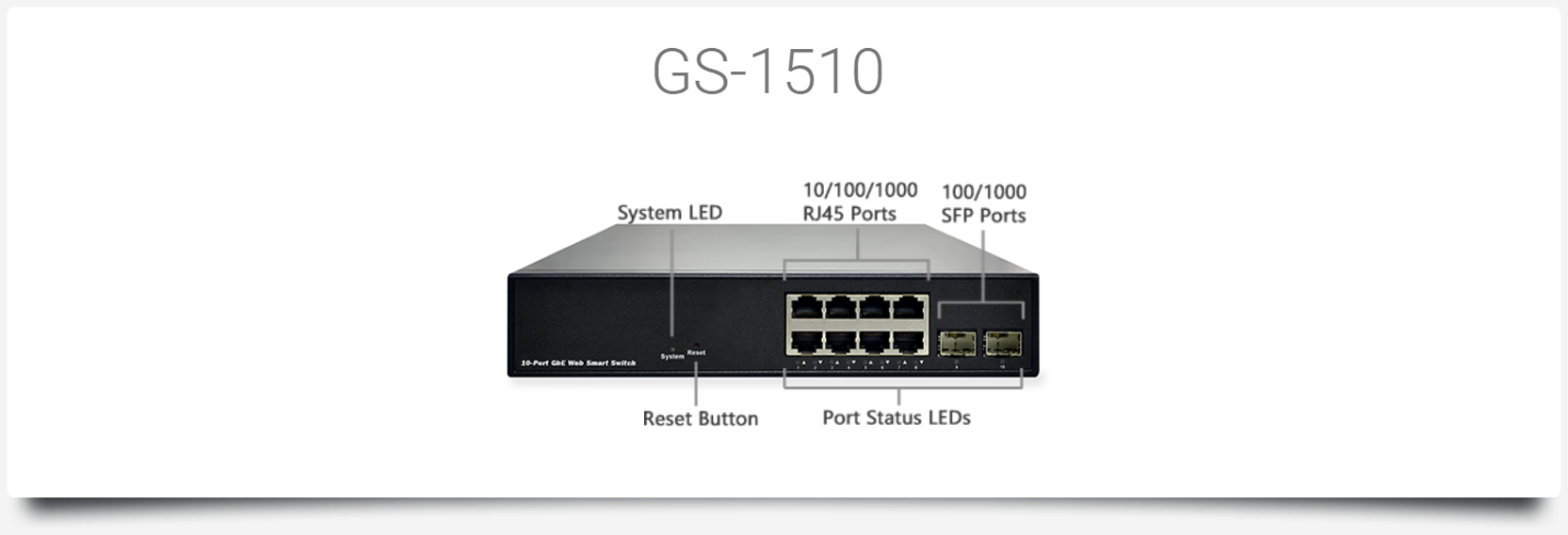

GS-1510 delivers 8 (10M/100M/1G) RJ45 ports and 2 GbE SFP ports. GS-1510 provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-1510 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features | Customer Benefits |
---|---|
Enhanced Layer 2 Features | Enhanced traffic management capabilities to move your data smoother and faster (STP/RSTP, VLAN, QoS, etc) |
Device Management System | Simplified configuration and management to reduce large maintenance complexity and costs |
Responsive Web GUI | IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency |
Product Specification
MODEL NAME | GS-1510 |
---|---|
Product Description | 10 ports GbE Web Smart+ Switch |
Port Configuration
10M/100M/1G RJ45 Port | 8 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | 2 | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | -- | |
Total Ports | 10 |
HW Performance
Switching Bandwidth | 20Gbps | |
Forwarding Performance | 14.88Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
Environmental Specification
Operating Temperature | 0°C to 50°C | |
Operating Humidity | 10 to 90% RH | |
Storage Temperature | -20°C to 70°C | |
Storage Humidity | 10 to 90% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 220 x 134 | |
Weight | < 1.5 Kg | |
FAN Less |
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | ||
IEEE802.1S (MSTP) | ||
VLAN |
802.1Q VLAN | |
Port-Based | ||
VLAN Entries | 4K | |
Private VLAN | ||
Voice VLAN | ||
Guest VLAN | -- | |
Q-in-Q | ||
802.1v Protocol VLAN | ||
MAC-Based VLAN | ||
IP Subnet-Based VLAN | ||
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | ||
GARP/GVRP | -- | |
IGMP Snooping | ||
MLD Snooping | ||
Multicast VLAN Registration (MVR) |
L3 Features
Static Route | -- | |
DHCP Server | ||
Dynamic Routing | -- |
QoS Features
Class of Service |
Port Based | |
802.1p | ||
DSCP | ||
TCP/UDP Port | -- | |
Rate Limiting |
Ingress | |
Egress | ||
Priority Queue Scheduling |
WRR | |
Stri Priority | ||
Hardware Queues | 8 |
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | -- | |
Port Security (MAC-based) | ||
IP Source Guard | ||
Storm Control | ||
RADIUS Authentication 802.1x | ||
TACACS+ Authentication | ||
HTTPs and SSL (Secured Web) | ||
BPDU Guard | ||
STP Root Guard | ||
DHCP Snooping | ||
Loop Protection |
Management
DHCP |
Client | |
Relay | ||
Option 66 | ||
Option 67 | ||
Option 82 | ||
Event/Error Log |
Syslog | |
SMTP (RFC821) | ||
Management Access Filtering |
SNMP | |
Web UI | ||
Telnet | ||
SSH | ||
PoE Management |
Scheduling | -- |
Auto-Checking | -- | |
Power Delay | -- | |
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | ||
RMON (1,2,3 & 9 Groups) | ||
Software Upgrade | ||
Configuration Export/Import | ||
Port Mirroring | ||
LLDP (IEEE802.1AB) | ||
LLDP-MED (IEEE802.1AB) | ||
CDP Aware | ||
sFlow | Option | |
IPv6 Management | ||
NTP | ||
First Time Wizard | -- |
Device Management System
Device Management |
Topology View | |
Floor View | ||
Map View | ||
Dashboard | ||
Traffic Monitoring | ||
Cable Diagnostics |
GS-1510 Web Smart+ Managed GbE Switch
GS-1510 web smart+ managed GbE switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
GS-1510 delivers 8 (10M/100M/1G) RJ45 ports and 2 GbE SFP ports. GS-1510 provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-1510 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
The switch delivers advanced functionality in Web Smart+ managed switch including DHCP client, IGMP, LLDP, etc. It also has basic security features such as IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.
[/accordionitem]
[accordionitem]
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
[/accordionitem]
[accordionitem]
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
[/accordionitem][/cq_vc_accordion]
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
---|---|---|---|
10 | 8 | 2 SFP | — |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
14.88 | 20 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
220x 44x 134 | 8.6x 1.7x 5.3 | <1.5 | <3.3 | Desktop, Wall |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
DHCP Relay |
|
IGMP v1/v2 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
Security | |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
ACLs | Supports up to 384 entries. Drop or rate limitation based on:
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
Dual Image | Independent primary and secondary images for backup while upgrading |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
SNMP |
|
s-Flow (option) | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search your real switches quickly and manage directly. |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
Trouble Shooting |
|
Web Smart+ Managed GbE Switches
The GS-1500 and PSGS-1500 series web smart+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.
The GS-1500 and PSGS-1500 series consist of 5 non-PoE models which are GS-1528DA, GS-1528, GS-1526, GS-1510 and GS-1506; and 7 PoE+ models which are PSGS-1528L, PSGS-1528F, PSGS-1526L, PSGS-1526F, PSGS-1518F, PSGS-1518AF, PSGS-1510F and PSGS-1508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-1500 and PSGS-1500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
-
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G) | Console | Available PoE Power |
---|---|---|---|---|---|
GS-1528DA | 28 | 24 | 4 SFP | -- | -- |
GS-1528 | 28 | 24 | 4 SFP | -- | -- |
GS-1526 | 26 | 24 | 2 SFP | -- | -- |
GS-1510 | 10 | 8 | 2 SFP | -- | -- |
GS-1506 | 6 | 5 | 1 SFP | -- | -- |
PSGS-1528L | 28 | 24 | 4 SFP | -- | 185W |
PSGS-1528F | 28 | 24 | 4 SFP | -- | 370W |
PSGS-1526L | 26 | 24 | 2 SFP | -- | 185W |
PSGS-1526F | 26 | 24 | 2 SFP | -- | 370W |
PSGS-1518F | 18 | 16 | 2 SFP | -- | 250W |
PSGS-1518AF | 18 | 16 | 2 SFP | -- | 185W |
PSGS-1510F | 10 | 8 | 2 SFP | -- | 130W |
PSGS-1508NF | 8 | 8 | -- | -- | 60W |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(Bytes) |
---|---|---|---|---|
GS-1528DA | 41.7 | 56 | 8 | 9216 |
GS-1528 | 41.7 | 56 | 8 | 9216 |
GS-1526 | 38.688 | 52 | 8 | 9216 |
GS-1510 | 14.88 | 20 | 8 | 9216 |
GS-1506 | 8.928 | 12 | 8 | 9216 |
PSGS-1528L | 41.7 | 56 | 8 | 9216 |
PSGS-1528F | 41.7 | 56 | 8 | 9216 |
PSGS-1526L | 38.688 | 52 | 8 | 9216 |
PSGS-1526F | 38.688 | 52 | 8 | 9216 |
PSGS-1518F | 26.784 | 36 | 8 | 9216 |
PSGS-1518AF | 26.784 | 36 | 8 | 9216 |
PSGS-1510F | 14.88 | 20 | 8 | 9216 |
PSGS-1508NF | 11.904 | 16 | 8 | 9216 |
Environmental Range (except PSGS-1518AF)
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Environmental Range (PSGS-1518AF only)
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 113 | 0 to 45 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
GS-1528DA | 442x44x211 | 17.4x1.7x8.3 | <2.5 | <5.5 | Desktop, Rack |
GS-1528 | 442x44x211 | 17.4x1.7x8.3 | <2.5 | <5.5 | Desktop, Rack |
GS-1526 | 280x44x166 | 11x1.7x 6.5 | <2.5 | <5.5 | Desktop, Wall |
GS-1510 | 220x44x134 | 8.6x1.7x5.3 | <1.5 | <3.3 | Desktop, Wall |
GS-1506 | 139x27x102 | 5.5x1.1x4.0 | <1 | <2.2 | Desktop, Wall |
PSGS-1528L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-1528F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-1526L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-1526F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-1518F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-1518AF | 280x44x166 | 11x1.7x6.5 | <2.5 | <5.5 | Desktop, Wall |
PSGS-1510F | 220x44x242 | 8.6x1.7x9.5 | <2 | <4.4 | Desktop, Wall |
PSGS-1508NF | 220x44x134 | 8.6x1.7x5.3 | <2 | <4.4 | Desktop, Wall |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | 100-240 VAC (GS-1528DA: dual AC inputs) |
Frequency | 50~60 Hz |
PoE Power Capacity
Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
---|---|---|
PSGS-1528L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1528F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1526L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1526F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1518F | 250W | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
PSGS-1518AF | 185W | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
PSGS-1510F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-1508NF | 60W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
DHCP Relay |
|
IGMP Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
ACLs | Supports up to 384 entries. Drop or rate limitation based on:
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
Dual Image | Independent primary and secondary images for backup while upgrading |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
SNMP |
|
s-Flow(option) | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search your real switches quickly and manage directly. |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
Trouble Shooting |
|
Power over Ethernet (PoE) | |
Port Configuration | Supports per port PoE configuration function |
PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). |
Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses. |
Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
