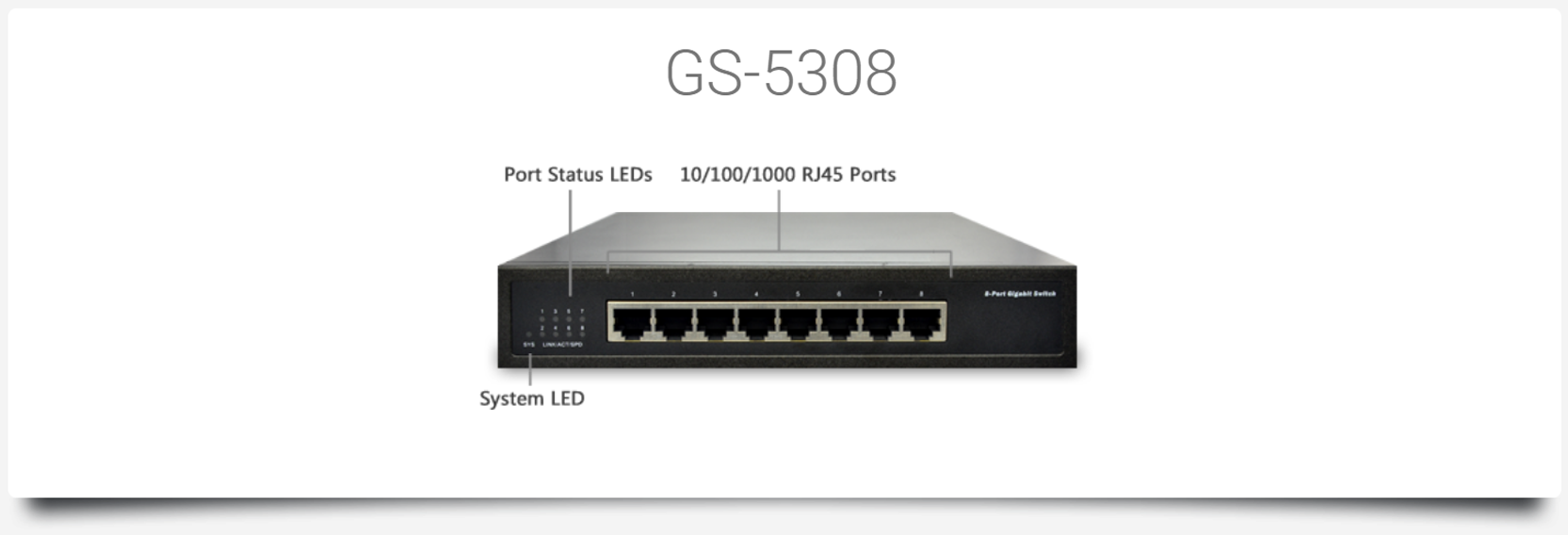

GS-5308
Product Overview
GS-5308 Unmanaged Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
GS-5308 delivers 8 (10M/100M/1G) RJ45 ports. GS-5308 provides high HW performance and environment flexibility for SMBs and Enterprises.
GS-5308 is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
| Key Features | Customer Benefits |
|---|---|
| GbE Interfaces | All interfaces can deliver GbE bandwidth for Enterprise Applications |
| Green/Power Saving | Energy-saving capabilities save your money by lower power consumption |
Product Specification
| MODEL NAME | GS-5308 |
|---|---|
| Product Description | 8 ports GbE Unmanaged Switch |
Port Configuration
10M/100M/1G RJ45 Port | 8 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | -- | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | -- | |
Total Ports | 8 |
|
HW Performance
Switching Bandwidth | 16Gbps | |
Forwarding Performance | 11.9Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
|
Environmental Specification
Operating Temperature | 0°C to 40°C | |
Operating Humidity | 10 to 90% RH | |
Storage Temperature | -20 to 70°C | |
Storage Humidity | 10 to 90% RH |
|
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 35.5 x 197 x 120 | |
Weight | 0.8 Kg | |
FAN Less | -- |
|
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
|
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
|
GS-5308 Unmanaged GbE Switch
GS-5308 Unmanaged Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
GS-5308 delivers 8 (10M/100M/1G) RJ45 ports. GS-5308 provides high HW performance and environment flexibility for SMBs and Enterprises.
GS-5308 is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
GbE Interfaces
All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.
Green/Power Saving
Energy-saving capabilities save your money by lower power consumption.
Specifications
Port Configuration
| Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
|---|---|---|---|
| 8 | 8 | — | — |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (K) |
|---|---|---|---|
| 11.9 | 16 | 8 | 9 |
Environmental Range
| Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
| 32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
Dimension Weights Humidity
| Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | |
| 197.2x 35.5 x 120 | 7.76x 1.4 x 4.72 | 0.8 | 1.76 | 10% to 90% , non-condensing |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | Frequency |
| 100-240 VAC | 50~60 Hz, internal , universal |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Quality of Service | |
|---|---|
| Classification |
|
| Rate Limiting |
|
Unmanaged GbE Switches GS-5500 & GS-5300 Series
Unmanaged series is plug-and-play Ethernet Switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
It consists of three models which are PSGS-5508L, PSGS-5508F and GS-5308. The series provides high HW performance and environment flexibility for SMBs and Enterprises.
They are ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
-
GbE Interfaces
All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.
-
Green/Power Saving
Energy-saving capabilities save your money by lower power consumption.
Specifications
Port Configuration
| Model Name | Total Ports | RJ45 10M/100M/1G | Uplinks | Console | Available PoE Power |
|---|---|---|---|---|---|
| GS-5308 | 8 | 8 | -- | -- | -- |
| PSGS-5508L | 8 | 8 | -- | -- | 65W |
| PSGS-5508F | 8 | 8 | -- | -- | 130W |
Hardware Performance
| Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(K) |
|---|---|---|---|---|
| GS-5308 | 11.9 | 16 | 8 | 9 |
| PSGS-5508L | 11.9 | 16 | 8 | 9 |
| PSGS-5508F | 11.9 | 16 | 8 | 9 |
Environmental Range
| Model Name | Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| GS-5308 | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
| PSGS-5508L | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | ||
| PSGS-5508F | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | ||
Dimension, Weights, Mounting
| Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| GS-5308 | 197x35x120 | 7.76x1.38x4.72 | 0.8 | 1.76 | 10% to 90% non-condensing |
| PSGS-5508L | 220x44x134 | 8.6x1.7x5.3 | 0.8 | 1.76 | |
| PSGS-5508F | 220x44x242 | 8.6x1.7x9.5 | 0.8 | 1.76 | |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | Frequency |
| 100-240 VAC | 50~60 Hz |
PoE Power Capacity
| Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|---|
| PSGS-5508L | 65W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
| PSGS-5508F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Quality of Service | |
|---|---|
| Classification |
|
| Rate Limiting |
|
Download
Product Specification
Product Datasheet
Series Product Datasheet
- + Overview
-
Product Overview
GS-5308 Unmanaged Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
GS-5308 delivers 8 (10M/100M/1G) RJ45 ports. GS-5308 provides high HW performance and environment flexibility for SMBs and Enterprises.
GS-5308 is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features Customer Benefits GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications Green/Power Saving Energy-saving capabilities save your money by lower power consumption - + Specification
-
Product Specification
MODEL NAME GS-5308 Product Description 8 ports GbE Unmanaged Switch Port Configuration
10M/100M/1G RJ45 Port8100M/1G/2.5G RJ45 Port--100M/1G/10G RJ45 Port--100M/1G/2.5G/5G/10G RJ45 Port--100M/1G SFP Port--GbE RJ45/SFP Combo Port--1G/2.5G SFP Port--1G/10G SFP+ Port--SFP28/QSFP+ Combo Port--1G/10G/25G SFP28 Port--QSFP+ (40G)--SFP56 (50G)--USB--Console Port--Total Ports8HW Performance
Switching Bandwidth16GbpsForwarding Performance11.9MppsMAC Address8KJumbo Frames9216 BytesEnvironmental Specification
Operating Temperature0°C to 40°COperating Humidity10 to 90% RHStorage Temperature-20 to 70°CStorage Humidity10 to 90% RHMechanical Specification
Dimensions (H) x (W) x (D) mm35.5 x 197 x 120Weight0.8 KgFAN Less--Power Source
AC Input100V-240VDC Input--Dual Input--Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV)--CertificationsCE/FCC Class A
Others by Request - + Datasheet
-
GS-5308 Unmanaged GbE Switch
GS-5308 Unmanaged Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
GS-5308 delivers 8 (10M/100M/1G) RJ45 ports. GS-5308 provides high HW performance and environment flexibility for SMBs and Enterprises.
GS-5308 is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
GbE Interfaces
All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.
Green/Power Saving
Energy-saving capabilities save your money by lower power consumption.
Specifications
Port Configuration
Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console 8 8 — — Hardware Performance
Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(K)11.9 16 8 9 Environmental Range
Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000 Dimension Weights Humidity
Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds 197.2x 35.5 x 120 7.76x 1.4 x 4.72 0.8 1.76 10% to 90% ,
non-condensingVoltage and Frequency
AC Input Voltage and Frequency Voltage Frequency 100-240 VAC 50~60 Hz, internal , universal Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Quality of Service Classification - Port based
- 802.1p VLAN priority based
Rate Limiting - Ingress policer
- Egress shaping and rate control
- + Series Datasheet
-
Unmanaged GbE Switches GS-5500 & GS-5300 Series
Unmanaged series is plug-and-play Ethernet Switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
It consists of three models which are PSGS-5508L, PSGS-5508F and GS-5308. The series provides high HW performance and environment flexibility for SMBs and Enterprises.
They are ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
-
GbE Interfaces
All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.
-
Green/Power Saving
Energy-saving capabilities save your money by lower power consumption.
Specifications
Port Configuration
Model Name Total Ports RJ45 10M/100M/1G Uplinks Console Available PoE Power GS-5308 8 8 -- -- -- PSGS-5508L 8 8 -- -- 65W PSGS-5508F 8 8 -- -- 130W Hardware Performance
Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(K) GS-5308 11.9 16 8 9 PSGS-5508L 11.9 16 8 9 PSGS-5508F 11.9 16 8 9 Environmental Range
Model Name Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters GS-5308 14 to 104 -10 to 40 -4 to 158 -20 to 70 <10000 <3000 PSGS-5508L 14 to 104 -10 to 40 -4 to 158 -20 to 70 PSGS-5508F 14 to 104 -10 to 40 -4 to 158 -20 to 70 Dimension, Weights, Mounting
Model Name Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds GS-5308 197x35x120 7.76x1.38x4.72 0.8 1.76 10% to 90%
non-condensingPSGS-5508L 220x44x134 8.6x1.7x5.3 0.8 1.76 PSGS-5508F 220x44x242 8.6x1.7x9.5 0.8 1.76 Voltage and Frequency
AC Input Voltage and Frequency Voltage Frequency 100-240 VAC 50~60 Hz PoE Power Capacity
Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W) PSGS-5508L 65W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power PSGS-5508F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Quality of Service Classification - Port based
- 802.1p VLAN priority based
Rate Limiting - Ingress policer
- Egress shaping and rate control
