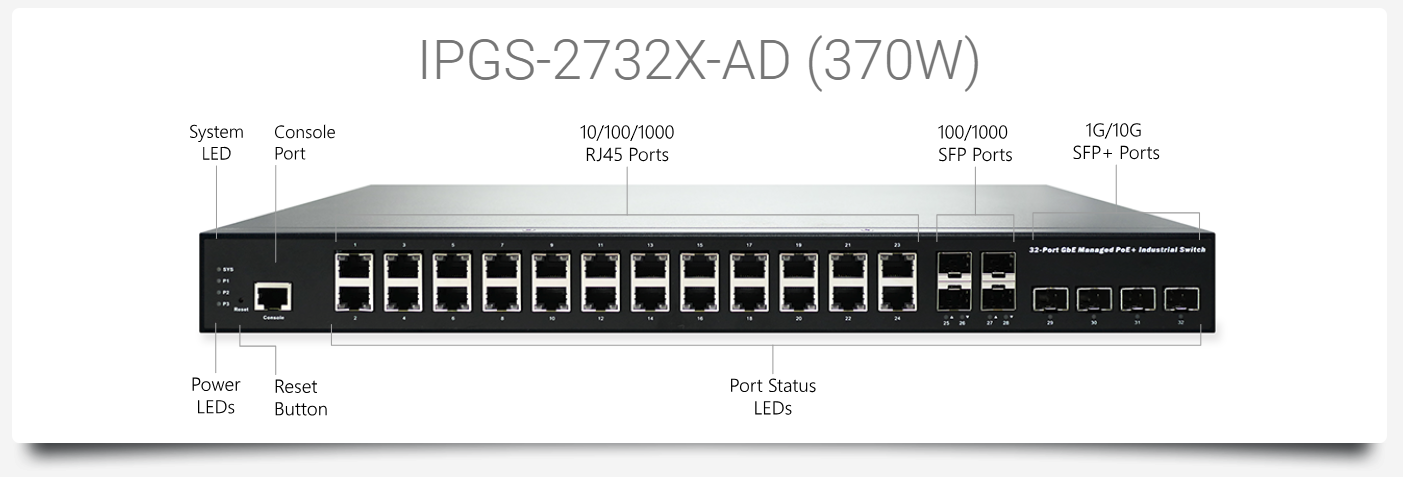

IPGS-2732X-AD (370W)

Overview
Specification
Datasheet
Series Datasheet
Download

Product Overview

IPGS-2732X-AD industrial L2+ managed GbE PoE switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, IPGS-2732X-AD also provide carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.

IPGS-2732X-AD delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3 at/af, and total up to 370W) ports, 4 GbE SFP ports, 4 10GbE SPF+ ports and RJ45 console port. IPGS-2732X-AD provides high HW performance and environment flexibility for industrial and carrier Ethernet applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IPGS-2732X-AD is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features	Customer Benefits
Comprehensive L2 Support	Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster
Carrier Ethernet Support	Provided the ideal combination of afford-ability and capabilities for Carrier networking (1588v2, OAM, CFM, ELPS)
Ethernet Ring Protocol Switching (ITU G.8032)	Provided link redundancy ability to reduce networking service risks and guarantee network service availability
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology:Throughput, Latency, Frame loss rate, Back-to-back frames Test
Rapid Ring	Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data－all in a recovery time of less than 20 ms
Dual DC Power Input	Power failover when power supplies are connected to different circuits reducing network operating risk

Product Specification

MODEL NAME	IPGS-2732X-AD
Product Description	32 ports GbE Industrial L2+ Managed Ethernet PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port		24
100M/1G/2.5G RJ45 Port		--
100M/1G/10G RJ45 Port		--
100M/1G/2.5G/5G/10G RJ45 Port		--
100M/1G SFP Port		4
GbE RJ45/SFP Combo Port		--
1G/2.5G SFP Port		--
1G/10G SFP+ Port		4
SFP28/QSFP+ Combo Port		--
1G/10G/25G SFP28 Port		--
QSFP+ (40G)		--
SFP56 (50G)		--
USB		--
Console Port		RJ45
Total Ports		32

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)		--
IEEE802.3bt (PoE++ 90W)		--
PoE Port		24
Available PoE Power		370W

HW Performance

Switching Bandwidth		136Gbps
Forwarding Performance		101.19Mpps
MAC Address		32K
Jumbo Frames		10056 Bytes

Environmental Specification

Operating Temperature		-40°C to 75°C
Operating Humidity		10 to 90% RH
Storage Temperature		-40°C to 85°C
Storage Humidity		10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm		44 x 442 x 300
Weight		5 Kg
FAN Less

Power Source

AC Input		100 ~ 240 VAC
DC Input		52 ~ 57 VDC
Dual Input		Dual DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)		--
Certifications		CE/FCC Class A LVD with EN 62368-1 UL by Request Others by Request

L2 Switching

Spanning Tree	IEEE802.1D (STP)
	IEEE802.1W (RSTP)
	IEEE802.1S (MSTP)
VLAN	802.1Q VLAN
	Port-Based
	VLAN Entries	4K
	Private VLAN
	Voice VLAN
	Guest VLAN
	Q-in-Q
	802.1v Protocol VLAN
	MAC-Based VLAN
	IP Subnet-Based VLAN
IEEE 802.3ad LACP	Dynamic Trunk
	Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server
Dynamic Routing		--

QoS Features

Class of Service	Port Based
	802.1p
	DSCP
	TCP/UDP Port
Rate Limiting	Ingress
	Egress
Priority Queue Scheduling	WRR
	Stri Priority
Hardware Queues		8

Security

ACLs	L2/L3/L4
	IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP	Client
	Relay
	Option 66
	Option 67
	Option 82
Event/Error Log	Syslog
	SMTP (RFC821)
Management Access Filtering	SNMP
	Web UI
	Telnet
	SSH
PoE Management	Scheduling
	Auto-Checking
	Power Delay
	Soft-Reboot PoE Non-stop
SNMP (v1, v2c, v3)
RMON (1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP
First Time Wizard		--

Carrier Ethernet

SyncE		--
1588v2 PTP
G.8265.1/G.8275.1/G.8275.2		--
1588v2 PTP (stratum3)		--
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring
RFC2544
Y.1564

Device Management System

Device Management	Topology View
	Floor View
	Map View
	Dashboard
	Traffic Monitoring
	Cable Diagnostics

IPGS-2732X-AD Industrial L2+ Managed GbE PoE Switch

Key Features

Rapid Ring (R-Ring)
Built in Device Management System (DMS)
ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
IEEE 1588v2 PTP
IEEE 802.3ah OAM
IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
RFC2544
Y.1564
DHCP Server
IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
IPv4/IPv6 L3 static route

Benefits

Feature-rich Specifications to Support Various Applications

The switch deliver extensive industrial and carrier grade functionalities, including R-Ring, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 PTP, OAM, CFM, etc. It also have enhanced L2/L3 features for better manageability and usability.
IPGS-2706 provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, IPGS-2706 can even provides power with up to 38W per port.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro/carrier Ethernet deployments.
Superior Reliability through OAM and CFM for Service Assurance

The switch performs IEEE1588v2 PTP with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Exceptional Precision with IEEE 1588v2 PTP

Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Easy to Install Configure and Troubleshoot by Device Management System

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications

Port Configuration

Total Ports	RJ45 (10M/100M/1G)	SFP (100M/1G)	Uplinks	Console
32	24	4	4 SFP+	RJ45

Hardware Performance

Forwarding Capacity (Mpps)	Switching Capacity (Gbps)	Mac Table (K)	Jumbo Frames (Bytes)
101.19	136	32	10056

Environmental Range

Operating Temperature		Storage Temperature		Operating Humidity	Altitude
Fahrenheit	Centigrade	Fahrenheit	Centigrade	Operating Humidity	Feet	Meters
-40 to 167	-40 to 75	-40 to 185	-40 to 85	10% to 90% non-condensing	<10000	<3000

Dimension, Weights, Mounting

Dimension (WxHxD)		Weight			Mounting Type
Millimeter	Inches	Kilograms	Pounds		Mounting Type
442x 44x 300	17.4x 1.7x 11.8	5	11		Desktop, Rack

Voltage and Frequency

Input Voltage and Frequency
AC Voltage	100-240 VAC
DC Nominal	54 VDC dual inputs
DC Operating Range	52 to 57 VDC
PoE SKUs	Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output </ul

PoE Power Capacity

Available PoE Power	Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W (DC Input)	Each of port 1- 24 support PoE/ PoE+ within available PoE Power

Certifications

Electromagnetic Emissions (EMC)
SHALL comply with European Directives for CE marking (LVD with EN 62368-1) SHALL comply with FCC Part 15 Class A UL 62386-1will be designed, UL report is customer request Other by Request

Software Features

Ring Management
ITU-T G.8031	Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032	Supports ITU-T G.8032 Ethernet Ring Protection Switching
Rapid Ring	Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring	Topology view: Support intuitive way to configure and manage switches and devices with visual relations Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch	Search and manage your real switches quickly.
Traffic Monitoring	Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting	Network diagnostic between master switch and devices Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Ethernet OAM
IEEE 802.3ah OAM	Supports Operations, Administration & Management
IEEE 802.1ag & ITU-T Y.1731 Flow OAM	Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management) Supports ITU-T Y.1731 Performance Monitoring
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology: Throughput, Latency, Frame loss rate, Back-to-back frames Test
Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
Trunking	Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 16 groups and up to 16 ports per group
VLAN	Port-based VLAN 802.1Q tag-based VLAN MAC-based VLAN Management VLAN Private VLAN Edge (PVE) Q-in-Q (double tag) VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
DHCP Relay	Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
IGMP v1/v2/v3 Snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy	IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping	Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR)	Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing	IPv4 Unicast: Static routing
IPv6 Static Routing	IPv6 Unicast: Static routing
Security
Secure Shell (SSH)	SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X	IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge	PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security	Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard	Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+	Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping	A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs	Supports up to 256 entries. Drop or rate limitation based on: Source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets TCP flag
Loop Protection	To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue	Supports 8 hardware queues
Scheduling	Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service
Classification	Port based 802.1p VLAN priority based IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) Classification and re-marking ACLs
Rate Limiting	Ingress policer Egress shaping and rate control Per port
Management
HW Monitoring	Temperature Detection and Alarm
HW Watchdog	Supported to resume operation from CPU hang up
IEEE 1588v2 PTP	Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP Server	Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON)	Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP	The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow	The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)	Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions
Web GUI Interface	Built-in switch configuration utility for browser-based device configuration
CLI	For users to configure/manage switches in command line modes
Dual Image	Independent primary and secondary images for backup while upgrading
SNMP	SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well
NTP	Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management	HTTP/HTTPs; SSH DHCP Client/ DHCPv6 Client Cable Diagnostics Ping Syslog IPv6 Management
Power over Ethernet (PoE)
Port Configuration	Supports per port PoE configuration function
PoE Scheduling	Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking	Check the link status of PDs. Reboot PDs if there is no responses
Power Delay	The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
Soft-Reboot PoE Non-stop	The switch will keep providing power to the PDs while during soft-reboot

IGS-2732 and IPGS-2732 Series
Industrial L2+ Managed GbE Switches

The IGS-2732 and IPGS-2732 series industrial L2+ managed GbE switches are the next generation industrial grade Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, the IGS-2732 and IPGS-2732 series also provide carrier Ethernet features such as OAM/CFM/ERPS/EPS/PTPv2, of which make them suitable for industrial and carrier Ethernet applications.

The IGS-2732 and IPGS-2732 series consist of 4 non-PoE models which are IGS-2732X-AD, IGS-2732X-HD, IGS-2722X-AD and IGS-2722X-HD, and 2 PoE+ models which are IPGS-2732X-AD and IPGS-2722X-AD. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-2732 and IPGS-2732 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features

Rapid Ring (R-Ring)
Built in Device Management System (DMS)
ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
IEEE 1588v2 PTP
IEEE 802.3ah OAM
IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
RFC2544
Y.1564
DHCP Server
IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
IEEE 802.3af/at Power over Ethernet
IPv4/IPv6 L3 static route

Benefits

Feature-rich Specifications to Support Various Applications

The series deliver extensive industrial and carrier grade functionalities, including R-Ring, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 PTP, OAM, CFM, etc. The product series also have enhanced L2/L3 features for better manageability and usability.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro/carrier Ethernet deployments.
Exceptional Precision with IEEE 1588v2 PTP

The switch performs IEEE1588v2 PTP with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Superior Reliability through OAM and CFM for Service Assurance

Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Easy to Install, Configure and Troubleshoot by Device Management System

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications

Port Configuration

Model Name	Total Ports	RJ45 (10M/100M/1G)	SFP (100M/1G)	Uplinks	Console	Available PoE Power
IGS-2732X-AD	32	24	4	4 SFP+	RJ45	--
IGS-2732X-HD	32	24	4	4 SFP+	RJ45	--
IGS-2722X-AD	22	16	4	2 SFP+	RJ45	--
IGS-2722X-HD	22	16	4	2 SFP+	RJ45	--
IPGS-2732X-AD	32	24	4	4 SFP+	RJ45	370W (DC Input)
IPGS-2722X-AD	22	16	4	2 SFP+	RJ45	250W (DC Input)

Hardware Performance

Model Name	Forwarding Capacity(Mpps)	Switching Capacity(Gbps)	Mac Table(K)	Jumbo Frames(Bytes)
IGS-2732X-AD	101.19	136	32	10056
IGS-2732X-HD	101.19	136	32	10056
IGS-2722X-AD	59.523	80	32	10056
IGS-2722X-HD	59.523	80	32	10056
IPGS-2732X-AD	101.19	136	32	10056
IPGS-2722X-AD	59.523	80	32	10056

Environmental Range

Operating Temperature		Storage Temperature		Operating Humidity	Altitude
Fahrenheit	Centigrade	Fahrenheit	Centigrade	Operating Humidity	Feet	Meters
-40 to 167	-40 to 75	-40 to 185	-40 to 85	5% to 95% non-condensing	<10000	<3000

Dimension, Weights, Mounting

Model Name	Dimension (WxHxD)		Weight		Mounting Type
Model Name	Millimeter	Inches	Kilograms	Pounds	Mounting Type
IGS-2732X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2732X-HD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2722X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2722X-HD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IPGS-2732X-AD	442x44x300	17.4x1.7x11.8	5	11	Desktop,Rack
IPGS-2722X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack

Voltage and Frequency

Input Voltage and Frequency
Voltage	Frequency
AC Voltage	100-240 VAC (except IGS-2732X-HD,IGS-2722X-HD)
DC Nominal	24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model)
DC Operating Range	18 to 57 VDC (IGS-2732X-AD and IGS-2722X-AD) 52 to 57 VDC (IPGS-2732X-AD and IPGS-2722X-AD) 125 to 300 VDC (IGS-2732X-HD and IGS-2722X-HD)
PoE SKUs	Required>48 VDC for PoE IEEE 802.3af (Max. 15.4W) output Required >54 VDC for PoE+IEEE802.3at (Max. 30W) output

PoE Power Capacity

Model Name	Available PoE Power	Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
IPGS-2732X-AD	370W (DC Input)	Each of port 1- 24 support PoE/ PoE+ within available PoE Power
IPGS-2722X-AD	250W (DC Input)	Each of port 1- 16 support PoE/ PoE+ within available PoE Power

Certifications

Electromagnetic Emissions (EMC)
SHALL comply with European Directives for CE marking (LVD with EN 62368-1) SHALL comply with FCC Part 15 Class A UL 62386-1will be designed, UL report is customer request Other by Request

Software Features

Ring Management
ITU-T G.8031	Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032	Supports ITU-T G.8032 Ethernet Ring Protection Switching
Rapid Ring	Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring	Topology view: Support intuitive way to configure and manage switches and devices with visual relations Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch	Search and manage your real switches quickly.
Traffic Monitoring	Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting	Network diagnostic between master switch and devices Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Ethernet OAM
IEEE 802.3ah OAM	Supports Operations, Administration & Management
IEEE 802.1ag & ITU-T Y.1731 Flow OAM	Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management) Supports ITU-T Y.1731 Performance Monitoring
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology: Throughput, Latency, Frame loss rate, Back-to-back frames Test
Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
Trunking	Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 16 groups and up to 16 ports per group
VLAN	Port-based VLAN 802.1Q tag-based VLAN MAC-based VLAN Management VLAN Private VLAN Edge (PVE) Q-in-Q (double tag) VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
DHCP Relay	Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
IGMP v1/v2/v3 Snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy	IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping	Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR)	It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Layer 3 Switching
IPv4 Static Routing	IPv4 Unicast: Static routing
IPv6 Static Routing	IPv6 Unicast: Static routing
Security
Secure Shell (SSH)	SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X	IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge	PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security	Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard	Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+	Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping	A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs	Supports up to 256 entries. Drop or rate limitation based on: Source and destination MAC, VLAN ID or IP address, protocol, port Differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets TCP flag
Loop Protection	To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue	Supports 8 hardware queues
Scheduling	Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service
Classification	Port based 802.1p VLAN priority based IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) Classification and re-marking ACLs
Rate Limiting	Ingress policer Egress shaping and rate control Per port
Management
HW Monitoring	Temperature Detection and Alarm
HW Watchdog	Supported to resume operation from CPU hang up
IEEE 1588v2 PTP	Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP Server	Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON)	Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP	The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow	The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)	Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions
Web GUI Interface	Built-in switch configuration utility for browser-based device configuration
CLI	For users to configure/manage switches in command line modes
Dual Image	Independent primary and secondary images for backup while upgrading
SNMP	SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well
NTP	Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management	HTTP/HTTPs; SSH DHCP Client/ DHCPv6 Client Cable Diagnostics Ping Syslog IPv6 Management
Power over Ethernet (PoE)
Port Configuration	Supports per port PoE configuration function
PoE Scheduling	Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking	Check the link status of PDs. Reboot PDs if there is no responses.
Power Delay	The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

Download

Product Specification

Product Datasheet

Series Product Datasheet

Quick Installation Guide

Overview

Product Overview

Key Features	Customer Benefits
Comprehensive L2 Support	Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster
Carrier Ethernet Support	Provided the ideal combination of afford-ability and capabilities for Carrier networking (1588v2, OAM, CFM, ELPS)
Ethernet Ring Protocol Switching (ITU G.8032)	Provided link redundancy ability to reduce networking service risks and guarantee network service availability
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology:Throughput, Latency, Frame loss rate, Back-to-back frames Test
Rapid Ring	Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data－all in a recovery time of less than 20 ms
Dual DC Power Input	Power failover when power supplies are connected to different circuits reducing network operating risk

Specification

Product Specification

MODEL NAME	IPGS-2732X-AD
Product Description	32 ports GbE Industrial L2+ Managed Ethernet PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port		24
100M/1G/2.5G RJ45 Port		--
100M/1G/10G RJ45 Port		--
100M/1G/2.5G/5G/10G RJ45 Port		--
100M/1G SFP Port		4
GbE RJ45/SFP Combo Port		--
1G/2.5G SFP Port		--
1G/10G SFP+ Port		4
SFP28/QSFP+ Combo Port		--
1G/10G/25G SFP28 Port		--
QSFP+ (40G)		--
SFP56 (50G)		--
USB		--
Console Port		RJ45
Total Ports		32

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)		--
IEEE802.3bt (PoE++ 90W)		--
PoE Port		24
Available PoE Power		370W

HW Performance

Switching Bandwidth		136Gbps
Forwarding Performance		101.19Mpps
MAC Address		32K
Jumbo Frames		10056 Bytes

Environmental Specification

Operating Temperature		-40°C to 75°C
Operating Humidity		10 to 90% RH
Storage Temperature		-40°C to 85°C
Storage Humidity		10 to 90% RH

Mechanical Specification

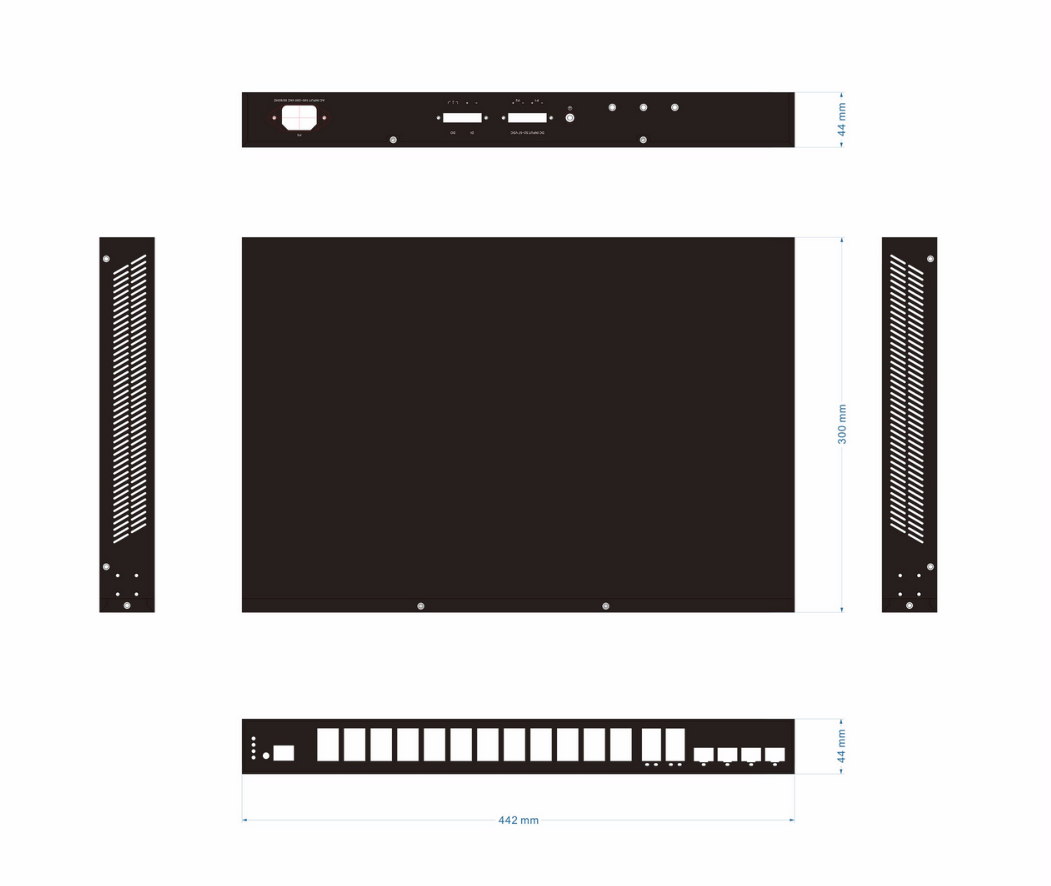

Dimensions (H) x (W) x (D) mm		44 x 442 x 300
Weight		5 Kg
FAN Less

Power Source

AC Input		100 ~ 240 VAC
DC Input		52 ~ 57 VDC
Dual Input		Dual DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)		--
Certifications		CE/FCC Class A LVD with EN 62368-1 UL by Request Others by Request

L2 Switching

Spanning Tree	IEEE802.1D (STP)
	IEEE802.1W (RSTP)
	IEEE802.1S (MSTP)
VLAN	802.1Q VLAN
	Port-Based
	VLAN Entries	4K
	Private VLAN
	Voice VLAN
	Guest VLAN
	Q-in-Q
	802.1v Protocol VLAN
	MAC-Based VLAN
	IP Subnet-Based VLAN
IEEE 802.3ad LACP	Dynamic Trunk
	Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server
Dynamic Routing		--

QoS Features

Class of Service	Port Based
	802.1p
	DSCP
	TCP/UDP Port
Rate Limiting	Ingress
	Egress
Priority Queue Scheduling	WRR
	Stri Priority
Hardware Queues		8

Security

ACLs	L2/L3/L4
	IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP	Client
	Relay
	Option 66
	Option 67
	Option 82
Event/Error Log	Syslog
	SMTP (RFC821)
Management Access Filtering	SNMP
	Web UI
	Telnet
	SSH
PoE Management	Scheduling
	Auto-Checking
	Power Delay
	Soft-Reboot PoE Non-stop
SNMP (v1, v2c, v3)
RMON (1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP
First Time Wizard		--

Carrier Ethernet

SyncE		--
1588v2 PTP
G.8265.1/G.8275.1/G.8275.2		--
1588v2 PTP (stratum3)		--
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring
RFC2544
Y.1564

Device Management System

Device Management	Topology View
	Floor View
	Map View
	Dashboard
	Traffic Monitoring
	Cable Diagnostics

Datasheet

IPGS-2732X-AD Industrial L2+ Managed GbE PoE Switch

Key Features

Rapid Ring (R-Ring)
Built in Device Management System (DMS)
ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
IEEE 1588v2 PTP
IEEE 802.3ah OAM
IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
RFC2544
Y.1564
DHCP Server
IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
IPv4/IPv6 L3 static route

Benefits

Feature-rich Specifications to Support Various Applications

The switch deliver extensive industrial and carrier grade functionalities, including R-Ring, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 PTP, OAM, CFM, etc. It also have enhanced L2/L3 features for better manageability and usability.
IPGS-2706 provides advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, IPGS-2706 can even provides power with up to 38W per port.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro/carrier Ethernet deployments.
Superior Reliability through OAM and CFM for Service Assurance

The switch performs IEEE1588v2 PTP with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Exceptional Precision with IEEE 1588v2 PTP

Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Easy to Install Configure and Troubleshoot by Device Management System

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications

Port Configuration

Total Ports	RJ45 (10M/100M/1G)	SFP (100M/1G)	Uplinks	Console
32	24	4	4 SFP+	RJ45

Hardware Performance

Forwarding Capacity (Mpps)	Switching Capacity (Gbps)	Mac Table (K)	Jumbo Frames (Bytes)
101.19	136	32	10056

Environmental Range

Operating Temperature		Storage Temperature		Operating Humidity	Altitude
Fahrenheit	Centigrade	Fahrenheit	Centigrade	Operating Humidity	Feet	Meters
-40 to 167	-40 to 75	-40 to 185	-40 to 85	10% to 90% non-condensing	<10000	<3000

Dimension, Weights, Mounting

Dimension (WxHxD)		Weight			Mounting Type
Millimeter	Inches	Kilograms	Pounds		Mounting Type
442x 44x 300	17.4x 1.7x 11.8	5	11		Desktop, Rack

Voltage and Frequency

Input Voltage and Frequency
AC Voltage	100-240 VAC
DC Nominal	54 VDC dual inputs
DC Operating Range	52 to 57 VDC
PoE SKUs	Required >48 VDC for PoE IEEE 802.3af (Max. 15.4W) output Required >54 VDC for PoE+ IEEE802.3at (Max. 30W) output </ul

PoE Power Capacity

Available PoE Power	Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W (DC Input)	Each of port 1- 24 support PoE/ PoE+ within available PoE Power

Certifications

Electromagnetic Emissions (EMC)
SHALL comply with European Directives for CE marking (LVD with EN 62368-1) SHALL comply with FCC Part 15 Class A UL 62386-1will be designed, UL report is customer request Other by Request

Software Features

Ring Management
ITU-T G.8031	Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032	Supports ITU-T G.8032 Ethernet Ring Protection Switching
Rapid Ring	Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring	Topology view: Support intuitive way to configure and manage switches and devices with visual relations Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch	Search and manage your real switches quickly.
Traffic Monitoring	Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting	Network diagnostic between master switch and devices Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Ethernet OAM
IEEE 802.3ah OAM	Supports Operations, Administration & Management
IEEE 802.1ag & ITU-T Y.1731 Flow OAM	Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management) Supports ITU-T Y.1731 Performance Monitoring
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology: Throughput, Latency, Frame loss rate, Back-to-back frames Test
Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
Trunking	Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 16 groups and up to 16 ports per group
VLAN	Port-based VLAN 802.1Q tag-based VLAN MAC-based VLAN Management VLAN Private VLAN Edge (PVE) Q-in-Q (double tag) VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
DHCP Relay	Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
IGMP v1/v2/v3 Snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy	IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping	Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR)	Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing	IPv4 Unicast: Static routing
IPv6 Static Routing	IPv6 Unicast: Static routing
Security
Secure Shell (SSH)	SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X	IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge	PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security	Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard	Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+	Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping	A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs	Supports up to 256 entries. Drop or rate limitation based on: Source and destination MAC, VLAN ID or IP address, protocol, port, Differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets TCP flag
Loop Protection	To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue	Supports 8 hardware queues
Scheduling	Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service
Classification	Port based 802.1p VLAN priority based IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) Classification and re-marking ACLs
Rate Limiting	Ingress policer Egress shaping and rate control Per port
Management
HW Monitoring	Temperature Detection and Alarm
HW Watchdog	Supported to resume operation from CPU hang up
IEEE 1588v2 PTP	Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP Server	Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON)	Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP	The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow	The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)	Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions
Web GUI Interface	Built-in switch configuration utility for browser-based device configuration
CLI	For users to configure/manage switches in command line modes
Dual Image	Independent primary and secondary images for backup while upgrading
SNMP	SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well
NTP	Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management	HTTP/HTTPs; SSH DHCP Client/ DHCPv6 Client Cable Diagnostics Ping Syslog IPv6 Management
Power over Ethernet (PoE)
Port Configuration	Supports per port PoE configuration function
PoE Scheduling	Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking	Check the link status of PDs. Reboot PDs if there is no responses
Power Delay	The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
Soft-Reboot PoE Non-stop	The switch will keep providing power to the PDs while during soft-reboot

Series Datasheet

IGS-2732 and IPGS-2732 Series
Industrial L2+ Managed GbE Switches

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-2732 and IPGS-2732 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features

Rapid Ring (R-Ring)
Built in Device Management System (DMS)
ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
IEEE 1588v2 PTP
IEEE 802.3ah OAM
IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
RFC2544
Y.1564
DHCP Server
IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
IEEE 802.3af/at Power over Ethernet
IPv4/IPv6 L3 static route

Benefits

Feature-rich Specifications to Support Various Applications

The series deliver extensive industrial and carrier grade functionalities, including R-Ring, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 PTP, OAM, CFM, etc. The product series also have enhanced L2/L3 features for better manageability and usability.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro/carrier Ethernet deployments.
Exceptional Precision with IEEE 1588v2 PTP

The switch performs IEEE1588v2 PTP with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Superior Reliability through OAM and CFM for Service Assurance

Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Easy to Install, Configure and Troubleshoot by Device Management System

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications

Port Configuration

Model Name	Total Ports	RJ45 (10M/100M/1G)	SFP (100M/1G)	Uplinks	Console	Available PoE Power
IGS-2732X-AD	32	24	4	4 SFP+	RJ45	--
IGS-2732X-HD	32	24	4	4 SFP+	RJ45	--
IGS-2722X-AD	22	16	4	2 SFP+	RJ45	--
IGS-2722X-HD	22	16	4	2 SFP+	RJ45	--
IPGS-2732X-AD	32	24	4	4 SFP+	RJ45	370W (DC Input)
IPGS-2722X-AD	22	16	4	2 SFP+	RJ45	250W (DC Input)

Hardware Performance

Model Name	Forwarding Capacity(Mpps)	Switching Capacity(Gbps)	Mac Table(K)	Jumbo Frames(Bytes)
IGS-2732X-AD	101.19	136	32	10056
IGS-2732X-HD	101.19	136	32	10056
IGS-2722X-AD	59.523	80	32	10056
IGS-2722X-HD	59.523	80	32	10056
IPGS-2732X-AD	101.19	136	32	10056
IPGS-2722X-AD	59.523	80	32	10056

Environmental Range

Operating Temperature		Storage Temperature		Operating Humidity	Altitude
Fahrenheit	Centigrade	Fahrenheit	Centigrade	Operating Humidity	Feet	Meters
-40 to 167	-40 to 75	-40 to 185	-40 to 85	5% to 95% non-condensing	<10000	<3000

Dimension, Weights, Mounting

Model Name	Dimension (WxHxD)		Weight		Mounting Type
Model Name	Millimeter	Inches	Kilograms	Pounds	Mounting Type
IGS-2732X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2732X-HD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2722X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IGS-2722X-HD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack
IPGS-2732X-AD	442x44x300	17.4x1.7x11.8	5	11	Desktop,Rack
IPGS-2722X-AD	442x44x300	17.4x1.7x11.8	TBD	TBD	Desktop,Rack

Voltage and Frequency

Input Voltage and Frequency
Voltage	Frequency
AC Voltage	100-240 VAC (except IGS-2732X-HD,IGS-2722X-HD)
DC Nominal	24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model)
DC Operating Range	18 to 57 VDC (IGS-2732X-AD and IGS-2722X-AD) 52 to 57 VDC (IPGS-2732X-AD and IPGS-2722X-AD) 125 to 300 VDC (IGS-2732X-HD and IGS-2722X-HD)
PoE SKUs	Required>48 VDC for PoE IEEE 802.3af (Max. 15.4W) output Required >54 VDC for PoE+IEEE802.3at (Max. 30W) output

PoE Power Capacity

Model Name	Available PoE Power	Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
IPGS-2732X-AD	370W (DC Input)	Each of port 1- 24 support PoE/ PoE+ within available PoE Power
IPGS-2722X-AD	250W (DC Input)	Each of port 1- 16 support PoE/ PoE+ within available PoE Power

Certifications

Electromagnetic Emissions (EMC)
SHALL comply with European Directives for CE marking (LVD with EN 62368-1) SHALL comply with FCC Part 15 Class A UL 62386-1will be designed, UL report is customer request Other by Request

Software Features

Ring Management
ITU-T G.8031	Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032	Supports ITU-T G.8032 Ethernet Ring Protection Switching
Rapid Ring	Enable self-recover time in less than 20ms
Device Management System (DMS)
Graphical Monitoring	Topology view: Support intuitive way to configure and manage switches and devices with visual relations Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch	Search and manage your real switches quickly.
Traffic Monitoring	Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting	Network diagnostic between master switch and devices Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading Support performance management and link management through IEEE 802.3ah and IEEE 802.1ag (Y.1731)
Ethernet OAM
IEEE 802.3ah OAM	Supports Operations, Administration & Management
IEEE 802.1ag & ITU-T Y.1731 Flow OAM	Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management) Supports ITU-T Y.1731 Performance Monitoring
ITU-T Y.1564	Support RFC2544 Ethernet Service Activation Test Benchmarking Methodology: Throughput, Latency, Frame loss rate, Back-to-back frames Test
Layer 2 Switching
Spanning Tree Protocol (STP)	Standard Spanning Tree 802.1d Rapid Spanning Tree (RSTP) 802.1w Multiple Spanning Tree (MSTP) 802.1s
Trunking	Link Aggregation Control Protocol (LACP) IEEE 802.3ad Up to 16 groups and up to 16 ports per group
VLAN	Port-based VLAN 802.1Q tag-based VLAN MAC-based VLAN Management VLAN Private VLAN Edge (PVE) Q-in-Q (double tag) VLAN Voice VLAN GARP VLAN Registration Protocol (GVRP)
DHCP Relay	Relay of DHCP traffic to DHCP server in different VLAN. Works with DHCP Option 82
IGMP v1/v2/v3 Snooping	IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier	IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy	IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping	Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR)	It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Layer 3 Switching
IPv4 Static Routing	IPv4 Unicast: Static routing
IPv6 Static Routing	IPv6 Unicast: Static routing
Security
Secure Shell (SSH)	SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL)	SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X	IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions Supports IGMP-RADIUS based 802.1X Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge	PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security	Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard	Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+	Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control	Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping	A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs	Supports up to 256 entries. Drop or rate limitation based on: Source and destination MAC, VLAN ID or IP address, protocol, port Differentiated services code point (DSCP) / IP precedence TCP/ UDP source and destination ports 802.1p priority Ethernet type Internet Control Message Protocol (ICMP) packets TCP flag
Loop Protection	To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Quality of Service
Hardware Queue	Supports 8 hardware queues
Scheduling	Strict priority and weighted round-robin (WRR) Queue assignment based on DSCP and class of service
Classification	Port based 802.1p VLAN priority based IPv4/IPv6 precedence / DSCP based Differentiated Services (DiffServ) Classification and re-marking ACLs
Rate Limiting	Ingress policer Egress shaping and rate control Per port
Management
HW Monitoring	Temperature Detection and Alarm
HW Watchdog	Supported to resume operation from CPU hang up
IEEE 1588v2 PTP	Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP Server	Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON)	Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring	Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP	The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow	The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)	Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network Support LLDP-MED extensions
Web GUI Interface	Built-in switch configuration utility for browser-based device configuration
CLI	For users to configure/manage switches in command line modes
Dual Image	Independent primary and secondary images for backup while upgrading
SNMP	SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade	Web browser upgrade (HTTP/ HTTPs) and TFTP Upgrade through console port as well
NTP	Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management	HTTP/HTTPs; SSH DHCP Client/ DHCPv6 Client Cable Diagnostics Ping Syslog IPv6 Management
Power over Ethernet (PoE)
Port Configuration	Supports per port PoE configuration function
PoE Scheduling	Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking	Check the link status of PDs. Reboot PDs if there is no responses.
Power Delay	The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

Download

Download

Product Specification

Product Datasheet

Series Product Datasheet

Quick Installation Guide

Advantage and Features

Rubytech ODM Advantage

Low MOQ for selected models, and FREE Software Customization service to make sure the switches work with link partner or IP-relative device. Support easy Customization Platform, so as to implement the Private-Label customization efficiently and economically.

Customization Features

ODM Customization Service for PoE NVR provide ODM flexibility (M-ATX and Mini-ITX), plus scalability (8/16/24-port PoE, 2/3/4/6 HDD tray), instant support (case alarm, PoE auto-reboot mechanism), and easy manageability (CGI / API / SNMP implemented). More than 200 active SKU of Ethernet Switches/NVRs for our ODM customers to choose from.

ODM Customization

Experienced HW / SW customization services. More than 200 active SKU of Ethernet Switches/NVRs for our ODM customers to choose from.
ODM Customization under your brand is no longer a pain point. To offer low threshold, implementing your business become more efficiently and economically.
Get Golden Sample in one-month, 1st Mass Production in another month and delivery L/T of 4~6 weeks low MoQ for selected 24 models. Create absolutely remarkable standard operation procedure to ODM customer. All products are designed and manufactured in Taiwan.

Focuses on ODM / OEM business, and ISO-9001 / ISO-14001/ ISO-27001/ ISO-27034 certified.
We provide an industrial-grade of product longevity including x86 and switch platform, with PoE/ PoE+/ PoE++(IEEE 802.3af/at/bt) support within compact form factor /dimension of PoE NVRs, so as to provide users with best-fit solutions.
RubyTech reduces the Tech Support Cost/Time/Effort, moreover, provide differentiation value-adds from All Other Competitors.
Better Cost/Performance & Customer Satisfaction of PoE NVRs, help to provide more revenue streams from the PoE NVRs.

Design, Manufacturing, and Service Partner in Taiwan
More than 40-year experience in the networking industry.
Experienced HW/SW Customization Services
ODM Business Focus
Value-Added Support Platform
Experienced HW / SW customization services. FREE Tier-2/3 Tech Support for all field problems.
RubyTech has successful experiences supplying the best cost/performance NVRs to our ODM partners worldwide.
Being the approved vendor who is now supplying PoE NVRs to Tier-1 and Tier-2 ODM brand customers.

Hardware

Logo Customization

Front-bezel logo customization.

Switch Case Size Customization

Small Form Factor Case Size.

Mylar Customization

Front-bezel Label / Mylar customization.

ITU-T Customization

ITU-T G.8032 ERPS.

Combination Port Customization

Combination of RJ-45/SFP/SFP+ ports counts.

Temperature Customization

Wide Temperature Support (-20℃~60℃)

PoE Power Customization

PoE / PoE+ / PoE++ Power Customization.

FAN Customization

Inteligent FAN Speed Control/Fan-less Design.

CPU Customization (PoE NVR)

Intel / AMD CPU

GPU Customization (PoE NVR)

Add stand-alone Low Profile graphics card

HDD / SSD tray Customization (PoE NVR)

2/3/4/6 HDD/SSD tray Customization.

OS Customization (PoE NVR)

Win Server / Win 10 / Ubuntu / Linux…

Software

Switch GUI

Customization that best meets your business needs Switch UI

Integrate Third-Party API

SW Customization Service to integrate Third-Party management software.

Device Management System

When we embed Device Management System to the switch, a new era of possibilities begins. One where IT administrators are empowered with system of easy-to-use, and where maintenance is effortless and troubleshooting works in a moment.
One UI & iPush enable your business to operate switches in ways never before possible.

Technical Support Online

Easy Technical Support Online without client computer and third party remote control software.

Product Overview

Product Specification

IPGS-2732X-AD Industrial L2+ Managed GbE PoE Switch

Key Features

Benefits

Feature-rich Specifications to Support Various Applications

Superior Reliability through OAM and CFM for Service Assurance

Exceptional Precision with IEEE 1588v2 PTP

Easy to Install Configure and Troubleshoot by Device Management System

Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

Specifications

IGS-2732 and IPGS-2732 SeriesIndustrial L2+ Managed GbE Switches

Key Features

Benefits

Feature-rich Specifications to Support Various Applications

Exceptional Precision with IEEE 1588v2 PTP

Superior Reliability through OAM and CFM for Service Assurance

Easy to Install, Configure and Troubleshoot by Device Management System

Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

Specifications

Download

Product Overview

Product Specification

IPGS-2732X-AD Industrial L2+ Managed GbE PoE Switch

Key Features

Benefits

Feature-rich Specifications to Support Various Applications

Superior Reliability through OAM and CFM for Service Assurance

Exceptional Precision with IEEE 1588v2 PTP

Easy to Install Configure and Troubleshoot by Device Management System

Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

Specifications

IGS-2732 and IPGS-2732 SeriesIndustrial L2+ Managed GbE Switches

Key Features

Benefits

Feature-rich Specifications to Support Various Applications

Exceptional Precision with IEEE 1588v2 PTP

Superior Reliability through OAM and CFM for Service Assurance

Easy to Install, Configure and Troubleshoot by Device Management System

Lowing Total Cost of Ownership (TCO) with Energy-efficient Design

Specifications

Download

Advantage and Features

Rubytech ODM Advantage

Customization Features

About ODM SERVICE

ODM Customization

Risk commitment

Why Rubytech?

OEM / ODM Switch Customization Options

Hardware

Logo Customization

Switch Case Size Customization

Mylar Customization

ITU-T Customization

Combination Port Customization

Temperature Customization

PoE Power Customization

FAN Customization

CPU Customization (PoE NVR)

GPU Customization (PoE NVR)

HDD / SSD tray Customization (PoE NVR)

OS Customization (PoE NVR)

Software

Switch GUI

Integrate Third-Party API

Device Management System

Technical Support Online

IGS-2732 and IPGS-2732 Series
Industrial L2+ Managed GbE Switches

IGS-2732 and IPGS-2732 Series
Industrial L2+ Managed GbE Switches
