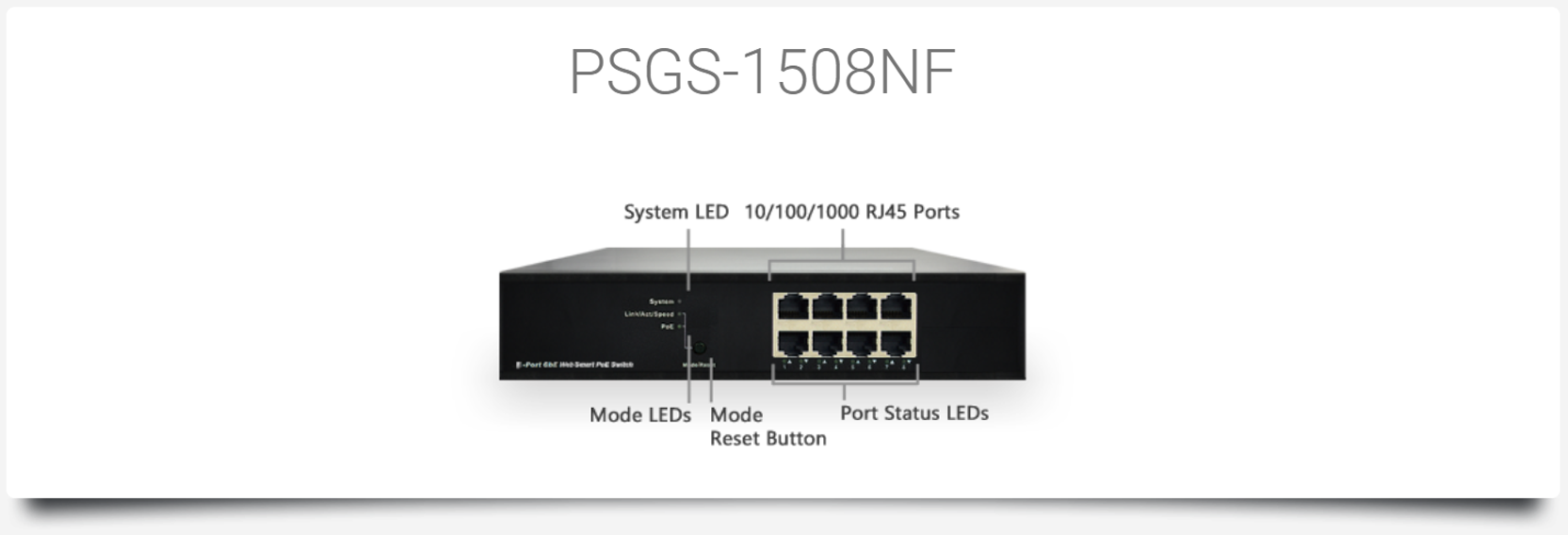

PSGS-1508NF (60W)
Product Overview
PSGS-1508NF web smart+ managed GbE PoE+ switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1508NF delivers 8 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 60W) ports. PSGS-1508NF provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-1508NF is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
| Key Features | Customer Benefits |
|---|---|
| Enhanced Layer 2 Features | Enhanced traffic management capabilities to move your data smoother and faster (STP/RSTP, VLAN, QoS, etc) |
| Device Management System | Simplified configuration and management to reduce large maintenance complexity and costs |
| PoE Management | Reduced energy cost and PD down time for higher system availability (e.g. On/Off scheduling and PD existence detection) |
| Responsive Web GUI | IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency |
Product Specification
| MODEL NAME | PSGS-1508NF |
|---|---|
| Product Description | 8 ports GbE Web Smart+ PoE+ Switch |
Port Configuration
10M/100M/1G RJ45 Port | 8 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | -- | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | -- | |
Total Ports | 8 |
|
PoE Function
IEEE802.3at (PoE+ 30W) | | |
IEEE802.3af (PoE 15.4W) | | |
UPoE(60W) | -- | |
IEEE802.3bt (PoE++ 90W) | -- | |
PoE Port | 4 | |
Available PoE Power | 60W |
|
HW Performance
Switching Bandwidth | 16Gbps | |
Forwarding Performance | 11.904Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
|
Environmental Specification
Operating Temperature | 0°C to 50°C | |
Operating Humidity | 10 to 90% RH | |
Storage Temperature | -20°C to 70°C | |
Storage Humidity | 10 to 90% RH |
|
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 220 x 134 | |
Weight | < 2.0 Kg | |
FAN Less | |
|
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
|
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
|
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | | |
IEEE802.1S (MSTP) | | |
VLAN |
802.1Q VLAN | |
Port-Based | | |
VLAN Entries | 4K | |
Private VLAN | | |
Voice VLAN | | |
Guest VLAN | -- | |
Q-in-Q | | |
802.1v Protocol VLAN | | |
MAC-Based VLAN | | |
IP Subnet-Based VLAN | | |
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | | |
GARP/GVRP | -- | |
IGMP Snooping | | |
MLD Snooping | | |
Multicast VLAN Registration (MVR) | |
|
L3 Features
Static Route | -- | |
DHCP Server | | |
Dynamic Routing | -- |
|
QoS Features
Class of Service |
Port Based | |
802.1p | | |
DSCP | | |
TCP/UDP Port | -- | |
Rate Limiting |
Ingress | |
Egress | | |
Priority Queue Scheduling |
WRR | |
Stri Priority | | |
Hardware Queues | 8 |
|
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | -- | |
Port Security (MAC-based) | | |
IP Source Guard | | |
Storm Control | | |
RADIUS Authentication 802.1x | | |
TACACS+ Authentication | | |
HTTPs and SSL (Secured Web) | | |
BPDU Guard | | |
STP Root Guard | | |
DHCP Snooping | | |
Loop Protection | |
|
Management
DHCP |
Client | |
Relay | | |
Option 66 | | |
Option 67 | | |
Option 82 | | |
Event/Error Log |
Syslog | |
SMTP (RFC821) | | |
Management Access Filtering |
SNMP | |
Web UI | | |
Telnet | | |
SSH | | |
PoE Management |
Scheduling | |
Auto-Checking | | |
Power Delay | | |
Soft-Reboot PoE Non-stop | | |
SNMP (v1, v2c, v3) | | |
RMON (1,2,3 & 9 Groups) | | |
Software Upgrade | | |
Configuration Export/Import | | |
Port Mirroring | | |
LLDP (IEEE802.1AB) | | |
LLDP-MED (IEEE802.1AB) | | |
CDP Aware | | |
sFlow | Option | |
IPv6 Management | | |
NTP | | |
First Time Wizard | -- |
|
Device Management System
Device Management |
Topology View | |
Floor View | | |
Map View | | |
Dashboard | | |
Traffic Monitoring | | |
Cable Diagnostics | |
PSGS-1510L Web Smart+ Managed GbE PoE+ Switch
PSGS-1508NF web smart+ managed GbE PoE+ switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1508NF delivers 8 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 60W) ports. PSGS-1508NF provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-1508NF is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in Web Smart+ managed switch including DHCP client, IGMP, LLDP, etc. It also has basic security features such as IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.
Easy to Install Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
| Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
|---|---|---|---|
| 8 | 8 | — | — |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
|---|---|---|---|
| 11.904 | 16 | 8 | 9216 |
Environmental Range
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| 32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension Weights Humidity
| Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | |
| 220x 44x 134 | 8.6x 1.7x 5.3 | <2 | <4.4 | Desktop, Wall |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | Frequency |
| 100-240 VAC | 50~60 Hz |
PoE Power Capacity
| Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|
| 60W | Each of port 1 – 8 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Layer 2 Switching | |
|---|---|
| Spanning Tree Protocol (STP) |
|
| Trunking |
|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
| DHCP Relay |
|
| IGMP v1/v2 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
| Security | |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
| Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
| IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
| ACLs | Supports up to 384 entries. Drop or rate limitation based on:
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| IEEE 802.1ab (LLDP) |
|
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
| DHCP Server | Support DHCP server to assign IP to DHCP clients |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| SNMP |
|
| s-Flow (option) | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| Firmware Upgrade |
|
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management |
|
| Device Management System (DMS) | |
| Graphical Monitoring |
|
| Find my Switch | Search your real switches quickly and manage directly. |
| Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
| Trouble Shooting |
|
Web Smart+ Managed GbE Switches
The GS-1500 and PSGS-1500 series web smart+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.
The GS-1500 and PSGS-1500 series consist of 5 non-PoE models which are GS-1528DA, GS-1528, GS-1526, GS-1510 and GS-1506; and 7 PoE+ models which are PSGS-1528L, PSGS-1528F, PSGS-1526L, PSGS-1526F, PSGS-1518F, PSGS-1518AF, PSGS-1510F and PSGS-1508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-1500 and PSGS-1500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
-
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
| Model Name | Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G) | Console | Available PoE Power |
|---|---|---|---|---|---|
| GS-1528DA | 28 | 24 | 4 SFP | -- | -- |
| GS-1528 | 28 | 24 | 4 SFP | -- | -- |
| GS-1526 | 26 | 24 | 2 SFP | -- | -- |
| GS-1510 | 10 | 8 | 2 SFP | -- | -- |
| GS-1506 | 6 | 5 | 1 SFP | -- | -- |
| PSGS-1528L | 28 | 24 | 4 SFP | -- | 185W |
| PSGS-1528F | 28 | 24 | 4 SFP | -- | 370W |
| PSGS-1526L | 26 | 24 | 2 SFP | -- | 185W |
| PSGS-1526F | 26 | 24 | 2 SFP | -- | 370W |
| PSGS-1518F | 18 | 16 | 2 SFP | -- | 250W |
| PSGS-1518AF | 18 | 16 | 2 SFP | -- | 185W |
| PSGS-1510F | 10 | 8 | 2 SFP | -- | 130W |
| PSGS-1508NF | 8 | 8 | -- | -- | 60W |
Hardware Performance
| Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(Bytes) |
|---|---|---|---|---|
| GS-1528DA | 41.7 | 56 | 8 | 9216 |
| GS-1528 | 41.7 | 56 | 8 | 9216 |
| GS-1526 | 38.688 | 52 | 8 | 9216 |
| GS-1510 | 14.88 | 20 | 8 | 9216 |
| GS-1506 | 8.928 | 12 | 8 | 9216 |
| PSGS-1528L | 41.7 | 56 | 8 | 9216 |
| PSGS-1528F | 41.7 | 56 | 8 | 9216 |
| PSGS-1526L | 38.688 | 52 | 8 | 9216 |
| PSGS-1526F | 38.688 | 52 | 8 | 9216 |
| PSGS-1518F | 26.784 | 36 | 8 | 9216 |
| PSGS-1518AF | 26.784 | 36 | 8 | 9216 |
| PSGS-1510F | 14.88 | 20 | 8 | 9216 |
| PSGS-1508NF | 11.904 | 16 | 8 | 9216 |
Environmental Range (except PSGS-1518AF)
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| 32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Environmental Range (PSGS-1518AF only)
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| 32 to 113 | 0 to 45 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
| Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| GS-1528DA | 442x44x211 | 17.4x1.7x8.3 | <2.5 | <5.5 | Desktop, Rack |
| GS-1528 | 442x44x211 | 17.4x1.7x8.3 | <2.5 | <5.5 | Desktop, Rack |
| GS-1526 | 280x44x166 | 11x1.7x 6.5 | <2.5 | <5.5 | Desktop, Wall |
| GS-1510 | 220x44x134 | 8.6x1.7x5.3 | <1.5 | <3.3 | Desktop, Wall |
| GS-1506 | 139x27x102 | 5.5x1.1x4.0 | <1 | <2.2 | Desktop, Wall |
| PSGS-1528L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
| PSGS-1528F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
| PSGS-1526L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
| PSGS-1526F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
| PSGS-1518F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
| PSGS-1518AF | 280x44x166 | 11x1.7x6.5 | <2.5 | <5.5 | Desktop, Wall |
| PSGS-1510F | 220x44x242 | 8.6x1.7x9.5 | <2 | <4.4 | Desktop, Wall |
| PSGS-1508NF | 220x44x134 | 8.6x1.7x5.3 | <2 | <4.4 | Desktop, Wall |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | 100-240 VAC (GS-1528DA: dual AC inputs) |
| Frequency | 50~60 Hz |
PoE Power Capacity
| Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|---|
| PSGS-1528L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
| PSGS-1528F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
| PSGS-1526L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
| PSGS-1526F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
| PSGS-1518F | 250W | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
| PSGS-1518AF | 185W | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
| PSGS-1510F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
| PSGS-1508NF | 60W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Layer 2 Switching | |
|---|---|
| Spanning Tree Protocol (STP) |
|
| Trunking |
|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
| DHCP Relay |
|
| IGMP Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups |
| IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
| IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
| Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
| IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
| ACLs | Supports up to 384 entries. Drop or rate limitation based on:
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| IEEE 802.1ab (LLDP) |
|
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
| DHCP Server | Support DHCP server to assign IP to DHCP clients |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| SNMP |
|
| s-Flow(option) | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| Firmware Upgrade |
|
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management |
|
| Device Management System (DMS) | |
| Graphical Monitoring |
|
| Find my Switch | Search your real switches quickly and manage directly. |
| Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
| Trouble Shooting |
|
| Power over Ethernet (PoE) | |
| Port Configuration | Supports per port PoE configuration function |
| PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). |
| Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses. |
| Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
- + Overview
-
Product Overview
PSGS-1508NF web smart+ managed GbE PoE+ switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1508NF delivers 8 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 60W) ports. PSGS-1508NF provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-1508NF is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features Customer Benefits Enhanced Layer 2 Features Enhanced traffic management capabilities to move your data smoother and faster (STP/RSTP, VLAN, QoS, etc) Device Management System Simplified configuration and management to reduce large maintenance complexity and costs PoE Management Reduced energy cost and PD down time for higher system availability (e.g. On/Off scheduling and PD existence detection) Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency - + Specification
-
Product Specification
MODEL NAME PSGS-1508NF Product Description 8 ports GbE Web Smart+ PoE+ Switch Port Configuration
10M/100M/1G RJ45 Port8100M/1G/2.5G RJ45 Port--100M/1G/10G RJ45 Port--100M/1G/2.5G/5G/10G RJ45 Port--100M/1G SFP Port--GbE RJ45/SFP Combo Port--1G/2.5G SFP Port--1G/10G SFP+ Port--SFP28/QSFP+ Combo Port--1G/10G/25G SFP28 Port--QSFP+ (40G)--SFP56 (50G)--USB--Console Port--Total Ports8PoE Function
IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)UPoE(60W)--IEEE802.3bt (PoE++ 90W)--PoE Port4Available PoE Power60WHW Performance
Switching Bandwidth16GbpsForwarding Performance11.904MppsMAC Address8KJumbo Frames9216 BytesEnvironmental Specification
Operating Temperature0°C to 50°COperating Humidity10 to 90% RHStorage Temperature-20°C to 70°CStorage Humidity10 to 90% RHMechanical Specification
Dimensions (H) x (W) x (D) mm44 x 220 x 134Weight< 2.0 KgFAN LessPower Source
AC Input100V-240VDC Input--Dual Input--Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV)--CertificationsCE/FCC Class A
Others by RequestL2 Switching
Spanning TreeIEEE802.1D (STP)IEEE802.1W (RSTP)IEEE802.1S (MSTP)VLAN802.1Q VLANPort-BasedVLAN Entries4KPrivate VLANVoice VLANGuest VLAN--Q-in-Q802.1v Protocol VLANMAC-Based VLANIP Subnet-Based VLANIEEE 802.3ad LACPDynamic TrunkStatic TrunkGARP/GVRP--IGMP SnoopingMLD SnoopingMulticast VLAN Registration (MVR)L3 Features
Static Route--DHCP ServerDynamic Routing--QoS Features
Class of ServicePort Based802.1pDSCPTCP/UDP Port--Rate LimitingIngressEgressPriority Queue SchedulingWRRStri PriorityHardware Queues8Security
ACLsL2/L3/L4IPv6 Support--Port Security (MAC-based)IP Source GuardStorm ControlRADIUS Authentication 802.1xTACACS+ AuthenticationHTTPs and SSL (Secured Web)BPDU GuardSTP Root GuardDHCP SnoopingLoop ProtectionManagement
DHCPClientRelayOption 66Option 67Option 82Event/Error LogSyslogSMTP (RFC821)Management Access FilteringSNMPWeb UITelnetSSHPoE ManagementSchedulingAuto-CheckingPower DelaySoft-Reboot PoE Non-stopSNMP (v1, v2c, v3)RMON (1,2,3 & 9 Groups)Software UpgradeConfiguration Export/ImportPort MirroringLLDP (IEEE802.1AB)LLDP-MED (IEEE802.1AB)CDP AwaresFlowOptionIPv6 ManagementNTPFirst Time Wizard--Device Management System
Device ManagementTopology ViewFloor ViewMap ViewDashboardTraffic MonitoringCable Diagnostics - + Datasheet
-
PSGS-1510L Web Smart+ Managed GbE PoE+ Switch
PSGS-1508NF web smart+ managed GbE PoE+ switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1508NF delivers 8 (10M/100M/1G) RJ45 with 4 PoE+ (Support 802.3 at/af, and total up to 60W) ports. PSGS-1508NF provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-1508NF is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in Web Smart+ managed switch including DHCP client, IGMP, LLDP, etc. It also has basic security features such as IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.
Easy to Install Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console 8 8 — — Hardware Performance
Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)11.904 16 8 9216 Environmental Range
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing<10000 <3000 Dimension Weights Humidity
Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds 220x 44x 134 8.6x 1.7x 5.3 <2 <4.4 Desktop, Wall Voltage and Frequency
AC Input Voltage and Frequency Voltage Frequency 100-240 VAC 50~60 Hz PoE Power Capacity
Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W) 60W Each of port 1 – 8 support PoE/ PoE+ within available PoE Power Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking - Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Static aggregation
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs) - Port-based VLAN
- 802.1Q tag-based VLAN
- Protocol based VLAN
- IP subnet-based VLAN
- Private VLAN Edge (PVE)
- MAC-based VLAN
- Q-in-Q (double tag) VLAN
- Voice VLAN
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. Security Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC addresses to ports, and limits the number of learned MAC address IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. ACLs Supports up to 384 entries. Drop or rate limitation based on: - Source and destination MAC, VLAN ID or IP address, protocol, port,
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration Dual Image Independent primary and secondary images for backup while upgrading UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis SNMP - SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
s-Flow (option) The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs
- DHCP Client
- Cable Diagnostics
- Syslog
- IPv6 Management
Device Management System (DMS) Graphical
Monitoring- Topology view: Support intuitive way to configure and manage switches and devices with visual relations
- Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
- Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly. Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches Trouble Shooting - Network diagnostic between master switch and devices
- Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
- + Series Datasheet
-
Web Smart+ Managed GbE Switches
The GS-1500 and PSGS-1500 series web smart+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.
The GS-1500 and PSGS-1500 series consist of 5 non-PoE models which are GS-1528DA, GS-1528, GS-1526, GS-1510 and GS-1506; and 7 PoE+ models which are PSGS-1528L, PSGS-1528F, PSGS-1526L, PSGS-1526F, PSGS-1518F, PSGS-1518AF, PSGS-1510F and PSGS-1508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-1500 and PSGS-1500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
-
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Available PoE Power GS-1528DA 28 24 4 SFP -- -- GS-1528 28 24 4 SFP -- -- GS-1526 26 24 2 SFP -- -- GS-1510 10 8 2 SFP -- -- GS-1506 6 5 1 SFP -- -- PSGS-1528L 28 24 4 SFP -- 185W PSGS-1528F 28 24 4 SFP -- 370W PSGS-1526L 26 24 2 SFP -- 185W PSGS-1526F 26 24 2 SFP -- 370W PSGS-1518F 18 16 2 SFP -- 250W PSGS-1518AF 18 16 2 SFP -- 185W PSGS-1510F 10 8 2 SFP -- 130W PSGS-1508NF 8 8 -- -- 60W Hardware Performance
Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes) GS-1528DA 41.7 56 8 9216 GS-1528 41.7 56 8 9216 GS-1526 38.688 52 8 9216 GS-1510 14.88 20 8 9216 GS-1506 8.928 12 8 9216 PSGS-1528L 41.7 56 8 9216 PSGS-1528F 41.7 56 8 9216 PSGS-1526L 38.688 52 8 9216 PSGS-1526F 38.688 52 8 9216 PSGS-1518F 26.784 36 8 9216 PSGS-1518AF 26.784 36 8 9216 PSGS-1510F 14.88 20 8 9216 PSGS-1508NF 11.904 16 8 9216 Environmental Range (except PSGS-1518AF)
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000 Environmental Range (PSGS-1518AF only)
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 113 0 to 45 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000 Dimension, Weights, Mounting
Model Name Dimension (WxHxD) Weight Mounting Type Millimeter Inches Kilograms Pounds GS-1528DA 442x44x211 17.4x1.7x8.3 <2.5 <5.5 Desktop, Rack GS-1528 442x44x211 17.4x1.7x8.3 <2.5 <5.5 Desktop, Rack GS-1526 280x44x166 11x1.7x 6.5 <2.5 <5.5 Desktop, Wall GS-1510 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall GS-1506 139x27x102 5.5x1.1x4.0 <1 <2.2 Desktop, Wall PSGS-1528L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack PSGS-1528F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack PSGS-1526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack PSGS-1526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack PSGS-1518F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack PSGS-1518AF 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall PSGS-1510F 220x44x242 8.6x1.7x9.5 <2 <4.4 Desktop, Wall PSGS-1508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall Voltage and Frequency
AC Input Voltage and Frequency Voltage 100-240 VAC (GS-1528DA: dual AC inputs) Frequency 50~60 Hz PoE Power Capacity
Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W) PSGS-1528L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power PSGS-1528F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power PSGS-1526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power PSGS-1526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power PSGS-1518F 250W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power PSGS-1518AF 185W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power PSGS-1510F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power PSGS-1508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking - Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Static aggregation
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs) - Port-based VLAN
- 802.1Q tag-based VLAN
- Protocol based VLAN
- IP subnet-based VLAN
- Private VLAN Edge (PVE)
- MAC-based VLAN
- Q-in-Q (double tag) VLAN
- Voice VLAN
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC addresses to ports, and limits the number of learned MAC address IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. ACLs Supports up to 384 entries. Drop or rate limitation based on: - Source and destination MAC, VLAN ID or IP address, protocol, port,
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration Dual Image Independent primary and secondary images for backup while upgrading UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis SNMP - SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
s-Flow(option) The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs
- DHCP Client
- Cable Diagnostics
- Syslog
- Telnet Client/SSH
- IPv6 Management
Device Management System (DMS) Graphical Monitoring - Topology view: Support intuitive way to configure and manage switches and devices with visual relations
- Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
- Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly. Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches Trouble Shooting - Network diagnostic between master switch and devices
- Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE) Port Configuration Supports per port PoE configuration function PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs). Auto-checking Check the link status of PDs. Reboot PDs if there is no responses. Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs - + Download
-
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
