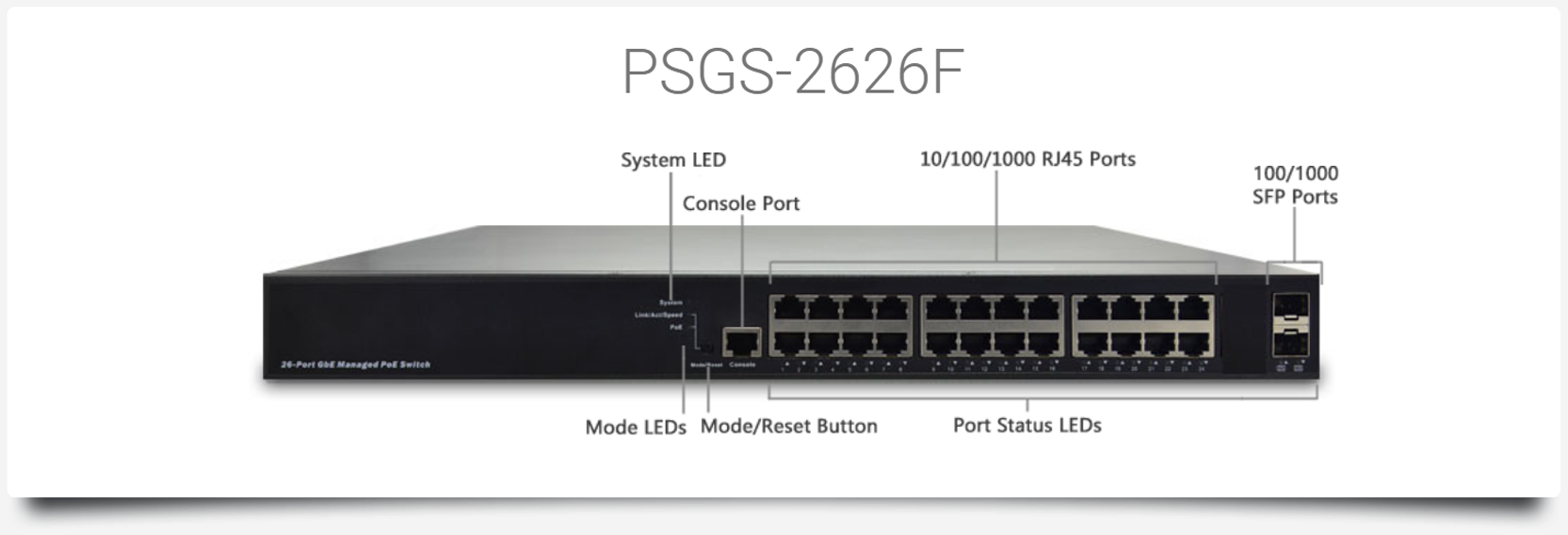

PSGS-2626F

Product Overview


PSGS-2626F L2+ Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

PSGS-2626F delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 370W) ports, 2 GbE SFP ports and RJ45 Console port. PSGS-2626F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-2626F is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.



Key Features Customer Benefits
Device Management System Simplified configuration and management to reduce large maintenance complexity and costs
PoE Management Reduced energy cost and PD down time for higher system availability (e.g. On/Off scheduling and PD existence detection)
Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency

Product Specification

MODEL NAME PSGS-2626F
Product Description 26 ports GbE L2+ Managed PoE Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
RJ45
Total Ports
26

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)
PoE Port
24
Available PoE Power
370W

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.7Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 40°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
3.5 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
Dual Input

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
Auto-Checking
Power Delay
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

PSGS-2626F L2+ Managed GbE PoE Switch


PSGS-2626F L2+ Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

PSGS-2626F delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 370W) ports, 2 GbE SFP ports and RJ45 Console port. PSGS-2626F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-2626F is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 Management
  5. PoE Port configuration and scheduling
  6. 802.3at high power PoE plus standard
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Ethernet Switch for Enterprise-class


    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design


    PSGS-2626F is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

  • Advanced Power over Ethernet Management


    The 48-Port GbE model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP RJ45

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
38.68 52 32 9216

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 10% to 90%
non-condensing

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CN61000-4-5 (for RJ45 Port, Surge 6KV)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad

  • Up to 13 groups
  • Up to 16 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 512 entries. Drop or rate limitation based on:

  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet client
  • IPv6 management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no response
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

GS-2600 and PSGS-2600 Series L2+ Managed GbE Switches


The GS-2600 and PSGS-2600 series L2+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.

The GS-2600 and PSGS-2600 series consists of 11 non-PoE models which are GS-2652XB, GS-2652B, GS-2652X, GS-2648K, GS-2628X, GS-2626G, GS-2626, GS-2618, GS-2612, GS-2610G and GS-2610, and 24 PoE+ models which are PSGS-2652XL, PSGS-2652XF, PSGS-2652XAF, PSGS-2652XBF, PSGS-2652XBL, PSGS-2652BF, PSGS-2652BL, PSGS-2652F, PSGS-2648KL, PSGS-2648KF, PSGS-2628XL, PSGS-2628XF, PSGS-2626GU, PSGS-2626GL, PSGS-2626GF, PSGS-2626L, PSGS-2626F, PSGS-2618GF, PSGS-2612F, PSGS-2610GF, PSGS-2610GH, PSGS-2610GU, PSGS-2610F and PSGS-2610H. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-2600 and PSGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS.
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 Management
  5. PoE Port configuration and scheduling
  6. 802.3at high power PoE plus standard
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Feature-rich Ethernet Switch for Enterprise-class



    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Model Name Total Ports RJ45 10M /100M/1G Uplinks Console Available PoE Power
GS-2652XB 52 48 4 SFP+ RJ45 --
GS-2652B 52 48 4 SFP RJ45 --
GS-2652X 52 48 4 SFP+ DB9 --
GS-2648K 48 44 4 RJ45/SFP combo DB9
GS-2628X 28 24 4 SFP+ DB9 --
GS-2626G 26 24 2 RJ45/SFP combo RJ45 --
GS-2626 26 24 2 SFP RJ45 --
GS-2618 18 16 2 SFP DB9 --
GS-2612 12 10 2 SFP RJ45 --
GS-2610G 10 8 2 RJ45/SFP combo RJ45 --
GS-2610 10 9 1 SFP RJ45 --
PSGS-2652XL 52 48 4 SFP+ DB9 370W
PSGS-2652XF 52 48 4 SFP+ DB9 740W
PSGS-2652XAF 52 50 2 SFP+ RJ45 740W
PSGS-2652XBF 52 48 4 SFP+ RJ45 740W
PSGS-2652XBL 52 48 4 SFP+ RJ45 370W
PSGS-2652BF 52 48 4 SFP RJ45 740W
PSGS-2652BL 52 48 4 SFP RJ45 370W
PSGS-2652F 52 50 2 SFP RJ45 740W
PSGS-2648KL 48 44 4 RJ45/SFP combo DB9 370W
PSGS-2648KF 48 44 4 RJ45/SFP combo DB9 740W
PSGS-2628XL 28 24 4 SFP+ DB9 185W
PSGS-2628XF 28 24 4 SFP+ DB9 370W
PSGS-2626GU 26 24 2 RJ45/SFP combo RJ45 650W/920W - with one module
1300W/1840W - with two modules
PSGS-2626GL 26 24 2 RJ45/SFP combo RJ45 185W
PSGS-2626GF 26 24 2 RJ45/SFP combo RJ45 370W
PSGS-2626L 26 24 2 SFP RJ45 185W
PSGS-2626F 26 24 2 SFP RJ45 370W
PSGS-2618GF 18 16 2 RJ45/SFP combo RJ45 250W
PSGS-2612F 12 10 2 SFP RJ45 130W
PSGS-2610GF 10 8 2 RJ45/SFP combo RJ45 130W
PSGS-2610GH 10 8 2 RJ45/SFP combo RJ45 250W
PSGS-2610GU 10 8 2 RJ45/SFP combo RJ45 250W
PSGS-2610F 10 9 1 SFP RJ45 130W
PSGS-2610H 10 9 1 SFP RJ45 250W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
GS-2652XB 130.95 176 32 10240
GS-2652B 77.38 104 32 10240
GS-2652X 130.944 176 32 10056
GS-2648K 71.424 96 32 10056
GS-2628X 95.232 128 32 10056
GS-2626G 38.688 52 8 9216
GS-2626 38.688 52 8 9216
GS-2618 26.784 36 8 9216
GS-2612 17.8 24 8 9216
GS-2610G 14.88 20 8 9216
GS-2610 14.88 20 8 9216
PSGS-2652XL 130.944 128 32 10056
PSGS-2652XF 130.944 128 32 10056
PSGS-2652XAF 104.16 140 32 10056
PSGS-2652XBF 130.95 176 32 10240
PSGS-2652XBL 130.95 176 32 10240
PSGS-2652BF 77.38 104 32 10240
PSGS-2652BL 77.38 104 32 10240
PSGS-2652F 77.376 104 32 10056
PSGS-2648KL 71.424 96 32 10056
PSGS-2648KF 71.424 96 32 10056
PSGS-2628XL 95.232 128 32 10056
PSGS-2628XF 95.232 128 32 10056
PSGS-2626GL 38.688 52 8 9216
PSGS-2626GF 38.688 52 8 9216
PSGS-2626L 38.688 52 8 9216
PSGS-2626F 38.688 52 8 9216
PSGS-2618GF 26.784 36 8 9216
PSGS-2612F 17.8 24 8 9216
PSGS-2610GF 14.88 20 8 9216
PSGS-2610GH 14.88 20 8 9216
PSGS-2610GU 14.88 20 8 9216
PSGS-2610F 14.88 20 8 9216
PSGS-2610H 14.88 20 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension Weights Humidity

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-2652XB 442x 44x 300 17.4x1.7x11.8 4.2 9.3 Desktop, Rack
GS-2652B 442x 44x 300 17.4x1.7x11.8 4.2 9.3 Desktop, Rack
GS-2652X 442x 44x 385 17.4x1.7x15.2 4.1 9.0 Desktop, Rack
GS-2648K 442x 44x 300 17.4x1.7x11.8 4.1 9.0 Desktop, Rack
GS-2628X 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2626G 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2626 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2618 220x38x150.5 8.66x1.5x5.93 1.26 2.78 Desktop, Wall
GS-2612 220x 38x 131 8.7x 1.5x 5.16 1 2.2 Desktop, Wall
GS-2610G 220x 44x 134 8.7x 1.7x 5.28 1.4 3.1 Desktop, Wall
GS-2610 220x 44x 134 8.7x 1.7x 5.28 1.4 3.1 Desktop, Wall
PSGS-2652XL 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2652XF 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2652XAF 442x 44 x 375 17.4x1.7x14.8 5.62 12.39 Desktop, Rack
PSGS-2652XBF 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652XBL 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652BF 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652BL 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652F 442x 44 x 375 17.4x1.7x14.8 5.62 12.39 Desktop, Rack
PSGS-2648KL 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2648KF 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2628XL 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2628XF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2626GL 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2626GF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2626L 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2626F 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2618GF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2612F 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GF 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GH 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GU 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610F 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610H 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-2652XL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XAF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XBF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XBL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652BF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652BL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652F 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2648KL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2648KF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Powerr
PSGS-2628XL 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2628XF 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626GU 650W/920W – with one module
1300W/1940W – with two modules
Each of port 1 - 24 support UPoE within available PoE Power
PSGS-2626GL 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626GF 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2618GF 250W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power
PSGS-2610GF 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610GH 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610GU 250W Each of port 1 - 4 support UPoE within available PoE Power
PSGS-2610F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610H 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d: Spanning Tree Protocol is an OSI layer-2 protocol which ensures a loop free topology for any bridged LAN
  • Rapid Spanning Tree (RSTP) 802.1w: Rapid Spanning Tree Protocol, which provides for faster spanning tree convergence after a topology change
  • Multiple Spanning Tree (MSTP) 802.1s: Multiple Spanning Tree Protocol. The MSTP protocol provides for multiple spanning tree instances
VLAN
  • 802.1Q tag-based VLAN: Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN: A port member of a VLAN can be isolated to other isolated ports on the same VLAN and Private VLAN
  • Private VLAN Edge (PVE): Private VLANs are based on the source port mask, and there are no connections to VLANs. This means that VLAN IDs and Private VLAN IDs can be identical
  • Voice VLAN: The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN
  • Guest VLAN: The IEEE 802.1X Guest VLAN feature allows a guest VLAN to be configured for each 802.1X port on the device to provide limited services to non-802.1X-compliant clients
  • Q-in-Q (double tag) VLAN: Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be supported
  • 802.1v Protocol VLAN: Classifying multiple protocols into a single VLAN often imposes VLAN boundaries that are inappropriate for some of the protocols, requiring the presence of a non-standard entity to relay between VLANs the frames bearing the protocols for which the VLAN boundaries are inappropriate
  • MAC-based VLAN: The MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and thus classify traffic based on the source MAC address of the packet
  • IP Subnet-Based VLAN: In an IP subnet–based VLAN, all the end workstations in an IP subnet are assigned to the same VLAN. In this VLAN, users can move their workstations without reconfiguring their network addresses
  • Management VLAN: Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc
LACP Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner
  • Up to 26 groups
  • Up to 8 ports per group
GARP VLAN Registration Protocol (GVRP/GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification
  • Port based: Traffic QoS by Port
  • 802.1p: VLAN priority based Layer 2 CoS QoS, Class of service is a parameter used in data and voice protocols to differentiate the types of payloads contained in the packet being transmitted
  • DSCP based Differentiated Services (DiffServ) Layer 3 DSCP QoS: IP packets can carry either an IP precedence (IPP) value or a Differentiated Services Code Point (DSCP) value. QoS supports the use of either value because DSCP values are backward-compatible with IP precedence values
  • Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Scheduling Strict priority and weighted round-robin (WRR): Weighted Round Robin is a scheduling algorithm that uses weights assigned to queues to determine how much data will be emptied from a queue before moving to the next queue
Security
ACLs Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
TACACS+ Supports TACACS+ authentication. Switch as a client
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
HTTPs and SSL (Secured Web) Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP
BPDU Guard The BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network. It enforces the STP domain borders and keeps the active topology predictable by not allowing any network devices behind a BPDU guard-enabled port to participate in STP
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Management
DHCP
  • DHCP Server: Support DHCP server to assign IP to DHCP clients
  • DHCP client: The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on Internet Protocol (IP) networks for dynamically distributing network configuration parameters, such as IP addresses for interfaces and services
Event/Error Log Support SNMP Trap/Syslog/SMTP
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
Configuration Export/Import update of the firmware controlling the switch
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED (ANSI/TIA-1057) extensions
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Switch Management
  • HTTP/HTTPs
  • SSH
  • DHCP Client/ DHCPv6 Client
  • Telnet Client
  • IPv6 Management
Diagnostics
  • Cable diagnostics
  • Ping
  • Syslog
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
  • Display visual chart of network traffic of all devices and monitor every port at any time from switches
Switch2go You’ll be noticed a change in whatever your switch happen
Find my Switch Search your real switches quickly and manage directly
Technical Support Online Provide technical assistance to the user remotely
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

Download


Product Specification

Product Datasheet

Series Product Datasheet

+ Overview

Product Overview


PSGS-2626F L2+ Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

PSGS-2626F delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 370W) ports, 2 GbE SFP ports and RJ45 Console port. PSGS-2626F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-2626F is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.



Key Features Customer Benefits
Device Management System Simplified configuration and management to reduce large maintenance complexity and costs
PoE Management Reduced energy cost and PD down time for higher system availability (e.g. On/Off scheduling and PD existence detection)
Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency
+ Specification

Product Specification

MODEL NAME PSGS-2626F
Product Description 26 ports GbE L2+ Managed PoE Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
100M/1G/10G RJ45 Port
100M/1G/2.5G/5G/10G RJ45 Port
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
1G/2.5G SFP Port
1G/10G SFP+ Port
2.5G Coax (FAKRA) Port
2.5G STP (HSD) Port
100M/1G/2.5G/5G/10G Autolink Port
Console Port
RJ45
Total Ports
26

PoE Function

IEEE802.3at (PoE+ 30W)
IEEE802.3af (PoE 15.4W)
UPoE(60W)
PoE Port
24
Available PoE Power
370W

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.7Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 40°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
3.5 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
Dual Input

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
Auto-Checking
Power Delay
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Device Management System

Device Management
Topology View
Floor View
Map View
Dashboard
Traffic Monitoring
Cable Diagnostics
Switch2go
iOS Devices
Android Devices
Find my Switch
iOS Devices
Android Devices
Tech Support Online

+ Datasheet

PSGS-2626F L2+ Managed GbE PoE Switch


PSGS-2626F L2+ Managed PoE+ Switch is a next-generation Ethernet Switch offering full suite of L2 features, better PoE functionality and usability, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

PSGS-2626F delivers 24 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 370W) ports, 2 GbE SFP ports and RJ45 Console port. PSGS-2626F provides high HW performance and environment flexibility for SMBs and Enterprises.

PSGS-2626F is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 Management
  5. PoE Port configuration and scheduling
  6. 802.3at high power PoE plus standard
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Ethernet Switch for Enterprise-class


    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.


  • Easy to Install Configure and Troubleshoot by Device Management System


    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design


    PSGS-2626F is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

  • Advanced Power over Ethernet Management


    The 48-Port GbE model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP RJ45

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
38.68 52 32 9216

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 10% to 90%
non-condensing

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CN61000-4-5 (for RJ45 Port, Surge 6KV)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad

  • Up to 13 groups
  • Up to 16 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 512 entries. Drop or rate limitation based on:

  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet client
  • IPv6 management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no response
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

+ Series Datasheet

GS-2600 and PSGS-2600 Series L2+ Managed GbE Switches


The GS-2600 and PSGS-2600 series L2+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.

The GS-2600 and PSGS-2600 series consists of 11 non-PoE models which are GS-2652XB, GS-2652B, GS-2652X, GS-2648K, GS-2628X, GS-2626G, GS-2626, GS-2618, GS-2612, GS-2610G and GS-2610, and 24 PoE+ models which are PSGS-2652XL, PSGS-2652XF, PSGS-2652XAF, PSGS-2652XBF, PSGS-2652XBL, PSGS-2652BF, PSGS-2652BL, PSGS-2652F, PSGS-2648KL, PSGS-2648KF, PSGS-2628XL, PSGS-2628XF, PSGS-2626GU, PSGS-2626GL, PSGS-2626GF, PSGS-2626L, PSGS-2626F, PSGS-2618GF, PSGS-2612F, PSGS-2610GF, PSGS-2610GH, PSGS-2610GU, PSGS-2610F and PSGS-2610H. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-2600 and PSGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS.
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 Management
  5. PoE Port configuration and scheduling
  6. 802.3at high power PoE plus standard
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Feature-rich Ethernet Switch for Enterprise-class



    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Model Name Total Ports RJ45 10M /100M/1G Uplinks Console Available PoE Power
GS-2652XB 52 48 4 SFP+ RJ45 --
GS-2652B 52 48 4 SFP RJ45 --
GS-2652X 52 48 4 SFP+ DB9 --
GS-2648K 48 44 4 RJ45/SFP combo DB9
GS-2628X 28 24 4 SFP+ DB9 --
GS-2626G 26 24 2 RJ45/SFP combo RJ45 --
GS-2626 26 24 2 SFP RJ45 --
GS-2618 18 16 2 SFP DB9 --
GS-2612 12 10 2 SFP RJ45 --
GS-2610G 10 8 2 RJ45/SFP combo RJ45 --
GS-2610 10 9 1 SFP RJ45 --
PSGS-2652XL 52 48 4 SFP+ DB9 370W
PSGS-2652XF 52 48 4 SFP+ DB9 740W
PSGS-2652XAF 52 50 2 SFP+ RJ45 740W
PSGS-2652XBF 52 48 4 SFP+ RJ45 740W
PSGS-2652XBL 52 48 4 SFP+ RJ45 370W
PSGS-2652BF 52 48 4 SFP RJ45 740W
PSGS-2652BL 52 48 4 SFP RJ45 370W
PSGS-2652F 52 50 2 SFP RJ45 740W
PSGS-2648KL 48 44 4 RJ45/SFP combo DB9 370W
PSGS-2648KF 48 44 4 RJ45/SFP combo DB9 740W
PSGS-2628XL 28 24 4 SFP+ DB9 185W
PSGS-2628XF 28 24 4 SFP+ DB9 370W
PSGS-2626GU 26 24 2 RJ45/SFP combo RJ45 650W/920W - with one module
1300W/1840W - with two modules
PSGS-2626GL 26 24 2 RJ45/SFP combo RJ45 185W
PSGS-2626GF 26 24 2 RJ45/SFP combo RJ45 370W
PSGS-2626L 26 24 2 SFP RJ45 185W
PSGS-2626F 26 24 2 SFP RJ45 370W
PSGS-2618GF 18 16 2 RJ45/SFP combo RJ45 250W
PSGS-2612F 12 10 2 SFP RJ45 130W
PSGS-2610GF 10 8 2 RJ45/SFP combo RJ45 130W
PSGS-2610GH 10 8 2 RJ45/SFP combo RJ45 250W
PSGS-2610GU 10 8 2 RJ45/SFP combo RJ45 250W
PSGS-2610F 10 9 1 SFP RJ45 130W
PSGS-2610H 10 9 1 SFP RJ45 250W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
GS-2652XB 130.95 176 32 10240
GS-2652B 77.38 104 32 10240
GS-2652X 130.944 176 32 10056
GS-2648K 71.424 96 32 10056
GS-2628X 95.232 128 32 10056
GS-2626G 38.688 52 8 9216
GS-2626 38.688 52 8 9216
GS-2618 26.784 36 8 9216
GS-2612 17.8 24 8 9216
GS-2610G 14.88 20 8 9216
GS-2610 14.88 20 8 9216
PSGS-2652XL 130.944 128 32 10056
PSGS-2652XF 130.944 128 32 10056
PSGS-2652XAF 104.16 140 32 10056
PSGS-2652XBF 130.95 176 32 10240
PSGS-2652XBL 130.95 176 32 10240
PSGS-2652BF 77.38 104 32 10240
PSGS-2652BL 77.38 104 32 10240
PSGS-2652F 77.376 104 32 10056
PSGS-2648KL 71.424 96 32 10056
PSGS-2648KF 71.424 96 32 10056
PSGS-2628XL 95.232 128 32 10056
PSGS-2628XF 95.232 128 32 10056
PSGS-2626GL 38.688 52 8 9216
PSGS-2626GF 38.688 52 8 9216
PSGS-2626L 38.688 52 8 9216
PSGS-2626F 38.688 52 8 9216
PSGS-2618GF 26.784 36 8 9216
PSGS-2612F 17.8 24 8 9216
PSGS-2610GF 14.88 20 8 9216
PSGS-2610GH 14.88 20 8 9216
PSGS-2610GU 14.88 20 8 9216
PSGS-2610F 14.88 20 8 9216
PSGS-2610H 14.88 20 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension Weights Humidity

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-2652XB 442x 44x 300 17.4x1.7x11.8 4.2 9.3 Desktop, Rack
GS-2652B 442x 44x 300 17.4x1.7x11.8 4.2 9.3 Desktop, Rack
GS-2652X 442x 44x 385 17.4x1.7x15.2 4.1 9.0 Desktop, Rack
GS-2648K 442x 44x 300 17.4x1.7x11.8 4.1 9.0 Desktop, Rack
GS-2628X 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2626G 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2626 442x 44x 211 17.4x 1.7x 8.3 2.4 5.3 Desktop, Rack
GS-2618 220x38x150.5 8.66x1.5x5.93 1.26 2.78 Desktop, Wall
GS-2612 220x 38x 131 8.7x 1.5x 5.16 1 2.2 Desktop, Wall
GS-2610G 220x 44x 134 8.7x 1.7x 5.28 1.4 3.1 Desktop, Wall
GS-2610 220x 44x 134 8.7x 1.7x 5.28 1.4 3.1 Desktop, Wall
PSGS-2652XL 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2652XF 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2652XAF 442x 44 x 375 17.4x1.7x14.8 5.62 12.39 Desktop, Rack
PSGS-2652XBF 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652XBL 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652BF 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652BL 442x 44 x 375 17.4x1.7x14.8 5.6 12.3 Desktop, Rack
PSGS-2652F 442x 44 x 375 17.4x1.7x14.8 5.62 12.39 Desktop, Rack
PSGS-2648KL 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2648KF 442x 44x 385 17.4x1.7x15.2 5.8 12.8 Desktop, Rack
PSGS-2628XL 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2628XF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2626GL 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2626GF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2626L 442x 44x 211 17.4x 1.7x 8.3 2.5 5.5 Desktop, Rack
PSGS-2626F 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2618GF 442x 44x 211 17.4x 1.7x 8.3 2.7 5.9 Desktop, Rack
PSGS-2612F 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GF 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GH 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610GU 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610F 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall
PSGS-2610H 220x 44x 242 8.7x 1.7x 9.53 2.3 5.1 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-2652XL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XAF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XBF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652XBL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652BF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652BL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2652F 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2648KL 370W Each of port 1 - 48 support PoE/ PoE+ within available PoE Power
PSGS-2648KF 740W Each of port 1 - 48 support PoE/ PoE+ within available PoE Powerr
PSGS-2628XL 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2628XF 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626GU 650W/920W – with one module
1300W/1940W – with two modules
Each of port 1 - 24 support UPoE within available PoE Power
PSGS-2626GL 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626GF 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2626F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-2618GF 250W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power
PSGS-2610GF 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610GH 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610GU 250W Each of port 1 - 4 support UPoE within available PoE Power
PSGS-2610F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-2610H 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d: Spanning Tree Protocol is an OSI layer-2 protocol which ensures a loop free topology for any bridged LAN
  • Rapid Spanning Tree (RSTP) 802.1w: Rapid Spanning Tree Protocol, which provides for faster spanning tree convergence after a topology change
  • Multiple Spanning Tree (MSTP) 802.1s: Multiple Spanning Tree Protocol. The MSTP protocol provides for multiple spanning tree instances
VLAN
  • 802.1Q tag-based VLAN: Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN: A port member of a VLAN can be isolated to other isolated ports on the same VLAN and Private VLAN
  • Private VLAN Edge (PVE): Private VLANs are based on the source port mask, and there are no connections to VLANs. This means that VLAN IDs and Private VLAN IDs can be identical
  • Voice VLAN: The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN
  • Guest VLAN: The IEEE 802.1X Guest VLAN feature allows a guest VLAN to be configured for each 802.1X port on the device to provide limited services to non-802.1X-compliant clients
  • Q-in-Q (double tag) VLAN: Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be supported
  • 802.1v Protocol VLAN: Classifying multiple protocols into a single VLAN often imposes VLAN boundaries that are inappropriate for some of the protocols, requiring the presence of a non-standard entity to relay between VLANs the frames bearing the protocols for which the VLAN boundaries are inappropriate
  • MAC-based VLAN: The MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and thus classify traffic based on the source MAC address of the packet
  • IP Subnet-Based VLAN: In an IP subnet–based VLAN, all the end workstations in an IP subnet are assigned to the same VLAN. In this VLAN, users can move their workstations without reconfiguring their network addresses
  • Management VLAN: Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc
LACP Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner
  • Up to 26 groups
  • Up to 8 ports per group
GARP VLAN Registration Protocol (GVRP/GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification
  • Port based: Traffic QoS by Port
  • 802.1p: VLAN priority based Layer 2 CoS QoS, Class of service is a parameter used in data and voice protocols to differentiate the types of payloads contained in the packet being transmitted
  • DSCP based Differentiated Services (DiffServ) Layer 3 DSCP QoS: IP packets can carry either an IP precedence (IPP) value or a Differentiated Services Code Point (DSCP) value. QoS supports the use of either value because DSCP values are backward-compatible with IP precedence values
  • Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Scheduling Strict priority and weighted round-robin (WRR): Weighted Round Robin is a scheduling algorithm that uses weights assigned to queues to determine how much data will be emptied from a queue before moving to the next queue
Security
ACLs Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
TACACS+ Supports TACACS+ authentication. Switch as a client
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
HTTPs and SSL (Secured Web) Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP
BPDU Guard The BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network. It enforces the STP domain borders and keeps the active topology predictable by not allowing any network devices behind a BPDU guard-enabled port to participate in STP
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Management
DHCP
  • DHCP Server: Support DHCP server to assign IP to DHCP clients
  • DHCP client: The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on Internet Protocol (IP) networks for dynamically distributing network configuration parameters, such as IP addresses for interfaces and services
Event/Error Log Support SNMP Trap/Syslog/SMTP
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
Configuration Export/Import update of the firmware controlling the switch
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED (ANSI/TIA-1057) extensions
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Switch Management
  • HTTP/HTTPs
  • SSH
  • DHCP Client/ DHCPv6 Client
  • Telnet Client
  • IPv6 Management
Diagnostics
  • Cable diagnostics
  • Ping
  • Syslog
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
  • Display visual chart of network traffic of all devices and monitor every port at any time from switches
Switch2go You’ll be noticed a change in whatever your switch happen
Find my Switch Search your real switches quickly and manage directly
Technical Support Online Provide technical assistance to the user remotely
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

+ Download

Download


Product Specification

Product Datasheet

Series Product Datasheet
