FGS-2624K

FGS-2624K

Product Overview


FGS-2624K L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.

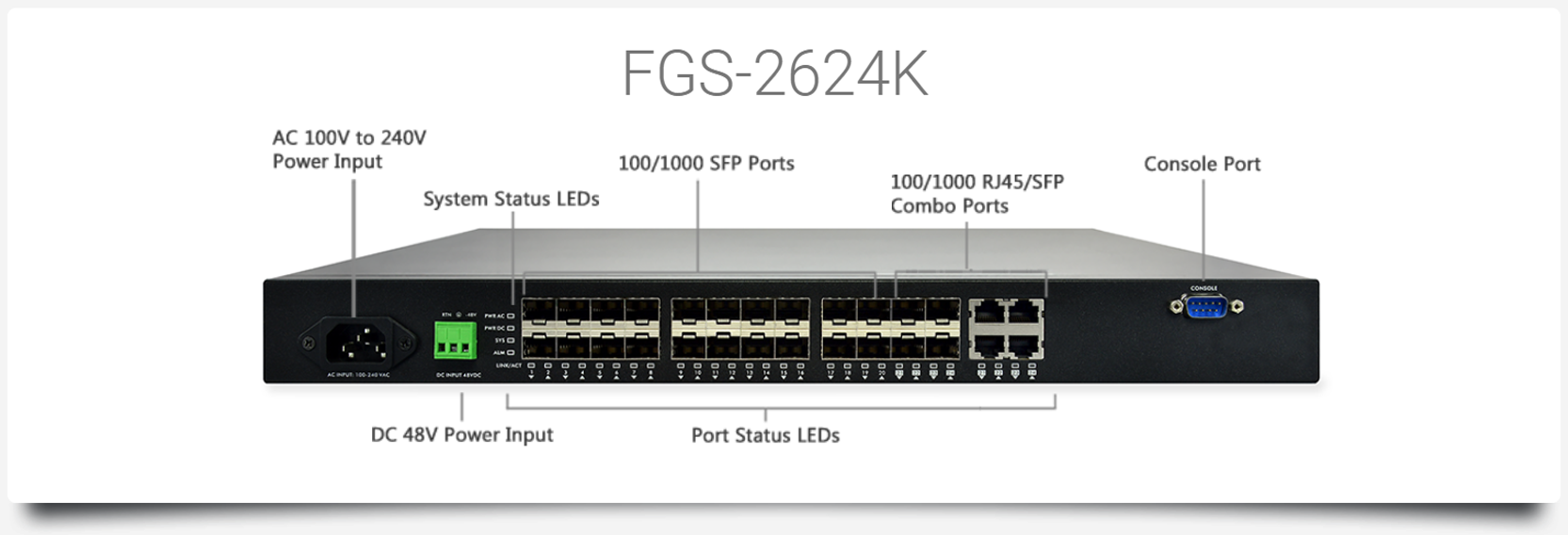

FGS-2624K delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2624K provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.

FGS-2624K is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.



Key Features Customer Benefits
Layer 3 Support Included L3 Static Routing routes internal traffic for more efficient use of network resources
Device Management System Simplified configuration and management to reduce large maintenance complexity and costs
Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency

Product Specification

MODEL NAME FGS-2624K
Product Description 24 ports GbE L2+ Managed Switch

Port Configuration

10M/100M/1G RJ45 Port
--
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
20
GbE RJ45/SFP Combo Port
4
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
DB9
Total Ports
24

HW Performance

Switching Bandwidth
48Gbps
Forwarding Performance
35.7Mpps
MAC Address
32K
Jumbo Frames
10056 Bytes

Environmental Specification

Operating Temperature
-20°C to 60°C
Operating Humidity
5 to 90% RH
Storage Temperature
-25°C to 70°C
Storage Humidity
5 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
3.1 Kg
FAN Less
--

Power Source

AC Input
100V-240V
DC Input
24V ~ 72V DC
Dual Input
AC/DC

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
blank
IEEE802.1W (RSTP)
blank
IEEE802.1S (MSTP)
blank
VLAN
802.1Q VLAN
blank
Port-Based
blank
VLAN Entries
4K
Private VLAN
blank
Voice VLAN
blank
Guest VLAN
blank
Q-in-Q
blank
802.1v Protocol VLAN
blank
MAC-Based VLAN
blank
IP Subnet-Based VLAN
blank
IEEE 802.3ad LACP
Dynamic Trunk
blank
Static Trunk
blank
GARP/GVRP
blank
IGMP Snooping
blank
MLD Snooping
blank
Multicast VLAN Registration (MVR)
blank

L3 Features

Static Route
blank
DHCP Server
blank
Dynamic Routing
--

QoS Features

Class of Service
Port Based
blank
802.1p
blank
DSCP
blank
TCP/UDP Port
blank
Rate Limiting
Ingress
blank
Egress
blank
Priority Queue Scheduling
WRR
blank
Stri Priority
blank
Hardware Queues
8

Security

ACLs
L2/L3/L4
blank
IPv6 Support
blank
Port Security (MAC-based)
blank
IP Source Guard
blank
Storm Control
blank
RADIUS Authentication 802.1x
blank
TACACS+ Authentication
blank
HTTPs and SSL (Secured Web)
blank
BPDU Guard
blank
STP Root Guard
blank
DHCP Snooping
blank
Loop Protection
blank

Management

DHCP
Client
blank
Relay
blank
Option 66
blank
Option 67
blank
Option 82
blank
Event/Error Log
Syslog
blank
SMTP (RFC821)
blank
Management Access Filtering
SNMP
blank
Web UI
blank
Telnet
blank
SSH
blank
PoE Management
Scheduling
--
Auto-Checking
--
Power Delay
--
Soft-Reboot PoE Non-stop
--
SNMP (v1, v2c, v3)
blank
RMON (1,2,3 & 9 Groups)
blank
Software Upgrade
blank
Configuration Export/Import
blank
Port Mirroring
blank
LLDP (IEEE802.1AB)
blank
LLDP-MED (IEEE802.1AB)
blank
CDP Aware
blank
sFlow
blank
IPv6 Management
blank
NTP
blank
First Time Wizard
--

Carrier Ethernet

SyncE
--
1588v2 PTP
--
G.8265.1/G.8275.1/G.8275.2
--
1588v2 PTP (stratum3)
--
OAM (IEEE802.3ah)
--
CFM (IEEE802.1ag)
--
PM (ITU-T Y.1731)
--
ELPS (ITU-T G.8031)
--
ERPS (ITU-T G.8032)
--
Rapid-Ring
blank
RFC2544
--
Y.1564
--

Device Management System

Device Management
Topology View
blank
Floor View
blank
Map View
blank
Dashboard
blank
Traffic Monitoring
blank
Cable Diagnostics
blank

Others

Power Backup with Battery Charge
Option(12~15V)
OOB MGMT Port
--
DC Power Socket
--

FGS-2624K L2+ Managed GbE Fiber Switch


FGS-2624K L2+ Managed Switch is a next-generation Fiber Switch offering full suite of L2 features and additional 10GbE uplink connections, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks or backbone via fibber or copper connections.

FGS-2624K delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports and DB9 Console port with built-in AC and DC dual power supply. FGS-2624K provides front access to all data and management ports, and a compact form factor that facilitates desktop, wall-mount, or rack-mount installations.

FGS-2624K is ideal to deliver management simplicity, optimum user experience, and lowest cost for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Enterprise Applications.

Key Features


  1.   Rapid Ring (R-Ring)
  2.   L2+ Managed features provide easier manageability, robust security and QoS
  3.   Built in Device Management System (DMS)
  4.   AC/DC Dual Power Supply
  5.   DHCP Server
  6.   IPv4/IPv6 L3 static route
  7.   IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application

Benefits


The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.

It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.

It is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Power fail over when power supplies are connected to different circuits. Reduce network operating risk.

Specifications


Port Configuration

Total Ports SFP(10M/100M/1G) Uplinks (1G/10G) Console
24 20 4 UTP/SFP Combo DB9

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
35.712 48 32 9216

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
-4 to 140 -20 to 60 -13 to 158 -25 to 70 <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 3.0 6.6 10% to 90%
non-condensing

Voltage and Frequency

Voltage and Frequency
AC Voltage 100-240 VAC
AC Frequency 50~60 Hz, internal , universal
DC Voltage 24-72 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 12 groups
  • Up to 4 ports per group
VLAN
  • Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Device Management System (DMS)

Graphical

Monitoring

  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs
  • Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet
  • IPv6 management

FGS-2600 L2+ Managed GbE Fiber Switches


The FGS-2600 series consists of 6 models which are FGS-2628KX, FGS-2626KX, FGX-2624K, FGS-2616X, FGS-2614G and FGS-2614. These switches are L2+ management, which provides easier manageability, stronger security, better QoS and performance.

FGS-2600 series also supports IPv6 and its 10 Gigabit Ethernet uplinks features are beneficial for enterprise network. They are ideal for enterprise or small business applications for aggregation and access network which provides long distance up to 120km between points, thus helps you create a more efficient, better-connected workforce. In conclusion, three models deliver better enterprise-class performance and industrial specifications.

They are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership. The free embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features


  1. Rapid Ring (R-Ring)
  2. L2+ Managed features provide easier manageability, robust security and QoS
  3. Built in Device Management System (DMS)
  4. AC/DC Dual Power Supply
  5. DHCP Server
  6. IPv4/IPv6 L3 static route
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Feature-rich Ethernet Switch for Enterprise-class



    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard, Access Control List guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE fiber switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.


  • AC/DC Dual Power Supply



    Power failover when power supplies are connected to different circuits. Reduce network operating risk.


Specifications


Port Configuration

Model Name Total Ports SFP 10M/100M/1G Uplinks Console
FGS-2628KX 28 20 4 SFP+ 4 RJ45/SFP Combo DB9
FGS-2626KX 26 20 2 SFP+ 4 RJ45/SFP Combo DB9
FGS-2624K 24 20 4 RJ45/SFP Combo DB9
FGS-2616X 16 12 2 SFP+ ; 2 RJ45 RJ45
FGS-2614 14 12 2 RJ45 RJ45

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (K)
FGS-2628KX 95.232 128 32 9
FGS-2626KX 65.472 88 32 9
FGS-2624K 35.712 48 32 9
FGS-2616X 50.592 68 32 9
FGS-2614 20.832 28 32 9

Environmental Range

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
FGS-2628KX -4 to 140 -20 to 60 -13 to 158 -25 to 70 <10000 <3000
FGS-2626KX -4 to 140 -20 to 60 -13 to 158 -25 to 70
FGS-2624K -4 to 140 -20 to 60 -13 to 158 -25 to 70
FGS-2616X -4 to 140 -20 to 60 -4 to 158 -20 to 70
FGS-2614 -4 to 140 -20 to 60 -4 to 158 -20 to 70

Dimension, Weights, Humidity

Model Name Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
FGS-2628KX 442x44x211 17.4x1.73x8.31 3.1 6.8 10% to 90%
non-condensing
FGS-2626KX 442x44x211 17.4x1.73x8.31 3.0 6.6
FGS-2624K 442x44x211 17.4x1.73x8.31 3.0 6.6
FGS-2616X 280x44x134 11x1.73x5.28 1.0 2.2
FGS-2614 220x44x134 8.66x1.73x5.28 1.0 2.2

Voltage and Frequency

Input Voltage and Frequency
AC Voltage 100-240 VAC
AC Frequency 50-60 Hz
DC Voltage 24-48 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Ring Management
Rapid Ring Enable self-recover time in less than 20ms
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 14 groups
  • Up to 8 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Zero Touch Upgrade Upgrade single switch automatically when you get notification
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in coand line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • Telnet
  • IPv6 Management

ODM Ethernet Switches with Customizable Hardware Features

Logo Customization

Front-bezel logo customization.

Mylar Customization

Front-bezel Label / Mylar customization.

Combination Port Customization

Combination of RJ-45/SFP/SFP+ ports counts.

PoE Power Customization

PoE / PoE+ / PoE++ Power Customization.

CPU Customization (PoE NVR)

Intel / AMD CPU

HDD / SSD tray Customization (PoE NVR)

2/3/4/6 HDD/SSD tray Customization.

Switch Case Size Customization

Small Form Factor Case Size.

ITU-T Customization

ITU-T G.8032 ERPS.

Temperature Customization

Wide Temperature Support (-20℃~60℃)

FAN Customization

Inteligent FAN Speed Control/Fan-less Design.

GPU Customization (PoE NVR)

Add stand-alone Low Profile graphics card

OS Customization (PoE NVR)

Win Server / Win 10 / Ubuntu / Linux…


ODM Ethernet Switches with Customizable Software Features

Tailored Software Customization for UI and Features

Our expert R&D team offers comprehensive software customization, allowing you to personalize the user interface (UI) to match your brand identity and improve user experience. Additionally, we work closely with you to develop and implement the specific features you need, ensuring that our solutions fully align with your business goals. Whether it's enhancing existing functionalities or adding entirely new capabilities, we ensure seamless integration and optimal performance.

AI-Enhanced Switches with Advanced Configuration Support

Upgrade your Ethernet switches to AI-powered switches with the latest AI assistant integration. Our AI assistant simplifies switch configuration, guiding users step-by-step through setup and management tasks, reducing time and complexity. Additionally, our switches support cutting-edge AI SUPPORT features, enabling real-time diagnostics, automated troubleshooting, and intelligent performance optimization. With these advanced AI functionalities, your switches will evolve into smart, AI-driven network solutions, providing unparalleled efficiency and scalability for modern networking environments.

Seamless Third-Party API Integration for Enhanced Product Synergy

Our solutions offer full support for integrating third-party APIs, enabling deep and seamless integration with your existing systems. Whether you need to connect to external platforms, enhance data flow, or unify multiple systems, our tailored approach ensures smooth compatibility and optimized performance. By combining our advanced networking technology with your current infrastructure, we empower your products with greater flexibility, functionality, and interoperability, driving efficiency and reducing operational complexity.

Device Management System

When we embed Device Management System to the switch, a new era of possibilities begins. One where IT administrators are empowered with system of easy-to-use, and where maintenance is effortless and troubleshooting works in a moment.
One UI & iPush enable your business to operate switches in ways never before possible.
