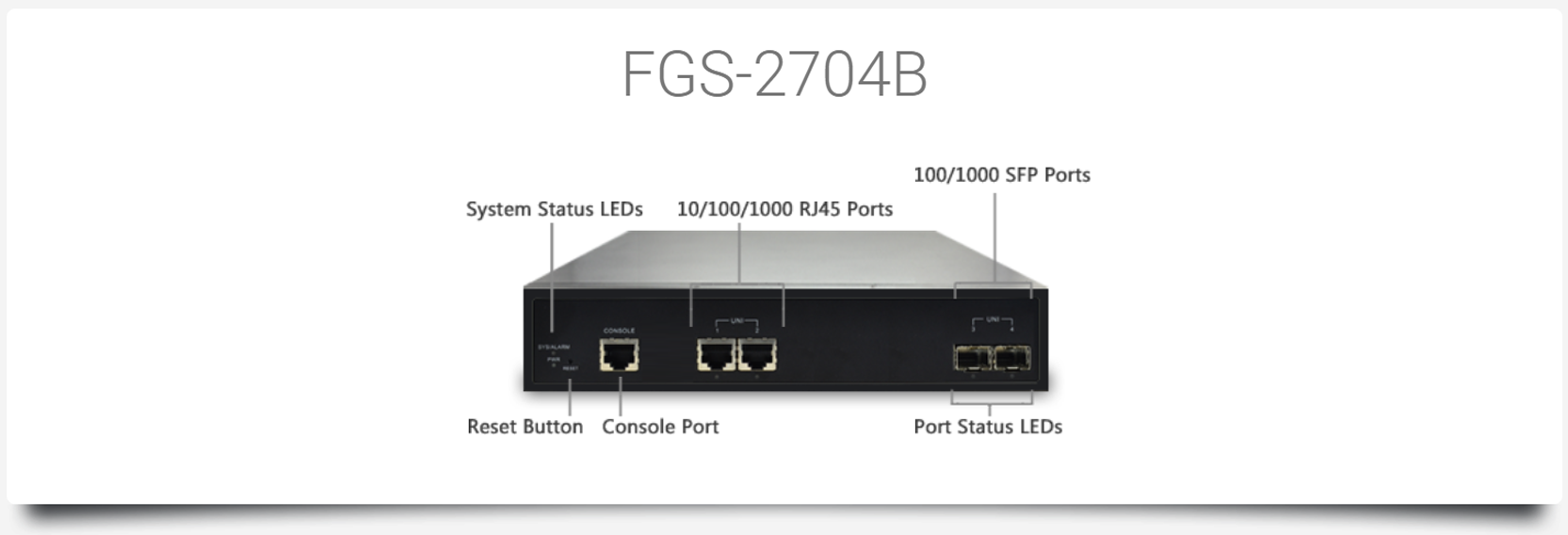

FGS-2704B

FGS-2704B

Product Overview


FGS-2704B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

FGS-2704B delivers 2 (10M/100M/1G) RJ45 ports, 2 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2704B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.

FGS-2704B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.



Key Features Customer Benefits
1588v2 PTP Provided benefits from highly accurate phase and frequency synchronization for base stations and backhaul networks
OAM(802.3ah) and CFM(802.1ag) Simplified and facilitated the management of Carrier network, resulting in diminishing operational costs
ERPS(G.8032) Rings and ELPS(G.8031) Linear APS Supported ring and point-to-point architectures to ensure high levels of resiliency and reliability
AC/DC Dual Power Supply Power failover when power supplies are connected to different circuits reducing network operating risk

Product Specification

MODEL NAME FGS-2704B
Product Description 4 ports GbE Carrier Ethernet NID

Port Configuration

10M/100M/1G RJ45 Port
2
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
2.5G Coax (FAKRA) Port
--
2.5G STP (HSD) Port
--
100M/1G/2.5G/5G/10G Autolink Port
--
Console Port
RJ45
Total Ports
4

HW Performance

Switching Bandwidth
8Gbps
Forwarding Performance
6.95Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
5 to 95% RH
Storage Temperature
-40 to 75°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 220 x 131
Weight
1 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
24V ~ 48V DC
(By request)
Dual Input
(By request)

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
--
Auto-Checking
--
Power Delay
--
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Carrier Ethernet

SyncE
--
1588v2 PTP
1588v2 PTP (stratum3)
--
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring
--

Others

Power Backup with Battery Charge
--
OOB MGMT Port
DC Power Socket
--

FGS-2704B – Network Interface Device (NID)


FGS-2704B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

FGS-2704B delivers 2 (10M/100M/1G) RJ45 ports, 2 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2704B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.

FGS-2704B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.

Key Features


  1. Carrier Ethernet features provide easier manageability, security, QoS
  2. IEEE 1588v2 PTP (TC)
  3. IEEE 802.3ah OAM
  4. IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
  5. ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
  6. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  7. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  8. DHCP Server
  9. IPv4/IPv6 L3 static route
  10. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Carrier Ethernet Switch for Metro Ethernet


    The switch delivers advanced functionality in Carrier Ethernet switch including IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
    It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.


  • Exceptional Precision with IEEE 1588v2 (TC)


    The switch performs IEEE1588v2, including transparent and boundary clock capabilities, implementations in hardware, so there is no performance penalty on packet processing.
    The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.


  • Superior reliability through OAM and CFM for Service Assurance


    Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
    The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
    These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) SFP (100M/1G) Console
4 2 2 RJ45

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
5.952 8 8 9216

Environmental Range

Mode Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
AC

(Standard)

-40 to122 0 to 50 -40 to 176 -40 to 80 < 10000 < 3000
DC

(By request)

-40 to 149 -40 to 65 -40 to 176 -40 to 80
AC/DC Dual

(By request)

-40 to 149 -40 to 65 -40 to 176 -40 to 80

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
220x 44x 130.5 8.7x 1.73x 5.41 1 2.2 10% to 90%
non-condensing

Voltage and Frequency

Input Voltage and Frequency
AC Voltage 100-240 VAC
AC Frequency 50~60 Hz
DC Voltage(By request) 24-48 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
VLAN
  • Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs
  • Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware
ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet client
  • IPv6 management
Ethernet OAM
IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management)
IEEE 802.1ag & ITU-T Y.1731 Flow OAM
  • Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
  • Supports ITU-T Y.1731 Performance Monitoring
Loop Protection
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Loop Detection Supports Loop Detection and Protection

L2 Managed Carrier Ethernet Fiber Switches


L2+ Managed Carrier Ethernet Fiber Switches are a next-generation Carrier Ethernet Network Interface Devices (NID) offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc., which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

They are consists of FGS-2700 with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. And FGS-2800 models with AC only power supply (FGS-2806A) or DC only power supply (FGS-2806D). They provides high HW performance and environment flexibility in a compact form factor that facilitates desktop, wall-mount, or rack-mount installations for Carrier/Telecom providers.

The series are ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.

Key Features


  1. Carrier features provide easier manageability, security and QoS
  2. IEEE 1588v2 PTP (OC/BC/TC)
  3. Sync-Ethernet
  4. IEEE 802.3ah OAM
  5. IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
  6. ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
  7. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  8. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  9. DHCP Server
  10. IPv4/IPv6 L3 static route
  11. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Carrier Ethernet Switch for Metro Ethernet



    The switch delivers advanced functionality in Carrier Ethernet switch including Sync-E, IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
    It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.


  • Advanced Timing Services by Synchronous Ethernet (SyncE) and IEEE 1588v2



    For mobile deployments, the FGS-2806DA Ethernet Access Device offers Synchronous Ethernet (SyncE) and IEEE 1588v2 with ordinary, transparent, and boundary clock capabilities. To provide the exceptional accuracy, the platform is built with an oven-controlled crystal oscillator (OCXO).
    These features are well established at providing ultra-high reliability, and clock synchronization across the network


  • Superior reliability through OAM and CFM for Service Assurance



    Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
    The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
    These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Model Name Total Ports RJ45 (100M/1G) SFP (100M/1G) SFP+ (1G/10G) RJ45/SFP Combo Console Port
FGS-2704A 4 -- 4 -- -- RJ45
FGS-2704B 4 2 2 -- -- RJ45
FGS-2706A 6 -- 6 -- -- RJ45
FGS-2706B 6 2 4 -- -- RJ45
FGS-2806A 6 2 4 -- -- DB9
FGS-2806D 6 2 4 -- -- DB9

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
FGS-2704A 5.952 8 8 9216
FGS-2704B 5.952 8 8 9216
FGS-2706A 8.928 12 8 9216
FGS-2706B 8.928 12 8 9216
FGS-2806A 5.952 12 8 9216
FGS-2806D 5.952 12 8 9216

Environmental Range (AC/DC Dual Input, AC Mode Only)

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
FGS-2704A -40 to 149 -40 to 65 -40 to 176 -40 to 80 <10000 <3000
FGS-2704B -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2706A -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2706B -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2806A -40 to 149 -40 to 65 -40 to 176 -40 to 80

Environmental Range (DC Mode Only)

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
FGS-2704A -40 to 122 0 to 50 -40 to 176 -40 to 80 <10000 <3000
FGS-2704B -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2706A -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2706B -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2806D -40 to 122 0 to 50 -40 to 176 -40 to 80

Dimension, Weights, Humidity

Model Name Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
FGS-2704A 220x44x130 8.7x1.73x5.14 <1 <2.2 10% to 90%
non-condensing
FGS-2704B 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2706A 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2706B 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2806A 280x44x142 11.0x1.73x5.5 <1.5 <3.31
FGS-2806D 280x44x142 11.0x1.73x5.5 <1.5 <3.31

Carrier Ethernet Features

Model Name IEEE 1588v2 PTP SyncE ITU-T Y.1564 (RFC2544) IEEE 802.3ah OAM IEEE 802.1ag CFM EPS ERPS
FGS-2704A TC -- Y Y Y Y Y
FGS-2704B TC -- Y Y Y Y Y
FGS-2706A TC -- Y Y Y Y Y
FGS-2706B TC -- Y Y Y Y Y
FGS-2806A OC/BC/TC (Unaware) Y Y Y Y Y Y
FGS-2806D OC/BC/TC (Unaware) Y Y Y Y Y Y

Voltage and Frequency

Model Name AC Voltage / Frequency DC Voltage
FGS-2704A A100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2704B 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2706A 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2706B 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2806A 100-240 VAC, 50-60 Hz --
FGS-2806D -- 24-72 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static routing IPv4 Unicast: Static routing
IPv6 Static routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
SyncE Support SyncE
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware
ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • Telnet Client
  • IPv6 Management
Ethernet OAM
IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management)
IEEE 802.1ag & ITU-T Y.1731 Flow OAM
  • Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
  • Supports ITU-T Y.1731 Performance Monitoring
Loop Protection
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Loop Detection Supports Loop Detection and Protection

Download


Product Specification

Product Datasheet

Series Product Datasheet

+ Overview

Product Overview


FGS-2704B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

FGS-2704B delivers 2 (10M/100M/1G) RJ45 ports, 2 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2704B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.

FGS-2704B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.



Key Features Customer Benefits
1588v2 PTP Provided benefits from highly accurate phase and frequency synchronization for base stations and backhaul networks
OAM(802.3ah) and CFM(802.1ag) Simplified and facilitated the management of Carrier network, resulting in diminishing operational costs
ERPS(G.8032) Rings and ELPS(G.8031) Linear APS Supported ring and point-to-point architectures to ensure high levels of resiliency and reliability
AC/DC Dual Power Supply Power failover when power supplies are connected to different circuits reducing network operating risk
+ Specification

Product Specification

MODEL NAME FGS-2704B
Product Description 4 ports GbE Carrier Ethernet NID

Port Configuration

10M/100M/1G RJ45 Port
2
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
2.5G Coax (FAKRA) Port
--
2.5G STP (HSD) Port
--
100M/1G/2.5G/5G/10G Autolink Port
--
Console Port
RJ45
Total Ports
4

HW Performance

Switching Bandwidth
8Gbps
Forwarding Performance
6.95Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
5 to 95% RH
Storage Temperature
-40 to 75°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 220 x 131
Weight
1 Kg
FAN Less

Power Source

AC Input
100V-240V
DC Input
24V ~ 48V DC
(By request)
Dual Input
(By request)

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
IEEE802.1W (RSTP)
IEEE802.1S (MSTP)
VLAN
802.1Q VLAN
Port-Based
VLAN Entries
4K
Private VLAN
Voice VLAN
Guest VLAN
Q-in-Q
802.1v Protocol VLAN
MAC-Based VLAN
IP Subnet-Based VLAN
IEEE 802.3ad LACP
Dynamic Trunk
Static Trunk
GARP/GVRP
IGMP Snooping
MLD Snooping
Multicast VLAN Registration (MVR)

L3 Features

Static Route
DHCP Server

QoS Features

Class of Service
Port Based
802.1p
DSCP
TCP/UDP Port
Rate Limiting
Ingress
Egress
Priority Queue Scheduling
WRR
Strict Priority
Hardware Queues
8

Security

ACLs
L2/L3/L4
IPv6 Support
Port Security (MAC-based)
IP Source Guard
Storm Control
RADIUS Authentication 802.1x
TACACS+ Authentication
HTTPs and SSL (Secured Web)
BPDU Guard
STP Root Guard
DHCP Snooping
Loop Protection

Management

DHCP
Client
Relay
Option 66
Option 67
Option 82
Event/Error Log
Syslog
SMTP (RFC821)
Management Access Filtering
SNMP
Web
Telnet
SSH
PoE Management
Scheduling
--
Auto-Checking
--
Power Delay
--
SNMP (v1, v2c, v3)
RMON ( 1,2,3 & 9 Groups)
Software Upgrade
Configuration Export/Import
Port Mirroring
LLDP (IEEE802.1AB)
LLDP-MED (IEEE802.1AB)
CDP Aware
sFlow
IPv6 Management
NTP

Carrier Ethernet

SyncE
--
1588v2 PTP
1588v2 PTP (stratum3)
--
OAM (IEEE802.3ah)
CFM (IEEE802.1ag)
PM (ITU-T Y.1731)
ELPS (ITU-T G.8031)
ERPS (ITU-T G.8032)
Rapid-Ring
--

Others

Power Backup with Battery Charge
--
OOB MGMT Port
DC Power Socket
--

+ Datasheet

FGS-2704B – Network Interface Device (NID)


FGS-2704B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

FGS-2704B delivers 2 (10M/100M/1G) RJ45 ports, 2 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2704B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.

FGS-2704B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.

Key Features


  1. Carrier Ethernet features provide easier manageability, security, QoS
  2. IEEE 1588v2 PTP (TC)
  3. IEEE 802.3ah OAM
  4. IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
  5. ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
  6. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  7. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  8. DHCP Server
  9. IPv4/IPv6 L3 static route
  10. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Carrier Ethernet Switch for Metro Ethernet


    The switch delivers advanced functionality in Carrier Ethernet switch including IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
    It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.


  • Exceptional Precision with IEEE 1588v2 (TC)


    The switch performs IEEE1588v2, including transparent and boundary clock capabilities, implementations in hardware, so there is no performance penalty on packet processing.
    The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.


  • Superior reliability through OAM and CFM for Service Assurance


    Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
    The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
    These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) SFP (100M/1G) Console
4 2 2 RJ45

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
5.952 8 8 9216

Environmental Range

Mode Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
AC

(Standard)

-40 to122 0 to 50 -40 to 176 -40 to 80 < 10000 < 3000
DC

(By request)

-40 to 149 -40 to 65 -40 to 176 -40 to 80
AC/DC Dual

(By request)

-40 to 149 -40 to 65 -40 to 176 -40 to 80

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
220x 44x 130.5 8.7x 1.73x 5.41 1 2.2 10% to 90%
non-condensing

Voltage and Frequency

Input Voltage and Frequency
AC Voltage 100-240 VAC
AC Frequency 50~60 Hz
DC Voltage(By request) 24-48 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
VLAN
  • Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs
  • Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware
ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet client
  • IPv6 management
Ethernet OAM
IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management)
IEEE 802.1ag & ITU-T Y.1731 Flow OAM
  • Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
  • Supports ITU-T Y.1731 Performance Monitoring
Loop Protection
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Loop Detection Supports Loop Detection and Protection

+ Series Datasheet

L2 Managed Carrier Ethernet Fiber Switches


L2+ Managed Carrier Ethernet Fiber Switches are a next-generation Carrier Ethernet Network Interface Devices (NID) offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc., which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

They are consists of FGS-2700 with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. And FGS-2800 models with AC only power supply (FGS-2806A) or DC only power supply (FGS-2806D). They provides high HW performance and environment flexibility in a compact form factor that facilitates desktop, wall-mount, or rack-mount installations for Carrier/Telecom providers.

The series are ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.

Key Features


  1. Carrier features provide easier manageability, security and QoS
  2. IEEE 1588v2 PTP (OC/BC/TC)
  3. Sync-Ethernet
  4. IEEE 802.3ah OAM
  5. IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
  6. ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
  7. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  8. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  9. DHCP Server
  10. IPv4/IPv6 L3 static route
  11. IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application

Benefits


  • Feature-rich Carrier Ethernet Switch for Metro Ethernet



    The switch delivers advanced functionality in Carrier Ethernet switch including Sync-E, IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
    It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.


  • Advanced Timing Services by Synchronous Ethernet (SyncE) and IEEE 1588v2



    For mobile deployments, the FGS-2806DA Ethernet Access Device offers Synchronous Ethernet (SyncE) and IEEE 1588v2 with ordinary, transparent, and boundary clock capabilities. To provide the exceptional accuracy, the platform is built with an oven-controlled crystal oscillator (OCXO).
    These features are well established at providing ultra-high reliability, and clock synchronization across the network


  • Superior reliability through OAM and CFM for Service Assurance



    Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
    The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
    These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Model Name Total Ports RJ45 (100M/1G) SFP (100M/1G) SFP+ (1G/10G) RJ45/SFP Combo Console Port
FGS-2704A 4 -- 4 -- -- RJ45
FGS-2704B 4 2 2 -- -- RJ45
FGS-2706A 6 -- 6 -- -- RJ45
FGS-2706B 6 2 4 -- -- RJ45
FGS-2806A 6 2 4 -- -- DB9
FGS-2806D 6 2 4 -- -- DB9

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
FGS-2704A 5.952 8 8 9216
FGS-2704B 5.952 8 8 9216
FGS-2706A 8.928 12 8 9216
FGS-2706B 8.928 12 8 9216
FGS-2806A 5.952 12 8 9216
FGS-2806D 5.952 12 8 9216

Environmental Range (AC/DC Dual Input, AC Mode Only)

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
FGS-2704A -40 to 149 -40 to 65 -40 to 176 -40 to 80 <10000 <3000
FGS-2704B -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2706A -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2706B -40 to 149 -40 to 65 -40 to 176 -40 to 80
FGS-2806A -40 to 149 -40 to 65 -40 to 176 -40 to 80

Environmental Range (DC Mode Only)

Model Name Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
FGS-2704A -40 to 122 0 to 50 -40 to 176 -40 to 80 <10000 <3000
FGS-2704B -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2706A -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2706B -40 to 122 0 to 50 -40 to 176 -40 to 80
FGS-2806D -40 to 122 0 to 50 -40 to 176 -40 to 80

Dimension, Weights, Humidity

Model Name Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
FGS-2704A 220x44x130 8.7x1.73x5.14 <1 <2.2 10% to 90%
non-condensing
FGS-2704B 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2706A 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2706B 220x44x130 8.7x1.73x5.14 <1 <2.2
FGS-2806A 280x44x142 11.0x1.73x5.5 <1.5 <3.31
FGS-2806D 280x44x142 11.0x1.73x5.5 <1.5 <3.31

Carrier Ethernet Features

Model Name IEEE 1588v2 PTP SyncE ITU-T Y.1564 (RFC2544) IEEE 802.3ah OAM IEEE 802.1ag CFM EPS ERPS
FGS-2704A TC -- Y Y Y Y Y
FGS-2704B TC -- Y Y Y Y Y
FGS-2706A TC -- Y Y Y Y Y
FGS-2706B TC -- Y Y Y Y Y
FGS-2806A OC/BC/TC (Unaware) Y Y Y Y Y Y
FGS-2806D OC/BC/TC (Unaware) Y Y Y Y Y Y

Voltage and Frequency

Model Name AC Voltage / Frequency DC Voltage
FGS-2704A A100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2704B 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2706A 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2706B 100-240 VAC, 50-60 Hz 24-72 VDC (By request)
FGS-2806A 100-240 VAC, 50-60 Hz --
FGS-2806D -- 24-72 VDC

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • MAC-based VLAN
  • Management VLAN
  • Private VLAN Edge (PVE)
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
  • GARP VLAN Registration Protocol (GVRP)
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Layer 3 Switching
IPv4 Static routing IPv4 Unicast: Static routing
IPv6 Static routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
ACLs Supports up to 256 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
SyncE Support SyncE
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware
ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable Diagnostics
  • Ping
  • Syslog
  • Telnet Client
  • IPv6 Management
Ethernet OAM
IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management)
IEEE 802.1ag & ITU-T Y.1731 Flow OAM
  • Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
  • Supports ITU-T Y.1731 Performance Monitoring
Loop Protection
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Loop Detection Supports Loop Detection and Protection

+ Download

Download


Product Specification

Product Datasheet

Series Product Datasheet
