Product Overview
FGS-2706B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
FGS-2706B delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2706B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2706B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.
Key Features | Customer Benefits |
---|---|
1588v2 PTP | Provided benefits from highly accurate phase and frequency synchronization for base stations and backhaul networks |
OAM(802.3ah) and CFM(802.1ag) | Simplified and facilitated the management of Carrier network, resulting in diminishing operational costs |
ERPS(G.8032) Rings and ELPS(G.8031) Linear APS | Supported ring and point-to-point architectures to ensure high levels of resiliency and reliability |
AC/DC Dual Power Supply | Power failover when power supplies are connected to different circuits reducing network operating risk |
Product Specification
MODEL NAME | FGS-2706B |
---|---|
Product Description | 6 ports GbE Carrier Ethernet NID |
Port Configuration
10M/100M/1G RJ45 Port | 2 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | 4 | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | RJ45 | |
Total Ports | 6 |
HW Performance
Switching Bandwidth | 12Gbps | |
Forwarding Performance | 8.9Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
Environmental Specification
Operating Temperature | 0°C to 50°C | |
Operating Humidity | 5 to 95% RH | |
Storage Temperature | -40 to 75°C | |
Storage Humidity | 5 to 95% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 220 x 131 | |
Weight | 1 Kg | |
FAN Less |
Power Source
AC Input | 100V-240V | |
DC Input | 24V ~ 48V DC (By request) | |
Dual Input | (By request) |
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | ||
IEEE802.1S (MSTP) | ||
VLAN |
802.1Q VLAN | |
Port-Based | ||
VLAN Entries | 4K | |
Private VLAN | ||
Voice VLAN | ||
Guest VLAN | ||
Q-in-Q | ||
802.1v Protocol VLAN | ||
MAC-Based VLAN | ||
IP Subnet-Based VLAN | ||
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | ||
GARP/GVRP | ||
IGMP Snooping | ||
MLD Snooping | ||
Multicast VLAN Registration (MVR) |
L3 Features
Static Route | ||
DHCP Server | ||
Dynamic Routing | -- |
QoS Features
Class of Service |
Port Based | |
802.1p | ||
DSCP | ||
TCP/UDP Port | ||
Rate Limiting |
Ingress | |
Egress | ||
Priority Queue Scheduling |
WRR | |
Stri Priority | ||
Hardware Queues | 8 |
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | ||
Port Security (MAC-based) | ||
IP Source Guard | ||
Storm Control | ||
RADIUS Authentication 802.1x | ||
TACACS+ Authentication | ||
HTTPs and SSL (Secured Web) | ||
BPDU Guard | ||
STP Root Guard | ||
DHCP Snooping | ||
Loop Protection |
Management
DHCP |
Client | |
Relay | ||
Option 66 | ||
Option 67 | ||
Option 82 | ||
Event/Error Log |
Syslog | |
SMTP (RFC821) | ||
Management Access Filtering |
SNMP | |
Web UI | ||
Telnet | ||
SSH | ||
PoE Management |
Scheduling | -- |
Auto-Checking | -- | |
Power Delay | -- | |
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | ||
RMON (1,2,3 & 9 Groups) | ||
Software Upgrade | ||
Configuration Export/Import | ||
Port Mirroring | ||
LLDP (IEEE802.1AB) | ||
LLDP-MED (IEEE802.1AB) | ||
CDP Aware | ||
sFlow | ||
IPv6 Management | ||
NTP | ||
First Time Wizard | -- |
Carrier Ethernet
SyncE | -- | |
1588v2 PTP | ||
G.8265.1/G.8275.1/G.8275.2 | -- | |
1588v2 PTP (stratum3) | -- | |
OAM (IEEE802.3ah) | ||
CFM (IEEE802.1ag) | ||
PM (ITU-T Y.1731) | ||
ELPS (ITU-T G.8031) | ||
ERPS (ITU-T G.8032) | ||
Rapid-Ring | -- | |
RFC2544 | ||
Y.1564 |
Others
Power Backup with Battery Charge | -- | |
OOB MGMT Port | ||
DC Power Socket | -- |
FGS-2706B – Network Interface Device (NID)
FGS-2706B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
FGS-2706B delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2706B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2706B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier Ethernet features provide easier manageability, security, QoS
- IEEE 1588v2 PTP (TC)
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
Feature-rich Carrier Ethernet Switch for Metro Ethernet
The switch delivers advanced functionality in Carrier Ethernet switch including IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
Exceptional Precision with IEEE 1588v2 (TC)
The NID performs IEEE1588v2 with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Superior reliability through OAM and CFM for Service Assurance
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | SFP (100M/1G) | Console |
---|---|---|---|
6 | 2 | 4 | RJ45 |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
5.952 | 8 | 8 | 9216 |
Environmental Range
Mode | Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
AC (Standard) | -40 to122 | 0 to 50 | -40 to 176 | -40 to 80 | <10000 | <3000 |
DC (By request) | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
AC/DC Dual (By request) | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
220x 44x 130.5 | 8.7x 1.73x 5.41 | 1 | 2.2 | 10% to 90% non-condensing |
Voltage and Frequency
Input Voltage and Frequency | |
---|---|
AC Voltage | 100-240 VAC |
AC Frequency | 50~60 Hz |
DC Voltage(By request) | 24-48 VDC |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN |
|
DHCP Relay |
|
IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. |
MLD v1/v2 snooping | Delivers IPv6 multicast packets only to the required receivers |
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs |
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
IEEE 1588v2 PTP | Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware |
ITU-T Y.1564 | Support RFC2544 Ethernet Service Activation Test |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Ethernet OAM | |
IEEE 802.3ah Link OAM | Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) |
IEEE 802.1ag & ITU-T Y.1731 Flow OAM |
|
Loop Protection | |
ITU-T G.8031 | Supports ITU-T G.8031 Ethernet Linear Protection |
ITU-T G.8032 | Supports ITU-T G.8032 Ethernet Ring Protection Switching |
Loop Detection | Supports Loop Detection and Protection |
L2 Managed Carrier Ethernet Fiber Switches
L2+ Managed Carrier Ethernet Fiber Switches are a next-generation Carrier Ethernet Network Interface Devices (NID) offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc., which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
They are consists of FGS-2700 with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. And FGS-2800 models with AC only power supply (FGS-2806A) or DC only power supply (FGS-2806D). They provides high HW performance and environment flexibility in a compact form factor that facilitates desktop, wall-mount, or rack-mount installations for Carrier/Telecom providers.
The series are ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier features provide easier manageability, security and QoS
- IEEE 1588v2 PTP (OC/BC/TC)
- Sync-Ethernet
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
-
Feature-rich Carrier Ethernet Switch for Metro Ethernet
The switch delivers advanced functionality in Carrier Ethernet switch including Sync-E, IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
-
Advanced Timing Services by Synchronous Ethernet (SyncE) and IEEE 1588v2
For mobile deployments, the FGS-2806DA Ethernet Access Device offers Synchronous Ethernet (SyncE) and IEEE 1588v2 with ordinary, transparent, and boundary clock capabilities. To provide the exceptional accuracy, the platform is built with an oven-controlled crystal oscillator (OCXO).
These features are well established at providing ultra-high reliability, and clock synchronization across the network
-
Superior reliability through OAM and CFM for Service Assurance
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 (100M/1G) | SFP (100M/1G) | SFP+ (1G/10G) | RJ45/SFP Combo | Console Port |
---|---|---|---|---|---|---|
FGS-2704A | 4 | -- | 4 | -- | -- | RJ45 |
FGS-2704B | 4 | 2 | 2 | -- | -- | RJ45 |
FGS-2706A | 6 | -- | 6 | -- | -- | RJ45 |
FGS-2706B | 6 | 2 | 4 | -- | -- | RJ45 |
FGS-2806A | 6 | 2 | 4 | -- | -- | DB9 |
FGS-2806D | 6 | 2 | 4 | -- | -- | DB9 |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|---|
FGS-2704A | 5.952 | 8 | 8 | 9216 |
FGS-2704B | 5.952 | 8 | 8 | 9216 |
FGS-2706A | 8.928 | 12 | 8 | 9216 |
FGS-2706B | 8.928 | 12 | 8 | 9216 |
FGS-2806A | 5.952 | 12 | 8 | 9216 |
FGS-2806D | 5.952 | 12 | 8 | 9216 |
Environmental Range (AC/DC Dual Input, AC Mode Only)
Model Name | Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
FGS-2704A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | <10000 | <3000 |
FGS-2704B | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2706A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2706B | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2806A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 |
Environmental Range (DC Mode Only)
Model Name | Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
FGS-2704A | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | <10000 | <3000 |
FGS-2704B | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2706A | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2706B | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2806D | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 |
Dimension, Weights, Humidity
Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
FGS-2704A | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | 10% to 90% non-condensing |
FGS-2704B | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2706A | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2706B | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2806A | 280x44x142 | 11.0x1.73x5.5 | <1.5 | <3.31 | |
FGS-2806D | 280x44x142 | 11.0x1.73x5.5 | <1.5 | <3.31 |
Carrier Ethernet Features
Model Name | IEEE 1588v2 PTP | SyncE | ITU-T Y.1564 (RFC2544) | IEEE 802.3ah OAM | IEEE 802.1ag CFM | EPS | ERPS |
---|---|---|---|---|---|---|---|
FGS-2704A | TC | -- | Y | Y | Y | Y | Y |
FGS-2704B | TC | -- | Y | Y | Y | Y | Y |
FGS-2706A | TC | -- | Y | Y | Y | Y | Y |
FGS-2706B | TC | -- | Y | Y | Y | Y | Y |
FGS-2806A | OC/BC/TC (Unaware) | Y | Y | Y | Y | Y | Y |
FGS-2806D | OC/BC/TC (Unaware) | Y | Y | Y | Y | Y | Y |
Voltage and Frequency
Model Name | AC Voltage / Frequency | DC Voltage |
---|---|---|
FGS-2704A | A100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2704B | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2706A | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2706B | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2806A | 100-240 VAC, 50-60 Hz | -- |
FGS-2806D | -- | 24-72 VDC |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad |
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
DHCP Relay |
|
IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Layer 3 Switching | |
IPv4 Static routing | IPv4 Unicast: Static routing |
IPv6 Static routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
SyncE | Support SyncE |
IEEE 1588v2 PTP | Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware |
ITU-T Y.1564 | Support RFC2544 Ethernet Service Activation Test |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Ethernet OAM | |
IEEE 802.3ah Link OAM | Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) |
IEEE 802.1ag & ITU-T Y.1731 Flow OAM |
|
Loop Protection | |
ITU-T G.8031 | Supports ITU-T G.8031 Ethernet Linear Protection |
ITU-T G.8032 | Supports ITU-T G.8032 Ethernet Ring Protection Switching |
Loop Detection | Supports Loop Detection and Protection |
Download
Product Specification
Product Datasheet
Series Product Datasheet
- + Overview
-
Product Overview
FGS-2706B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

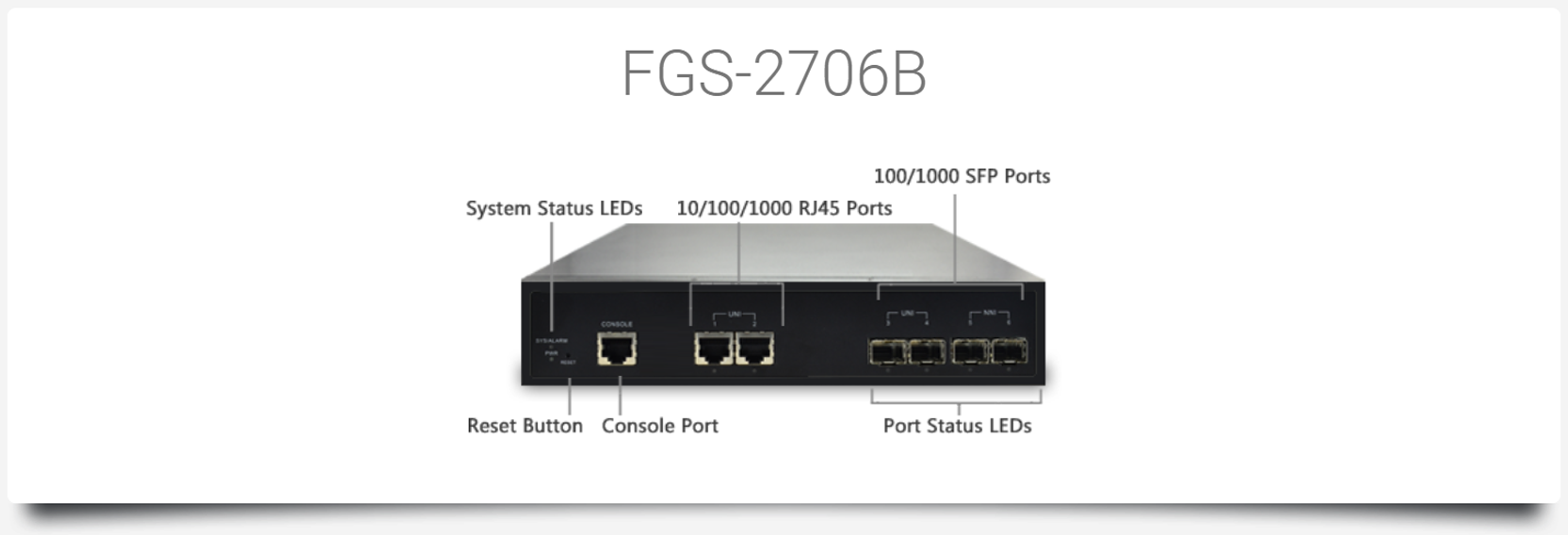

FGS-2706B delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2706B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2706B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.
Key Features Customer Benefits 1588v2 PTP Provided benefits from highly accurate phase and frequency synchronization for base stations and backhaul networks OAM(802.3ah) and CFM(802.1ag) Simplified and facilitated the management of Carrier network, resulting in diminishing operational costs ERPS(G.8032) Rings and ELPS(G.8031) Linear APS Supported ring and point-to-point architectures to ensure high levels of resiliency and reliability AC/DC Dual Power Supply Power failover when power supplies are connected to different circuits reducing network operating risk - + Specification
-
Product Specification
MODEL NAME FGS-2706B Product Description 6 ports GbE Carrier Ethernet NID Port Configuration
10M/100M/1G RJ45 Port2100M/1G/2.5G RJ45 Port--100M/1G/10G RJ45 Port--100M/1G/2.5G/5G/10G RJ45 Port--100M/1G SFP Port4GbE RJ45/SFP Combo Port--1G/2.5G SFP Port--1G/10G SFP+ Port--SFP28/QSFP+ Combo Port--1G/10G/25G SFP28 Port--QSFP+ (40G)--SFP56 (50G)--USB--Console PortRJ45Total Ports6HW Performance
Switching Bandwidth12GbpsForwarding Performance8.9MppsMAC Address8KJumbo Frames9216 BytesEnvironmental Specification
Operating Temperature0°C to 50°COperating Humidity5 to 95% RHStorage Temperature-40 to 75°CStorage Humidity5 to 95% RHMechanical Specification
Dimensions (H) x (W) x (D) mm44 x 220 x 131Weight1 KgFAN LessPower Source
AC Input100V-240VDC Input24V ~ 48V DC
(By request)Dual Input(By request)Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV)--CertificationsCE/FCC Class A
Others by RequestL2 Switching
Spanning TreeIEEE802.1D (STP)IEEE802.1W (RSTP)IEEE802.1S (MSTP)VLAN802.1Q VLANPort-BasedVLAN Entries4KPrivate VLANVoice VLANGuest VLANQ-in-Q802.1v Protocol VLANMAC-Based VLANIP Subnet-Based VLANIEEE 802.3ad LACPDynamic TrunkStatic TrunkGARP/GVRPIGMP SnoopingMLD SnoopingMulticast VLAN Registration (MVR)L3 Features
Static RouteDHCP ServerDynamic Routing--QoS Features
Class of ServicePort Based802.1pDSCPTCP/UDP PortRate LimitingIngressEgressPriority Queue SchedulingWRRStri PriorityHardware Queues8Security
ACLsL2/L3/L4IPv6 SupportPort Security (MAC-based)IP Source GuardStorm ControlRADIUS Authentication 802.1xTACACS+ AuthenticationHTTPs and SSL (Secured Web)BPDU GuardSTP Root GuardDHCP SnoopingLoop ProtectionManagement
DHCPClientRelayOption 66Option 67Option 82Event/Error LogSyslogSMTP (RFC821)Management Access FilteringSNMPWeb UITelnetSSHPoE ManagementScheduling--Auto-Checking--Power Delay--Soft-Reboot PoE Non-stop--SNMP (v1, v2c, v3)RMON (1,2,3 & 9 Groups)Software UpgradeConfiguration Export/ImportPort MirroringLLDP (IEEE802.1AB)LLDP-MED (IEEE802.1AB)CDP AwaresFlowIPv6 ManagementNTPFirst Time Wizard--Carrier Ethernet
SyncE--1588v2 PTPG.8265.1/G.8275.1/G.8275.2--1588v2 PTP (stratum3)--OAM (IEEE802.3ah)CFM (IEEE802.1ag)PM (ITU-T Y.1731)ELPS (ITU-T G.8031)ERPS (ITU-T G.8032)Rapid-Ring--RFC2544Y.1564Others
Power Backup with Battery Charge--OOB MGMT PortDC Power Socket-- - + Datasheet
-
FGS-2706B – Network Interface Device (NID)
FGS-2706B L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
FGS-2706B delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports, RJ45 Console port with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. FGS-2706B provides front access to all data and management ports, and a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2706B is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier Ethernet features provide easier manageability, security, QoS
- IEEE 1588v2 PTP (TC)
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
Feature-rich Carrier Ethernet Switch for Metro Ethernet
The switch delivers advanced functionality in Carrier Ethernet switch including IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
Exceptional Precision with IEEE 1588v2 (TC)
The NID performs IEEE1588v2 with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Superior reliability through OAM and CFM for Service Assurance
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports RJ45 (10M/100M/1G) SFP (100M/1G) Console 6 2 4 RJ45 Hardware Performance
Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)5.952 8 8 9216 Environmental Range
Mode Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters AC
(Standard)-40 to122 0 to 50 -40 to 176 -40 to 80 <10000 <3000 DC
(By request)-40 to 149 -40 to 65 -40 to 176 -40 to 80 AC/DC Dual
(By request)-40 to 149 -40 to 65 -40 to 176 -40 to 80 Dimension Weights Humidity
Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds 220x 44x 130.5 8.7x 1.73x 5.41 1 2.2 10% to 90%
non-condensingVoltage and Frequency
Input Voltage and Frequency AC Voltage 100-240 VAC AC Frequency 50~60 Hz DC Voltage(By request) 24-48 VDC Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking - Link Aggregation Control Protocol (LACP) IEEE 802.3ad
VLAN - Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
- Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN Edge (PVE)
- Q-in-Q (double tag) VLAN
- Voice VLAN
- GARP VLAN Registration Protocol (GVRP)
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers Layer 3 Switching IPv4 Static Routing IPv4 Unicast: Static routing IPv6 Static Routing IPv6 Unicast: Static routing Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers ACLs - Supports up to 512 entries. Drop or rate limitation based on:
- Source and destination MAC, VLAN ID or IP address, protocol, port
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence/ DSCP based
- Differentiated Services (DiffServ)
- Classification and re-marking ACLs
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
Management IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
- Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs; SSH
- DHCP Client/ DHCPv6 Client
- Cable diagnostics
- Ping
- Syslog
- Telnet
- IPv6 management
Ethernet OAM IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) IEEE 802.1ag & ITU-T Y.1731 Flow OAM - Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
- Supports ITU-T Y.1731 Performance Monitoring
Loop Protection ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching Loop Detection Supports Loop Detection and Protection - + Series Datasheet
-
L2 Managed Carrier Ethernet Fiber Switches
L2+ Managed Carrier Ethernet Fiber Switches are a next-generation Carrier Ethernet Network Interface Devices (NID) offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc., which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
They are consists of FGS-2700 with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. And FGS-2800 models with AC only power supply (FGS-2806A) or DC only power supply (FGS-2806D). They provides high HW performance and environment flexibility in a compact form factor that facilitates desktop, wall-mount, or rack-mount installations for Carrier/Telecom providers.
The series are ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier features provide easier manageability, security and QoS
- IEEE 1588v2 PTP (OC/BC/TC)
- Sync-Ethernet
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
-
Feature-rich Carrier Ethernet Switch for Metro Ethernet
The switch delivers advanced functionality in Carrier Ethernet switch including Sync-E, IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
-
Advanced Timing Services by Synchronous Ethernet (SyncE) and IEEE 1588v2
For mobile deployments, the FGS-2806DA Ethernet Access Device offers Synchronous Ethernet (SyncE) and IEEE 1588v2 with ordinary, transparent, and boundary clock capabilities. To provide the exceptional accuracy, the platform is built with an oven-controlled crystal oscillator (OCXO).
These features are well established at providing ultra-high reliability, and clock synchronization across the network
-
Superior reliability through OAM and CFM for Service Assurance
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Model Name Total Ports RJ45 (100M/1G) SFP (100M/1G) SFP+ (1G/10G) RJ45/SFP Combo Console Port FGS-2704A 4 -- 4 -- -- RJ45 FGS-2704B 4 2 2 -- -- RJ45 FGS-2706A 6 -- 6 -- -- RJ45 FGS-2706B 6 2 4 -- -- RJ45 FGS-2806A 6 2 4 -- -- DB9 FGS-2806D 6 2 4 -- -- DB9 Hardware Performance
Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes) FGS-2704A 5.952 8 8 9216 FGS-2704B 5.952 8 8 9216 FGS-2706A 8.928 12 8 9216 FGS-2706B 8.928 12 8 9216 FGS-2806A 5.952 12 8 9216 FGS-2806D 5.952 12 8 9216 Environmental Range (AC/DC Dual Input, AC Mode Only)
Model Name Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters FGS-2704A -40 to 149 -40 to 65 -40 to 176 -40 to 80 <10000 <3000 FGS-2704B -40 to 149 -40 to 65 -40 to 176 -40 to 80 FGS-2706A -40 to 149 -40 to 65 -40 to 176 -40 to 80 FGS-2706B -40 to 149 -40 to 65 -40 to 176 -40 to 80 FGS-2806A -40 to 149 -40 to 65 -40 to 176 -40 to 80 Environmental Range (DC Mode Only)
Model Name Operating Temperature Storage Temperature Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters FGS-2704A -40 to 122 0 to 50 -40 to 176 -40 to 80 <10000 <3000 FGS-2704B -40 to 122 0 to 50 -40 to 176 -40 to 80 FGS-2706A -40 to 122 0 to 50 -40 to 176 -40 to 80 FGS-2706B -40 to 122 0 to 50 -40 to 176 -40 to 80 FGS-2806D -40 to 122 0 to 50 -40 to 176 -40 to 80 Dimension, Weights, Humidity
Model Name Dimension (WxHxD) Weight Operating Humidity Millimeter Inches Kilograms Pounds FGS-2704A 220x44x130 8.7x1.73x5.14 <1 <2.2 10% to 90%
non-condensingFGS-2704B 220x44x130 8.7x1.73x5.14 <1 <2.2 FGS-2706A 220x44x130 8.7x1.73x5.14 <1 <2.2 FGS-2706B 220x44x130 8.7x1.73x5.14 <1 <2.2 FGS-2806A 280x44x142 11.0x1.73x5.5 <1.5 <3.31 FGS-2806D 280x44x142 11.0x1.73x5.5 <1.5 <3.31 Carrier Ethernet Features
Model Name IEEE 1588v2 PTP SyncE ITU-T Y.1564 (RFC2544) IEEE 802.3ah OAM IEEE 802.1ag CFM EPS ERPS FGS-2704A TC -- Y Y Y Y Y FGS-2704B TC -- Y Y Y Y Y FGS-2706A TC -- Y Y Y Y Y FGS-2706B TC -- Y Y Y Y Y FGS-2806A OC/BC/TC (Unaware) Y Y Y Y Y Y FGS-2806D OC/BC/TC (Unaware) Y Y Y Y Y Y Voltage and Frequency
Model Name AC Voltage / Frequency DC Voltage FGS-2704A A100-240 VAC, 50-60 Hz 24-72 VDC (By request) FGS-2704B 100-240 VAC, 50-60 Hz 24-72 VDC (By request) FGS-2706A 100-240 VAC, 50-60 Hz 24-72 VDC (By request) FGS-2706B 100-240 VAC, 50-60 Hz 24-72 VDC (By request) FGS-2806A 100-240 VAC, 50-60 Hz -- FGS-2806D -- 24-72 VDC Certification
Electromagnetic Emissions (EMC) CE, FCC Part 15 Class A Software Features
Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs) - Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN Edge (PVE)
- Q-in-Q (double tag) VLAN
- Voice VLAN
- GARP VLAN Registration Protocol (GVRP)
DHCP Relay - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Layer 3 Switching IPv4 Static routing IPv4 Unicast: Static routing IPv6 Static routing IPv6 Unicast: Static routing Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Supports IGMP-RADIUS based 802.1X
- Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks Port Security Locks MAC addresses to ports, and limits the number of learned MAC address IP Source Guard Prevents illegal IP address from accessing to specific port in the switch RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers ACLs Supports up to 256 entries. Drop or rate limitation based on: - Source and destination MAC, VLAN ID or IP address, protocol, port,
- Differentiated services code point (DSCP) / IP precedence
- TCP/ UDP source and destination ports
- 802.1p priority
- Ethernet type
- Internet Control Message Protocol (ICMP) packets
- TCP flag
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence / DSCP based
- Differentiated Services (DiffServ)
- Classification and re-marking ACLs
Rate Limiting - Ingress policer
- Egress shaping and rate control
- Per port
SyncE Support SyncE IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware ITU-T Y.1564 Support RFC2544 Ethernet Service Activation Test DHCP Server Support DHCP server to assign IP to DHCP clients Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP
- Upgrade through console port as well
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management - HTTP/HTTPs; SSH
- DHCP Client/ DHCPv6 Client
- Cable Diagnostics
- Ping
- Syslog
- Telnet
- IPv6 Management
Ethernet OAM IEEE 802.3ah Link OAM Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) IEEE 802.1ag & ITU-T Y.1731 Flow OAM - Supports IEEE 802.1ag Ethernet CFM (Connectivity Fault Management)
- Supports ITU-T Y.1731 Performance Monitoring
Loop Protection ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching Loop Detection Supports Loop Detection and Protection - + Download
-
Download
Product Specification
Product Datasheet
Series Product Datasheet
