Product Overview
FGS-2806A L2+ Managed Switch is a next-generation Carrier Ethernet NID offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.

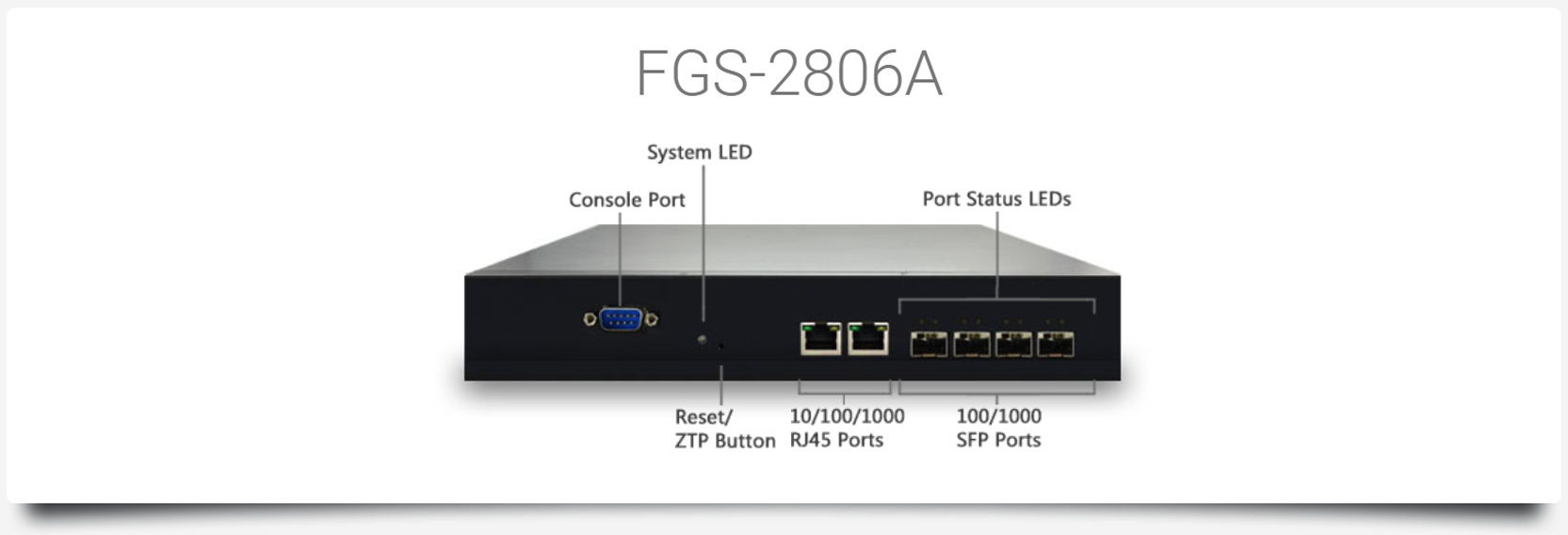

FGS-2806A delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports and DB9 Console port with built-in AC power supply. FGS-2806A provides high HW performance and environment flexibility in a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2806A is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video, voice and data networks in Carrier Ethernet Applications.
Key Features | Customer Benefits |
---|---|
1588v2 PTP | Provided benefits from highly accurate phase and frequency synchronization for base stations and backhaul networks |
Synchronous Ethernet (SyncE) | Enable time synchronization for mobile backhaul and enhance network performance |
OAM(802.3ah) and CFM(802.1ag) | Simplified and facilitated the management of Carrier network, resulting in diminishing operational costs |
ERPS(G.8032) Rings and ELPS(G.8031) Linear APS | Supported ring and point-to-point architectures to ensure high levels of resiliency and reliability |
Wide Temperature Support -40°C ~ 65°C | Supported wide range of environments and provides best reliability in severe environments for Carrier/Telecom providers |
Product Specification
MODEL NAME | FGS-2806A |
---|---|
Product Description | 6 ports GbE Carrier Ethernet NID |
Port Configuration
10M/100M/1G RJ45 Port | 2 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | 4 | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | DB9 | |
Total Ports | 6 |
HW Performance
Switching Bandwidth | 12Gbps | |
Forwarding Performance | 8.9Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
Environmental Specification
Operating Temperature | -40°C to 65°C | |
Operating Humidity | 5 to 95% RH | |
Storage Temperature | -45°C to 85°C | |
Storage Humidity | 5 to 95% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 269 x 180 | |
Weight | 1.29 Kg | |
FAN Less |
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | ||
IEEE802.1S (MSTP) | ||
VLAN |
802.1Q VLAN | |
Port-Based | ||
VLAN Entries | 4K | |
Private VLAN | ||
Voice VLAN | ||
Guest VLAN | ||
Q-in-Q | ||
802.1v Protocol VLAN | ||
MAC-Based VLAN | ||
IP Subnet-Based VLAN | ||
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | ||
GARP/GVRP | ||
IGMP Snooping | ||
MLD Snooping | ||
Multicast VLAN Registration (MVR) |
L3 Features
Static Route | ||
DHCP Server | ||
Dynamic Routing | -- |
QoS Features
Class of Service |
Port Based | |
802.1p | ||
DSCP | ||
TCP/UDP Port | ||
Rate Limiting |
Ingress | |
Egress | ||
Priority Queue Scheduling |
WRR | |
Stri Priority | ||
Hardware Queues | 8 |
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | ||
Port Security (MAC-based) | ||
IP Source Guard | ||
Storm Control | ||
RADIUS Authentication 802.1x | ||
TACACS+ Authentication | ||
HTTPs and SSL (Secured Web) | ||
BPDU Guard | ||
STP Root Guard | ||
DHCP Snooping | ||
Loop Protection |
Management
DHCP |
Client | |
Relay | ||
Option 66 | ||
Option 67 | ||
Option 82 | ||
Event/Error Log |
Syslog | |
SMTP (RFC821) | ||
Management Access Filtering |
SNMP | |
Web UI | ||
Telnet | ||
SSH | ||
PoE Management |
Scheduling | -- |
Auto-Checking | -- | |
Power Delay | -- | |
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | ||
RMON (1,2,3 & 9 Groups) | ||
Software Upgrade | ||
Configuration Export/Import | ||
Port Mirroring | ||
LLDP (IEEE802.1AB) | ||
LLDP-MED (IEEE802.1AB) | ||
CDP Aware | ||
sFlow | ||
IPv6 Management | ||
NTP | ||
First Time Wizard | -- |
Carrier Ethernet
SyncE | ||
1588v2 PTP | -- | |
G.8265.1/G.8275.1/G.8275.2 | -- | |
1588v2 PTP (stratum3) | ||
OAM (IEEE802.3ah) | ||
CFM (IEEE802.1ag) | ||
PM (ITU-T Y.1731) | ||
ELPS (ITU-T G.8031) | ||
ERPS (ITU-T G.8032) | ||
Rapid-Ring | -- | |
RFC2544 | -- | |
Y.1564 | -- |
Others
Power Backup with Battery Charge | -- | |
OOB MGMT Port | -- | |
DC Power Socket | 12VDC |
FGS-2806A – Network Interface Device (NID)
FGS-2806A L2+ Managed Switch is a next-generation Carrier Ethernet NID offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
FGS-2806A delivers 2 (10M/100M/1G) RJ45 ports, 4 GbE SFP ports and DB9 Console port with built-in AC power supply. FGS-2806A provides high HW performance and environment flexibility in a compact form factor that facilitates wall-mount, or rack-mount installations for Carrier/Telecom providers.
FGS-2806A is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for converged video, voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier Ethernet features provide easier manageability, security, QoS
- IEEE 1588v2 PTP (TC)
- Sync-Ethernet
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
The switch delivers advanced functionality in Carrier Ethernet switch including IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
The switch performs IEEE1588v2 with transparent clock capability, implementations in hardware, so there is no performance penalty on packet processing.
The hardware architecture ensures low latency and high time accuracy – which is critical for delay-sensitive financial and mobile applications.
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | SFP (100M/1G) | MGMT Port | Console |
---|---|---|---|---|
6 | 2 | 4 | — | DB9 |
Sync Time Clock Interfaces (SMA Connector)
1 PPS Input | 1 PPS Output | 2.048/10 MHz Input | 2.048/10 MHz |
---|---|---|---|
1 | 1 | 1 | 1 |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
8.928 | 12 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
-40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | <10000 | <3000 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
220x 44x 130.5 | 8.7x 1.73x 5.41 | 1 | 2.2 | 10% to 90% non-condensing |
Voltage and Frequency
Voltage and Frequency | |
---|---|
AC Voltage | 100-240 VAC |
AC Frequency | 50~60 Hz, internal , universal |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN |
|
DHCP Relay |
|
IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. |
MLD v1/v2 snooping | Delivers IPv6 multicast packets only to the required receivers |
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs |
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
SyncE | Support SyncE |
IEEE 1588v2 PTP | Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware |
ITU-T Y.1564 | Support RFC2544 Ethernet Service Activation Test |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Ethernet OAM | |
IEEE 802.3ah Link OAM | Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) |
IEEE 802.1ag & ITU-T Y.1731 Flow OAM |
|
Loop Protection | |
ITU-T G.8031 | Supports ITU-T G.8031 Ethernet Linear Protection |
ITU-T G.8032 | Supports ITU-T G.8032 Ethernet Ring Protection Switching |
Loop Detection | Supports Loop Detection and Protection |
L2 Managed Carrier Ethernet Fiber Switches
L2+ Managed Carrier Ethernet Fiber Switches are a next-generation Carrier Ethernet Network Interface Devices (NID) offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM, 1588v2 PTP and SyncE, etc., which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
They are consists of FGS-2700 with built-in AC only (Standard), DC only (By request) or AC/DC dual (By request); three types of power supply for option. And FGS-2800 models with AC only power supply (FGS-2806A) or DC only power supply (FGS-2806D). They provides high HW performance and environment flexibility in a compact form factor that facilitates desktop, wall-mount, or rack-mount installations for Carrier/Telecom providers.
The series are ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.
Key Features
- Carrier features provide easier manageability, security and QoS
- IEEE 1588v2 PTP (OC/BC/TC)
- Sync-Ethernet
- IEEE 802.3ah OAM
- IEEE 802.1ag CFM (ITU-T Y.1731 Performance monitoring)
- ITU-T Y.1564 (RFC2544) Ethernet Service Activation Test
- ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
- DHCP Server
- IPv4/IPv6 L3 static route
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
Benefits
-
Feature-rich Carrier Ethernet Switch for Metro Ethernet
The switch delivers advanced functionality in Carrier Ethernet switch including Sync-E, IEEE 1588v2, OAM, CFM, etc. It also enhanced security features such as IP source guard, Access Control List guard your network from unwanted or unauthorized access.
It helps users to build on the market-leading price/performance with Carrier Ethernet switch, and provide secure, reliable for metro Ethernet deployments.
-
Advanced Timing Services by Synchronous Ethernet (SyncE) and IEEE 1588v2
For mobile deployments, the FGS-2806DA Ethernet Access Device offers Synchronous Ethernet (SyncE) and IEEE 1588v2 with ordinary, transparent, and boundary clock capabilities. To provide the exceptional accuracy, the platform is built with an oven-controlled crystal oscillator (OCXO).
These features are well established at providing ultra-high reliability, and clock synchronization across the network
-
Superior reliability through OAM and CFM for Service Assurance
Service assurance is provided through a rich feature set of operations, administration, and maintenance (OAM) functionalities. It can simplify and facilitate the management of Carrier network, resulting in diminishing operational costs.
The Ethernet access device also offers standards-based fault and performance management in adherence with 1731 PM and 802.1ag connectivity fault management (CFM) standards. It comes with RFC 2544 and Y.1564 that include both generation and reflection of traffic.
These features contribute to significant reduction in operational expenditures and allows for troubleshooting without expensive truck rolls.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 (100M/1G) | SFP (100M/1G) | SFP+ (1G/10G) | RJ45/SFP Combo | Console Port |
---|---|---|---|---|---|---|
FGS-2704A | 4 | -- | 4 | -- | -- | RJ45 |
FGS-2704B | 4 | 2 | 2 | -- | -- | RJ45 |
FGS-2706A | 6 | -- | 6 | -- | -- | RJ45 |
FGS-2706B | 6 | 2 | 4 | -- | -- | RJ45 |
FGS-2806A | 6 | 2 | 4 | -- | -- | DB9 |
FGS-2806D | 6 | 2 | 4 | -- | -- | DB9 |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|---|
FGS-2704A | 5.952 | 8 | 8 | 9216 |
FGS-2704B | 5.952 | 8 | 8 | 9216 |
FGS-2706A | 8.928 | 12 | 8 | 9216 |
FGS-2706B | 8.928 | 12 | 8 | 9216 |
FGS-2806A | 5.952 | 12 | 8 | 9216 |
FGS-2806D | 5.952 | 12 | 8 | 9216 |
Environmental Range (AC/DC Dual Input, AC Mode Only)
Model Name | Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
FGS-2704A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | <10000 | <3000 |
FGS-2704B | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2706A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2706B | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 | ||
FGS-2806A | -40 to 149 | -40 to 65 | -40 to 176 | -40 to 80 |
Environmental Range (DC Mode Only)
Model Name | Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
FGS-2704A | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | <10000 | <3000 |
FGS-2704B | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2706A | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2706B | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 | ||
FGS-2806D | -40 to 122 | 0 to 50 | -40 to 176 | -40 to 80 |
Dimension, Weights, Humidity
Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
FGS-2704A | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | 10% to 90% non-condensing |
FGS-2704B | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2706A | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2706B | 220x44x130 | 8.7x1.73x5.14 | <1 | <2.2 | |
FGS-2806A | 280x44x142 | 11.0x1.73x5.5 | <1.5 | <3.31 | |
FGS-2806D | 280x44x142 | 11.0x1.73x5.5 | <1.5 | <3.31 |
Carrier Ethernet Features
Model Name | IEEE 1588v2 PTP | SyncE | ITU-T Y.1564 (RFC2544) | IEEE 802.3ah OAM | IEEE 802.1ag CFM | EPS | ERPS |
---|---|---|---|---|---|---|---|
FGS-2704A | TC | -- | Y | Y | Y | Y | Y |
FGS-2704B | TC | -- | Y | Y | Y | Y | Y |
FGS-2706A | TC | -- | Y | Y | Y | Y | Y |
FGS-2706B | TC | -- | Y | Y | Y | Y | Y |
FGS-2806A | OC/BC/TC (Unaware) | Y | Y | Y | Y | Y | Y |
FGS-2806D | OC/BC/TC (Unaware) | Y | Y | Y | Y | Y | Y |
Voltage and Frequency
Model Name | AC Voltage / Frequency | DC Voltage |
---|---|---|
FGS-2704A | A100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2704B | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2706A | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2706B | 100-240 VAC, 50-60 Hz | 24-72 VDC (By request) |
FGS-2806A | 100-240 VAC, 50-60 Hz | -- |
FGS-2806D | -- | 24-72 VDC |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad |
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
DHCP Relay |
|
IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Layer 3 Switching | |
IPv4 Static routing | IPv4 Unicast: Static routing |
IPv6 Static routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
SyncE | Support SyncE |
IEEE 1588v2 PTP | Support IEEE 1588 v2 PTP (Precision Time Protocol) OC, BC and TC aware |
ITU-T Y.1564 | Support RFC2544 Ethernet Service Activation Test |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Ethernet OAM | |
IEEE 802.3ah Link OAM | Supports IEEE 802.3ah Ethernet OAM (Operations, Administration & Management) |
IEEE 802.1ag & ITU-T Y.1731 Flow OAM |
|
Loop Protection | |
ITU-T G.8031 | Supports ITU-T G.8031 Ethernet Linear Protection |
ITU-T G.8032 | Supports ITU-T G.8032 Ethernet Ring Protection Switching |
Loop Detection | Supports Loop Detection and Protection |
ODM Ethernet Switches with Customizable Hardware Features
Logo Customization
Front-bezel logo customization.
Mylar Customization
Front-bezel Label / Mylar customization.
Combination Port Customization
Combination of RJ-45/SFP/SFP+ ports counts.
PoE Power Customization
PoE / PoE+ / PoE++ Power Customization.
CPU Customization (PoE NVR)
Intel / AMD CPU
HDD / SSD tray Customization (PoE NVR)
2/3/4/6 HDD/SSD tray Customization.
Switch Case Size Customization
Small Form Factor Case Size.
ITU-T Customization
ITU-T G.8032 ERPS.
Temperature Customization
Wide Temperature Support (-20℃~60℃)
FAN Customization
Inteligent FAN Speed Control/Fan-less Design.
GPU Customization (PoE NVR)
Add stand-alone Low Profile graphics card
OS Customization (PoE NVR)
Win Server / Win 10 / Ubuntu / Linux…
ODM Ethernet Switches with Customizable Software Features
Tailored Software Customization for UI and Features
Our expert R&D team offers comprehensive software customization, allowing you to personalize the user interface (UI) to match your brand identity and improve user experience. Additionally, we work closely with you to develop and implement the specific features you need, ensuring that our solutions fully align with your business goals. Whether it's enhancing existing functionalities or adding entirely new capabilities, we ensure seamless integration and optimal performance.
AI-Enhanced Switches with Advanced Configuration Support
Upgrade your Ethernet switches to AI-powered switches with the latest AI assistant integration. Our AI assistant simplifies switch configuration, guiding users step-by-step through setup and management tasks, reducing time and complexity. Additionally, our switches support cutting-edge AI SUPPORT features, enabling real-time diagnostics, automated troubleshooting, and intelligent performance optimization. With these advanced AI functionalities, your switches will evolve into smart, AI-driven network solutions, providing unparalleled efficiency and scalability for modern networking environments.
Seamless Third-Party API Integration for Enhanced Product Synergy
Our solutions offer full support for integrating third-party APIs, enabling deep and seamless integration with your existing systems. Whether you need to connect to external platforms, enhance data flow, or unify multiple systems, our tailored approach ensures smooth compatibility and optimized performance. By combining our advanced networking technology with your current infrastructure, we empower your products with greater flexibility, functionality, and interoperability, driving efficiency and reducing operational complexity.
Device Management System
When we embed Device Management System to the switch, a new era of possibilities begins. One where IT administrators are empowered with system of easy-to-use, and where maintenance is effortless and troubleshooting works in a moment.
One UI & iPush enable your business to operate switches in ways never before possible.
