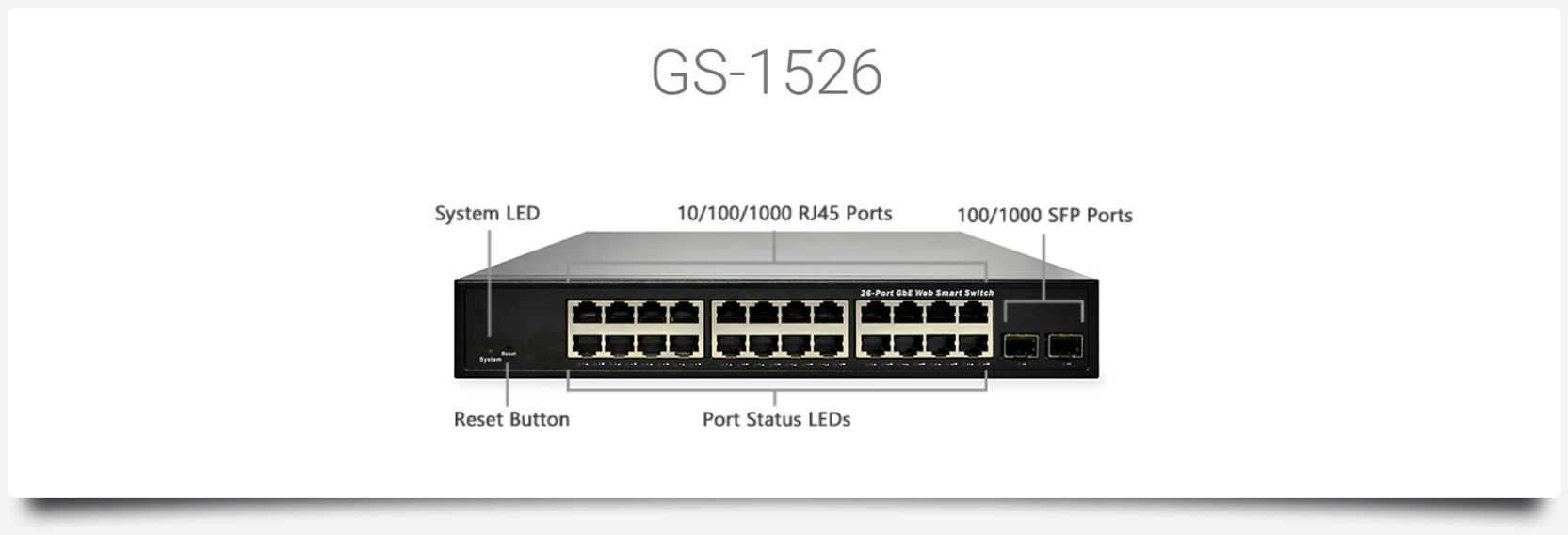

GS-1526

blank

Product Overview


GS-1526 web smart+ managed GbE switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

GS-1526 delivers 24 (10M/100M/1G) RJ45 ports and 2 GbE SFP ports. GS-1526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-1526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features Customer Benefits
Enhanced Layer 2 Features Enhanced traffic management capabilities to move your data smoother and faster (STP/RSTP, VLAN, QoS, etc)
Device Management System Simplified configuration and management to reduce large maintenance complexity and costs
Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency

Product Specification

MODEL NAME GS-1526
Product Description 26 ports GbE Web Smart+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
26

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.688Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20°C to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 280 x 166
Weight
< 2.5 Kg
FAN Less
blank

Power Source

AC Input
100V-240V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
blank
IEEE802.1W (RSTP)
blank
IEEE802.1S (MSTP)
blank
VLAN
802.1Q VLAN
blank
Port-Based
blank
VLAN Entries
4K
Private VLAN
blank
Voice VLAN
blank
Guest VLAN
--
Q-in-Q
blank
802.1v Protocol VLAN
blank
MAC-Based VLAN
blank
IP Subnet-Based VLAN
blank
IEEE 802.3ad LACP
Dynamic Trunk
blank
Static Trunk
blank
GARP/GVRP
--
IGMP Snooping
blank
MLD Snooping
blank
Multicast VLAN Registration (MVR)
blank

L3 Features

Static Route
--
DHCP Server
blank
Dynamic Routing
--

QoS Features

Class of Service
Port Based
blank
802.1p
blank
DSCP
blank
TCP/UDP Port
--
Rate Limiting
Ingress
blank
Egress
blank
Priority Queue Scheduling
WRR
blank
Stri Priority
blank
Hardware Queues
8

Security

ACLs
L2/L3/L4
blank
IPv6 Support
--
Port Security (MAC-based)
blank
IP Source Guard
blank
Storm Control
blank
RADIUS Authentication 802.1x
blank
TACACS+ Authentication
blank
HTTPs and SSL (Secured Web)
blank
BPDU Guard
blank
STP Root Guard
blank
DHCP Snooping
blank
Loop Protection
blank

Management

DHCP
Client
blank
Relay
blank
Option 66
blank
Option 67
blank
Option 82
blank
Event/Error Log
Syslog
blank
SMTP (RFC821)
blank
Management Access Filtering
SNMP
blank
Web UI
blank
Telnet
blank
SSH
blank
PoE Management
Scheduling
--
Auto-Checking
--
Power Delay
--
Soft-Reboot PoE Non-stop
blank
SNMP (v1, v2c, v3)
blank
RMON (1,2,3 & 9 Groups)
blank
Software Upgrade
blank
Configuration Export/Import
blank
Port Mirroring
blank
LLDP (IEEE802.1AB)
blank
LLDP-MED (IEEE802.1AB)
blank
CDP Aware
Option
sFlow
blank
IPv6 Management
blank
NTP
--
First Time Wizard
--

Device Management System

Device Management
Topology View
blank
Floor View
blank
Map View
blank
Dashboard
blank
Traffic Monitoring
blank
Cable Diagnostics
--

GS-1526 Web Smart+ Managed GbE Switch


GS-1526 web smart+ managed GbE switch is the next-generation Ethernet switch offering powerful L2 features with better functionality and usability. That delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

GS-1526 delivers 24 (10M/100M/1G) RJ45 ports and 2 GbE SFP ports. GS-1526 provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-1526 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Web Smart+ features provide easier manageability, basic security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


The switch delivers advanced functionality in Web Smart+ managed switch including DHCP client, IGMP, LLDP, etc. It also has basic security features such as IEEE 802.1x to protect your network from unauthorized access.

It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.

It is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
38.688 52 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
280x 44x 166 11x 1.7x 6.5 <2.5 <5.5 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Static aggregation
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • Protocol based VLAN
  • IP subnet-based VLAN
  • Private VLAN Edge (PVE)
  • MAC-based VLAN
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Security
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
ACLs Supports up to 384 entries. Drop or rate limitation based on:

  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
Dual Image Independent primary and secondary images for backup while upgrading
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
SNMP
  • SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
s-Flow (option) The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs
  • DHCP Client
  • Cable Diagnostics
  • Syslog
  • IPv6 Management
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading

Web Smart+ Managed GbE Switches


The GS-1500 and PSGS-1500 series web smart+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.

The GS-1500 and PSGS-1500 series consist of 5 non-PoE models which are GS-1528DA, GS-1528, GS-1526, GS-1510 and GS-1506; and 7 PoE+ models which are PSGS-1528L, PSGS-1528F, PSGS-1526L, PSGS-1526F, PSGS-1518F, PSGS-1518AF, PSGS-1510F and PSGS-1508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-1500 and PSGS-1500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. Web Smart+ features provide easier manageability, basic security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. PoE Port configuration and scheduling
  5. IEEE 802.3af/at Power over Ethernet
  6. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


  • Cost-effective Ethernet Switch for Enterprise-class



    The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
    It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Available PoE Power
GS-1528DA 28 24 4 SFP -- --
GS-1528 28 24 4 SFP -- --
GS-1526 26 24 2 SFP -- --
GS-1510 10 8 2 SFP -- --
GS-1506 6 5 1 SFP -- --
PSGS-1528L 28 24 4 SFP -- 185W
PSGS-1528F 28 24 4 SFP -- 370W
PSGS-1526L 26 24 2 SFP -- 185W
PSGS-1526F 26 24 2 SFP -- 370W
PSGS-1518F 18 16 2 SFP -- 250W
PSGS-1518AF 18 16 2 SFP -- 185W
PSGS-1510F 10 8 2 SFP -- 130W
PSGS-1508NF 8 8 -- -- 60W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes)
GS-1528DA 41.7 56 8 9216
GS-1528 41.7 56 8 9216
GS-1526 38.688 52 8 9216
GS-1510 14.88 20 8 9216
GS-1506 8.928 12 8 9216
PSGS-1528L 41.7 56 8 9216
PSGS-1528F 41.7 56 8 9216
PSGS-1526L 38.688 52 8 9216
PSGS-1526F 38.688 52 8 9216
PSGS-1518F 26.784 36 8 9216
PSGS-1518AF 26.784 36 8 9216
PSGS-1510F 14.88 20 8 9216
PSGS-1508NF 11.904 16 8 9216

Environmental Range (except PSGS-1518AF)

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Environmental Range (PSGS-1518AF only)

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 113 0 to 45 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-1528DA 442x44x211 17.4x1.7x8.3 <2.5 <5.5 Desktop, Rack
GS-1528 442x44x211 17.4x1.7x8.3 <2.5 <5.5 Desktop, Rack
GS-1526 280x44x166 11x1.7x 6.5 <2.5 <5.5 Desktop, Wall
GS-1510 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall
GS-1506 139x27x102 5.5x1.1x4.0 <1 <2.2 Desktop, Wall
PSGS-1528L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-1528F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-1526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-1526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-1518F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-1518AF 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
PSGS-1510F 220x44x242 8.6x1.7x9.5 <2 <4.4 Desktop, Wall
PSGS-1508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage 100-240 VAC (GS-1528DA: dual AC inputs)
Frequency 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-1528L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1528F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1518F 250W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power
PSGS-1518AF 185W Each of port 1 - 16 support PoE/ PoE+ within available PoE Power
PSGS-1510F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-1508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking
  • Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Static aggregation
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • Protocol based VLAN
  • IP subnet-based VLAN
  • Private VLAN Edge (PVE)
  • MAC-based VLAN
  • Q-in-Q (double tag) VLAN
  • Voice VLAN
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 512 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router
MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping.
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
ACLs Supports up to 384 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port,
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
Dual Image Independent primary and secondary images for backup while upgrading
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
SNMP
  • SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
s-Flow(option) The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs
  • DHCP Client
  • Cable Diagnostics
  • Syslog
  • Telnet Client/SSH
  • IPv6 Management
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches
Trouble Shooting
  • Network diagnostic between master switch and devices
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses.
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs

ODM Ethernet Switches with Customizable Hardware Features

Logo Customization

Front-bezel logo customization.

Mylar Customization

Front-bezel Label / Mylar customization.

Combination Port Customization

Combination of RJ-45/SFP/SFP+ ports counts.

PoE Power Customization

PoE / PoE+ / PoE++ Power Customization.

CPU Customization (PoE NVR)

Intel / AMD CPU

HDD / SSD tray Customization (PoE NVR)

2/3/4/6 HDD/SSD tray Customization.

Switch Case Size Customization

Small Form Factor Case Size.

ITU-T Customization

ITU-T G.8032 ERPS.

Temperature Customization

Wide Temperature Support (-20℃~60℃)

FAN Customization

Inteligent FAN Speed Control/Fan-less Design.

GPU Customization (PoE NVR)

Add stand-alone Low Profile graphics card

OS Customization (PoE NVR)

Win Server / Win 10 / Ubuntu / Linux…


ODM Ethernet Switches with Customizable Software Features

Tailored Software Customization for UI and Features

Our expert R&D team offers comprehensive software customization, allowing you to personalize the user interface (UI) to match your brand identity and improve user experience. Additionally, we work closely with you to develop and implement the specific features you need, ensuring that our solutions fully align with your business goals. Whether it's enhancing existing functionalities or adding entirely new capabilities, we ensure seamless integration and optimal performance.

AI-Enhanced Switches with Advanced Configuration Support

Upgrade your Ethernet switches to AI-powered switches with the latest AI assistant integration. Our AI assistant simplifies switch configuration, guiding users step-by-step through setup and management tasks, reducing time and complexity. Additionally, our switches support cutting-edge AI SUPPORT features, enabling real-time diagnostics, automated troubleshooting, and intelligent performance optimization. With these advanced AI functionalities, your switches will evolve into smart, AI-driven network solutions, providing unparalleled efficiency and scalability for modern networking environments.

Seamless Third-Party API Integration for Enhanced Product Synergy

Our solutions offer full support for integrating third-party APIs, enabling deep and seamless integration with your existing systems. Whether you need to connect to external platforms, enhance data flow, or unify multiple systems, our tailored approach ensures smooth compatibility and optimized performance. By combining our advanced networking technology with your current infrastructure, we empower your products with greater flexibility, functionality, and interoperability, driving efficiency and reducing operational complexity.

Device Management System

When we embed Device Management System to the switch, a new era of possibilities begins. One where IT administrators are empowered with system of easy-to-use, and where maintenance is effortless and troubleshooting works in a moment.
One UI & iPush enable your business to operate switches in ways never before possible.
