GS-1610G

blank
[ult_tab_element tab_style=”Style_4″ container_width=”1080″ disp_icon=”Disables” main_heading_font_family=”font_family:Roboto|font_call:Roboto|variant:300″ title_font_style=”font-weight:300;” title_font_size=”desktop:24px;”][single_tab title=”Overview” tab_id=”9207d3c6-d9a5-3″]

Product Overview

GS-1610G Web Smart+ Managed Switch is a next-generation Ethernet Switch offering powerful L2 features and Layer 3 Static Route that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

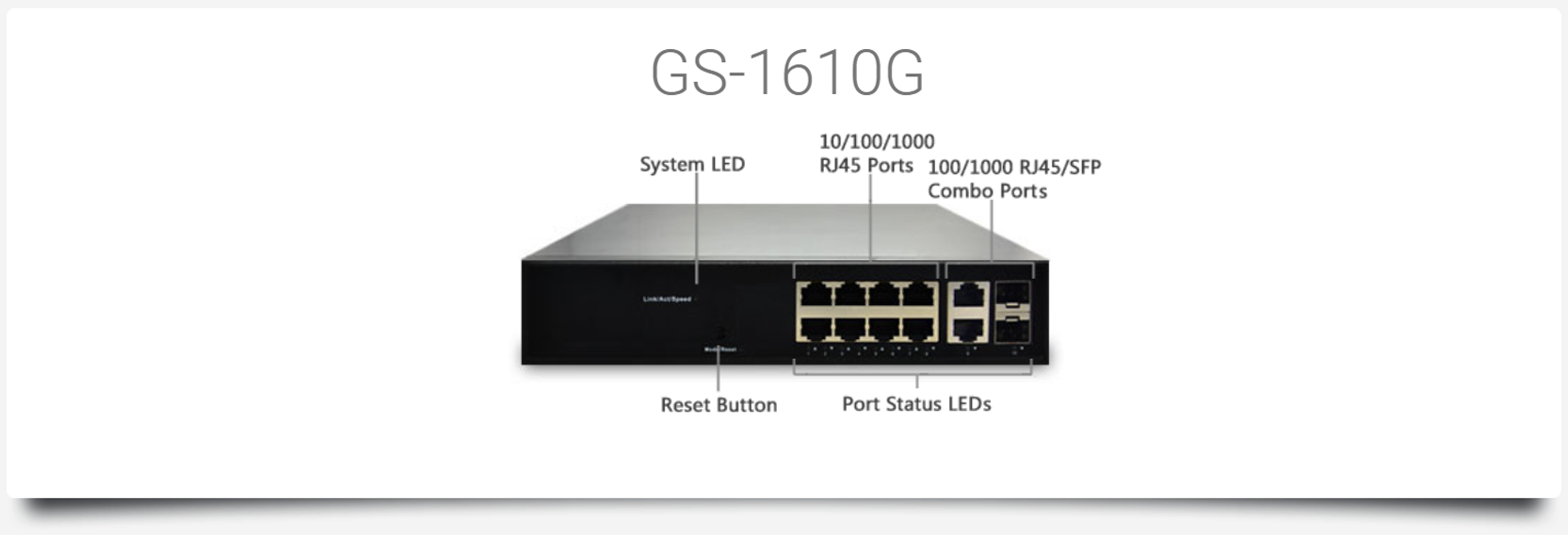

GS-1610G delivers 8 (10M/100M/1G) RJ45 ports and 2 Combo GbE RJ45/SFP ports. GS-1610G provides high HW performance and environment flexibility for SMBs and Enterprises.

GS-1610G is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.



Key Features Customer Benefits
Device Management System Simplified configuration and management to reduce large maintenance complexity and costs
Responsive Web GUI IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency
[/single_tab][single_tab title=”Specification” tab_id=”524772ed-527d-4″]

Product Specification

MODEL NAME GS-1610G
Product Description 10 ports GbE Web Smart+ Switch

Port Configuration

10M/100M/1G RJ45 Port
8
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
--
GbE RJ45/SFP Combo Port
2
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
10

HW Performance

Switching Bandwidth
20Gbps
Forwarding Performance
14.9Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 40°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 220 x 134
Weight
1 Kg
FAN Less
blank

Power Source

AC Input
100V-240V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
blank
IEEE802.1W (RSTP)
blank
IEEE802.1S (MSTP)
blank
VLAN
802.1Q VLAN
blank
Port-Based
blank
VLAN Entries
4K
Private VLAN
blank
Voice VLAN
blank
Guest VLAN
blank
Q-in-Q
blank
802.1v Protocol VLAN
blank
MAC-Based VLAN
blank
IP Subnet-Based VLAN
blank
IEEE 802.3ad LACP
Dynamic Trunk
blank
Static Trunk
blank
GARP/GVRP
--
IGMP Snooping
blank
MLD Snooping
--
Multicast VLAN Registration (MVR)
blank

L3 Features

Static Route
blank
DHCP Server
blank
Dynamic Routing
--

QoS Features

Class of Service
Port Based
blank
802.1p
blank
DSCP
blank
TCP/UDP Port
blank
Rate Limiting
Ingress
blank
Egress
blank
Priority Queue Scheduling
WRR
blank
Stri Priority
blank
Hardware Queues
8

Security

ACLs
L2/L3/L4
blank
IPv6 Support
blank
Port Security (MAC-based)
blank
IP Source Guard
blank
Storm Control
blank
RADIUS Authentication 802.1x
blank
TACACS+ Authentication
--
HTTPs and SSL (Secured Web)
blank
BPDU Guard
blank
STP Root Guard
blank
DHCP Snooping
blank
Loop Protection
blank

Management

DHCP
Client
blank
Relay
--
Option 66
blank
Option 67
blank
Option 82
--
Event/Error Log
Syslog
blank
SMTP (RFC821)
blank
Management Access Filtering
SNMP
blank
Web UI
blank
Telnet
--
SSH
--
PoE Management
Scheduling
--
Auto-Checking
--
Power Delay
--
Soft-Reboot PoE Non-stop
--
SNMP (v1, v2c, v3)
blank
RMON (1,2,3 & 9 Groups)
blank
Software Upgrade
blank
Configuration Export/Import
blank
Port Mirroring
blank
LLDP (IEEE802.1AB)
blank
LLDP-MED (IEEE802.1AB)
blank
CDP Aware
blank
sFlow
--
IPv6 Management
blank
NTP
blank
First Time Wizard
--

Device Management System

Device Management
Topology View
blank
Floor View
blank
Map View
blank
Dashboard
blank
Traffic Monitoring
blank
Cable Diagnostics
blank
[/single_tab][single_tab title=”Datasheet” tab_id=”1456369645197-2-2″]

GS-1610G Web Smart+ Managed GbE Switch

GS-1610G Web Smart+ Managed Switch is a next-generation Ethernet Switch offering powerful L2 features and Layer 3 Static Route that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

GS-1610G delivers 8 (10M/100M/1G) RJ45 ports and 2 Combo GbE RJ45/SFP ports. GS-1610G provides high HW performance and environment flexibility for SMBs and Enterprises.

GS-1610G is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features

  1. Web Smart+ features provide easier manageability, basic security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 Management
  5. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits

[cq_vc_accordion contentcolor=”#555555″ accordiontitle=”Cost-effective Ethernet Switch for Enterprise-class,Easy to Install Configure and Troubleshoot by Device Management System,Lower Total Cost of Ownership (TCO) with Energy-efficient Design” accordiontitlesize1=”1.6em” titlecolor=”#4183d7″][accordionitem]
The switch delivers advanced functionality in Web Smart+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has basic security features such as Access Control List, RADIUS and IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.
[/accordionitem]
[accordionitem]
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
[/accordionitem]
[accordionitem]
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
[/accordionitem][/cq_vc_accordion]

Specifications

Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
10 8 2 RJ45/SFP Combo —

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
14.88 20 8 9216

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
220x 44x 242 8.7x 1.7x 9.5 2.3 5.1 10% to 90%
non-condensing

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad

  • Up to 5 groups
  • Up to 10 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)

  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • Management VLAN
  • Q-in-Q (double tag) VLAN
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
Device Management System (DMS)
Graphical
Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
Quality of Service
Hardware Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per port
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
Dual Image Independent primary and secondary images for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • IPv6 management
[/single_tab][single_tab title=”Series Datasheet” tab_id=”1486523122219-5-5″]

GS-1600 Web Smart+ Managed GbE Switches

GS-1600 series Web Smart+ Managed PoE Switches is a next-generation Ethernet Switch having basic Layer 3 static routing that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.

The GS-1600 series consists of 6 non-PoE models which are GS-1652X, GS-1628X, GS-1626G, GS-1626, GS-1610G and GS-1610, and 12 PoE models which are PSGS-1652XL/F, PSGS-1628XL/F, PSGS-1626GL/F, PSGS-1626L/F, PSGS-1610GF/H and PSGS-1610F/H with different available PoE power. These switches provides high HW performance and environment flexibility for SMBs and Enterprises.

They are ideal to deliver management simplicity, optimum user experience, and lowest cost. The free embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.

Key Features

  1. Web Smart+ features provide easier manageability, basic security and QoS
  2. Built in Device Management System (DMS)
  3. DHCP Server
  4. IPv4/IPv6 L3 static route
  5. PoE Port configuration and scheduling
  6. 802.3at high power PoE plus standard
  7. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits

  • Cost-effective Ethernet Switch for Enterprise-class



    The switch delivers advanced functionality in Web Smart+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has basic security features such as ACL, RADIUS and IEEE 802.1x to protect your network from unauthorized access.
    It helps users to build on the market-leading price/performance with Web Smart+ managed GbE PoE switch, and provide ease of use for enterprise and SMB deployments.


  • Easy to Install, Configure and Troubleshoot by Device Management System



    The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
    It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.


  • Lower Total Cost of Ownership (TCO) with Energy-efficient Design



    It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.

  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications

Port Configuration

Model Name Total Ports RJ45 10M/100M/1G Uplinks Console Available PoE Power
GS-1626G 26 24 2 RJ45/SFP combo -- --
GS-1626 26 24 2 SFP -- --
GS-1610G 10 8 2 RJ45/SFP combo -- --
GS-1610 10 9 1 SFP -- --
PSGS-1626GL 26 24 2 RJ45/SFP combo -- 185W
PSGS-1626GF 26 24 2 RJ45/SFP combo -- 370W
PSGS-1626L 26 24 2 SFP -- 185W
PSGS-1626F 26 24 2 SFP -- 370W
PSGS-1610GF 10 8 2 RJ45/SFP combo -- 130W
PSGS-1610GH 10 8 2 RJ45/SFP combo -- 250W
PSGS-1610F 10 9 1 SFP -- 130W
PSGS-1610H 10 9 1 SFP -- 250W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (K)
GS-1626G 38.688 52 8 9
GS-1626 38.688 52 8 9
GS-1610G 14.88 20 8 9
GS-1610 14.88 20 8 9
PSGS-1626GL 38.688 52 32 9
PSGS-1626GF 38.688 52 32 9
PSGS-1626L 38.688 52 8 9
PSGS-1626F 38.688 52 8 9
PSGS-1610GF 14.88 20 8 9
PSGS-1610GH 14.88 20 8 9
PSGS-1610F 14.88 20 8 9
PSGS-1610H 14.88 20 8 9

Environmental Range

Operating Temperature Storage Temperature Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 104 0 to 40 -4 to 158 -20 to 70 <10000 <3000

Dimension, Weights, Humidity

Model Name Dimension (WxHxD) Weight Operating Humidity
Millimeter Inches Kilograms Pounds
GS-1626G 442x44x211 17.4x1.7x8.3 2.4 5.3 10% to 90%
non-condensing
GS-1626 442x44x211 17.4x1.7x8.3 2.4 5.3
GS-1610G 220x44x134 8.7x1.7x5.28 1.4 3.1
GS-1610 220x44x134 8.7x1.7x5.28 1.4 3.1
PSGS-1626GL 442x44x211 17.4x1.7x8.3 2.5 5.5
PSGS-1626GF 442x44x211 17.4x1.7x8.3 2.7 5.9
PSGS-1626L 442x44x211 17.4x1.7x8.3 2.5 5.5
PSGS-1626F 442x44x211 17.4x1.7x8.3 2.7 5.9
PSGS-1610GF 220x44x242 8.7x1.7x9.53 2.3 5.1
PSGS-1610GH 220x44x242 8.7x1.7x9.53 2.3 5.1
PSGS-1610F 220x44x242 8.7x1.7x9.53 2.3 5.1
PSGS-1610H 220x44x242 8.7x1.7x9.53 2.3 5.1

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
Voltage 100-240 VAC
Frequency 50~60 Hz

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-1626GL 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1626GF 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1626L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1626F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-1610GF 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-1610GH 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-1610F 130W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power
PSGS-1610H 250W Each of port 1 - 8 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Software Features

Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d
  • Rapid Spanning Tree (RSTP) 802.1w
  • Multiple Spanning Tree (MSTP) 802.1s
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
  • Up to 24 groups
  • Up to 4 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN
  • 802.1Q tag-based VLAN
  • Management VLAN
  • Q-in-Q (double tag) VLAN
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
Device Management System (DMS)
Graphical Monitoring
  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
Grouping
  • Member setting and name your switches and devices.
  • Support intuitive way to manage your devices through visual management beyond your specific IP applications: IP camera, IP phone, wireless AP and video switching, etc.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting and error disable recovery to protect your devices from brute-force downloading.
Maintenance
  • It’s efficient to batch upgrade your firmware by your IP devices type.
  • Back-up and restore your configuration for your devices.
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Security
Secure Shell (SSH) Protocol SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
Layer 2 Isolation Private VLAN Edge PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
Quality of Service
Hardware Priority Queue Supports 8 hardware queues
Scheduling
  • Strict priority and weighted round-robin (WRR)
  • Queue assignment based on DSCP and class of service (802.1p/ CoS)
Classification
  • Port based
  • 802.1p VLAN priority based
  • IPv4/IPv6 precedence/ type of service (ToS) / DSCP based
  • Differentiated Services (DiffServ)
  • Classification and re-marking ACLs
  • Trusted QoS
Rate Limiting
  • Ingress policer
  • Egress shaping and rate control
  • Per VLAN, per port and flow based
Management
DHCP Server Support DHCP server to assign IP to DHCP clients
Remote Monitoring (RMON) Embedded RMON software agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported.
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
s-Flow The industry standard technology for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED extensions
Web GUI Interface Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring
Dual Image Dual image provides independent primary and secondary OS files for backup while upgrading
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Firmware Upgrade Web browser upgrade (HTTP/ HTTPs) and TFTP
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Other Management
  • HTTP/HTTPs; SSH
  • RADIUS
  • DHCP Client/ DHCPv6 Client
  • Cable diagnostics
  • Ping
  • Syslog
  • Telnet client
  • IPv6 management
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs).
Auto-checking Check the linking status between PoE ports and PDs. When it detected the PDs without response, PoE port will reboot remote PD automatically
Power Delay The PoE port will start to provide power to the PD depending on delay time when PoE switch reboots. To avoid all the PDs require power from PoE switch simultaneously
[/single_tab][single_tab title=”Download” tab_id=”1456369650669-4-1″]

Download

Product Specification

Product Datasheet

Series Product Datasheet

Quick Installation Guide

[/single_tab][/ult_tab_element]
