Product Overview
GS-2648K L2+ Managed Switch is a next-generation Ethernet Switch offering full suite of L2 features, including advanced L3 features such as Static Route that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
GS-2648K delivers 44 (10M/100M/1G) RJ45 ports, 4 Combo GbE RJ45/SFP ports and RJ45 Console port. GS-2648K provides high HW performance and environment flexibility for SMBs and Enterprises.
GS-2648K is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features | Customer Benefits |
---|---|
Device Management System | Simplified configuration and management to reduce large maintenance complexity and costs |
Responsive Web GUI | IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency |
Product Specification
MODEL NAME | GS-2648K |
---|---|
Product Description | 48 ports GbE L2+ Managed Switch |
Port Configuration
10M/100M/1G RJ45 Port |
44 |
100M/1G/2.5G RJ45 Port |
— |
100M/1G/10G RJ45 Port |
— |
100M/1G SFP Port |
— |
1G/2.5G SFP Port |
— |
1G/10G SFP+ Port |
— |
GbE RJ45/SFP Combo Port |
4 |
Console Port |
DB9 |
Total Ports |
48 |
PoE Function
IEEE802.3at (PoE+ 30W) |
— |
IEEE802.3af (PoE 15.4W) |
— |
UPoE(60W) |
— |
PoE Port |
— |
Available PoE Power |
— |
HW Performance
Switching Bandwidth |
96Gbps |
Forwarding Performance |
71.4 Mpps |
MAC Address |
32K |
Jumbo Frames |
10056 Bytes |
Environmental Specification
Operating Temperature |
0°C to 45°C |
Operating Humidity |
10 to 90% RH |
Storage Temperature |
-20 to 70°C |
Storage Humidity |
10 to 90% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm |
44 x 442 x 300 |
Weight |
4 Kg |
FAN Less |
— |
Power Source
AC Input |
100V-240V |
DC Input |
— |
AC/DC Dual Input |
— |
Certifications
Certifications |
CE/FCC Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1d (STP) |
|
IEEE802.1w (RSTP) |
||
IEEE802.1s (MSTP) |
||
VLAN |
802.1Q VLAN |
|
VLAN Entries |
4K |
|
Port-Based |
||
Private VLAN |
||
Voice VLAN |
||
Guest VLAN |
||
Q-in-Q |
||
802.1v Protocol VLAN |
||
MAC-Based VLAN |
||
IP Subnet-Based VLAN |
||
IEEE 802.3ad LACP |
Dynamic Trunk |
|
Static Trunk |
||
GVRP |
||
IGMP Snooping (v1/v2/v3) |
||
IGMP Querier |
||
IGMP Proxy |
||
MLD Snooping |
||
Multicast VLAN Registration (MVR) |
L3 Features
Static Route IPv4 |
|
Static Route IPv6 |
QoS Features
Harware Queues |
8 |
|
Class of Service |
Port Based |
|
802.1p |
||
DSCP |
||
TCP/UDP |
||
Rate Limiting |
Ingress |
|
Egress |
||
Priority Queue Scheduling |
WRR |
|
Strict Priority |
Security
Port Security (MAC-based) |
||
ACLs |
L2/L3/L4 |
|
IPv6 Support |
||
IP Source Guard |
||
Storm Control |
||
RADIUS Authentication 802.1x |
||
TACACS+ Authentication |
||
HTTPs and SSL (Secured Web) |
||
BPDU Guard |
||
DHCP Snooping |
Management
Switch Management |
HTTP/HTTPs |
|
SSH |
||
Telnet |
||
IPv6 management |
||
SNMP (v1, v2c, v3) |
||
RMON ( 1,2,3 & 9 Groups) |
||
Firmware Upgrade |
||
Configuration Export/Import |
||
Easy Port Confgiuration |
— |
|
DHCP |
Client |
|
Server |
||
Option 66 |
||
Option 67 |
||
Option 82 |
||
Event/Error Log |
Syslog |
|
SMTP (RFC821) |
||
SNMP Trap |
||
Port Mirroring |
||
Upnp |
||
LLDP (IEEE802.1AB) |
||
LLDP-MED (ANSI/TIA-1057) |
||
CDP Aware |
||
sFlow |
||
CLI |
||
Dual Image |
||
NTP |
||
Diagnostics |
Cable diagnostics |
|
Ping |
||
Syslog |
Device Management System (DMS)
Graphical Monitoring |
Topology View |
|
Floor View |
||
Map View |
||
Dashboard |
||
Traffic Monitoring |
||
Cable Diagnostics |
||
Switch2go |
iOS Devices |
|
Android Devices |
||
Find my Switch |
iOS Devices |
|
Android Devices |
||
Technical Support Online |

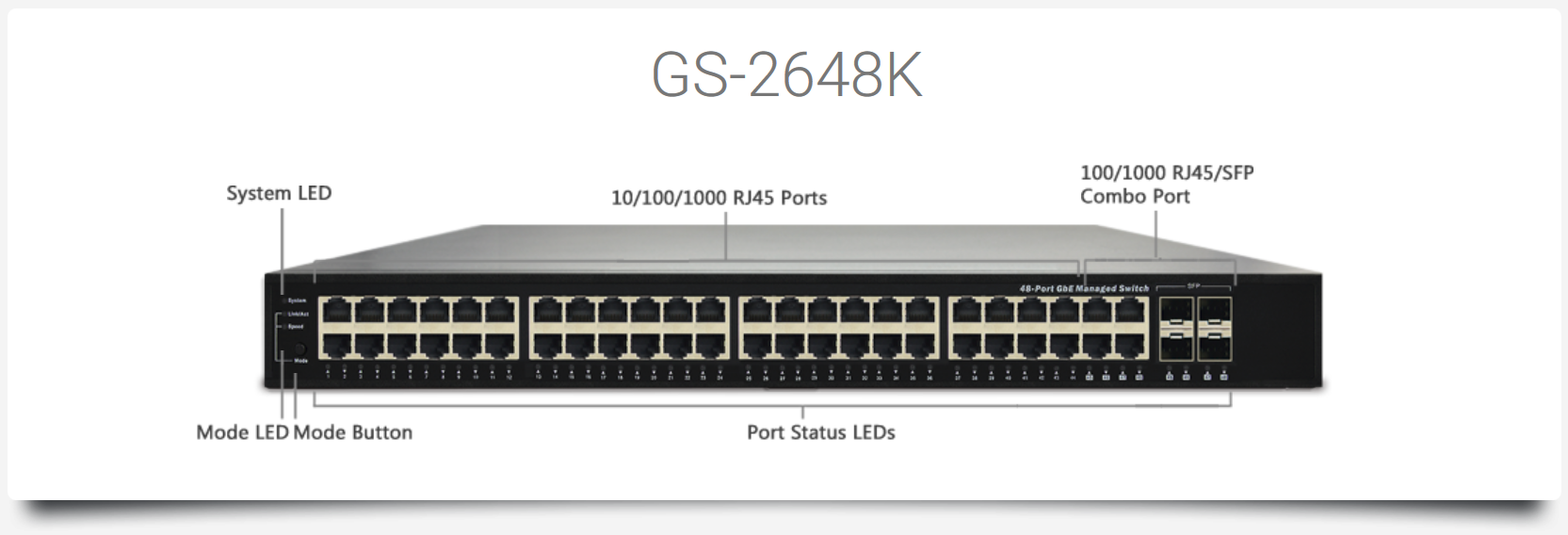

GS-2648K L2+ Managed GbE Switch
GS-2648K L2+ Managed Switch is a next-generation Ethernet Switch offering full suite of L2 features, including advanced L3 features such as Static Route that delivers the better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections.
GS-2648K delivers 44 (10M/100M/1G) RJ45 ports, 4 Combo GbE RJ45/SFP ports and RJ45 Console port. GS-2648K provides high HW performance and environment flexibility for SMBs and Enterprises
GS-2648K is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features
- L2+ Managed features provide easier manageability, robust security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- IPv4/IPv6 L3 Management
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application
Benefits
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.
[/accordionitem]
[accordionitem]
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
[/accordionitem]
[accordionitem]
GS-2648K is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
[/accordionitem][/cq_vc_accordion]
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
---|---|---|---|
48 | 44 | 4 RJ45/SFP Combo | DB9 |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
71.424 | 96 | 32 | 10056 |
Environmental Range
Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
442x 44x 385 | 17.4x 1.7x 15.2 | 5.8 | 12.8 | 10% to 90% non-condensing |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
VLAN |
|
Trunking |
|
GARP VLAN Registration Protocol (GVRP/GVRP) |
|
DHCP Relay |
|
IGMP v1/v2/v3 snooping |
|
IGMP Querier |
|
IGMP Proxy |
|
MLD v1/v2 snooping |
|
Multicast VLAN Registration (MVR) |
|
Layer 3 Switching | |
IPv4 Static Routing |
|
IPv6 Static Routing |
|
Quality of Service | |
Hardware Queue |
|
Classification |
|
Rate Limiting |
|
Scheduling |
|
Security | |
Port Security |
|
ACLs |
|
IP Source Guard |
|
Storm control |
|
IEEE 802.1x |
|
TACACS+ |
|
Secure Shell (SSH) |
|
Secure Sockets Layer (SSL) |
|
HTTPs and SSL (Secured Web) |
|
BPDU Guard |
|
DHCP Snooping |
|
Management | |
Switch Management |
|
SNMP |
|
Remote Monitoring (RMON) |
|
Firmware Upgrade |
|
Configuration Export/Import |
|
DHCP |
|
Event/Error Log |
|
Port Mirroring |
|
UPnP |
|
IEEE 802.1AB (LLDP) |
|
CDP Aware |
|
s-Flow |
|
CLI |
|
Dual Image |
|
NTP |
|
Diagnostics |
|
Device Management System (DMS) | |
Graphical Monitoring |
|
Switch2go |
|
Find my Switch |
|
Technical Support Online |
|
GS-2600 and PSGS-2600 Series L2+ Managed GbE Switches
The GS-2600 and PSGS-2600 series L2+ managed GbE switches are the next-generation Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. That deliver the cost-effectively business and transports Ethernet services via fiber or copper connections.
The GS-2600 and PSGS-2600 series consists of 11 non-PoE models which are GS-2652XB, GS-2652B, GS-2652X, GS-2648K, GS-2628X, GS-2626G, GS-2626, GS-2618, GS-2612, GS-2610G and GS-2610, and 24 PoE+ models which are PSGS-2652XL, PSGS-2652XF, PSGS-2652XAF, PSGS-2652XBF, PSGS-2652XBL, PSGS-2652BF, PSGS-2652BL, PSGS-2652F, PSGS-2648KL, PSGS-2648KF, PSGS-2628XL, PSGS-2628XF, PSGS-2626GU, PSGS-2626GL, PSGS-2626GF, PSGS-2626L, PSGS-2626F, PSGS-2618GF, PSGS-2612F, PSGS-2610GF, PSGS-2610GH, PSGS-2610GU, PSGS-2610F and PSGS-2610H. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-2600 and PSGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- L2+ Managed features provide easier manageability, robust security and QoS.
- Built in Device Management System (DMS)
- DHCP Server
- IPv4/IPv6 Management
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.
It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
-
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 10M /100M/1G | Uplinks | Console | Available PoE Power |
---|---|---|---|---|---|
GS-2652XB | 52 | 48 | 4 SFP+ | RJ45 | -- |
GS-2652B | 52 | 48 | 4 SFP | RJ45 | -- |
GS-2652X | 52 | 48 | 4 SFP+ | DB9 | -- |
GS-2648K | 48 | 44 | 4 RJ45/SFP combo | DB9 | |
GS-2628X | 28 | 24 | 4 SFP+ | DB9 | -- |
GS-2626G | 26 | 24 | 2 RJ45/SFP combo | RJ45 | -- |
GS-2626 | 26 | 24 | 2 SFP | RJ45 | -- |
GS-2618 | 18 | 16 | 2 SFP | DB9 | -- |
GS-2612 | 12 | 10 | 2 SFP | RJ45 | -- |
GS-2610G | 10 | 8 | 2 RJ45/SFP combo | RJ45 | -- |
GS-2610 | 10 | 9 | 1 SFP | RJ45 | -- |
PSGS-2652XL | 52 | 48 | 4 SFP+ | DB9 | 370W |
PSGS-2652XF | 52 | 48 | 4 SFP+ | DB9 | 740W |
PSGS-2652XAF | 52 | 50 | 2 SFP+ | RJ45 | 740W |
PSGS-2652XBF | 52 | 48 | 4 SFP+ | RJ45 | 740W |
PSGS-2652XBL | 52 | 48 | 4 SFP+ | RJ45 | 370W |
PSGS-2652BF | 52 | 48 | 4 SFP | RJ45 | 740W |
PSGS-2652BL | 52 | 48 | 4 SFP | RJ45 | 370W |
PSGS-2652F | 52 | 50 | 2 SFP | RJ45 | 740W |
PSGS-2648KL | 48 | 44 | 4 RJ45/SFP combo | DB9 | 370W |
PSGS-2648KF | 48 | 44 | 4 RJ45/SFP combo | DB9 | 740W |
PSGS-2628XL | 28 | 24 | 4 SFP+ | DB9 | 185W |
PSGS-2628XF | 28 | 24 | 4 SFP+ | DB9 | 370W |
PSGS-2626GU | 26 | 24 | 2 RJ45/SFP combo | RJ45 | 650W/1000W - with one module 1300W/2000W - with two modules |
PSGS-2626GL | 26 | 24 | 2 RJ45/SFP combo | RJ45 | 185W |
PSGS-2626GF | 26 | 24 | 2 RJ45/SFP combo | RJ45 | 370W |
PSGS-2626L | 26 | 24 | 2 SFP | RJ45 | 185W |
PSGS-2626F | 26 | 24 | 2 SFP | RJ45 | 370W |
PSGS-2618GF | 18 | 16 | 2 RJ45/SFP combo | RJ45 | 250W |
PSGS-2612F | 12 | 10 | 2 SFP | RJ45 | 130W |
PSGS-2610GF | 10 | 8 | 2 RJ45/SFP combo | RJ45 | 130W |
PSGS-2610GH | 10 | 8 | 2 RJ45/SFP combo | RJ45 | 250W |
PSGS-2610GU | 10 | 8 | 2 RJ45/SFP combo | RJ45 | 250W |
PSGS-2610F | 10 | 9 | 1 SFP | RJ45 | 130W |
PSGS-2610H | 10 | 9 | 1 SFP | RJ45 | 250W |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|---|
GS-2652XB | 130.95 | 176 | 32 | 10240 |
GS-2652B | 77.38 | 104 | 32 | 10240 |
GS-2652X | 130.944 | 176 | 32 | 10056 |
GS-2648K | 71.424 | 96 | 32 | 10056 |
GS-2628X | 95.232 | 128 | 32 | 10056 |
GS-2626G | 38.688 | 52 | 8 | 9216 |
GS-2626 | 38.688 | 52 | 8 | 9216 |
GS-2618 | 26.784 | 36 | 8 | 9216 |
GS-2612 | 17.8 | 24 | 8 | 9216 |
GS-2610G | 14.88 | 20 | 8 | 9216 |
GS-2610 | 14.88 | 20 | 8 | 9216 |
PSGS-2652XL | 130.944 | 128 | 32 | 10056 |
PSGS-2652XF | 130.944 | 128 | 32 | 10056 |
PSGS-2652XAF | 104.16 | 140 | 32 | 10056 |
PSGS-2652XBF | 130.95 | 176 | 32 | 10240 |
PSGS-2652XBL | 130.95 | 176 | 32 | 10240 |
PSGS-2652BF | 77.38 | 104 | 32 | 10240 |
PSGS-2652BL | 77.38 | 104 | 32 | 10240 |
PSGS-2652F | 77.376 | 104 | 32 | 10056 |
PSGS-2648KL | 71.424 | 96 | 32 | 10056 |
PSGS-2648KF | 71.424 | 96 | 32 | 10056 |
PSGS-2628XL | 95.232 | 128 | 32 | 10056 |
PSGS-2628XF | 95.232 | 128 | 32 | 10056 |
PSGS-2626GL | 38.688 | 52 | 8 | 9216 |
PSGS-2626GF | 38.688 | 52 | 8 | 9216 |
PSGS-2626L | 38.688 | 52 | 8 | 9216 |
PSGS-2626F | 38.688 | 52 | 8 | 9216 |
PSGS-2618GF | 26.784 | 36 | 8 | 9216 |
PSGS-2612F | 17.8 | 24 | 8 | 9216 |
PSGS-2610GF | 14.88 | 20 | 8 | 9216 |
PSGS-2610GH | 14.88 | 20 | 8 | 9216 |
PSGS-2610GU | 14.88 | 20 | 8 | 9216 |
PSGS-2610F | 14.88 | 20 | 8 | 9216 |
PSGS-2610H | 14.88 | 20 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension Weights Humidity
Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
GS-2652XB | 442x 44x 300 | 17.4x1.7x11.8 | 4.2 | 9.3 | Desktop, Rack |
GS-2652B | 442x 44x 300 | 17.4x1.7x11.8 | 4.2 | 9.3 | Desktop, Rack |
GS-2652X | 442x 44x 385 | 17.4x1.7x15.2 | 4.1 | 9.0 | Desktop, Rack |
GS-2648K | 442x 44x 300 | 17.4x1.7x11.8 | 4.1 | 9.0 | Desktop, Rack |
GS-2628X | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.4 | 5.3 | Desktop, Rack |
GS-2626G | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.4 | 5.3 | Desktop, Rack |
GS-2626 | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.4 | 5.3 | Desktop, Rack |
GS-2618 | 220x38x150.5 | 8.66x1.5x5.93 | 1.26 | 2.78 | Desktop, Wall |
GS-2612 | 220x 38x 131 | 8.7x 1.5x 5.16 | 1 | 2.2 | Desktop, Wall |
GS-2610G | 220x 44x 134 | 8.7x 1.7x 5.28 | 1.4 | 3.1 | Desktop, Wall |
GS-2610 | 220x 44x 134 | 8.7x 1.7x 5.28 | 1.4 | 3.1 | Desktop, Wall |
PSGS-2652XL | 442x 44x 385 | 17.4x1.7x15.2 | 5.8 | 12.8 | Desktop, Rack |
PSGS-2652XF | 442x 44x 385 | 17.4x1.7x15.2 | 5.8 | 12.8 | Desktop, Rack |
PSGS-2652XAF | 442x 44 x 375 | 17.4x1.7x14.8 | 5.62 | 12.39 | Desktop, Rack |
PSGS-2652XBF | 442x 44 x 375 | 17.4x1.7x14.8 | 5.6 | 12.3 | Desktop, Rack |
PSGS-2652XBL | 442x 44 x 375 | 17.4x1.7x14.8 | 5.6 | 12.3 | Desktop, Rack |
PSGS-2652BF | 442x 44 x 375 | 17.4x1.7x14.8 | 5.6 | 12.3 | Desktop, Rack |
PSGS-2652BL | 442x 44 x 375 | 17.4x1.7x14.8 | 5.6 | 12.3 | Desktop, Rack |
PSGS-2652F | 442x 44 x 375 | 17.4x1.7x14.8 | 5.62 | 12.39 | Desktop, Rack |
PSGS-2648KL | 442x 44x 385 | 17.4x1.7x15.2 | 5.8 | 12.8 | Desktop, Rack |
PSGS-2648KF | 442x 44x 385 | 17.4x1.7x15.2 | 5.8 | 12.8 | Desktop, Rack |
PSGS-2628XL | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.5 | 5.5 | Desktop, Rack |
PSGS-2628XF | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.7 | 5.9 | Desktop, Rack |
PSGS-2626GL | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.5 | 5.5 | Desktop, Rack |
PSGS-2626GF | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.7 | 5.9 | Desktop, Rack |
PSGS-2626L | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.5 | 5.5 | Desktop, Rack |
PSGS-2626F | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.7 | 5.9 | Desktop, Rack |
PSGS-2618GF | 442x 44x 211 | 17.4x 1.7x 8.3 | 2.7 | 5.9 | Desktop, Rack |
PSGS-2612F | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
PSGS-2610GF | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
PSGS-2610GH | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
PSGS-2610GU | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
PSGS-2610F | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
PSGS-2610H | 220x 44x 242 | 8.7x 1.7x 9.53 | 2.3 | 5.1 | Desktop, Wall |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
PoE Power Capacity
Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
---|---|---|
PSGS-2652XL | 370W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652XF | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652XAF | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652XBF | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652XBL | 370W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652BF | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652BL | 370W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2652F | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2648KL | 370W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Power |
PSGS-2648KF | 740W | Each of port 1 - 48 support PoE/ PoE+ within available PoE Powerr |
PSGS-2628XL | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2628XF | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2626GU | 650W/1000W – with one module 1300W/2000W – with two modules | Each of port 1 - 24 support UPoE within available PoE Power |
PSGS-2626GL | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2626GF | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2626L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2626F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2626F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-2618GF | 250W | Each of port 1 - 16 support PoE/ PoE+ within available PoE Power |
PSGS-2610GF | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-2610GH | 250W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-2610GU | 250W | Each of port 1 - 4 support UPoE within available PoE Power |
PSGS-2610F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-2610H | 250W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
VLAN |
|
LACP Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner
|
GARP VLAN Registration Protocol (GVRP) | GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network |
DHCP Relay |
|
IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping |
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Classification |
|
Rate Limiting |
|
Scheduling | Strict priority and weighted round-robin (WRR): Weighted Round Robin is a scheduling algorithm that uses weights assigned to queues to determine how much data will be emptied from a queue before moving to the next queue |
Security | |
ACLs | Supports up to 512 entries. Drop or rate limitation based on:
|
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
IEEE 802.1X |
|
TACACS+ | Supports TACACS+ authentication. Switch as a client |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
HTTPs and SSL (Secured Web) | Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP |
BPDU Guard | The BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network. It enforces the STP domain borders and keeps the active topology predictable by not allowing any network devices behind a BPDU guard-enabled port to participate in STP |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
Management | |
DHCP |
|
Event/Error Log | Support SNMP Trap/Syslog/SMTP |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Firmware Upgrade |
|
Configuration Export/Import | update of the firmware controlling the switch |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
IEEE 802.1ab (LLDP) |
|
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
CDP Aware | The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Switch Management |
|
Diagnostics |
|
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search your real switches quickly and manage directly |
Technical Support Online | Provide technical assistance to the user remotely |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
Trouble Shooting |
|
Power over Ethernet (PoE) | |
Port Configuration | Supports per port PoE configuration function |
PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). |
Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses |
Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
