GS-6552XB
Product Overview
GS-6552XB L2+ Managed SDN Switch is an innovative SDN/Legacy hybrid mode switch, which is capable of running full suite of L2 features, including basic L3 features such as DHCP Server, better functionality and usability that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections, and at the same time, provides next-generation SDN functions to the network. By collaborating with Network Controller, GS-6552XB can provide efficient SDN networking management functions and dynamic resource adjustment functions to the network, which makes it suitable for those networks that require efficient management tools and flexible resource re-assignment in short time, e.g., IoT networks and smart city /school infrastructure networks.
GS-6552XB is Software Defined Networking (SDN) ready and is able to support OpenFlow v1.3. It is suitable for networks from a small workgroup to a large business either as edge devices in an SDN or be standalone since Hybrid Mode is supported.

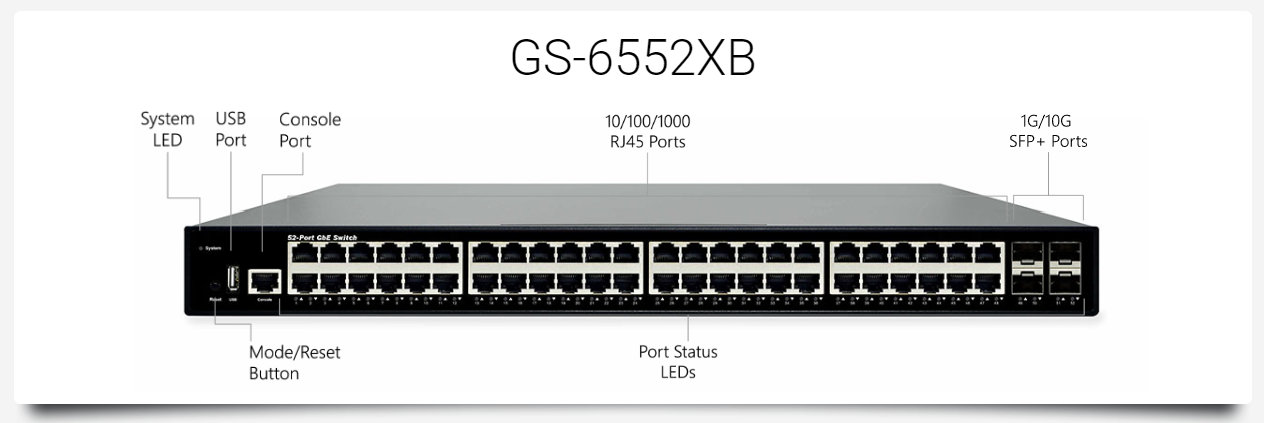

GS-6552XB delivers 48 (10M/100M/1G) RJ45, 4 SFP+ ports, 1 USB port, and RJ45 console port. GS-6552XB provides high HW performance and environment flexibility for SMBs and Enterprises.
Key Features
- SDN OpenFlow v1.3 (support Hybrid Mode)
- L2+ Managed features provide easier manageability, robust security and QoS.
- Support Secure boot function (option by request)
- Pv4/IPv6 Management
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) (to be launched by 2022)
Benefits
Software Defined Networking (SDN)
OpenFlow v1.3 is a key technology that enables the use of SDN to build smart applications that unlock value and reduce cost. OpenFlow v1.3 support encryption, connection interruption and inactivity probe. It can be managed by any OpenFlow-based SDN Controller, and support hybrid pipeline for legacy L2 features at the same time for more enterprise applications. OpenFlow-hybrid switches support both OpenFlow operation and normal Ethernet switching operation.
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access. It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
Product Specification
| MODEL NAME | GS-6552XB |
|---|---|
| Product Description | 52 ports GbE L2+ Managed SDN Switch |
Port Configuration
10M/100M/1G RJ45 Port |
48 |
|
100M/1G/2.5G RJ45 Port |
-- |
|
100M/1G/10G RJ45 Port |
-- |
|
100M/1G/2.5G/5G/10G RJ45 Port |
-- |
|
100M/1G SFP Port |
-- |
|
GbE RJ45/SFP Combo Port |
-- |
|
1G/2.5G SFP Port |
-- |
|
1G/10G SFP+ Port |
4 |
|
2.5G Coax (FAKRA) Port |
-- |
|
2.5G STP (HSD) Port |
-- |
|
100M/1G/2.5G/5G/10G Autolink Port |
-- |
|
SFP28/QSFP+ Combo Port |
-- |
|
SFP28/QSFP+ Combo Port |
-- |
|
1G/10G/25G SFP28 Port |
-- |
|
SFP56 (50G) |
-- |
|
USB |
-- |
|
Console Port |
RJ45 |
|
Total Ports |
52 |
|
HW Performance
Switching Bandwidth |
176Gbps |
|
Forwarding Performance |
130.944Mpps |
|
MAC Address |
32K |
|
Jumbo Frames |
12288 Bytes |
|
Environmental Specification
Operating Temperature |
0°C to 50°C |
|
Operating Humidity |
10 to 90% RH |
|
Storage Temperature |
-20 to 70°C |
|
Storage Humidity |
10 to 90% RH |
|
Mechanical Specification
Dimensions (H) x (W) x (D) mm |
44 x 442 x 375 |
|
Weight |
< 5.62 Kg |
|
FAN Less |
-- |
|
Power Source
AC Input |
100V-240V |
|
DC Input |
-- |
|
Dual Input |
-- |
|
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) |
-- |
|
Certifications |
CE/FCC/LVD Class A Others by Request |
|
L2 Switching
Spanning Tree |
IEEE802.1D (STP) |
|
IEEE802.1W (RSTP) |
|
|
IEEE802.1S (MSTP) | |
|
VLAN |
802.1Q VLAN |
|
Port-Based |
|
|
VLAN Entries |
4K |
|
Private VLAN |
|
|
Voice VLAN |
|
|
Guest VLAN |
|
|
Q-in-Q |
-- |
|
802.1v Protocol VLAN |
|
|
MAC-Based VLAN |
|
|
IP Subnet-Based VLAN |
|
|
IEEE 802.3ad LACP |
Dynamic Trunk |
|
Static Trunk |
|
|
GARP/GVRP |
|
|
IGMP Snooping |
|
|
MLD Snooping |
|
|
Multicast VLAN Registration (MVR) |
|
|
L3 Features
Static Route |
-- |
|
DHCP Server |
|
|
Dynamic Routing |
-- |
|
QoS Features
Class of Service |
Port Based |
|
802.1p |
|
|
DSCP |
|
|
TCP/UDP Port |
|
|
Rate Limiting |
Ingress |
|
Egress |
|
|
Priority Queue Scheduling |
WRR |
|
Stri Priority |
|
|
Hardware Queues |
8 |
|
Security
ACLs |
L2/L3/L4 |
|
IPv6 Support |
-- |
|
Port Security (MAC-based) |
|
|
IP Source Guard |
|
|
Storm Control |
|
|
RADIUS Authentication 802.1x |
|
|
TACACS+ Authentication |
|
|
HTTPs and SSL (Secured Web) |
|
|
BPDU Guard |
|
|
STP Root Guard |
|
|
DHCP Snooping |
|
|
Loop Protection |
|
|
Management
DHCP |
Client |
|
Relay |
|
|
Option 66 |
|
|
Option 67 |
|
|
Option 82 |
|
|
Event/Error Log |
Syslog |
|
SMTP (RFC821) |
|
|
Management Access Filtering |
SNMP |
|
Web UI |
|
|
Telnet |
|
|
SSH |
|
|
PoE Management |
Scheduling |
-- |
Auto-Checking |
-- |
|
Power Delay |
-- |
|
Soft-Reboot PoE Non-stop |
-- |
|
SNMP (v1, v2c, v3) |
|
|
RMON (1,2,3 & 9 Groups) |
|
|
Software Upgrade |
|
|
Configuration Export/Import |
|
|
Port Mirroring |
|
|
LLDP (IEEE802.1AB) |
|
|
LLDP-MED (IEEE802.1AB) |
|
|
CDP Aware |
|
|
sFlow |
|
|
IPv6 Management |
|
|
NTP |
|
|
First Time Wizard |
-- |
|
Carrier Ethernet
SyncE |
-- |
|
1588v2 PTP |
-- |
|
G.8265.1/G.8275.1/G.8275.2 |
-- |
|
1588v2 PTP (stratum3) |
-- |
|
OAM (IEEE802.3ah) |
-- |
|
CFM (IEEE802.1ag) |
-- |
|
PM (ITU-T Y.1731) |
-- |
|
ELPS (ITU-T G.8031) |
-- |
|
ERPS (ITU-T G.8032) |
|
|
Rapid-Ring |
-- |
|
RFC2544 |
-- |
|
Y.1564 |
-- |
|
OpenFlow
Version |
V1.3 |
|
Hybrid Switch |
|
|
Classification Mechanism |
Port/VLAN/Port+Vlan |
|
| Pipeline Traversal | OpenFlow pipeline |
|
Traditional pipeline |
|
|
Entry Table |
32K |
|
Flow Table Stage |
5 |
|
| Entry Capability | Operation |
|
Hit Flag |
|
|
Metadata Match |
|
|
| Group Table | Group Entries |
2K |
Action Buckets |
8K |
|
Meter Table |
|
|
Counter |
|
|
GS-6552XB L2+ Managed GbE SDN Swit
Port Configuration
| Total Ports | RJ45 (10M/100M/1G) | Uplinks (1/10G) | Console |
|---|---|---|---|
| 52 | 48 | 4 SFP+ | RJ45 |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
|---|---|---|---|
| 130.944 | 176 | 32 | 12K |
Environmental Range
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| 32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
| Dimension (WxHxD) | Weight | Mounting Type | ||
|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | |
| 442x 44x 375 | 17.4x 1.7x 14.8 | <5.62 | <12.39 | Desktop, Rack |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | 100-240 VAC |
| Frequency | 50~60 Hz |
Certifications
| Electromagnetic Emissions (EMC) |
|---|
| EN61000-4-2, EN61000-4-3, EN61000-4-6, EN61000-4-4, EN61000-4-5 |
| CE, FCC Part 15 Class A, LVD (UL by request) |
Software Features
| SDN OpenFlow Features | |
|---|---|
| Version | V1.3 |
| Hybrid Switch | Support |
| Classification Mechanism | Port/VLAN/Port+Vlan |
| Pipeline Traversal |
|
| Entry Table | 32K |
| Flow Table Stage | 5 (3 Full Match+ L2 Optimized+ L3 Optimized, Loopback extensible) |
| Entry Capability |
|
| Metadata Match | Support |
| Group Table |
|
| Meter Table |
|
| Counter |
|
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) |
|
| Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad
|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
| GARP VLAN Registration Protocol (GVRP) | GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network |
| IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
| L3 Features | |
| DHCP Server | Support DHCP server to assign IP to DHCP clients (to be launched by 2022) |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
| RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
| Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
| IP Source guard | Prevents illegal IP address from accessing to specific port in the switch |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
| DHCP Client | Support DHCP server to assign IP to DHCP clients |
| DHCP Relay (option 66,option 67,option 82) |
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| CLI/Telnet | For users to configure/manage switches in command line modes |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
| Firmware Upgrade |
|
| Syslog | Support syslog function |
| SMTP | Support SMTP (RFC821) |
| IEEE 802.1ab (LLDP) |
|
| CDP Aware | The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled |
| sFlow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management | IPv6 Management |
PSGS/GS-6500 Series
L2+ Managed GbE SDN Switches
The GS-6500 and PSGS-6500 Series L2+ Managed SDN Switches are innovative SDN/Legacy hybrid mode switches, which are capable of running full suite of L2 features, including basic L3 features such as Static Route, and DHCP Server, better PoE functionality and usability that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections, and at the same time, provides next-generation SDN functions to the network. By collaborating with Network Controller, GS-6500 and PSGS-6500 Series can provide efficient SDN networking management functions and dynamic resource adjustment functions to the network, which makes it suitable for those networks that require efficient management tools and flexible resource re-assignment in short time, e.g., IoT networks and smart city /school infrastructure networks.
All GS-6500 and PSGS-6500 models are Software Defined Networking (SDN) ready and are able to support OpenFlow v1.3. They are suitable for networks from a small workgroup to a large business either as edge devices in an SDN or be standalone since Hybrid Mode is supported.
The GS-6500 and PSGS-6500 series consists of 3 non-PoE models which are GS-6510XA, GS-6528XB, and GS-6552XB, and 4 PoE+ models which are PSGS-6510XAF, PSGS-6510XAH, PSGS-6528XBF, and PSGS-6552XBF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
Key Features
- SDN OpenFlow v1.3 (support Hybrid Mode)
- L2+ Managed features provide easier manageability, robust security and QoS.
- Support Secure boot function (option by request)
- Pv4/IPv6 Management
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) (to be launched by 2022)
Benefits
Software Defined Networking (SDN)
OpenFlow v1.3 is a key technology that enables the use of SDN to build smart applications that unlock value and reduce cost. OpenFlow v1.3 support encryption, connection interruption and inactivity probe. It can be managed by any OpenFlow-based SDN Controller, and support hybrid pipeline for legacy L2 features at the same time for more enterprise applications. OpenFlow-hybrid switches support both OpenFlow operation and normal Ethernet switching operation.
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access. It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
| Model Name | Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G) | Uplinks (1/10G) | Console |
|---|---|---|---|---|---|
| GS-6510XA | 10 | 8 | — | 2 SFP+ | RJ45 |
| PSGS-6510XAF | 10 | 8 | — | 2 SFP+ | RJ45 |
| PSGS-6510XAH | 10 | 8 | — | 2 SFP+ | RJ45 |
| GS-6528XB | 28 | 24 | — | 4 SFP+ | RJ45 |
| PSGS-6528XBF | 28 | 24 | — | 4 SFP+ | RJ45 |
| GS-6552XB | 52 | 48 | — | 4 SFP+ | RJ45 |
| PSGS-6552XBF | 52 | 48 | — | 4 SFP+ | RJ45 |
Hardware Performance
| Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(Bytes) |
|---|---|---|---|---|
| GS-6510XA | 41.664 | 56 | 32 | 12K |
| PSGS-6510XAF | 41.664 | 56 | 32 | 12K |
| PSGS-6510XAH | 41.664 | 56 | 32 | 12K |
| GS-6528XB | 95.232 | 128 | 32 | 12K |
| PSGS-6528XBF | 95.232 | 128 | 32 | 12K |
| GS-6552XB | 130.944 | 176 | 32 | 12K |
| PSGS-6552XBF | 130.944 | 176 | 32 | 12K |
Environmental Range
| Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| 32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
| Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| GS-6510XA | 242 x 44 x 220 | 9.52 x 1.7 x 8.6 | <2.0 | <4.40 | Desktop, Rack |
| PSGS-6510XAF | 242 x 44 x 220 | 9.52 x 1.7 x 8.6 | <2.0 | <4.40 | |
| PSGS-6510XAH | 242 x 44 x 220 | 9.52 x 1.7 x 8.6 | <2.0 | <4.40 | |
| GS-6528XB | 442 x 44 x 211 | 17.4 x 1.7 x 8.3 | <3.8 | <8.36 | |
| PSGS-6528XBF | 442 x 44 x 211 | 17.4 x 1.7 x 8.3 | <3.8 | <8.36 | |
| GS-6552XB | 442 x 44 x 375 | 17.4 x 1.7 x 14.8 | <5.62 | <12.39 | |
| PSGS-6552XBF | 442 x 44 x 375 | 17.4 x 1.7 x 14.8 | <5.62 | <12.39 | |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | 100-240 VAC |
| Frequency | 50~60 Hz |
PoE Power Capacity
| Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|---|
| PSGS-6510XAF | 130W | Each of port 1 – 8 support PoE within available PoE Power |
| PSGS-6510XAH | 240W | Each of port 1 – 8 support PoE/ PoE+ within available PoE Power |
| PSGS-6528XBF | 380W | Each of port 1 – 24 support PoE/ PoE+ within available PoE Power |
| PSGS-6552XBF | 760W | Each of port 1 – 48 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) | |
|---|---|
| EN61000-4-2, EN61000-4-3, EN61000-4-6, EN61000-4-4, EN61000-4-5 | |
| CE, FCC Part 15 Class A (UL by request) | |
Software Features
| SDN OpenFlow Features | |
|---|---|
| Version | V1.3 |
| Hybrid Mode | Support |
| Classification Mechanism | Port/VLAN/Port+Vlan |
| Pipeline Traversal |
|
| Entry Table | 32K |
| Flow Table Stage | 5 (3 Full Match+ L2 Optimized+ L3 Optimized, Loopback extensible) |
| Entry Capability |
|
| Metadata Match | Support |
| Group Table |
|
| Meter Table |
|
| Counter |
|
| Layer 2 Switching | |
| Spanning Tree Protocol (STP) |
|
| Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad
|
| VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
| GARP VLAN Registration Protocol (GVRP) | GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network |
| IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
| MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
| Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
| L3 Features | |
| IPv4 Static routing | IPv4 Unicast: Static routing (to be launched by 2022) |
| DHCP Server | Support DHCP server to assign IP to DHCP clients (to be launched by 2022) |
| Security | |
| Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
| Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
| IEEE 802.1X |
|
| Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
| TACACS+ | Supports TACACS+ authentication. |
| Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
| ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
| IP Source guard | Prevents illegal IP address from accessing to specific port in the switch |
| DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
| Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
| DHCP Client | Support DHCP server to assign IP to DHCP clients |
| DHCP Relay (option 66,option 67,option 82) |
|
| Quality of Service | |
| Hardware Queue | Supports 8 hardware queues |
| Scheduling |
|
| Classification |
|
| Rate Limiting |
|
| Management | |
| Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
| Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
| Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
| CLI / Telnet | For users to configure/manage switches in command line modes |
| Dual Image | Independent primary and secondary images for backup while upgrading |
| SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
| Firmware Upgrade |
|
| Syslog | Support syslog function |
| SMTP | Support SMTP (RFC821) |
| IEEE 802.1ab (LLDP) |
|
| CDP Aware | The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled |
| sFlow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
| NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
| Other Management | IPv6 Management |
| Power over Ethernet (PoE) | |
| Port Configuration | Supports per port PoE configuration function |
| PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). |
| Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses. |
| Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
| Soft-Reboot PoE Non-stop | The switch will keep providing power to the PDs while during soft-reboot. |
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
- + Overview
-
Product Overview
GS-6552XB L2+ Managed SDN Switch is an innovative SDN/Legacy hybrid mode switch, which is capable of running full suite of L2 features, including basic L3 features such as DHCP Server, better functionality and usability that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections, and at the same time, provides next-generation SDN functions to the network. By collaborating with Network Controller, GS-6552XB can provide efficient SDN networking management functions and dynamic resource adjustment functions to the network, which makes it suitable for those networks that require efficient management tools and flexible resource re-assignment in short time, e.g., IoT networks and smart city /school infrastructure networks.
GS-6552XB is Software Defined Networking (SDN) ready and is able to support OpenFlow v1.3. It is suitable for networks from a small workgroup to a large business either as edge devices in an SDN or be standalone since Hybrid Mode is supported.
GS-6552XB delivers 48 (10M/100M/1G) RJ45, 4 SFP+ ports, 1 USB port, and RJ45 console port. GS-6552XB provides high HW performance and environment flexibility for SMBs and Enterprises.
Key Features
- SDN OpenFlow v1.3 (support Hybrid Mode)
- L2+ Managed features provide easier manageability, robust security and QoS.
- Support Secure boot function (option by request)
- Pv4/IPv6 Management
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) (to be launched by 2022)
Benefits
Software Defined Networking (SDN)
OpenFlow v1.3 is a key technology that enables the use of SDN to build smart applications that unlock value and reduce cost. OpenFlow v1.3 support encryption, connection interruption and inactivity probe. It can be managed by any OpenFlow-based SDN Controller, and support hybrid pipeline for legacy L2 features at the same time for more enterprise applications. OpenFlow-hybrid switches support both OpenFlow operation and normal Ethernet switching operation.
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access. It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
- + Specification
-
Product Specification
MODEL NAME GS-6552XB Product Description 52 ports GbE L2+ Managed SDN Switch Port Configuration
10M/100M/1G RJ45 Port48100M/1G/2.5G RJ45 Port--100M/1G/10G RJ45 Port--100M/1G/2.5G/5G/10G RJ45 Port--100M/1G SFP Port--GbE RJ45/SFP Combo Port--1G/2.5G SFP Port--1G/10G SFP+ Port42.5G Coax (FAKRA) Port--2.5G STP (HSD) Port--100M/1G/2.5G/5G/10G Autolink Port--SFP28/QSFP+ Combo Port--SFP28/QSFP+ Combo Port--1G/10G/25G SFP28 Port--SFP56 (50G)--USB--Console PortRJ45Total Ports52HW Performance
Switching Bandwidth176GbpsForwarding Performance130.944MppsMAC Address32KJumbo Frames12288 BytesEnvironmental Specification
Operating Temperature0°C to 50°COperating Humidity10 to 90% RHStorage Temperature-20 to 70°CStorage Humidity10 to 90% RHMechanical Specification
Dimensions (H) x (W) x (D) mm44 x 442 x 375Weight< 5.62 KgFAN Less--Power Source
AC Input100V-240VDC Input--Dual Input--Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV)--CertificationsCE/FCC/LVD Class A
Others by RequestL2 Switching
Spanning TreeIEEE802.1D (STP)
IEEE802.1W (RSTP)IEEE802.1S (MSTP)VLAN802.1Q VLANPort-BasedVLAN Entries4KPrivate VLANVoice VLANGuest VLANQ-in-Q--802.1v Protocol VLANMAC-Based VLANIP Subnet-Based VLANIEEE 802.3ad LACPDynamic TrunkStatic TrunkGARP/GVRPIGMP SnoopingMLD SnoopingMulticast VLAN Registration (MVR)L3 Features
Static Route--DHCP ServerDynamic Routing--QoS Features
Class of ServicePort Based802.1pDSCPTCP/UDP PortRate LimitingIngressEgressPriority Queue SchedulingWRRStri PriorityHardware Queues8Security
ACLsL2/L3/L4IPv6 Support--Port Security (MAC-based)IP Source GuardStorm ControlRADIUS Authentication 802.1xTACACS+ AuthenticationHTTPs and SSL (Secured Web)BPDU GuardSTP Root GuardDHCP SnoopingLoop ProtectionManagement
DHCPClientRelayOption 66Option 67Option 82Event/Error LogSyslogSMTP (RFC821)Management Access FilteringSNMPWeb UITelnetSSHPoE ManagementScheduling--Auto-Checking--Power Delay--Soft-Reboot PoE Non-stop--SNMP (v1, v2c, v3)RMON (1,2,3 & 9 Groups)Software UpgradeConfiguration Export/ImportPort MirroringLLDP (IEEE802.1AB)LLDP-MED (IEEE802.1AB)CDP AwaresFlowIPv6 ManagementNTPFirst Time Wizard--Carrier Ethernet
SyncE--1588v2 PTP--G.8265.1/G.8275.1/G.8275.2--1588v2 PTP (stratum3)--OAM (IEEE802.3ah)--CFM (IEEE802.1ag)--PM (ITU-T Y.1731)--ELPS (ITU-T G.8031)--ERPS (ITU-T G.8032)Rapid-Ring--RFC2544--Y.1564--OpenFlow
VersionV1.3Hybrid SwitchClassification MechanismPort/VLAN/Port+VlanPipeline Traversal OpenFlow pipelineTraditional pipelineEntry Table32KFlow Table Stage5Entry Capability OperationHit FlagMetadata MatchGroup Table Group Entries2KAction Buckets8KMeter TableCounter - + Datasheet
-
GS-6552XB L2+ Managed GbE SDN Swit
Port Configuration
Total Ports RJ45
(10M/100M/1G)Uplinks
(1/10G)Console 52 48 4 SFP+ RJ45 Hardware Performance
Forwarding Capacity
(Mpps)Switching Capacity
(Gbps)Mac Table
(K)Jumbo Frames
(Bytes)130.944 176 32 12K Environmental Range
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing<10000 <3000 Dimension, Weights, Mounting
Dimension (WxHxD) Weight Mounting Type Millimeter Inches Kilograms Pounds 442x 44x 375 17.4x 1.7x 14.8 <5.62 <12.39 Desktop, Rack Voltage and Frequency
AC Input Voltage and Frequency Voltage 100-240 VAC Frequency 50~60 Hz Certifications
Electromagnetic Emissions (EMC) EN61000-4-2, EN61000-4-3, EN61000-4-6, EN61000-4-4, EN61000-4-5 CE, FCC Part 15 Class A, LVD (UL by request) Software Features
SDN OpenFlow Features Version V1.3 Hybrid Switch Support Classification
MechanismPort/VLAN/Port+Vlan Pipeline Traversal - OpenFlow pipeline
- Traditional pipeline
Entry Table 32K Flow Table Stage 5 (3 Full Match+ L2 Optimized+ L3 Optimized, Loopback extensible) Entry Capability - Operation
- Hit Flag
Metadata Match Support Group Table - 2K Group Entries
- 8K Action Buckets
Meter Table - 512 policer
- Drop
Counter - 4K 32-bit packet counter
- 4K 64-bit byte counter
Layer 2 Switching Spanning Tree
Protocol (STP)- Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
- BPDU Guard
- STP Root Guard
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Up to 26 groups
- Up to 16 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
- Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN
- Guest VLAN
- Voice VLAN
- 802.1v Protocol VLAN
- IP Subnet-Based VLAN
GARP VLAN Registration Protocol (GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network IGMP v1/v2/v3
SnoopingIGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. L3 Features DHCP Server Support DHCP server to assign IP to DHCP clients (to be launched by 2022) Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
- Dynamic VLAN assignment
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port ACLs Supports up to 256 entries. Drop or rate limitation based on:
- Source and destination MAC, VLAN ID or IP address, port
IP Source guard Prevents illegal IP address from accessing to specific port in the switch DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. DHCP Client Support DHCP server to assign IP to DHCP clients DHCP Relay (option 66,option 67,option 82) - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence / DSCP based
- Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting - Ingress policer
- Egress shaping and rate control
Management Remote Monitoring
(RMON)Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI/Telnet For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP, SFTP, and SCP
- Upgrade through console port as well
Syslog Support syslog function SMTP Support SMTP (RFC821) IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled sFlow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management IPv6 Management - + Series Datasheet
-
PSGS/GS-6500 Series
L2+ Managed GbE SDN SwitchesThe GS-6500 and PSGS-6500 Series L2+ Managed SDN Switches are innovative SDN/Legacy hybrid mode switches, which are capable of running full suite of L2 features, including basic L3 features such as Static Route, and DHCP Server, better PoE functionality and usability that delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber or copper connections, and at the same time, provides next-generation SDN functions to the network. By collaborating with Network Controller, GS-6500 and PSGS-6500 Series can provide efficient SDN networking management functions and dynamic resource adjustment functions to the network, which makes it suitable for those networks that require efficient management tools and flexible resource re-assignment in short time, e.g., IoT networks and smart city /school infrastructure networks.
All GS-6500 and PSGS-6500 models are Software Defined Networking (SDN) ready and are able to support OpenFlow v1.3. They are suitable for networks from a small workgroup to a large business either as edge devices in an SDN or be standalone since Hybrid Mode is supported.
The GS-6500 and PSGS-6500 series consists of 3 non-PoE models which are GS-6510XA, GS-6528XB, and GS-6552XB, and 4 PoE+ models which are PSGS-6510XAF, PSGS-6510XAH, PSGS-6528XBF, and PSGS-6552XBF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
Key Features
- SDN OpenFlow v1.3 (support Hybrid Mode)
- L2+ Managed features provide easier manageability, robust security and QoS.
- Support Secure boot function (option by request)
- Pv4/IPv6 Management
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
- ITU-T G.8032 Ethernet Ring Protection Switching (ERPS) (to be launched by 2022)
Benefits
Software Defined Networking (SDN)
OpenFlow v1.3 is a key technology that enables the use of SDN to build smart applications that unlock value and reduce cost. OpenFlow v1.3 support encryption, connection interruption and inactivity probe. It can be managed by any OpenFlow-based SDN Controller, and support hybrid pipeline for legacy L2 features at the same time for more enterprise applications. OpenFlow-hybrid switches support both OpenFlow operation and normal Ethernet switching operation.
Feature-rich Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in L2+ managed switch. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access. It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.
Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Uplinks (1/10G) Console GS-6510XA 10 8 — 2 SFP+ RJ45 PSGS-6510XAF 10 8 — 2 SFP+ RJ45 PSGS-6510XAH 10 8 — 2 SFP+ RJ45 GS-6528XB 28 24 — 4 SFP+ RJ45 PSGS-6528XBF 28 24 — 4 SFP+ RJ45 GS-6552XB 52 48 — 4 SFP+ RJ45 PSGS-6552XBF 52 48 — 4 SFP+ RJ45 Hardware Performance
Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table(K) Jumbo Frames(Bytes) GS-6510XA 41.664 56 32 12K PSGS-6510XAF 41.664 56 32 12K PSGS-6510XAH 41.664 56 32 12K GS-6528XB 95.232 128 32 12K PSGS-6528XBF 95.232 128 32 12K GS-6552XB 130.944 176 32 12K PSGS-6552XBF 130.944 176 32 12K Environmental Range
Operating Temperature Storage Temperature Operating Humidity Altitude Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters 32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing<10000 <3000 Dimension, Weights, Mounting
Model Name Dimension (WxHxD) Weight Mounting Type Millimeter Inches Kilograms Pounds GS-6510XA 242 x 44 x 220 9.52 x 1.7 x 8.6 <2.0 <4.40 Desktop, Rack PSGS-6510XAF 242 x 44 x 220 9.52 x 1.7 x 8.6 <2.0 <4.40 PSGS-6510XAH 242 x 44 x 220 9.52 x 1.7 x 8.6 <2.0 <4.40 GS-6528XB 442 x 44 x 211 17.4 x 1.7 x 8.3 <3.8 <8.36 PSGS-6528XBF 442 x 44 x 211 17.4 x 1.7 x 8.3 <3.8 <8.36 GS-6552XB 442 x 44 x 375 17.4 x 1.7 x 14.8 <5.62 <12.39 PSGS-6552XBF 442 x 44 x 375 17.4 x 1.7 x 14.8 <5.62 <12.39 Voltage and Frequency
AC Input Voltage and Frequency Voltage 100-240 VAC Frequency 50~60 Hz PoE Power Capacity
Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W) PSGS-6510XAF 130W Each of port 1 – 8 support PoE within available PoE Power PSGS-6510XAH 240W Each of port 1 – 8 support PoE/ PoE+ within available PoE Power PSGS-6528XBF 380W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power PSGS-6552XBF 760W Each of port 1 – 48 support PoE/ PoE+ within available PoE Power Certification
Electromagnetic Emissions (EMC) EN61000-4-2, EN61000-4-3, EN61000-4-6, EN61000-4-4, EN61000-4-5 CE, FCC Part 15 Class A (UL by request) Software Features
SDN OpenFlow Features Version V1.3 Hybrid Mode Support Classification Mechanism Port/VLAN/Port+Vlan Pipeline Traversal - OpenFlow pipeline
- Traditional pipeline
Entry Table 32K Flow Table Stage 5 (3 Full Match+ L2 Optimized+ L3 Optimized, Loopback extensible) Entry Capability - Operation
- Hit Flag
Metadata Match Support Group Table - 2K Group Entries
- 8K Action Buckets
Meter Table - 512 policer
- Drop
Counter - 4K 32-bit packet counter
- 4K 64-bit byte counter
Layer 2 Switching Spanning Tree Protocol (STP) - Standard Spanning Tree 802.1d
- Rapid Spanning Tree (RSTP) 802.1w
- Multiple Spanning Tree (MSTP) 802.1s
- BPDU Guard
- STP Root Guard
Trunking Link Aggregation Control Protocol (LACP) IEEE 802.3ad
- Up to 26 groups
- Up to 16 ports per group
VLAN Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
- Port-based VLAN
- 802.1Q tag-based VLAN
- MAC-based VLAN
- Management VLAN
- Private VLAN
- Guest VLAN
- Voice VLAN
- 802.1v Protocol VLAN
- IP Subnet-Based VLAN
GARP VLAN Registration Protocol (GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network IGMP v1/v2/v3 Snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups MLD v1/v2 Snooping Delivers IPv6 multicast packets only to the required receivers Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. L3 Features IPv4 Static routing IPv4 Unicast: Static routing (to be launched by 2022) DHCP Server Support DHCP server to assign IP to DHCP clients (to be launched by 2022) Security Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported Secure Sockets Layer (SSL) SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch IEEE 802.1X - IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN, single/multiple host mode and single/multiple sessions
- Dynamic VLAN assignment
Port Security Locks MAC addresses to ports, and limits the number of learned MAC address TACACS+ Supports TACACS+ authentication. Storm Control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port ACLs Supports up to 256 entries. Drop or rate limitation based on:
- Source and destination MAC, VLAN ID or IP address, port
IP Source guard Prevents illegal IP address from accessing to specific port in the switch DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. DHCP Client Support DHCP server to assign IP to DHCP clients DHCP Relay (option 66,option 67,option 82) - Relay of DHCP traffic to DHCP server in different VLAN.
- Works with DHCP Option 82
Quality of Service Hardware Queue Supports 8 hardware queues Scheduling - Strict priority and weighted round-robin (WRR)
- Queue assignment based on DSCP and class of service
Classification - Port based
- 802.1p VLAN priority based
- IPv4/IPv6 precedence / DSCP based
- Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting - Ingress policer
- Egress shaping and rate control
Management Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. Web GUI Interface Built-in switch configuration utility for browser-based device configuration CLI / Telnet For users to configure/manage switches in command line modes Dual Image Independent primary and secondary images for backup while upgrading SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) Firmware Upgrade - Web browser upgrade (HTTP/ HTTPs) and TFTP, SFTP, and SCP
- Upgrade through console port as well
Syslog Support syslog function SMTP Support SMTP (RFC821) IEEE 802.1ab (LLDP) - Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
- Support LLDP-MED extensions
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled sFlow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched Other Management IPv6 Management Power over Ethernet (PoE) Port Configuration Supports per port PoE configuration function PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs). Auto-checking Check the link status of PDs. Reboot PDs if there is no responses. Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs Soft-Reboot PoE Non-stop The switch will keep providing power to the PDs while during soft-reboot. - + Download
-
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
