Product Overview
IGS-2606G industrial L2+ managed GbE switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.
IGS-2606G delivers 4 (10M/100M/1G) RJ45, 2 Combo GbE RJ45/SFP ports and RJ45 console port. IGS-2606G provides high HW performance and environment flexibility for industrial applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-2606G is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features | Customer Benefits |
---|---|
Comprehensive L2 Support | Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster |
Rapid Ring | Rapid ring is able quickly to recover network-segment failures; if a link in a network fails, Rapid ring will instantaneously activate the blocked path to continue forwarding the data-all in a recovery time of less than 20 ms |
Dual DC Power Input | Power failover when power supplies are connected to different circuits reducing network operating risk |
Product Specification
MODEL NAME | IGS-2606G |
---|---|
Product Description | 6 ports GbE Industrial L2+ Managed Ethernet Switch |
Port Configuration
10M/100M/1G RJ45 Port | 4 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | -- | |
GbE RJ45/SFP Combo Port | 2 | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | RJ45 | |
Total Ports | 6 |
HW Performance
Switching Bandwidth | 12Gbps | |
Forwarding Performance | 8.928Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
Environmental Specification
Operating Temperature | -40°C to 75°C | |
Operating Humidity | 5 to 95% RH | |
Storage Temperature | -40°C to 85°C | |
Storage Humidity | 5 to 95% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 62 x 135 x 130 | |
Weight | < 1.0 Kg | |
FAN Less |
Power Source
AC Input | -- | |
DC Input | 12 ~ 48 VDC | |
Dual Input | Dual DC |
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A LVD with EN 62368-1 UL by Request Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | ||
IEEE802.1S (MSTP) | ||
VLAN |
802.1Q VLAN | |
Port-Based | ||
VLAN Entries | 4K | |
Private VLAN | ||
Voice VLAN | ||
Guest VLAN | ||
Q-in-Q | ||
802.1v Protocol VLAN | ||
MAC-Based VLAN | ||
IP Subnet-Based VLAN | ||
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | ||
GARP/GVRP | ||
IGMP Snooping | ||
MLD Snooping | ||
Multicast VLAN Registration (MVR) |
L3 Features
Static Route | ||
DHCP Server | ||
Dynamic Routing | -- |
QoS Features
Class of Service |
Port Based | |
802.1p | ||
DSCP | ||
TCP/UDP Port | ||
Rate Limiting |
Ingress | |
Egress | ||
Priority Queue Scheduling |
WRR | |
Stri Priority | ||
Hardware Queues | 8 |
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | ||
Port Security (MAC-based) | ||
IP Source Guard | ||
Storm Control | ||
RADIUS Authentication 802.1x | ||
TACACS+ Authentication | ||
HTTPs and SSL (Secured Web) | ||
BPDU Guard | ||
STP Root Guard | ||
DHCP Snooping | ||
Loop Protection |
Management
DHCP |
Client | |
Relay | ||
Option 66 | ||
Option 67 | ||
Option 82 | ||
Event/Error Log |
Syslog | |
SMTP (RFC821) | ||
Management Access Filtering |
SNMP | |
Web UI | ||
Telnet | ||
SSH | ||
PoE Management |
Scheduling | -- |
Auto-Checking | -- | |
Power Delay | -- | |
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | ||
RMON (1,2,3 & 9 Groups) | ||
Software Upgrade | ||
Configuration Export/Import | ||
Port Mirroring | ||
LLDP (IEEE802.1AB) | ||
LLDP-MED (IEEE802.1AB) | ||
CDP Aware | ||
sFlow | ||
IPv6 Management | ||
NTP | ||
First Time Wizard | -- |
Carrier Ethernet
SyncE | -- | |
1588v2 PTP | -- | |
G.8265.1/G.8275.1/G.8275.2 | -- | |
1588v2 PTP (stratum3) | -- | |
OAM (IEEE802.3ah) | -- | |
CFM (IEEE802.1ag) | -- | |
PM (ITU-T Y.1731) | -- | |
ELPS (ITU-T G.8031) | -- | |
ERPS (ITU-T G.8032) | -- | |
Rapid-Ring | ||
RFC2544 | -- | |
Y.1564 | -- |
Device Management System
Device Management |
Topology View | |
Floor View | ||
Map View | ||
Dashboard | ||
Traffic Monitoring | ||
Cable Diagnostics |

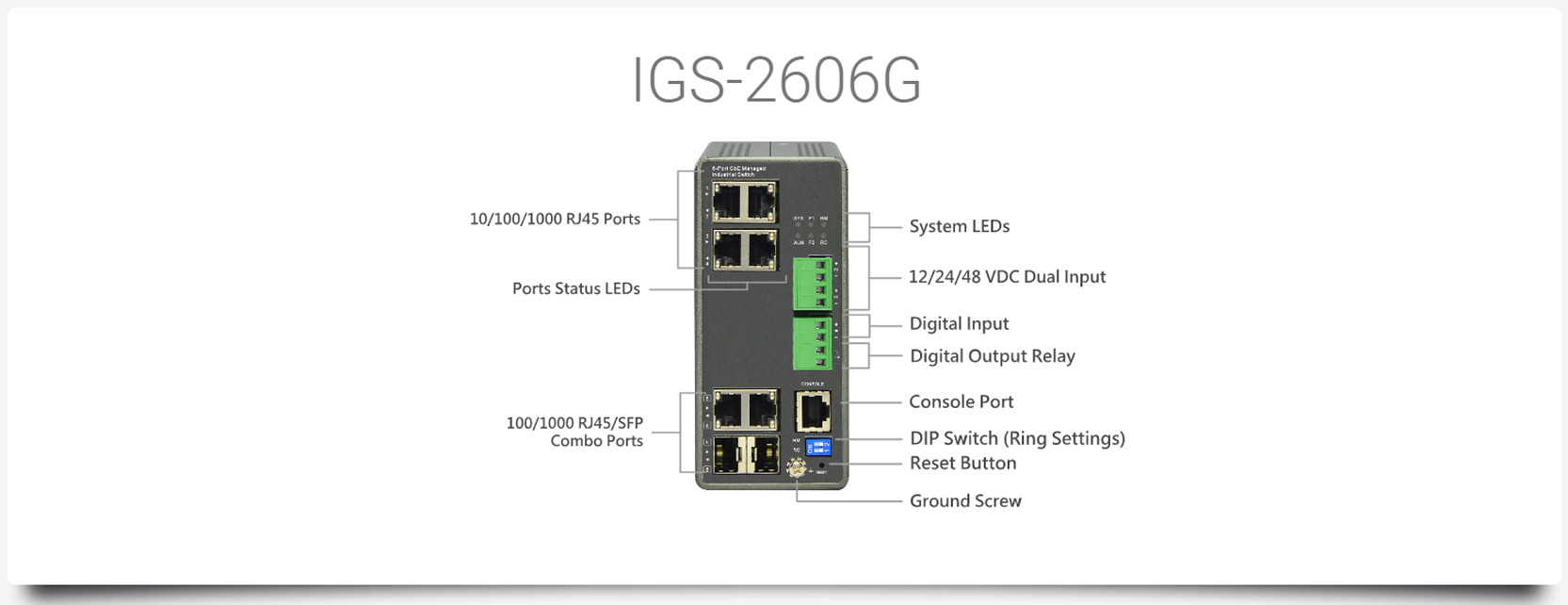

IGS-2606G Industrial L2+ Managed GbE Switch
IGS-2606G industrial L2+ managed GbE switch is the next generation industrial grade Ethernet switch offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.
IGS-2606G delivers 4 (10M/100M/1G) RJ45, 2 Combo GbE RJ45/SFP ports and RJ45 console port. IGS-2606G provides high HW performance and environment flexibility for industrial applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. IGS-2606G is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Rapid Ring (R-Ring)
- Built in Device Management System (DMS)
- DHCP Server
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IPv4/IPv6 L3 static route
Benefits
The switch deliver extensive industrial and carrier grade functionalities, including R-Ring, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2 PTP, OAM, CFM, etc. It also have enhanced L2/L3 features for better manageability and usability.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro/carrier Ethernet deployments.
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G) | Console | Ring Mgmt. | DI/DO |
---|---|---|---|---|---|
6 | 4 | 2Combo | RJ45 | DIP | 1/1 |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
8.928 | 12 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
-40 to 167 | -40 to 75 | -40 to 185 | -40 to 85 | 5% to 95% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
Dimension (WxHxD) | Weight | Mounting Type | |||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
62x 135x 130 | 2.4x 5.3x 5.1 | < 1 | <2.2 | DIN rail |
Voltage and Frequency
Primary Power Supply – DC Input Voltage | |
---|---|
DC Nominal | 12/24/48 VDC dual inputs |
DC Operating Range | 12 to 48 VDC |
Certifications
Electromagnetic Emissions (EMC) | |
---|---|
|
Software Features
Ring Management | |
---|---|
Rapid Ring | Enable self-recover time in less than 20ms |
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search and manage your real switches quickly. |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
Trouble Shooting |
|
Layer 2 Switching | |
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN |
|
DHCP Relay |
|
IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
HW Monitoring | Temperature Detection and Alarm |
HW Watchdog | Supported to resume operation from CPU hang up |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Industrial L2+ Managed GbE Switches
The IGS-2600 and IPGS-2600 series industrial L2+ managed GbE switches are the next generation industrial grade Ethernet switches offering powerful L2 and basic L3 features with better functionality and usability. In addition to the extensive management features, of which make them suitable for industrial applications.
The IGS-2600 and IPGS-2600 series consist of 6 non-PoE models which are IGS-2606A, IGS-2606G, IGS-2608, IGS-2608A, IGS-2610G and IGS-2612B, and 6 PoE+ models which are IPGS-2606A, IPGS-2606G, IPGS-2608, IPGS-2608A, IPGS-2610G and IPGS-2612B, and 3 UPoE models which are IPGS-2606AU, IPGS-2608AU and IPGS-2612BU. The series offer users with various options of port combinations and PoE+(UPoE) budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other industrial applications. The IGS-2600 and IPGS-2600 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Rapid Ring (R-Ring)
- Built in Device Management System (DMS)
- DHCP Server
- IEEE 802.3az Energy Efficient Ethernet standard for green Ethernet application
- IEEE 802.3af/at/UPoE Power over Ethernet
- IPv4/IPv6 L3 static route
Benefits
-
Feature-rich Specifications to Support Various Applications
The series deliver extensive industrial grade functionalities, including R-Ring. The product series also have enhanced L2/L3 features for better manageability and usability.
The PoE+(30W) and UPoE(60W) models provide advanced PoE features such as PoE auto-checking, PoE scheduling, and PoE power delay for users to manage the powered devices more easily. With extensive PoE+ mode configured, the series can even provide power with up to 38W per port.
It offers users with better price/performance ratio in industrial application, and provide secure and reliable functionalities for metro Ethernet deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 10M /100M/1G | Uplinks 100M/1G | Console | Available PoE Power | Ring Mgmt. | DI/DO |
---|---|---|---|---|---|---|---|
IGS-2606A | 6 | 4 | 2 SFP | RJ45 | -- | DIP | 1/1 |
IGS-2606G | 6 | 4 | 2 Combo | RJ45 | -- | DIP | 1/1 |
IGS-2608A | 8 | 6 | 2 SFP | RJ45 | -- | DIP | 1/1 |
IGS-2608 | 8 | 8 | -- | RJ45 | -- | DIP | 1/1 |
IGS-2610G | 10 | 8 | 2 Combo | RJ45 | -- | DIP | 1/1 |
IGS-2612B | 12 | 8 | 4 SFP | RJ45 | -- | DIP | 1/1 |
IPGS-2606A | 6 | 4 | 2 SFP | RJ45 | 120W | DIP | 1/1 |
IPGS-2606G | 6 | 4 | 2 Combo | RJ45 | 120W | DIP | 1/1 |
IPGS-2608A | 8 | 6 | 2 SFP | RJ45 | 120W | DIP | 1/1 |
IPGS-2608 | 8 | 8 | -- | RJ45 | 240W | DIP | 1/1 |
IPGS-2610G | 10 | 8 | 2 Combo | RJ45 | 240W | DIP | 1/1 |
IPGS-2612B | 12 | 8 | 4 SFP | RJ45 | 240W | DIP | 1/1 |
IPGS-2606AU | 6 | 4 | 2 SFP | RJ45 | 240W | DIP | 1/1 |
IPGS-2608AU | 8 | 6 | 2 SFP | RJ45 | 240W | DIP | 1/1 |
IPGS-2612BU | 12 | 8 | 4 SFP | RJ45 | 240W | DIP | 1/1 |
Hardware Performance
Model Name | Forwarding Capacity(Mpps) | Switching Capacity(Gbps) | Mac Table (K) | Jumbo Frames(bytes) |
---|---|---|---|---|
IGS-2606A | 8.928 | 12 | 8 | 9216 |
IGS-2606G | 8.928 | 12 | 8 | 9216 |
IGS-2608A | 11.904 | 16 | 8 | 9216 |
IGS-2608 | 11.904 | 16 | 8 | 9216 |
IGS-2610G | 14.88 | 20 | 8 | 9216 |
IGS-2612B | 17.856 | 24 | 8 | 9216 |
IPGS-2606A | 8.928 | 12 | 8 | 9216 |
IPGS-2606G | 8.928 | 12 | 8 | 9216 |
IPGS-2608A | 11.904 | 16 | 8 | 9216 |
IPGS-2608 | 11.904 | 16 | 8 | 9216 |
IPGS-2610G | 14.88 | 20 | 8 | 9216 |
IPGS-2612B | 17.856 | 24 | 8 | 9216 |
IPGS-2606AU | 8.928 | 12 | 8 | 9216 |
IPGS-2608AU | 11.904 | 16 | 8 | 9216 |
IPGS-2612BU | 17.856 | 24 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
-40 to 167 | -40 to 75 | -40 to 185 | -40 to 85 | 5% to 95% non-condensing | <10000 | <3000 |
Dimension, Weights, Mounting
Model Name | Dimension (WxHxD) | Weight | Mounting Type | |||
---|---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |||
IGS-2606A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IGS-2606G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IGS-2608A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IGS-2608 | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IGS-2610G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IGS-2612B | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2606A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2606G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2608A | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2608 | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2610G | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2612B | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2606AU | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2608AU | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail | |
IPGS-2612BU | 62x135x130 | 2.4x5.3x5.1 | <1 | <2.2 | DIN rail |
Voltage and Frequency
Primary Power Supply - DC Input Voltage | |
---|---|
DC Nominal | 12/24/48 VDC dual inputs (non-PoE model) 54 VDC dual inputs (PoE model) |
DC Operating Range | 12 to 48 VDC (non-PoE model) 48 to 57 VDC (PoE model) |
PoE SKUs |
|
PoE Power Capacity
Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W), PoE+(30.0W), or UPoE(60W) |
---|---|---|
IPGS-2606A | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2606G | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2608A | 120W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2608 | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2610G | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2612B | 240W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power ( per port 38W by request ) |
IPGS-2606AU | 240W | Each of port 1 - 4 support UPOE within available PoE Power |
IPGS-2608AU | 240W | Each of port 1 - 4 support UPOE within available PoE Power |
IPGS-2612BU | 240W | Each of port 1 - 4 support UPOE within available PoE Power |
Certifications
Electromagnetic Emissions (EMC) | |
---|---|
|
Software Features
Ring Management | |
---|---|
Rapid Ring | Enable self-recover time in less than 20ms |
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search and manage your real switches quickly. |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches |
Trouble Shooting |
|
Layer 2 Switching | |
Spanning Tree Protocol (STP) |
|
Trunking |
|
VLAN |
|
DHCP Relay |
|
IGMP v1/v2/v3 Snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router |
MLD v1/v2 Snooping | Delivers IPv6 multicast packets only to the required receivers |
Multicast VLAN Registration (MVR) | It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping. |
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC addresses to ports, and limits the number of learned MAC address |
IP Source Guard | Prevents illegal IP address from accessing to specific port in the switch |
RADIUS/ TACACS+ | Supports RADIUS and TACACS+ authentication. Switch as a client |
Storm Control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
DHCP Snooping | A feature acts as a firewall between untrusted hosts and trusted DHCP servers |
ACLs | Supports up to 256 entries. Drop or rate limitation based on:
|
Loop Protection | To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations. |
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
HW Monitoring | Temperature Detection and Alarm |
HW Watchdog | Supported to resume operation from CPU hang up |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Remote Monitoring (RMON) | Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
s-Flow | The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
CLI | For users to configure/manage switches in command line modes |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Power over Ethernet (PoE) | |
Port Configuration | Supports per port PoE configuration function |
PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). |
Auto-checking | Check the link status of PDs. Reboot PDs if there is no responses. |
Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
ODM Ethernet Switches with Customizable Hardware Features
Logo Customization
Front-bezel logo customization.
Mylar Customization
Front-bezel Label / Mylar customization.
Combination Port Customization
Combination of RJ-45/SFP/SFP+ ports counts.
PoE Power Customization
PoE / PoE+ / PoE++ Power Customization.
CPU Customization (PoE NVR)
Intel / AMD CPU
HDD / SSD tray Customization (PoE NVR)
2/3/4/6 HDD/SSD tray Customization.
Switch Case Size Customization
Small Form Factor Case Size.
ITU-T Customization
ITU-T G.8032 ERPS.
Temperature Customization
Wide Temperature Support (-20℃~60℃)
FAN Customization
Inteligent FAN Speed Control/Fan-less Design.
GPU Customization (PoE NVR)
Add stand-alone Low Profile graphics card
OS Customization (PoE NVR)
Win Server / Win 10 / Ubuntu / Linux…
ODM Ethernet Switches with Customizable Software Features
Tailored Software Customization for UI and Features
Our expert R&D team offers comprehensive software customization, allowing you to personalize the user interface (UI) to match your brand identity and improve user experience. Additionally, we work closely with you to develop and implement the specific features you need, ensuring that our solutions fully align with your business goals. Whether it's enhancing existing functionalities or adding entirely new capabilities, we ensure seamless integration and optimal performance.
AI-Enhanced Switches with Advanced Configuration Support
Upgrade your Ethernet switches to AI-powered switches with the latest AI assistant integration. Our AI assistant simplifies switch configuration, guiding users step-by-step through setup and management tasks, reducing time and complexity. Additionally, our switches support cutting-edge AI SUPPORT features, enabling real-time diagnostics, automated troubleshooting, and intelligent performance optimization. With these advanced AI functionalities, your switches will evolve into smart, AI-driven network solutions, providing unparalleled efficiency and scalability for modern networking environments.
Seamless Third-Party API Integration for Enhanced Product Synergy
Our solutions offer full support for integrating third-party APIs, enabling deep and seamless integration with your existing systems. Whether you need to connect to external platforms, enhance data flow, or unify multiple systems, our tailored approach ensures smooth compatibility and optimized performance. By combining our advanced networking technology with your current infrastructure, we empower your products with greater flexibility, functionality, and interoperability, driving efficiency and reducing operational complexity.
Device Management System
When we embed Device Management System to the switch, a new era of possibilities begins. One where IT administrators are empowered with system of easy-to-use, and where maintenance is effortless and troubleshooting works in a moment.
One UI & iPush enable your business to operate switches in ways never before possible.
