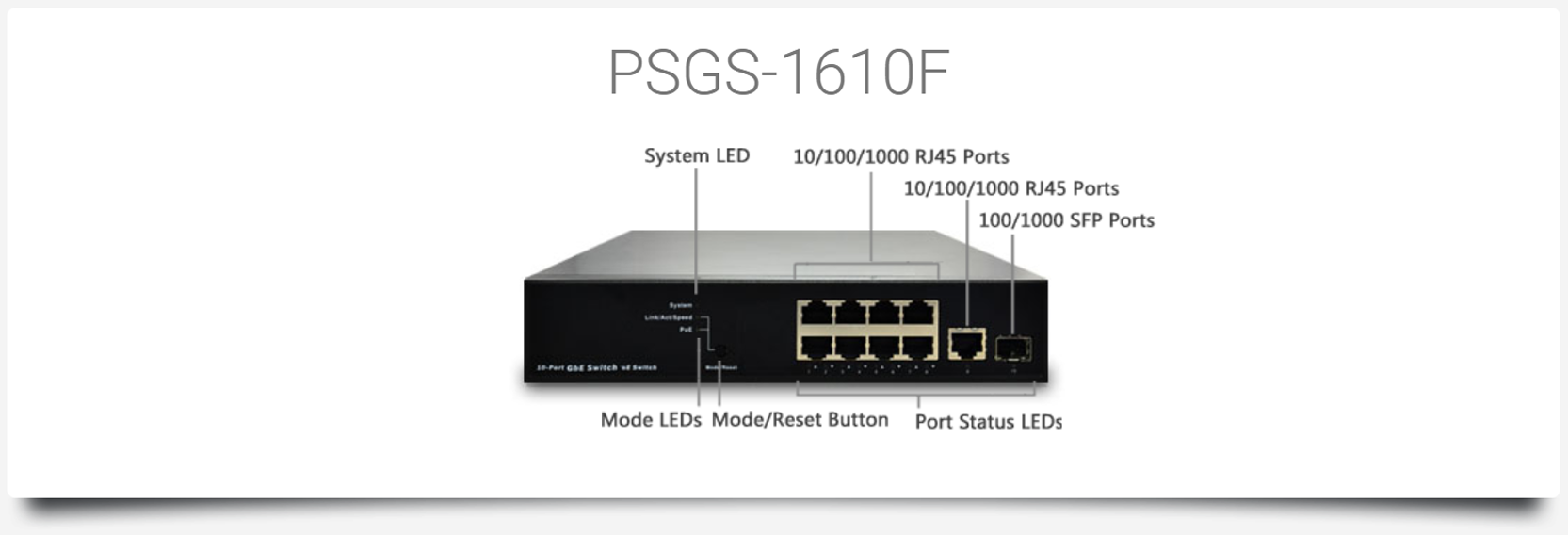

Product Overview
PSGS-1610F Web Smart+ Managed PoE+ Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1610F delivers 9 (10M/100M/1G) RJ45 with 8 PoE+ (Support 802.3at/af, and total up to 130W) ports and 1 GbE SFP port. PSGS-1610F provides high HW performance and environment flexibility for SMBs and Enterprises.
PSGS-1610F is ideal to deliver management simplicity, optimum user experience, and lower cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features | Customer Benefits |
---|---|
Device Management System | Simplified configuration and management to reduce large maintenance complexity and costs |
Responsive Web GUI | IT administrators who prefer an easy to use on smart Phone/Pad/PC will save the time and enhance efficiency |
Product Specification
MODEL NAME | PSGS-1610F |
---|---|
Product Description | 10 ports GbE Web Smart+ PoE Switch |
Port Configuration
10M/100M/1G RJ45 Port | 9 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | 1 | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | -- | |
Total Ports | 10 |
PoE Function
IEEE802.3at (PoE+ 30W) | ||
IEEE802.3af (PoE 15.4W) | ||
UPoE(60W) | -- | |
IEEE802.3bt (PoE++ 90W) | -- | |
PoE Port | 8 | |
Available PoE Power | 130W |
HW Performance
Switching Bandwidth | 20Gbps | |
Forwarding Performance | 14.9Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
Environmental Specification
Operating Temperature | 0°C to 40°C | |
Operating Humidity | 10 to 90% RH | |
Storage Temperature | -20 to 70°C | |
Storage Humidity | 10 to 90% RH |
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 220 x 242 | |
Weight | 2.1 Kg | |
FAN Less |
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
L2 Switching
Spanning Tree |
IEEE802.1D (STP) | |
IEEE802.1W (RSTP) | ||
IEEE802.1S (MSTP) | ||
VLAN |
802.1Q VLAN | |
Port-Based | ||
VLAN Entries | 4K | |
Private VLAN | ||
Voice VLAN | ||
Guest VLAN | ||
Q-in-Q | ||
802.1v Protocol VLAN | ||
MAC-Based VLAN | ||
IP Subnet-Based VLAN | ||
IEEE 802.3ad LACP |
Dynamic Trunk | |
Static Trunk | ||
GARP/GVRP | -- | |
IGMP Snooping | ||
MLD Snooping | -- | |
Multicast VLAN Registration (MVR) |
L3 Features
Static Route | ||
DHCP Server | ||
Dynamic Routing | -- |
QoS Features
Class of Service |
Port Based | |
802.1p | ||
DSCP | ||
TCP/UDP Port | ||
Rate Limiting |
Ingress | |
Egress | ||
Priority Queue Scheduling |
WRR | |
Stri Priority | ||
Hardware Queues | 8 |
Security
ACLs |
L2/L3/L4 | |
IPv6 Support | ||
Port Security (MAC-based) | ||
IP Source Guard | ||
Storm Control | ||
RADIUS Authentication 802.1x | ||
TACACS+ Authentication | -- | |
HTTPs and SSL (Secured Web) | ||
BPDU Guard | ||
STP Root Guard | ||
DHCP Snooping | ||
Loop Protection |
Management
DHCP |
Client | |
Relay | -- | |
Option 66 | ||
Option 67 | ||
Option 82 | -- | |
Event/Error Log |
Syslog | |
SMTP (RFC821) | ||
Management Access Filtering |
SNMP | |
Web UI | ||
Telnet | -- | |
SSH | -- | |
PoE Management |
Scheduling | |
Auto-Checking | ||
Power Delay | ||
Soft-Reboot PoE Non-stop | -- | |
SNMP (v1, v2c, v3) | ||
RMON (1,2,3 & 9 Groups) | ||
Software Upgrade | ||
Configuration Export/Import | ||
Port Mirroring | ||
LLDP (IEEE802.1AB) | ||
LLDP-MED (IEEE802.1AB) | ||
CDP Aware | ||
sFlow | -- | |
IPv6 Management | ||
NTP | ||
First Time Wizard | -- |
Device Management System
Device Management |
Topology View | |
Floor View | ||
Map View | ||
Dashboard | ||
Traffic Monitoring | ||
Cable Diagnostics |
PSGS-1610F Web Smart+ Managed GbE PoE Switch
PSGS-1610F Web Smart+ Managed PoE Switch is a next-generation Ethernet Switch offering powerful L2 features, Layer 3 Static Route, better PoE functionality and usability that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
PSGS-1610F delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 130W) ports, 1 (10M/100M/1G) RJ45 port and 1 GbE SFP port. PSGS-1610F provides high HW performance and environment flexibility for SMBs and Enterprises.
PSGS-1610F is ideal to deliver management simplicity, optimum user experience, and lowest cost. The embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- IPv4/IPv6 Management
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet application
Benefits
The switch delivers advanced functionality in Web Smart+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has basic security features such as Access Control List, RADIUS and IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE switch, and provide ease of use for enterprise and SMB deployments.
[/accordionitem]
[accordionitem]
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.
[/accordionitem]
[accordionitem]
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
[/accordionitem]
[accordionitem]
The 10-Port GbE model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
[/accordionitem][/cq_vc_accordion]
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
---|---|---|---|
10 | 9 | 1 SFP | — |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
14.88 | 20 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
220x 44x 242 | 8.7x 1.7x 9.5 | 2.3 | 5.1 | 10% to 90% non-condensing |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
PoE Power Capacity
Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
---|---|
130W | Each of port 1 – 8 support PoE/ PoE+ within available PoE Power |
Certification
Electromagnetic Emissions (EMC) |
---|
CN61000-4-5 (for RJ45 Port, Surge 6KV) |
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |
---|---|
Spanning Tree Protocol (STP) |
|
Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad
|
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
|
IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups |
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router |
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. |
Device Management System (DMS) | |
Graphical Monitoring |
|
Find my Switch | Search your real switches quickly and manage directly. |
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches. |
Trouble Shooting |
|
Layer 3 Switching | |
IPv4 Static Routing | IPv4 Unicast: Static routing |
IPv6 Static Routing | IPv6 Unicast: Static routing |
Security | |
Secure Shell (SSH) | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported |
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch |
IEEE 802.1X |
|
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks |
Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses |
Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port |
Quality of Service | |
Hardware Queue | Supports 8 hardware queues |
Scheduling |
|
Classification |
|
Rate Limiting |
|
Management | |
DHCP Server | Support DHCP server to assign IP to DHCP clients |
Zero Touch Upgrade | Upgrade single switch automatically when you get notification |
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported |
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play |
IEEE 802.1ab (LLDP) |
|
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration |
Dual Image | Independent primary and secondary images for backup while upgrading |
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) |
Firmware Upgrade |
|
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched |
Other Management |
|
Power over Ethernet (PoE) | |
Port Configuration | Supports per port PoE configuration function |
PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs) |
Auto-checking | Check the link status of PDs. Reboot PDs if there is no response |
Power Delay | The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs |
GS-1600 Web Smart+ Managed GbE Switches
GS-1600 series Web Smart+ Managed PoE Switches is a next-generation Ethernet Switch having basic Layer 3 static routing that delivers the cost-effectively business and transports Ethernet services via fiber or copper connections.
The GS-1600 series consists of 6 non-PoE models which are GS-1652X, GS-1628X, GS-1626G, GS-1626, GS-1610G and GS-1610, and 12 PoE models which are PSGS-1652XL/F, PSGS-1628XL/F, PSGS-1626GL/F, PSGS-1626L/F, PSGS-1610GF/H and PSGS-1610F/H with different available PoE power. These switches provides high HW performance and environment flexibility for SMBs and Enterprises.
They are ideal to deliver management simplicity, optimum user experience, and lowest cost. The free embedded Device Managed System is designed to be extremely easy-to-use/manage/install IP Phone, IP Cam, or Wifi-AP for Enterprise Applications.
Key Features
- Web Smart+ features provide easier manageability, basic security and QoS
- Built in Device Management System (DMS)
- DHCP Server
- IPv4/IPv6 L3 static route
- PoE Port configuration and scheduling
- 802.3at high power PoE plus standard
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Cost-effective Ethernet Switch for Enterprise-class
The switch delivers advanced functionality in Web Smart+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has basic security features such as ACL, RADIUS and IEEE 802.1x to protect your network from unauthorized access.
It helps users to build on the market-leading price/performance with Web Smart+ managed GbE PoE switch, and provide ease of use for enterprise and SMB deployments.
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.
-
Lower Total Cost of Ownership (TCO) with Energy-efficient Design
It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment. -
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 10M/100M/1G | Uplinks | Console | Available PoE Power |
---|---|---|---|---|---|
GS-1626G | 26 | 24 | 2 RJ45/SFP combo | -- | -- |
GS-1626 | 26 | 24 | 2 SFP | -- | -- |
GS-1610G | 10 | 8 | 2 RJ45/SFP combo | -- | -- |
GS-1610 | 10 | 9 | 1 SFP | -- | -- |
PSGS-1626GL | 26 | 24 | 2 RJ45/SFP combo | -- | 185W |
PSGS-1626GF | 26 | 24 | 2 RJ45/SFP combo | -- | 370W |
PSGS-1626L | 26 | 24 | 2 SFP | -- | 185W |
PSGS-1626F | 26 | 24 | 2 SFP | -- | 370W |
PSGS-1610GF | 10 | 8 | 2 RJ45/SFP combo | -- | 130W |
PSGS-1610GH | 10 | 8 | 2 RJ45/SFP combo | -- | 250W |
PSGS-1610F | 10 | 9 | 1 SFP | -- | 130W |
PSGS-1610H | 10 | 9 | 1 SFP | -- | 250W |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (K) |
---|---|---|---|---|
GS-1626G | 38.688 | 52 | 8 | 9 |
GS-1626 | 38.688 | 52 | 8 | 9 |
GS-1610G | 14.88 | 20 | 8 | 9 |
GS-1610 | 14.88 | 20 | 8 | 9 |
PSGS-1626GL | 38.688 | 52 | 32 | 9 |
PSGS-1626GF | 38.688 | 52 | 32 | 9 |
PSGS-1626L | 38.688 | 52 | 8 | 9 |
PSGS-1626F | 38.688 | 52 | 8 | 9 |
PSGS-1610GF | 14.88 | 20 | 8 | 9 |
PSGS-1610GH | 14.88 | 20 | 8 | 9 |
PSGS-1610F | 14.88 | 20 | 8 | 9 |
PSGS-1610H | 14.88 | 20 | 8 | 9 |
Environmental Range
Operating Temperature | Storage Temperature | Altitude | |||
---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
Dimension, Weights, Humidity
Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
GS-1626G | 442x44x211 | 17.4x1.7x8.3 | 2.4 | 5.3 | 10% to 90% non-condensing |
GS-1626 | 442x44x211 | 17.4x1.7x8.3 | 2.4 | 5.3 | |
GS-1610G | 220x44x134 | 8.7x1.7x5.28 | 1.4 | 3.1 | |
GS-1610 | 220x44x134 | 8.7x1.7x5.28 | 1.4 | 3.1 | |
PSGS-1626GL | 442x44x211 | 17.4x1.7x8.3 | 2.5 | 5.5 | |
PSGS-1626GF | 442x44x211 | 17.4x1.7x8.3 | 2.7 | 5.9 | |
PSGS-1626L | 442x44x211 | 17.4x1.7x8.3 | 2.5 | 5.5 | |
PSGS-1626F | 442x44x211 | 17.4x1.7x8.3 | 2.7 | 5.9 | |
PSGS-1610GF | 220x44x242 | 8.7x1.7x9.53 | 2.3 | 5.1 | |
PSGS-1610GH | 220x44x242 | 8.7x1.7x9.53 | 2.3 | 5.1 | |
PSGS-1610F | 220x44x242 | 8.7x1.7x9.53 | 2.3 | 5.1 | |
PSGS-1610H | 220x44x242 | 8.7x1.7x9.53 | 2.3 | 5.1 |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
Voltage | 100-240 VAC |
Frequency | 50~60 Hz |
PoE Power Capacity
Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
---|---|---|
PSGS-1626GL | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1626GF | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1626L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1626F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-1610GF | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-1610GH | 250W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-1610F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
PSGS-1610H | 250W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Layer 2 Switching | |||
---|---|---|---|
Spanning Tree Protocol (STP) |
| ||
Trunking | Link Aggregation Control Protocol (LACP) IEEE 802.3ad
| ||
VLAN | Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
| ||
IGMP v1/v2/v3 snooping | IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups | ||
IGMP Querier | IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router | ||
IGMP Proxy | IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router. | ||
Device Management System (DMS) | |||
Graphical Monitoring |
| ||
Grouping |
| ||
Find my Switch | Search your real switches quickly and manage directly. | ||
Traffic Monitoring | Display visual chart of network traffic of all devices and monitor every port at any time from switches. | ||
Trouble Shooting |
| ||
Maintenance |
| ||
Layer 3 Switching | |||
IPv4 Static Routing | IPv4 Unicast: Static routing | ||
IPv6 Static Routing | IPv6 Unicast: Static routing | ||
Security | |||
Secure Shell (SSH) Protocol | SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported | ||
Secure Sockets Layer (SSL) | SSL encrypts the http traffic, allowing advanced secure access to the browser-based management GUI in the switch | ||
IEEE 802.1X |
| ||
Layer 2 Isolation Private VLAN Edge | PVE (also known as protected ports) provides L2 isolation between clients in the same VLAN. Supports multiple uplinks | ||
Port Security | Locks MAC Addresses to ports, and limits the number of learned MAC addresses | ||
Storm control | Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port | ||
Quality of Service | |||
Hardware Priority Queue | Supports 8 hardware queues | ||
Scheduling |
| ||
Classification |
| ||
Rate Limiting |
| ||
Management | |||
DHCP Server | Support DHCP server to assign IP to DHCP clients | ||
Remote Monitoring (RMON) | Embedded RMON software agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis | ||
Port Mirroring | Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported. | ||
UPnP | The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play | ||
s-Flow | The industry standard technology for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats | ||
IEEE 802.1ab (LLDP) |
| ||
Web GUI Interface | Built-in switch configuration utility for browser-based device configuration (HTTP/ HTTPs). Supports configuration, system dashboard, maintenance, and monitoring | ||
Dual Image | Dual image provides independent primary and secondary OS files for backup while upgrading | ||
SNMP | SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM) | ||
Firmware Upgrade | Web browser upgrade (HTTP/ HTTPs) and TFTP | ||
NTP | Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched | ||
Other Management |
| ||
Power over Ethernet (PoE) | |||
Port Configuration | Supports per port PoE configuration function | ||
PoE Scheduling | Supports per port PoE scheduling to turn on/off the PoE devices (PDs). | ||
Auto-checking | Check the linking status between PoE ports and PDs. When it detected the PDs without response, PoE port will reboot remote PD automatically | ||
Power Delay | The PoE port will start to provide power to the PD depending on delay time when PoE switch reboots. To avoid all the PDs require power from PoE switch simultaneously |
Download
Product Specification
Product Datasheet
Series Product Datasheet
Quick Installation Guide
