PSGS-2828XBH (740W)

PSGS-2828XBH

Product Overview


PSGS-2828XBH L2+ managed GbE PoE+ switch is the next-generation Ethernet Switches offering full suite of L2 features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3 features such as Static Route. In addition to the extensive management features, PSGS-2828XBH also provide carrier Ethernet features such as ERPS/EPS/PTPv2, of which make them suitable for carrier Ethernet applications.

PSGS-2828XBH delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3at/af, and total up to 740W) ports, 4 10GbE SFP+ ports and RJ45 Console port. PSGS-2828XBH provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-2828XBH is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

PSGS-2828XBH
Key Features Customer Benefits
Comprehensive L2 Support Provided comprehensive L2 switching capabilities with easy-to-use management to move your data smoother and faster
Carrier Ethernet Support Provided the ideal combination of afford-ability and capabilities for Carrier networking (ERPS, EPS, PTPv2)
Ethernet Ring Protocol Switching (ITU G.8032) Provided link redundancy ability to reduce networking service risks and guarantee network service risks and guarantee network service availability

Specification


MODEL NAME PSGS-2828XBH
Product Description 28 ports GbE/10GbE
L2+ Managed PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
--
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
4
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
RJ45
Total Ports
28

PoE Function

IEEE802.3at (PoE+ 30W)
blank
IEEE802.3af (PoE 15.4W)
blank
UPoE(60W)
--
PoE++ 90W
--
PoE Port
24
Available PoE Power
740W

HW Performance

Switching Bandwidth
128Gbps
Forwarding Performance
95.238Mpps
MAC Address
32K
Jumbo Frames
10240 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
5 to 95% RH
Storage Temperature
-20 to 70°C
Storage Humidity
5 to 95% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
3.8 Kg
FAN Less
--

Power Source

AC Input
100-240 V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

L2 Switching

Spanning Tree
IEEE802.1D (STP)
blank
IEEE802.1W (RSTP)
blank
IEEE802.1S (MSTP)
blank
VLAN
802.1Q VLAN
blank
Port-Based
blank
VLAN Entries
4K
Private VLAN
blank
Voice VLAN
blank
Guest VLAN
blank
Q-in-Q
blank
802.1v Protocol VLAN
blank
MAC-Based VLAN
blank
IP Subnet-Based VLAN
blank
IEEE 802.3ad LACP
Dynamic Trunk
blank
Static Trunk
blank
GARP/GVRP
blank
IGMP Snooping
blank
MLD Snooping
blank
Multicast VLAN Registration (MVR)
--

L3 Features

Static Route
blank
DHCP Server
blank
Dynamic Routing
--

QoS Features

Class of Service
Port Based
blank
802.1p
blank
DSCP
blank
TCP/UDP Port
blank
Rate Limiting
Ingress
blank
Egress
blank
Priority Queue Scheduling
WRR
blank
Stri Priority
blank
Hardware Queues
8

Security

ACLs
L2/L3/L4
blank
IPv6 Support
blank
Port Security (MAC-based)
blank
IP Source Guard
blank
Storm Control
blank
RADIUS Authentication 802.1x
blank
TACACS+ Authentication
blank
HTTPs and SSL (Secured Web)
blank
BPDU Guard
blank
STP Root Guard
blank
DHCP Snooping
blank
Loop Protection
blank

Management

DHCP
Client
blank
Relay
blank
Option 66
blank
Option 67
blank
Option 82
blank
Event/Error Log
Syslog
blank
SMTP (RFC821)
--
Management Access Filtering
SNMP
blank
Web UI
blank
Telnet
blank
SSH
blank
PoE Management
Scheduling
blank
Auto-Checking
blank
Power Delay
blank
Soft-Reboot PoE Non-stop
blank
SNMP (v1, v2c, v3)
blank
RMON (1,2,3 & 9 Groups)
blank
Software Upgrade
blank
Configuration Export/Import
blank
Port Mirroring
blank
LLDP (IEEE802.1AB)
blank
LLDP-MED (IEEE802.1AB)
blank
CDP Aware
--
sFlow
blank
IPv6 Management
blank
NTP
blank
First Time Wizard
--

Carrier Ethernet

SyncE
--
1588v2 PTP
blank
G.8265.1/G.8275.1/G.8275.2
--
1588v2 PTP (stratum3)
--
OAM (IEEE802.3ah)
--
CFM (IEEE802.1ag)
--
PM (ITU-T Y.1731)
--
ELPS (ITU-T G.8031)
blank
ERPS (ITU-T G.8032)
blank
Rapid-Ring
--
RFC2544
--
Y.1564
--

Device Management System

Device Management
Topology View
blank
Floor View
blank
Map View
blank
Dashboard
blank
Traffic
blank
Monitoring
blank
Cable
blank
Diagnostics
blank

PSGS-2828XBH L2+ Managed GbE Switch

PSGS-2828XBH L2+ managed GbE PoE+ switch is the next-generation Ethernet Switches offering full suite of L2 features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3 features such as Static Route. In addition to the extensive management features, PSGS-2828XBH also provide carrier Ethernet features such as ERPS/EPS/PTPv2, of which make them suitable for carrier Ethernet applications.

PSGS-2828XBH delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3at/af, and total up to 740W) ports, 4 10GbE SFP+ ports and RJ45 Console port. PSGS-2828XBH provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-2828XBH is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS
  2. Built in Device Management System (DMS)
  3. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  4. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  5. IEEE 1588v2 PTP
  6. DHCP Server
  7. IPv4/IPv6 Management
  8. PoE Port configuration and scheduling
  9. IEEE 802.3af/at/UPoE/ PoE++ Power over Ethernet
  10. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and Access Control List guard your network from unauthorized access.

It helps users to build on the market-leading price/performance with L2+ Managed GbE switch, and provide secure, reliable and ease of use for enterprise and SMB deployments.

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP, etc.) for end-users to enhance manageability and save your time/cost by detecting/configuring various types of devices automatically.

The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

It is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks Console
28 24 4 SFP+ RJ45

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
95.238 128 32 10240

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(Bytes)
95.238 128 32 10240

Environmental Range

Operating Temperature Storage Temperature Operating Humidity Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 95%, Non-condensing <10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 <3.8 <8.36 Desktop, Rack

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
740W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A, Others by Request

Software Features

Ring Management
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d: Spanning Tree Protocol is an OSI layer-2 protocol which ensures a loop free topology for any bridged LAN
  • Rapid Spanning Tree (RSTP) 802.1w: Rapid Spanning Tree Protocol, which provides for faster spanning tree convergence after a topology change
  • Multiple Spanning Tree (MSTP) 802.1s: Multiple Spanning Tree Protocol. The MSTP protocol provides for multiple spanning tree instances
VLAN
  • 802.1Q tag-based VLAN: Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN: A port member of a VLAN can be isolated to other isolated ports on the same VLAN and Private VLAN
  • Private VLAN Edge (PVE): Private VLANs are based on the source port mask, and there are no connections to VLANs. This means that VLAN IDs and Private VLAN IDs can be identical
  • Voice VLAN: The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN
  • Guest VLAN: The IEEE 802.1X Guest VLAN feature allows a guest VLAN to be configured for each 802.1X port on the device to provide limited services to non-802.1X-compliant clients
  • Q-in-Q (double tag) VLAN: Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be supported
  • 802.1v Protocol VLAN: Classifying multiple protocols into a single VLAN often imposes VLAN boundaries that are inappropriate for some of the protocols, requiring the presence of a non-standard entity to relay between VLANs the frames bearing the protocols for which the VLAN boundaries are inappropriate
  • MAC-based VLAN: The MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and thus classify traffic based on the source MAC address of the packet
  • IP Subnet-Based VLAN: In an IP subnet–based VLAN, all the end workstations in an IP subnet are assigned to the same VLAN. In this VLAN, users can move their workstations without reconfiguring their network addresses
  • Management VLAN: Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc
LACP Trunking
    Link Aggregation Control Protocol (LACP) IEEE 802.3ad: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner

  • Up to 14 groups
  • Up to 16 ports per group
GARP VLAN Registration Protocol (GVRP/GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification
  • Port based: Traffic QoS by Port
  • 802.1p: VLAN priority based Layer 2 CoS QoS, Class of service is a parameter used in data and voice protocols to differentiate the types of payloads contained in the packet being transmitted
  • DSCP based Differentiated Services (DiffServ) Layer 3 DSCP QoS: IP packets can carry either an IP precedence (IPP) value or a Differentiated Services Code Point (DSCP) value. QoS supports the use of either value because DSCP values are backward-compatible with IP precedence values
  • Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting
  • Ingress policer
  • Strict priority and weighted round-robin (WRR): Weighted Round Robin is a scheduling algorithm that uses weights assigned to queues to determine how much data will be emptied from a queue before moving to the next queue
Scheduling
  • Strict priority and weighted round-robin (WRR)
Security
ACLs
  • Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
HTTPs and SSL
(Secured Web)
Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP
BPDU Guard The BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network. It enforces the STP domain borders and keeps the active topology predictable by not allowing any network devices behind a BPDU guard-enabled port to participate in STP
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Management
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP
  • DHCP Server: Support DHCP server to assign IP to DHCP clients
  • DHCP client: The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on Internet Protocol (IP) networks for dynamically distributing network configuration parameters, such as IP addresses for interfaces and services
Event/Error Log Support SNMP Trap/Syslog/SMTP
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
Configuration Export/Import update of the firmware controlling the switch
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED (ANSI/TIA-1057) extensions
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Switch Management
  • HTTP/HTTPs
  • SSH
  • DHCP Client/ DHCPv6 Client
  • Telnet
  • IPv6 management
Diagnostics
  • Cable diagnostics
  • Ping
  • Syslog
Device Management System (DMS)

Graphical

Monitoring

  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces.
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
  • Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
Soft-Reboot PoE Non-stop The switch will keep providing power to the PDs while during soft-reboot

GS-2800 and PSGS-2800 Series L2+ Managed GbE Switches

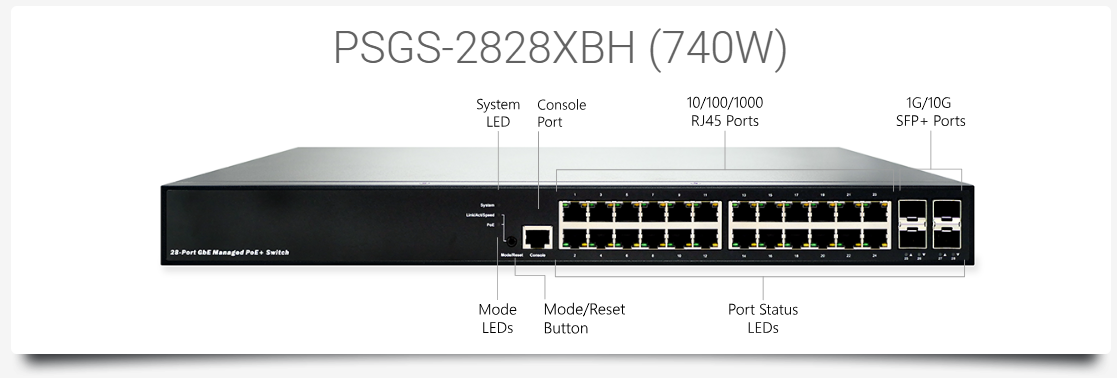

PSGS-2828XBH L2+ managed GbE PoE+ switch is the next-generation Ethernet Switches offering full suite of L2 features, additional 10GbE uplink connections, better PoE functionality and usability, including advanced L3 features such as Static Route. In addition to the extensive management features, PSGS-2828XBH also provide carrier Ethernet features such as ERPS/EPS/PTPv2, of which make them suitable for carrier Ethernet applications.

PSGS-2828XBH delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3at/af, and total up to 740W) ports, 4 10GbE SFP+ ports and RJ45 Console port. PSGS-2828XBH provides high HW performance and environment flexibility for SMBs and Enterprises.

The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. PSGS-2828XBH is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.

Key Features


  1. L2+ Managed features provide easier manageability, robust security and QoS
  2. Built in Device Management System (DMS)
  3. ITU-T G.8031 Ethernet Linear Protection Switching (EPS)
  4. ITU-T G.8032 Ethernet Ring Protection Switching (ERPS)
  5. IEEE 1588v2 PTP
  6. DHCP Server
  7. IPv4/IPv6 Management
  8. PoE Port configuration and scheduling
  9. IEEE 802.3af/at/UPoE/ PoE++ Power over Ethernet
  10. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet

Benefits


The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

The switch delivers advanced functionality in L2+ managed switch including Layer 3 static route, DHCP server, IPv6 support, LLDP, etc. It also has comprehensive security features such as IP source guard and ACL to guard your network from unauthorized access.

It helps users to build on the market-leading price/performance with L2+ Managed GbE PoE switch, and provide secure, reliable and ease of use for enterprise/SMB deployments.

The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.

It supports various IP device types (e.g. IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.

It is designed to help customers to reduce power consumption and lower the TCO by Energy Efficient Ethernet (IEEE 802.3az) features. It can be used for customers to build a green Ethernet networking environment.

Specifications


Port Configuration

Model Name Total Ports RJ45 (10M/100M/1G) Uplinks Console Available PoE Power
GS-2852B 52 48 4 SFP RJ45
GS-2852XB 52 48 4 SFP+ RJ45
GS-2828XB 28 24 4 SFP+ RJ45
GS-2810XA 10 8 2 SFP+ RJ45
PSGS-2852BL 52 48 4 SFP RJ45 370W
PSGS-2852BF 52 48 4 SFP RJ45 740W
PSGS-2852BF 52 48 4 SFP RJ45 740W
PSGS-2852XBL 52 48 4 SFP+ RJ45 370W
PSGS-2852XBF 52 48 4 SFP+ RJ45 740W
PSGS-2828XBL 28 24 4 SFP+ RJ45 185W
PSGS-2828XBF 28 24 4 SFP+ RJ45 370W
PSGS-2828XBH 28 24 4 SFP+ RJ45 740W
PSGS-2810XAF 10 8 2 SFP+ RJ45 130W
PSGS-2810XAH 10 8 2 SFP+ RJ45 250W

Hardware Performance

Model Name Forwarding Capacity
(Mpps)
Switching Capacity
(Gbps)
Mac Table
(K)
Jumbo Frames
(Bytes)
GS-2852B 77.3 104 32 10240
GS-2852XB 130.944 176 32 10240
GS-2828XB 95.238 128 32 10240
GS-2810XA 41.666 56 16 10240
PSGS-2852BL 77.3 104 32 10240
PSGS-2852BF 77.3 104 32 10240
PSGS-2852BF 130.944 176 32 10240
PSGS-2852XBL 130.944 128 32 10240
PSGS-2852XBF 95.238 128 32 10240
PSGS-2828XBL 95.238 128 32 10240
PSGS-2828XBF 95.238 24 32 10240
PSGS-2828XBH 95.238 128 32 10240
PSGS-2810XAF 41.666 56 16 10240
PSGS-2810XAH 41.666 56 16 10240

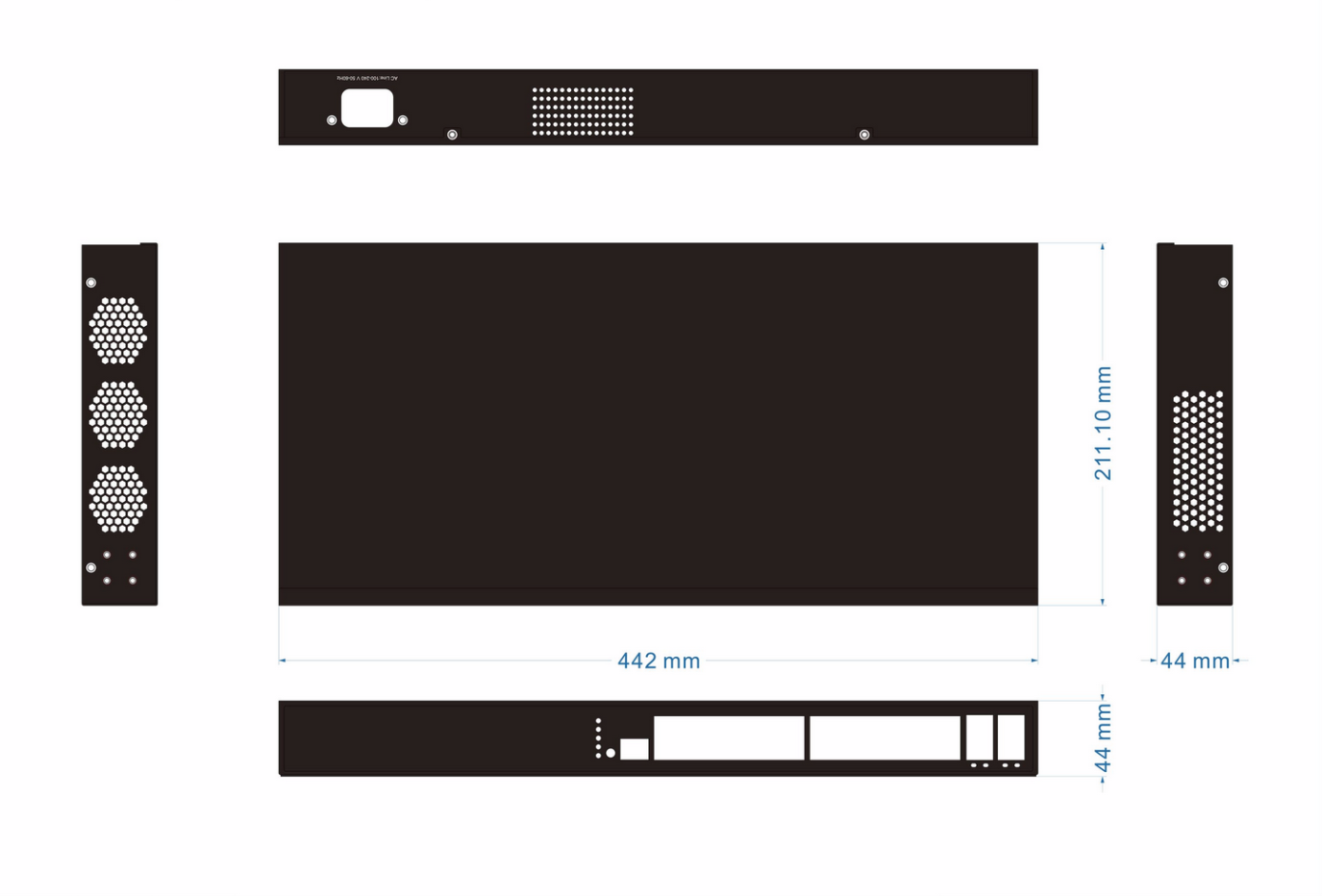

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-2852B 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
GS-2852XB 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
GS-2828XB 442x44x211 17.4×1.7×8.3 <3.8 <8.36 Desktop, Rack
GS-2810XA 220x44x242 8.7×1.7×9.53 <2.3 <5.1 Desktop, Wall
PSGS-2852BL 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
PSGS-2852BF 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
PSGS-2852XBL 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
PSGS-2852XBF 442x44x375 17.4×1.7×14.8 <5.62 <12.39 Desktop, Rack
PSGS-2828XBL 442x44x211 17.4×1.7×8.3 <3.8 <8.36 Desktop, Rack
PSGS-2828XBF 442x44x211 17.4×1.7×8.3 <3.8 <8.36 Desktop, Rack
PSGS-2828XBH 442x44x211 17.4×1.7×8.3 <3.8 <8.36 Desktop, Rack
PSGS-2810XAF 220x44x242 8.7×1.7×9.53 <2.3 <5.1 Desktop, Wall
PSGS-2810XAH 220x44x242 8.7×1.7×9.53 <2.3 <5.1 Desktop, Wall

PoE Power Capacity

Model Name Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-2852BL 370W Each of port 1 – 48 support PoE/ PoE+ within available PoE Power
PSGS-2852BF 740W Each of port 1 – 48 support PoE/ PoE+ within available PoE Power
PSGS-2852XBL 370W Each of port 1 – 48 support PoE/ PoE+ within available PoE Power
PSGS-2852XBF 740W Each of port 1 – 48 support PoE/ PoE+ within available PoE Power
PSGS-2828XBL 185W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power
PSGS-2828XBF 370W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power
PSGS-2828XBH 740W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power
PSGS-2810XAF 130W Each of port 1 – 8 support PoE/ PoE+ within available PoE Power
PSGS-2810XAH 250W Each of port 1 – 8 support PoE/ PoE+ within available PoE Power

Certifications

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A, Others by Request

Software features

Ring Management
ITU-T G.8031 Supports ITU-T G.8031 Ethernet Linear Protection Switching
ITU-T G.8032 Supports ITU-T G.8032 Ethernet Ring Protection Switching
Layer 2 Switching
Spanning Tree Protocol (STP)
  • Standard Spanning Tree 802.1d: Spanning Tree Protocol is an OSI layer-2 protocol which ensures a loop free topology for any bridged LAN
  • Rapid Spanning Tree (RSTP) 802.1w: Rapid Spanning Tree Protocol, which provides for faster spanning tree convergence after a topology change
  • Multiple Spanning Tree (MSTP) 802.1s: Multiple Spanning Tree Protocol. The MSTP protocol provides for multiple spanning tree instances
VLAN
  • 802.1Q tag-based VLAN: Supports up to 4K VLANs simultaneously (out of 4096 VLAN IDs)
  • Port-based VLAN: A port member of a VLAN can be isolated to other isolated ports on the same VLAN and Private VLAN
  • Private VLAN Edge (PVE): Private VLANs are based on the source port mask, and there are no connections to VLANs. This means that VLAN IDs and Private VLAN IDs can be identical
  • Voice VLAN: The Voice VLAN feature enables voice traffic forwarding on the Voice VLAN
  • Guest VLAN: The IEEE 802.1X Guest VLAN feature allows a guest VLAN to be configured for each 802.1X port on the device to provide limited services to non-802.1X-compliant clients
  • Q-in-Q (double tag) VLAN: Business customers of service providers often have specific requirements for VLAN IDs and the number of VLANs to be supported
  • 802.1v Protocol VLAN: Classifying multiple protocols into a single VLAN often imposes VLAN boundaries that are inappropriate for some of the protocols, requiring the presence of a non-standard entity to relay between VLANs the frames bearing the protocols for which the VLAN boundaries are inappropriate
  • MAC-based VLAN: The MAC-based VLAN feature allows incoming untagged packets to be assigned to a VLAN and thus classify traffic based on the source MAC address of the packet
  • IP Subnet-Based VLAN: In an IP subnet–based VLAN, all the end workstations in an IP subnet are assigned to the same VLAN. In this VLAN, users can move their workstations without reconfiguring their network addresses
  • Management VLAN: Management VLAN is used for managing the switch from a remote location by using protocols such as telnet, SSH, SNMP, syslog etc
LACP Trunking
    Link Aggregation Control Protocol (LACP) IEEE 802.3ad: Controls whether LACP is enabled on this switch port. LACP will form an aggregation when 2 or more ports are connected to the same partner

  • Up to 14 groups
  • Up to 16 ports per group
GARP VLAN Registration Protocol (GVRP/GVRP) GVRP stands for GARP (Generic Attribute Registration Protocol) VLAN Registration Protocol. It’s a Layer 2 network protocol, for automatic configuration of switches in a VLAN network
DHCP Relay
  • Relay of DHCP traffic to DHCP server in different VLAN.
  • Works with DHCP Option 82
IGMP v1/v2/v3 snooping IGMP limits bandwidth-intensive multicast traffic to only the requesters. Supports 1024 multicast groups
IGMP Querier IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router
IGMP Proxy IGMP snooping with proxy reporting or report suppression actively filters IGMP packets in order to reduce load on the multicast router.
MLD v1/v2 snooping Delivers IPv6 multicast packets only to the required receivers
Multicast VLAN Registration (MVR) It uses a dedicated manually configured VLAN, called the multicast VLAN, to forward multicast traffic over Layer 2 network in conjunction with IGMP snooping
Layer 3 Switching
IPv4 Static Routing IPv4 Unicast: Static routing
IPv6 Static Routing IPv6 Unicast: Static routing
Quality of Service
Hardware Queue Supports 8 hardware queues
Classification
  • Port based: Traffic QoS by Port
  • 802.1p: VLAN priority based Layer 2 CoS QoS, Class of service is a parameter used in data and voice protocols to differentiate the types of payloads contained in the packet being transmitted
  • DSCP based Differentiated Services (DiffServ) Layer 3 DSCP QoS: IP packets can carry either an IP precedence (IPP) value or a Differentiated Services Code Point (DSCP) value. QoS supports the use of either value because DSCP values are backward-compatible with IP precedence values
  • Classification and re-marking TCP/IP ACLs: QoS by ACL
Rate Limiting
  • Ingress policer
  • Strict priority and weighted round-robin (WRR): Weighted Round Robin is a scheduling algorithm that uses weights assigned to queues to determine how much data will be emptied from a queue before moving to the next queue
Scheduling
  • Strict priority and weighted round-robin (WRR)
Security
ACLs
  • Supports up to 512 entries. Drop or rate limitation based on:
  • Source and destination MAC, VLAN ID or IP address, protocol, port
  • Differentiated services code point (DSCP) / IP precedence
  • TCP/ UDP source and destination ports
  • 802.1p priority
  • Ethernet type
  • Internet Control Message Protocol (ICMP) packets
  • TCP flag
Port Security Locks MAC Addresses to ports, and limits the number of learned MAC addresses
IP Source Guard Prevents illegal IP address from accessing to specific port in the switch
Storm control Prevents traffic on a LAN from being disrupted by a broadcast, multicast, or unicast storm on a port
IEEE 802.1X
  • IEEE802.1X: RADIUS authentication, authorization and accounting, MD5 hash, guest VLAN , single/multiple host mode and single/multiple sessions
  • Supports IGMP-RADIUS based 802.1X
  • Dynamic VLAN assignment
RADIUS/ TACACS+ Supports RADIUS and TACACS+ authentication. Switch as a client
Secure Shell (SSH) SSH secures Telnet traffic in or out of the switch, SSH v1 and v2 are supported
HTTPs and SSL
(Secured Web)
Hyper Text Transfer Protocol Secure (HTTPS) is the secure version of HTTP
BPDU Guard The BPDU guard, an enhancement to STP, removes a node that reflects BPDUs back in the network. It enforces the STP domain borders and keeps the active topology predictable by not allowing any network devices behind a BPDU guard-enabled port to participate in STP
DHCP Snooping A feature acts as a firewall between untrusted hosts and trusted DHCP servers
Loop Protection To prevent unknown unicast, broadcast and multicast loops in Layer 2 switching configurations.
Management
IEEE 1588v2 PTP Support IEEE 1588 v2 PTP (Precision Time Protocol)
DHCP
  • DHCP Server: Support DHCP server to assign IP to DHCP clients
  • DHCP client: The Dynamic Host Configuration Protocol (DHCP) is a standardized network protocol used on Internet Protocol (IP) networks for dynamically distributing network configuration parameters, such as IP addresses for interfaces and services
Event/Error Log Support SNMP Trap/Syslog/SMTP
SNMP SNMP version1, 2c and 3 with support for traps, and SNMP version 3 user-based security model (USM)
Remote Monitoring (RMON) Embedded RMON agent supports RMON groups 1,2,3,9 (history, statistics, alarms, and events) for enhanced traffic management, monitoring and analysis
Firmware Upgrade
  • Web browser upgrade (HTTP/ HTTPs) and TFTP
  • Upgrade through console port as well
Configuration Export/Import update of the firmware controlling the switch
Port Mirroring Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to N-1 (N is Switch’s Ports) ports can be mirrored to single destination port. A single session is supported
IEEE 802.1ab (LLDP)
  • Used by network devices for advertising their identities, capabilities, and neighbors on an IEEE 802ab local area network
  • Support LLDP-MED (ANSI/TIA-1057) extensions
UPnP The Universal Plug and Play Forum, an industry group of companies working to enable device-to-device interoperability by promoting Universal Plug and Play
CDP Aware The CDP operation is restricted to decoding incoming CDP frames (The switch doesn’t transmit CDP frames). CDP frames are only decoded if LLDP on the port is enabled
s-Flow The industry standard for monitoring high speed switched networks. It gives complete visibility into the use of networks enabling performance optimization, accounting/billing for usage, and defense against security threats
Web GUI Interface Built-in switch configuration utility for browser-based device configuration
CLI For users to configure/manage switches in command line modes
Dual Image Independent primary and secondary images for backup while upgrading
NTP Network Time Protocol (NTP) is a networking protocol for clock synchronization between computer systems over packet-switched
Switch Management
  • HTTP/HTTPs
  • SSH
  • DHCP Client/ DHCPv6 Client
  • Telnet
  • IPv6 management
Diagnostics
  • Cable diagnostics
  • Ping
  • Syslog
Device Management System (DMS)

Graphical

Monitoring

  • Topology view: Support intuitive way to configure and manage switches and devices with visual relations.
  • Floor view: It’s easy to drag and drop PoE devices and help you to build smart workforces.
  • Map view: Enhance efficiency to drag and drop devices and monitor surroundings on google map.
  • Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Find my Switch Search your real switches quickly and manage directly.
Traffic Monitoring Display visual chart of network traffic of all devices and monitor every port at any time from switches.
Trouble Shooting
  • Network diagnostic between master switch and devices.
  • Support protection mechanism, such as rate-limiting to protect your devices from brute-force downloading
Power over Ethernet (PoE)
Port Configuration Supports per port PoE configuration function
PoE Scheduling Supports per port PoE scheduling to turn on/off the PoE devices (PDs)
Auto-checking Check the link status of PDs. Reboot PDs if there is no responses
Power Delay The switch provides power to the PDs based on delay time when PoE switch boots up, in order to protect switch from misuse of the PDs
Soft-Reboot PoE Non-stop The switch will keep providing power to the PDs while during soft-reboot
