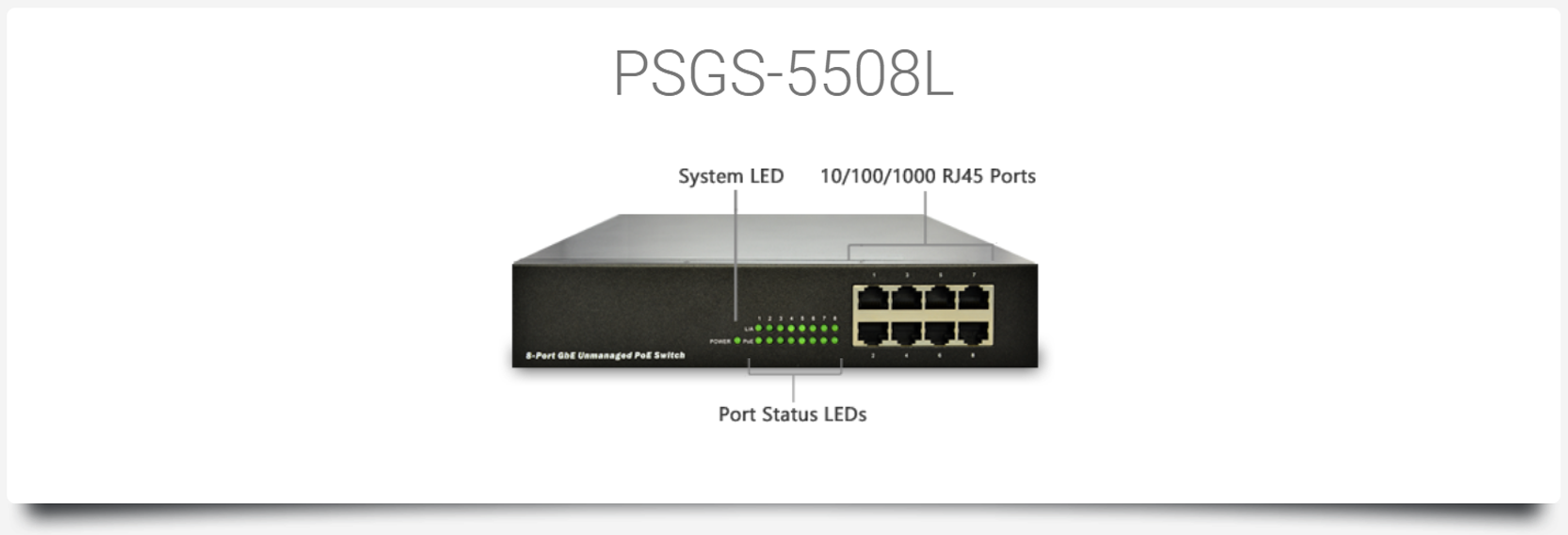

PSGS-5508L (65W)
Product Overview
PSGS-5508L Unmanaged PoE+ Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
PSGS-5508L delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 65W) ports. PSGS-5508L provides high HW performance and environment flexibility for SMBs and Enterprises.
PSGS-5508L is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
| Key Features | Customer Benefits |
|---|---|
| GbE Interfaces | All interfaces can deliver GbE bandwidth for Enterprise Applications |
| Green/Power Saving | Energy-saving capabilities save your money by lower power consumption |
Product Specification
| MODEL NAME | PSGS-5508L |
|---|---|
| Product Description | 8 ports GbE Unmanaged PoE+ Switch |
Port Configuration
10M/100M/1G RJ45 Port | 8 | |
100M/1G/2.5G RJ45 Port | -- | |
100M/1G/10G RJ45 Port | -- | |
100M/1G/2.5G/5G/10G RJ45 Port | -- | |
100M/1G SFP Port | -- | |
GbE RJ45/SFP Combo Port | -- | |
1G/2.5G SFP Port | -- | |
1G/10G SFP+ Port | -- | |
SFP28/QSFP+ Combo Port | -- | |
1G/10G/25G SFP28 Port | -- | |
QSFP+ (40G) | -- | |
SFP56 (50G) | -- | |
USB | -- | |
Console Port | -- | |
Total Ports | 8 |
|
PoE Function
IEEE802.3at (PoE+ 30W) | | |
IEEE802.3af (PoE 15.4W) | | |
UPoE(60W) | -- | |
IEEE802.3bt (PoE++ 90W) | -- | |
PoE Port | 8 | |
Available PoE Power | 65W |
|
HW Performance
Switching Bandwidth | 16Gbps | |
Forwarding Performance | 11.9Mpps | |
MAC Address | 8K | |
Jumbo Frames | 9216 Bytes |
|
Environmental Specification
Operating Temperature | 0°C to 40°C | |
Operating Humidity | 10 to 90% RH | |
Storage Temperature | -20 to 70°C | |
Storage Humidity | 10 to 90% RH |
|
Mechanical Specification
Dimensions (H) x (W) x (D) mm | 44 x 220 x 134 | |
Weight | 1.08 Kg | |
FAN Less | |
|
Power Source
AC Input | 100V-240V | |
DC Input | -- | |
Dual Input | -- |
|
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) | -- | |
Certifications | CE/FCC Class A Others by Request |
|
PSGS-5508L Unmanaged GbE PoE Switch
PSGS-5508L Unmanaged PoE+ Switch is a plug-and-play Ethernet Switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
PSGS-5508L delivers 8 (10M/100M/1G) RJ45/PoE+ (Support 802.3at/af, and total up to 65W) ports. PSGS-5508L provides high HW performance and environment flexibility for SMBs and Enterprises.
PSGS-5508L is ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
| Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
|---|---|---|---|
| 8 | 8 | — | — |
Hardware Performance
| Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (K) |
|---|---|---|---|
| 11.9 | 16 | 8 | 9 |
Environmental Range
| Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters |
| 32 to 104 | 0 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
Dimension Weights Humidity
| Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | |
| 220x 44 x 134 | 8.6x 1.7 x 5.3 | 0.8 | 1.76 | 10% to 90% , non-condensing |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | Frequency |
| 100-240 VAC | 50~60 Hz, internal , universal |
PoE and PoE+ Power Capacity
| Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|
| 65W | Each of port 1 – 8 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Quality of Service | |
|---|---|
| Classification |
|
| Rate Limiting |
|
Unmanaged GbE Switches GS-5500 & GS-5300 Series
Unmanaged series is plug-and-play Ethernet Switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
It consists of three models which are PSGS-5508L, PSGS-5508F and GS-5308. The series provides high HW performance and environment flexibility for SMBs and Enterprises.
They are ideal to provide entry-level networking for Enterprise Applications which demands GbE speed. The 802.1p traffic prioritization and jumbo frame support allow for seamless integration with more sophisticated networks.
Key Features
- GbE Interfaces
- Green/Power Saving
Benefits
-
GbE Interfaces
All interfaces including copper or fiber can deliver GbE bandwidth for backbone applications.
-
Green/Power Saving
Energy-saving capabilities save your money by lower power consumption.
Specifications
Port Configuration
| Model Name | Total Ports | RJ45 10M/100M/1G | Uplinks | Console | Available PoE Power |
|---|---|---|---|---|---|
| GS-5308 | 8 | 8 | -- | -- | -- |
| PSGS-5508L | 8 | 8 | -- | -- | 65W |
| PSGS-5508F | 8 | 8 | -- | -- | 130W |
Hardware Performance
| Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(K) |
|---|---|---|---|---|
| GS-5308 | 11.9 | 16 | 8 | 9 |
| PSGS-5508L | 11.9 | 16 | 8 | 9 |
| PSGS-5508F | 11.9 | 16 | 8 | 9 |
Environmental Range
| Model Name | Operating Temperature | Storage Temperature | Altitude | |||
|---|---|---|---|---|---|---|
| Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
| GS-5308 | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | <10000 | <3000 |
| PSGS-5508L | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | ||
| PSGS-5508F | 14 to 104 | -10 to 40 | -4 to 158 | -20 to 70 | ||
Dimension, Weights, Mounting
| Model Name | Dimension (WxHxD) | Weight | Operating Humidity | ||
|---|---|---|---|---|---|
| Millimeter | Inches | Kilograms | Pounds | ||
| GS-5308 | 197x35x120 | 7.76x1.38x4.72 | 0.8 | 1.76 | 10% to 90% non-condensing |
| PSGS-5508L | 220x44x134 | 8.6x1.7x5.3 | 0.8 | 1.76 | |
| PSGS-5508F | 220x44x242 | 8.6x1.7x9.5 | 0.8 | 1.76 | |
Voltage and Frequency
| AC Input Voltage and Frequency | |
|---|---|
| Voltage | Frequency |
| 100-240 VAC | 50~60 Hz |
PoE Power Capacity
| Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
|---|---|---|
| PSGS-5508L | 65W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
| PSGS-5508F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
Certification
| Electromagnetic Emissions (EMC) |
|---|
| CE, FCC Part 15 Class A |
Software Features
| Quality of Service | |
|---|---|
| Classification |
|
| Rate Limiting |
|
