PSGS-5526F (370W)

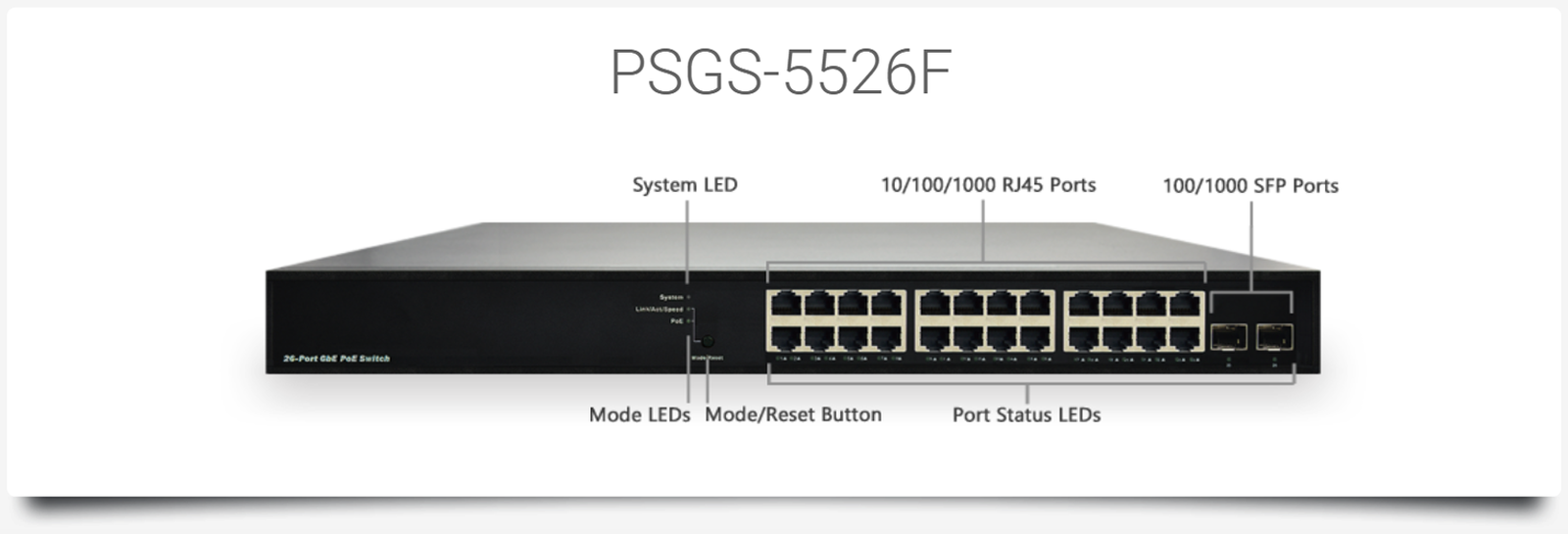

PSGS-5526F

Product Overview


PSGS-5526F unmanaged GbE PoE+ switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5526F delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3 at/af, and total up to 370W) ports and 2 GbE SFP ports. PSGS-5526F provides high HW performance and environment flexibility for SMBs and Enterprises.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption

Product Specification

MODEL NAME PSGS-5526F
Product Description 26 ports GbE Unmanaged PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
26

PoE Function

IEEE802.3at (PoE+ 30W)
blank
IEEE802.3af (PoE 15.4W)
blank
UPoE(60W)
--
IEEE802.3bt (PoE++ 90W)
--
PoE Port
24
Available PoE Power
370W

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.7Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
< 1.5 Kg
FAN Less
--

Power Source

AC Input
100V-240V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

PSGS-5526F Unmanaged GbE PoE+ Switch


PSGS-5526F unmanaged GbE PoE+ switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5526F delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3 at/af, and total up to 370W) ports and 2 GbE SFP ports. PSGS-5526F provides high HW performance and environment flexibility for SMBs and Enterprises.

Key Features


  1. IEEE 802.3u 100BASE-TX, 100Base-FX Fast Ethernet
  2. IEEE 802.3ab 1000Base-T Gigabit Ethernet
  3. IEEE 802.3z 1000Base-X Gigabit Fiber Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  5. IEEE 802.3af/at Power over Ethernet

Benefits


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

  • Advanced Power over Ethernet Management


    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(K)
38.7 52 8 9216

Environmental Range

Operating
Temperature
Storage
Temperature
Mounting
Type
Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 <3 <6.6 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

GS-5500 and PSGS-5500 Series
Unmanaged GbE Switches


The GS-5500 and PSGS-5500 series unmanaged GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

The GS-5500 and PSGS-5500 series consist of 3 non-PoE models which are GS-5526, GS-5524 and GS-5508, and 5 PoE+ models which are PSGS-5526L, PSG-5526F, PSGS-5524L, PSGS-5524F and PSGS-5508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

Key Features


  1. IEEE 802.3u 100BASE-TX, 100Base-FX Fast Ethernet
  2. IEEE 802.3ab 1000Base-T Gigabit Ethernet
  3. IEEE 802.3z 1000Base-X Gigabit Fiber Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  5. IEEE 802.3af/at Power over Ethernet

Benefits


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Available PoE Power
GS-5526 26 24 2 SFP -- --
GS-5524 24 24 -- -- --
GS-5508 8 8 -- -- --
PSGS-5526L 26 24 2 SFP -- 185W
PSGS-5526F 26 24 2 SFP   370W
PSGS-5524L 24 24 -- -- 185W
PSGS-5524F 24 24 -- -- 370W
PSGS-5508NF 8 8 -- -- 60W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
GS-5526 38.688 52 8 9216
GS-5524 35.712 48 8 9216
GS-5508 11.904 16 8 9216
PSGS-5526L 38.7 52 8 9216
PSGS-5526F 38.7 52 8 9216
PSGS-5524L 35.712 48 8 9216
PSGS-5524F 35.712 48 8 9216
PSGS-5508NF 11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating
Humidity
Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-5526 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-5524 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-5508 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall
PSGS-5526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5524L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5524F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage 100-240 VAC
Frequency 50~60 Hz

PoE Power Capacity

Model Name Available
PoE Power
Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-5526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5524L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5524F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

Download


Product Specification

Product Datasheet

Series Product Datasheet

+ Overview

Product Overview


PSGS-5526F unmanaged GbE PoE+ switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5526F delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3 at/af, and total up to 370W) ports and 2 GbE SFP ports. PSGS-5526F provides high HW performance and environment flexibility for SMBs and Enterprises.

Key Features Customer Benefits
GbE Interfaces All interfaces can deliver GbE bandwidth for Enterprise Applications
Green/Power Saving Energy-saving capabilities save your money by lower power consumption
+ Specification

Product Specification

MODEL NAME PSGS-5526F
Product Description 26 ports GbE Unmanaged PoE+ Switch

Port Configuration

10M/100M/1G RJ45 Port
24
100M/1G/2.5G RJ45 Port
--
100M/1G/10G RJ45 Port
--
100M/1G/2.5G/5G/10G RJ45 Port
--
100M/1G SFP Port
2
GbE RJ45/SFP Combo Port
--
1G/2.5G SFP Port
--
1G/10G SFP+ Port
--
SFP28/QSFP+ Combo Port
--
1G/10G/25G SFP28 Port
--
QSFP+ (40G)
--
SFP56 (50G)
--
USB
--
Console Port
--
Total Ports
26

PoE Function

IEEE802.3at (PoE+ 30W)
blank
IEEE802.3af (PoE 15.4W)
blank
UPoE(60W)
--
IEEE802.3bt (PoE++ 90W)
--
PoE Port
24
Available PoE Power
370W

HW Performance

Switching Bandwidth
52Gbps
Forwarding Performance
38.7Mpps
MAC Address
8K
Jumbo Frames
9216 Bytes

Environmental Specification

Operating Temperature
0°C to 50°C
Operating Humidity
10 to 90% RH
Storage Temperature
-20 to 70°C
Storage Humidity
10 to 90% RH

Mechanical Specification

Dimensions (H) x (W) x (D) mm
44 x 442 x 211
Weight
< 1.5 Kg
FAN Less
--

Power Source

AC Input
100V-240V
DC Input
--
Dual Input
--

Certifications

EN61000-4-5 (for RJ45 Port, Surge 6KV)
--
Certifications
CE/FCC Class A
Others by Request

+ Datasheet

PSGS-5526F Unmanaged GbE PoE+ Switch


PSGS-5526F unmanaged GbE PoE+ switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

PSGS-5526F delivers 24 (10M/100M/1G) RJ45 with 24 PoE+ (Support 802.3 at/af, and total up to 370W) ports and 2 GbE SFP ports. PSGS-5526F provides high HW performance and environment flexibility for SMBs and Enterprises.

Key Features


  1. IEEE 802.3u 100BASE-TX, 100Base-FX Fast Ethernet
  2. IEEE 802.3ab 1000Base-T Gigabit Ethernet
  3. IEEE 802.3z 1000Base-X Gigabit Fiber Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  5. IEEE 802.3af/at Power over Ethernet

Benefits


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design


    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.

  • Advanced Power over Ethernet Management


    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.

Specifications


Port Configuration

Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G/10G) Console
26 24 2 SFP

Hardware Performance

Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames
(K)
38.7 52 8 9216

Environmental Range

Operating
Temperature
Storage
Temperature
Mounting
Type
Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90%
non-condensing
<10000 <3000

Dimension Weights Humidity

Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
442x 44x 211 17.4x 1.7x 8.3 <3 <6.6 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage Frequency
100-240 VAC 50~60 Hz

PoE Power Capacity

Available PoE Power Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
370W Each of port 1 – 24 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

+ Series Datasheet

GS-5500 and PSGS-5500 Series
Unmanaged GbE Switches


The GS-5500 and PSGS-5500 series unmanaged GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

The GS-5500 and PSGS-5500 series consist of 3 non-PoE models which are GS-5526, GS-5524 and GS-5508, and 5 PoE+ models which are PSGS-5526L, PSG-5526F, PSGS-5524L, PSGS-5524F and PSGS-5508NF. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.

Key Features


  1. IEEE 802.3u 100BASE-TX, 100Base-FX Fast Ethernet
  2. IEEE 802.3ab 1000Base-T Gigabit Ethernet
  3. IEEE 802.3z 1000Base-X Gigabit Fiber Ethernet
  4. IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
  5. IEEE 802.3af/at Power over Ethernet

Benefits


  • Lowing Total Cost of Ownership (TCO) with Energy-efficient Design



    The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.


  • Advanced Power over Ethernet Management



    The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.


Specifications


Port Configuration

Model Name Total Ports RJ45 (10M/100M/1G) Uplinks (100M/1G) Console Available PoE Power
GS-5526 26 24 2 SFP -- --
GS-5524 24 24 -- -- --
GS-5508 8 8 -- -- --
PSGS-5526L 26 24 2 SFP -- 185W
PSGS-5526F 26 24 2 SFP   370W
PSGS-5524L 24 24 -- -- 185W
PSGS-5524F 24 24 -- -- 370W
PSGS-5508NF 8 8 -- -- 60W

Hardware Performance

Model Name Forwarding Capacity (Mpps) Switching Capacity (Gbps) Mac Table (K) Jumbo Frames (Bytes)
GS-5526 38.688 52 8 9216
GS-5524 35.712 48 8 9216
GS-5508 11.904 16 8 9216
PSGS-5526L 38.7 52 8 9216
PSGS-5526F 38.7 52 8 9216
PSGS-5524L 35.712 48 8 9216
PSGS-5524F 35.712 48 8 9216
PSGS-5508NF 11.904 16 8 9216

Environmental Range

Operating Temperature Storage Temperature Operating
Humidity
Altitude
Fahrenheit Centigrade Fahrenheit Centigrade Feet Meters
32 to 122 0 to 50 -4 to 158 -20 to 70 10% to 90% non-condensing <10000 <3000

Dimension, Weights, Mounting

Model Name Dimension (WxHxD) Weight Mounting Type
Millimeter Inches Kilograms Pounds
GS-5526 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-5524 280x44x166 11x1.7x6.5 <2.5 <5.5 Desktop, Wall
GS-5508 220x44x134 8.6x1.7x5.3 <1.5 <3.3 Desktop, Wall
PSGS-5526L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5526F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5524L 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5524F 442x44x211 17.4x1.7x8.3 <3 <6.6 Desktop, Rack
PSGS-5508NF 220x44x134 8.6x1.7x5.3 <2 <4.4 Desktop, Wall

Voltage and Frequency

AC Input Voltage and Frequency
Voltage 100-240 VAC
Frequency 50~60 Hz

PoE Power Capacity

Model Name Available
PoE Power
Number of Ports That Support PoE(15.4W) and PoE+(30.0W)
PSGS-5526L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5526F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5524L 185W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5524F 370W Each of port 1 - 24 support PoE/ PoE+ within available PoE Power
PSGS-5508NF 60W Each of port 1 - 4 support PoE/ PoE+ within available PoE Power

Certification

Electromagnetic Emissions (EMC)
CE, FCC Part 15 Class A

+ Download

Download


Product Specification

Product Datasheet

Series Product Datasheet
