Product Overview
GS-0524 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.

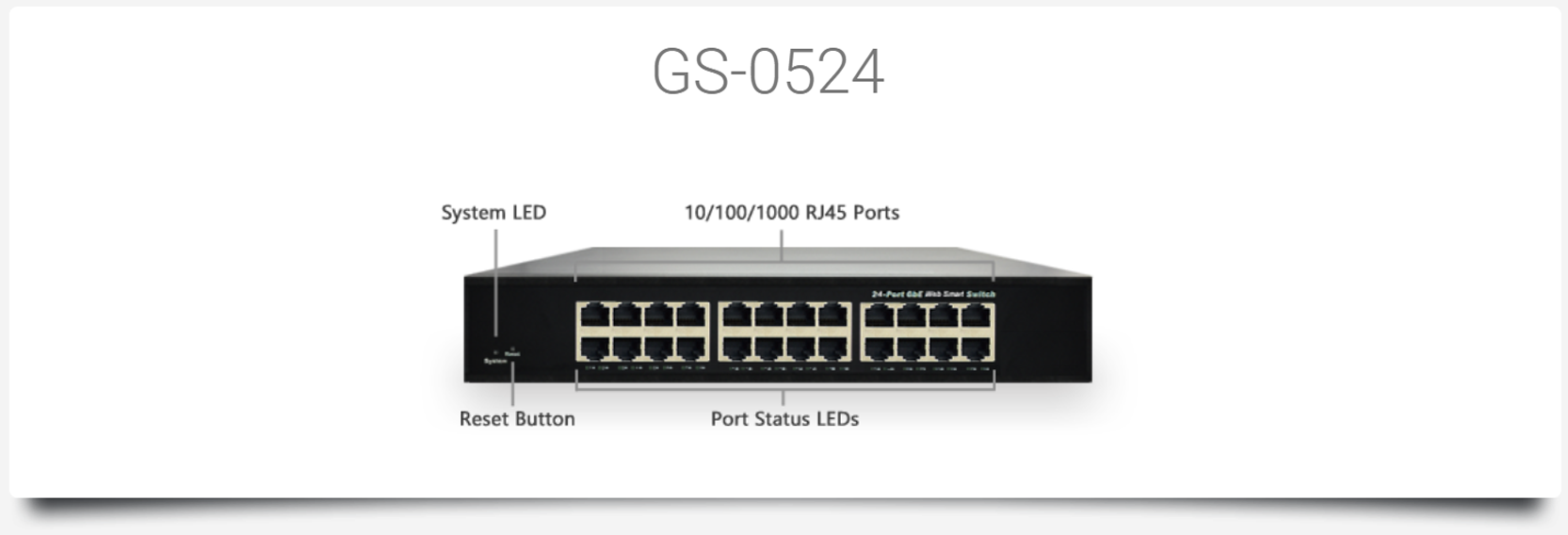

GS-0524 delivers 24 (10M/100M/1G) RJ45 ports. GS-0524 provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0524 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features | Customer Benefits |
---|---|
GbE Interfaces | All interfaces can deliver GbE bandwidth for Enterprise Applications |
Green/Power Saving | Energy-saving capabilities save your money by lower power consumption |
GS-0524 Unmanaged+ GbE Switch
GS-0524 unmanaged+ GbE switch is a plug-and-play Ethernet switch offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
GS-0524 delivers 24 (10M/100M/1G) RJ45 ports. GS-0524 provides high HW performance and environment flexibility for SMBs and Enterprises.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. GS-0524 is ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
Easy to Install Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
Specifications
Port Configuration
Total Ports | RJ45 (10M/100M/1G) | Uplinks (100M/1G/10G) | Console |
---|---|---|---|
24 | 24 | — | — |
Hardware Performance
Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table (K) | Jumbo Frames (Bytes) |
---|---|---|---|
35.712 | 48 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing | <10000 | <3000 |
Dimension Weights Humidity
Dimension (WxHxD) | Weight | Mounting Type | ||
---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | |
280x 44x 166 | 11x 1.7x 6.5 | <2.5 | <5.5 | Desktop, Wall |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Device Management System (DMS) | |
---|---|
Graphical Monitoring | Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page) |
Trouble Shooting | Network diagnostic between master switch and devices |
Unmanaged+ GbE Switches
The GS-0500 and PSGS-0500 series unmanaged+ GbE switches are a plug-and-play Ethernet switches offering easy way to make the transition to Gigabit Ethernet and increase the speed of your network connection. The energy efficient, built to last, and rigorously tested provide the reliability businesses need.
The GS-0500 and PSGS-0500 series consist of 2 non-PoE models which are GS-0526, GS-0524 and GS-0508, and 6 PoE+ models which are PSGS-0526L, PSG-0526F, PSGS-0524L, PSGS-0524F, PSGS-0508NF and PSGS-0508F. The series offer users with various options of port combinations and PoE+ budget, in order to meet different requirements in various applications.
The embedded Device Managed System (DMS) features provides users with the benefits of easy-to-use/configure/install/troubleshoot in the video surveillance, wireless access, and other SMBs and Enterprises applications. The GS-0500 and PSGS-0500 series are ideal to deliver management simplicity, better user experience, and lowest total cost of ownership.
Key Features
- Built in Device Management System (DMS)
- PoE Port configuration and scheduling
- IEEE 802.3af/at Power over Ethernet
- IEEE 802.3az EEE Energy Efficient Ethernet standard for green Ethernet
Benefits
-
Easy to Install, Configure and Troubleshoot by Device Management System
The DMS provides embedded functions to facilitate devices management at anytime and anywhere. Its user-friendly interface helps users to manage devices intuitively.
It supports various IP device types (e.g. PC, IP-phone, IP-camera, WiFi-AP) for end users to enhance manageability and save time/cost during installation/maintenance stages.
-
Lowing Total Cost of Ownership (TCO) with Energy-efficient Design
The switch is designed to help companies to save power needs and reduce TCO by Energy Efficient Ethernet (IEEE 802.3az). It can be used for customers to build a green Ethernet networking environment.
-
Advanced Power over Ethernet Management
The model includes PoE+ options to power IP devices with power-saving features like Power scheduling and PoE configuration.
Specifications
Port Configuration
Model Name | Total Ports | RJ45 10M/100M/1G | Uplinks 100M/1G | Console | Available PoE Power |
---|---|---|---|---|---|
GS-0526 | 26 | 24 | 2 SFP | -- | -- |
GS-0524 | 24 | 24 | -- | -- | -- |
GS-0508 | 8 | 8 | -- | -- | -- |
PSGS-0526L | 26 | 24 | 2 SFP | -- | 185W |
PSGS-0526F | 26 | 24 | 2 SFP | 370W | |
PSGS-0524L | 24 | 24 | -- | -- | 185W |
PSGS-0524F | 24 | 24 | -- | -- | 370W |
PSGS-0508NF | 8 | 8 | -- | -- | 60W |
PSGS-0508F | 8 | 8 | -- | -- | 130W |
Hardware Performance
Model Name | Forwarding Capacity (Mpps) | Switching Capacity (Gbps) | Mac Table(K) | Jumbo Frames(Bytes) |
---|---|---|---|---|
GS-0526 | 38.688 | 52 | 8 | 9216 |
GS-0524 | 35.712 | 48 | 8 | 9216 |
GS-0508 | 11.904 | 16 | 8 | 9216 |
PSGS-0526L | 38.7 | 52 | 8 | 9216 |
PSGS-0526F | 38.7 | 52 | 8 | 9216 |
PSGS-0524L | 35.712 | 48 | 8 | 9216 |
PSGS-0524F | 35.712 | 48 | 8 | 9216 |
PSGS-0508NF | 11.904 | 16 | 8 | 9216 |
PSGS-0508F | 11.904 | 16 | 8 | 9216 |
Environmental Range
Operating Temperature | Storage Temperature | Operating Humidity | Altitude | |||
---|---|---|---|---|---|---|
Fahrenheit | Centigrade | Fahrenheit | Centigrade | Feet | Meters | |
32 to 122 | 0 to 50 | -4 to 158 | -20 to 70 | 10% to 90% non-condensing |
<10000 | <3000 |
Dimension, Weights, Mounting
Model Name | Dimension (WxHxD) | Weight | Mounting Type | ||
---|---|---|---|---|---|
Millimeter | Inches | Kilograms | Pounds | ||
GS-0526 | 280x44x166 | 11x1.7x6.5 | <2.5 | <5.5 | Desktop, Wall |
GS-0524 | 280x44x166 | 11x1.7x6.5 | <2.5 | <5.5 | Desktop, Wall |
GS-0508 | 220x44x134 | 8.6x1.7x5.3 | <1.5 | <3.3 | Desktop, Wall |
PSGS-0526L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-0526F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-0524L | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-0524F | 442x44x211 | 17.4x1.7x8.3 | <3 | <6.6 | Desktop, Rack |
PSGS-0508NF | 220x44x134 | 8.6x1.7x5.3 | <2 | <4.4 | Desktop, Wall |
PSGS-0508F | 220x44x242 | 8.6x1.7x9.5 | <2 | <4.4 | Desktop, Wall |
Voltage and Frequency
AC Input Voltage and Frequency | |
---|---|
Voltage | Frequency |
100-240 VAC | 50~60 Hz |
PoE Power Capacity
Model Name | Available PoE Power | Number of Ports That Support PoE(15.4W) and PoE+(30.0W) |
---|---|---|
PSGS-0526L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-0526F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-0524L | 185W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-0524F | 370W | Each of port 1 - 24 support PoE/ PoE+ within available PoE Power |
PSGS-0508NF | 60W | Each of port 1 - 4 support PoE/ PoE+ within available PoE Power |
PSGS-0508F | 130W | Each of port 1 - 8 support PoE/ PoE+ within available PoE Power |
Certification
Electromagnetic Emissions (EMC) |
---|
CE, FCC Part 15 Class A |
Software Features
Device Management System (DMS) | |
---|---|
Graphical Monitoring | Topology view: Support intuitive way to configure and manage switches and devices with visual relations (One page) |
Trouble Shooting | Network diagnostic between master switch and devices |
